Tomei 60mm Turbo Suction Hose - Mitsubishi Lancer EVO X CZ4A 4B11 for Stock Turbo
$275.50
Sale price
$275.50
Regular price
$290.00
Skip to product information
Tomei 60mm Turbo Suction Hose - Mitsubishi Lancer EVO X CZ4A 4B11 for Stock Turbo
$275.50
Sale price
$275.50
Regular price
$290.00

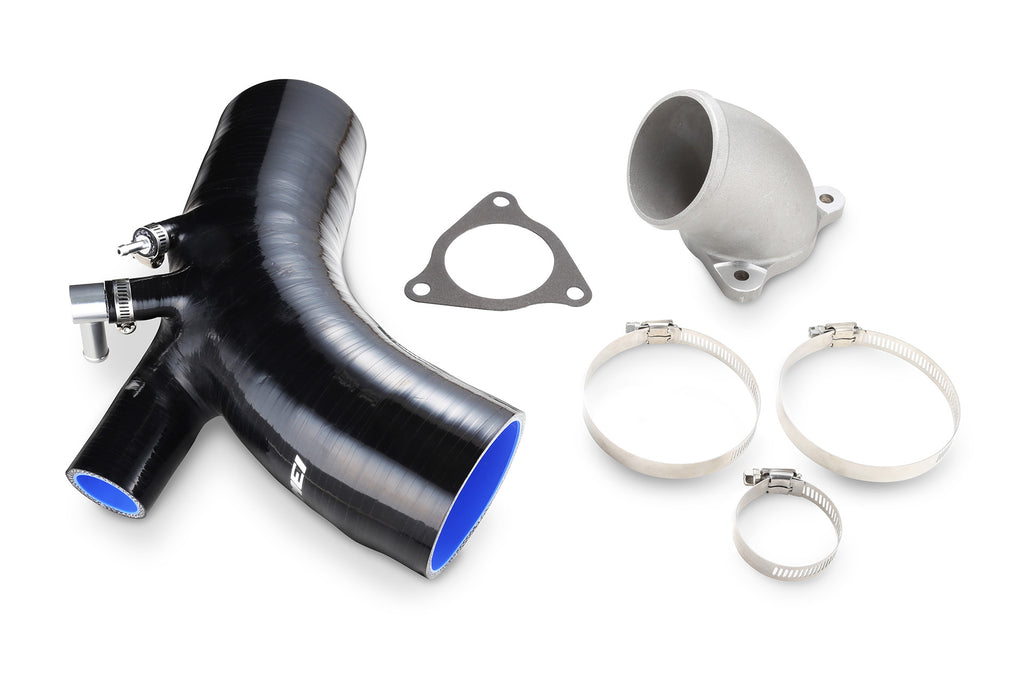

TB301A-MT02A - Tomei 60mm Turbo Suction Hose - Mitsubishi Lancer EVO X CZ4A 4B11 for Stock Turbo
MAXIMUM INTAKE EFFICIENCY
Dramatically improves power, torque and response!
DYNO TEST

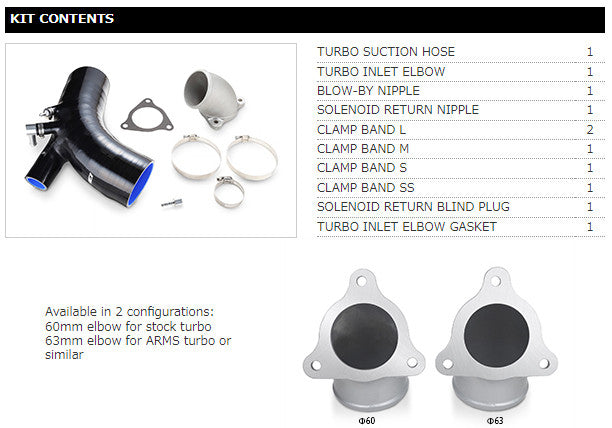

KIT CONTENTS
| TURBO SUCTION HOSE | 1 |
| TURBO SUCTION HOSE | 1 |
| BLOW-BY NIPPLE | 1 |
| SOLENOID RETURN NIPPLE | 1 |
| CLAMP BAND L | 2 |
| CLAMP BAND M | 1 |
| CLAMP BAND S | 1 |
| CLAMP BAND SS | 1 |
| SOLENOID RETURN BLIND PLUG | 1 |
| TURBO INLET ELBOW GASKET | 1 |
Available in 2 configurations:
60mm elbow for stock turbo
63mm elbow for ARMS turbo or similar

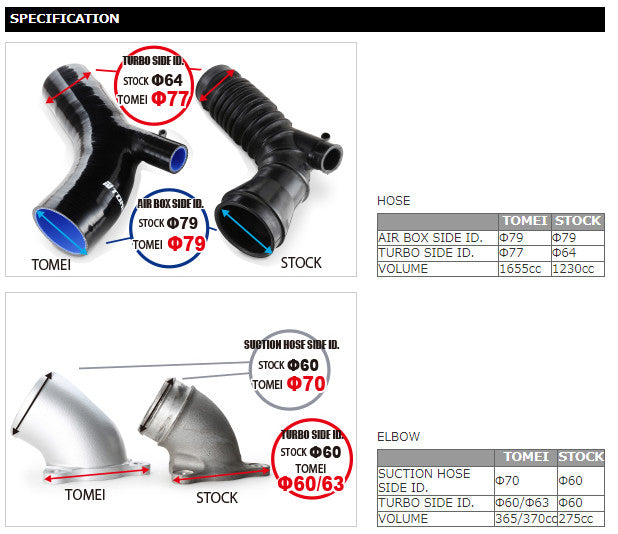

SPECIFICATION
HOSE
| TOMEI | OEM | |
| AIR BOX SIDE ID. | Φ79 | Φ79 |
| TURBO SIDE ID. | Φ77 | Φ64 |
| VOLUME | 1655cc | 1230cc |
ELBOW
| TOMEI | OEM | |
| SUCTION HOSE SIDE ID. | Φ70 | Φ60 |
| TURBO SIDE ID. | Φ60/Φ63 | Φ60 |
| VOLUME | 365/370cc | 275cc |

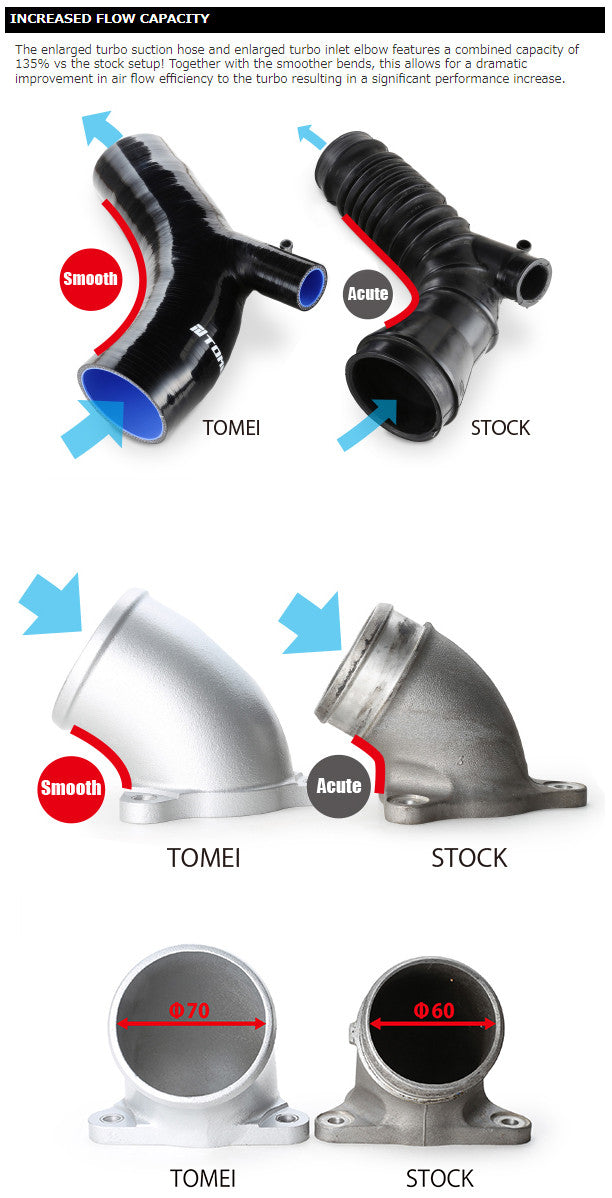

INCREASED FLOW CAPACITY
The enlarged turbo suction hose and enlarged turbo inlet elbow features a combined capacity of 135% vs the stock setup!
Together with the smoother bends, this allows for a dramatic improvement in air flow efficiency to the turbo resulting in a significant performance increase.
MINIMAL FLOW RESISTANCE
Eliminating the accordion-style design found on the stock unit greatly reduces the build up of turbulence for a smoother, more efficient flow of air to the turbo. In addition, the various connecting tubes have also been streamlined to further improve the hose's flow efficiency.
INCLUDES BLIND PLUG FOR SOLENOID RETURN
Each kit includes a blind plug to use in place of the boost solenoid return nipple when using devices such as an aftermarket boost controller/solenoid.
COMMON 'QUICK FIX'
FLEX RESISTANT, HIGHLY DURABLE MATERIALS/
CONSTRUCTION
The hoses are made using heat resistant, highly durable, fiber reinforced 4 ply silicon, infused with steel wires for maximum durability.
Not only does this prevent the hose from collapsing/flexing under load, it also improves it's longevity as well, allowing it to sustain a high level of performance over time.
COMPATIBLE WITH SST MODELS
This kit is also compatible with SST models despite being significantly larger in capacity.
(similar products from some manufacturers will interfere with the SST gear box)
