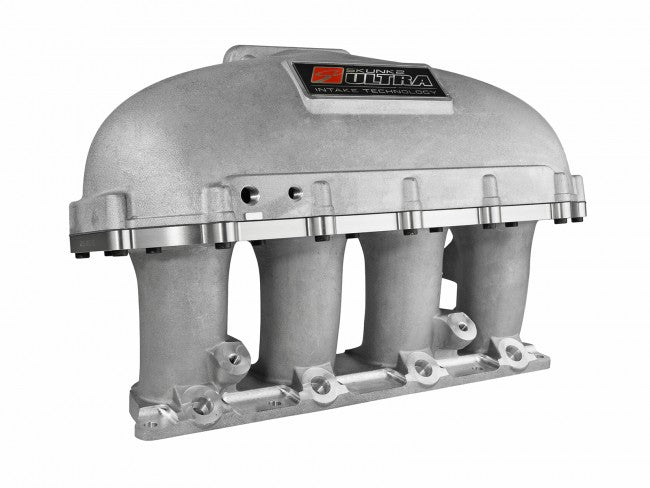

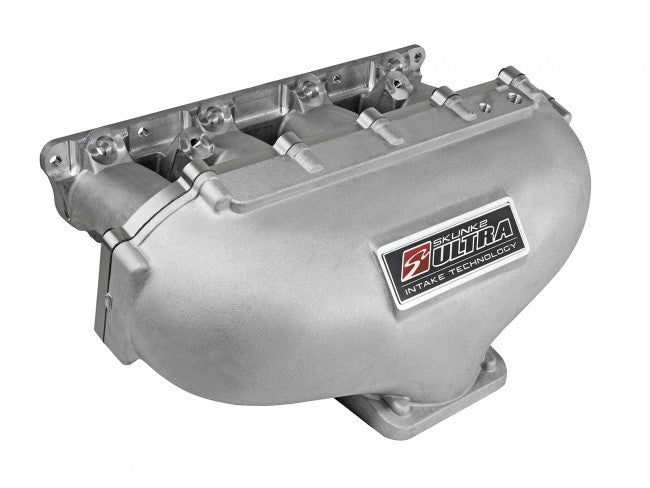

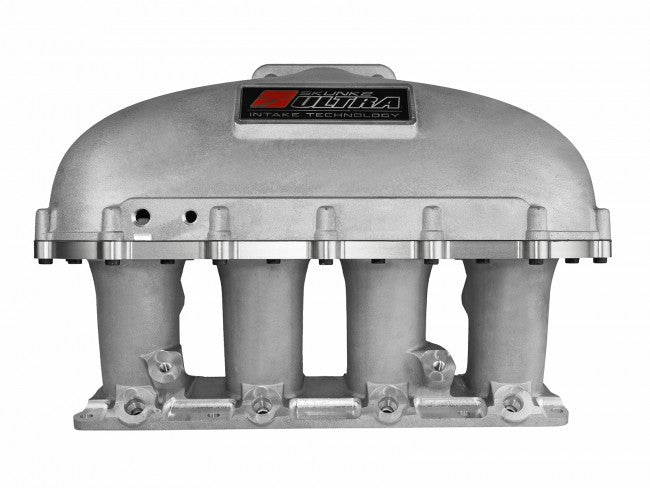

Skunk2 Racing Ultra Race Centerfeed Intake Manifold - K20A2 Style

307-05-8080 - Skunk2 Racing Ultra Race Centerfeed Intake Manifold - K20A2 Style

Skunk2 Racing is proud to announce the next generation of high performance intake manifolds for the '02-'05 Civic Si and '02-'06 RSX/ RSX Type S, and/ or any swap using the K20A/ K20A2/ K20Z1/ K24A1 engines or cylinder heads has finally arrived!

The much anticipated Ultra Race Centerfeed Intake Manifold is the result of years worth of R&D and building upon the performance legacy of our Pro Series Intake Manifold. Using the latest in CFD (Computational Fluid Dynamics) software; Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. The result is a design that is less restrictive, yielding both torque and power gains well over many of the competitors.

Features

Modular 3pc. Design w/ Removable Plenum
5.0L Plenum Volume**

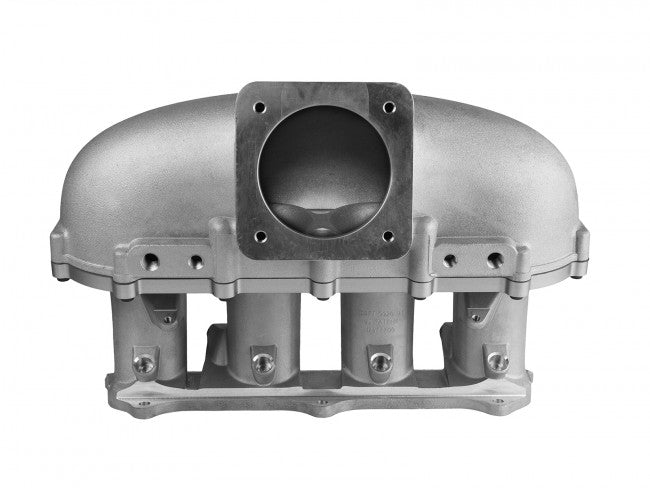

90mm Throttle Body Flange - Std. 5.0L Ford Pattern
6.0” Tapered Hi-Velocity Runners
Raised 87mm Velocity Stacks
Generously Cast Runner Walls for Porting
Provisions Secondary Fuel Rail & Injectors
3 x 1/8” NPT and 3 x 1/4” NPT Accessory Ports

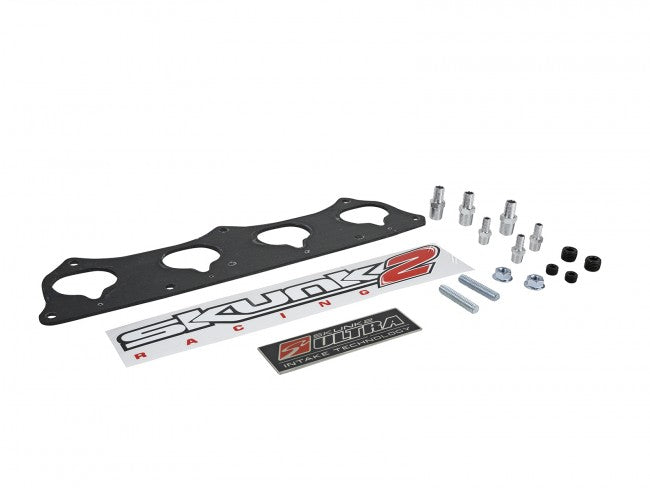

Hi-Grade Mounting Hardware
Thermal Gasket Included
Fits MOST Popular Chassis Configurations - Not Just Race Cars - See Notes

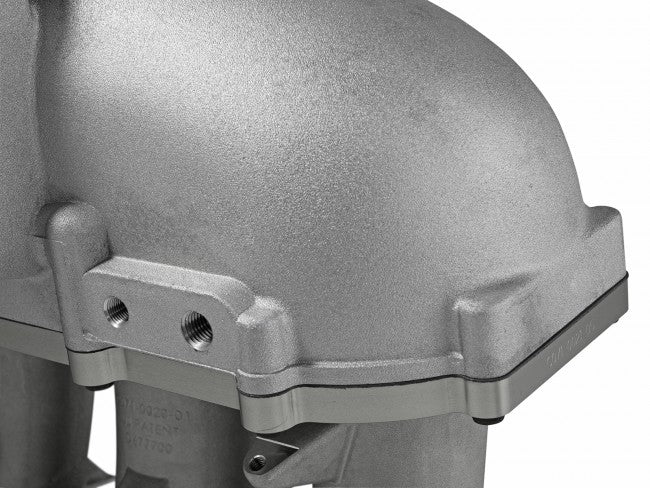

**Optional Billet Aluminum Plenum Spacers Available in 1L or 2L Sizes

US Patent: D677700

Installation and compatibility

Intended for racing, not street use. Uses the early PRB/PRC mounting pattern; RBC/RBB heads require an aftermarket water bypass adapter and appropriate throttle body or adapter. Modification is required with the factory idler pulley and water-pump housing.

Manufacturer specifications and fitment
