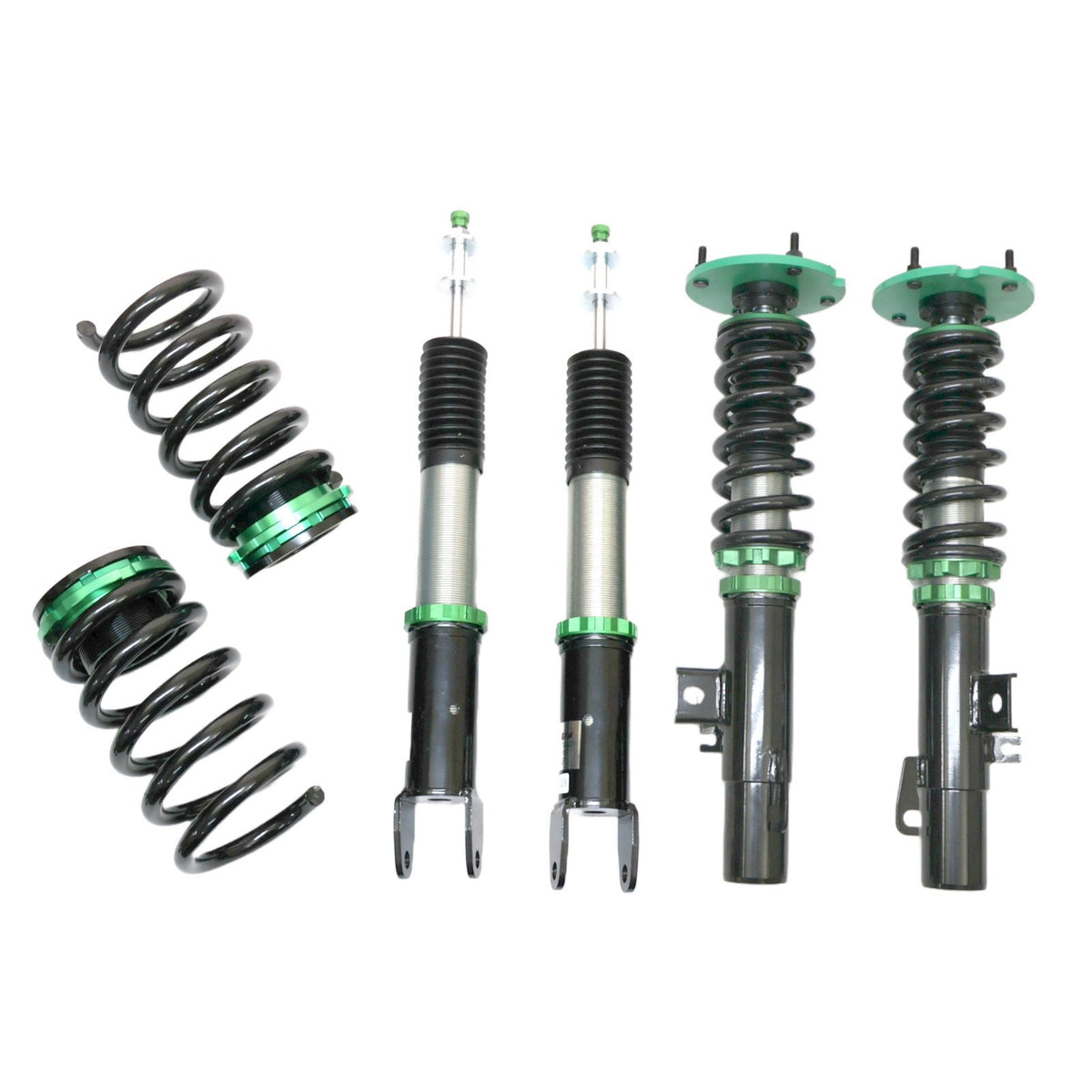

Rev9 R9-HS2-217_3 Hyper-Street II coilovers for Lincoln MKS (D3) 2009-2012, gallery view 1

Rev9 Hyper-Street II Coilovers - Lincoln MKS (D3) 2009-2012

Name: Rev9 Hyper-Street II Coilovers - Lincoln MKS (D3) 2009-2012
Brand: Rev9 Power
Price: 532.00 USD
Availability: InStock

$532.00

$532.00 $760.00

R9-HS2-217_3 - Rev9 Hyper-Street II Coilovers - Lincoln MKS (D3) 2009-2012

Rev9 Hyper-Street II coilovers combine monotube dampers, 32-position rebound adjustment and full-length height adjustment for a street-focused suspension setup that can be tuned to the vehicle and driver. Independent spring preload and overall-length adjustment allow ride height to be changed without shortening available damper travel.

Part Number: R9-HS2-217_3

Key Features

Monotube dampers with increased oil and gas capacity
32-position rebound damping adjustment
Full-length ride-height adjustment
Independent spring preload adjustment
Steel-alloy construction with aluminum hardware
Front pillow-ball top mounts
Rear setup reuses the factory top mounts

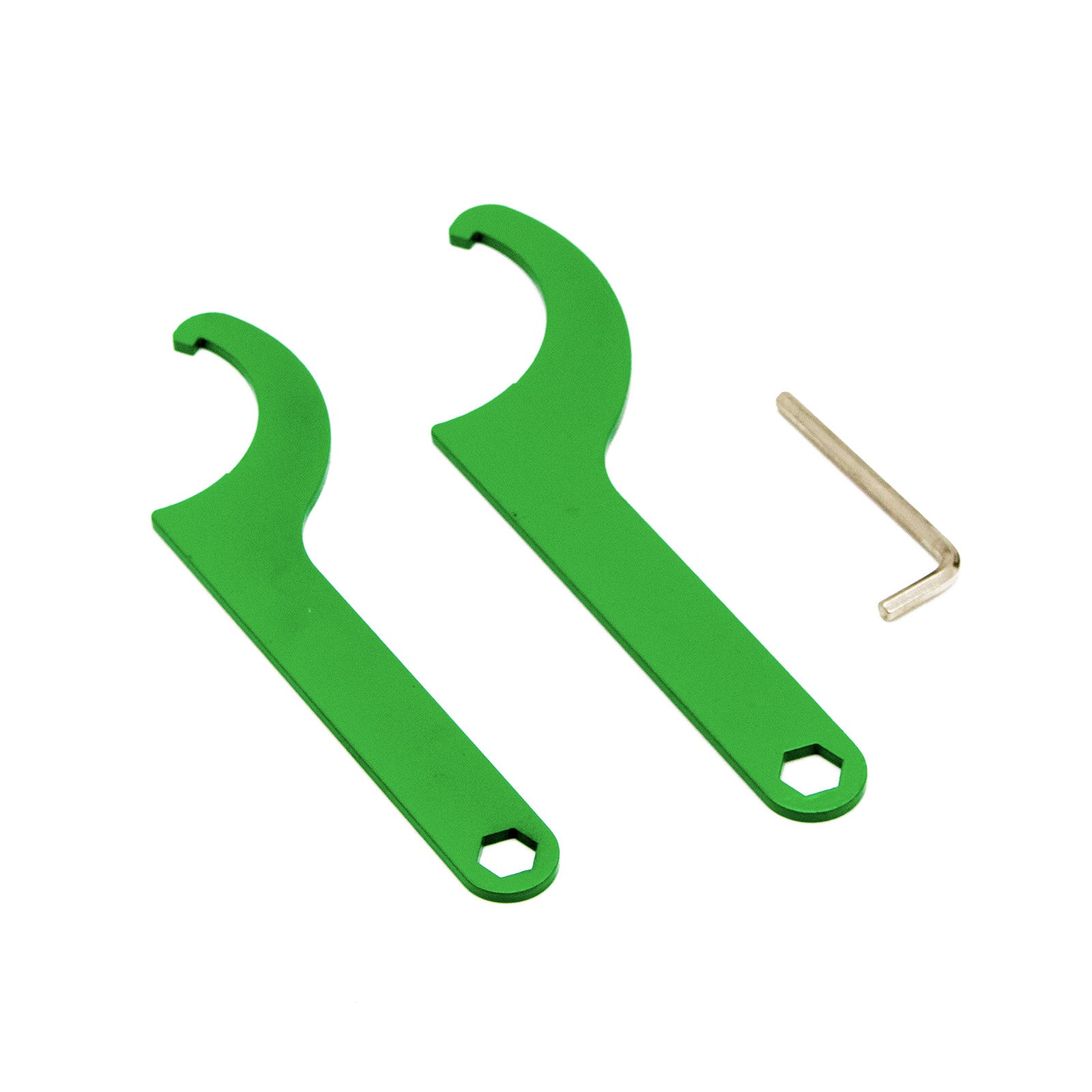

Spanner wrench set included in the gallery package

Vehicle Fitment

Lincoln MKS (D3) 2009-2012 — all trims, subject to the application note below where applicable.

Application note: Models with CCD may illuminate a service light. Rev9 states vehicle operation is unaffected; removing the CCD option from the ECU with FORScan removes the light.

Specifications

Specification	Front	Rear
Top mount	Pillow ball type	Reuse factory mount
Spring rate	10 kg/mm (560 lb/in)	14 kg/mm (784 lb/in)
Spring length	200 mm (7.87 in)	220 mm (8.66 in)
Spring inner diameter	62 mm (2.44 in)	88–97 mm (3.46–3.82 in)
Damping adjustment	32 levels
Height adjustment	Yes, full-length adjustment

Installation Notes

Professional installation is strongly recommended. A four-wheel alignment is required after installation. Verify suspension clearance, fastener torque, spring preload and ride height before driving. Follow the manufacturer's coilover user guide.
