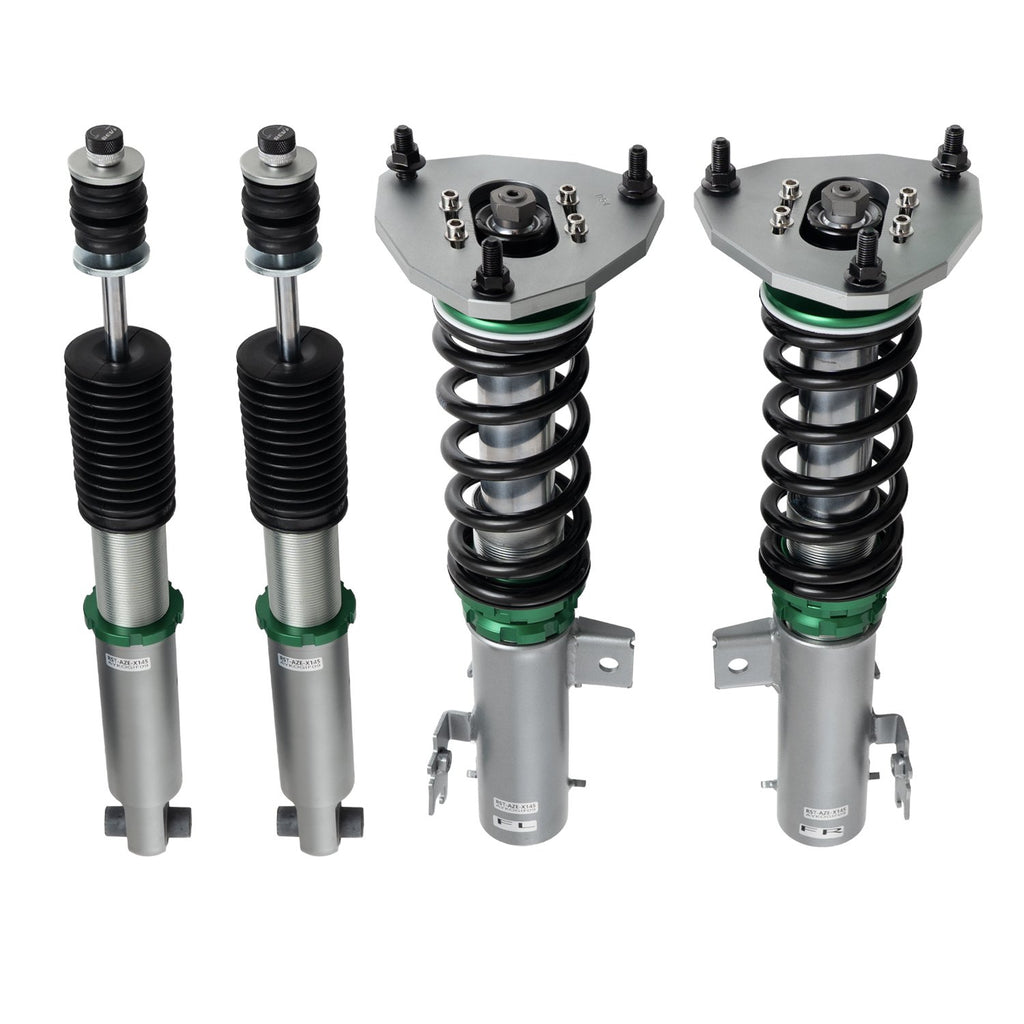

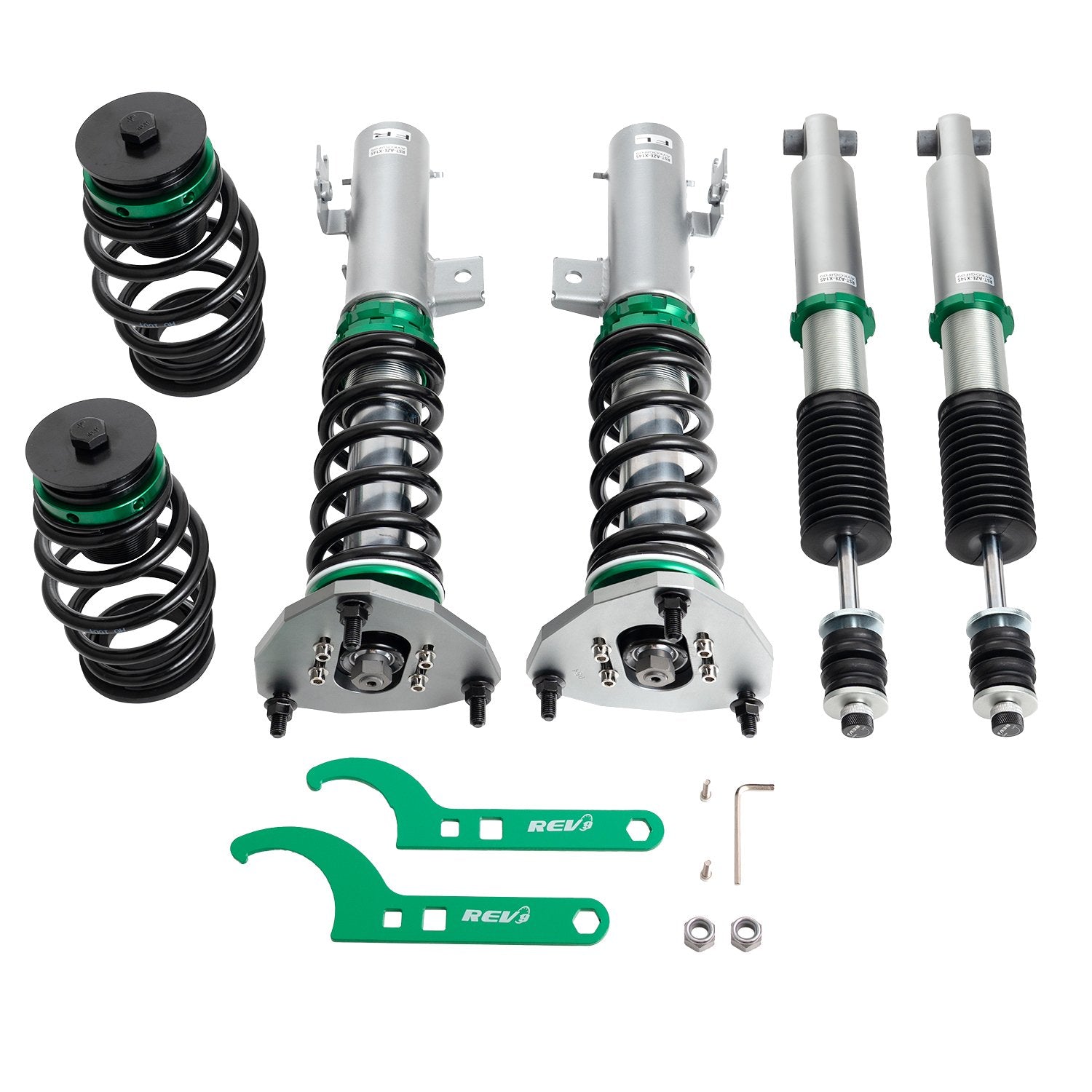

Rev9 Hyper-Street 3 Coilovers - Toyota Prius V (ZVW41) 2012-18
$891.00
Sale price
$891.00
Regular price
$990.00

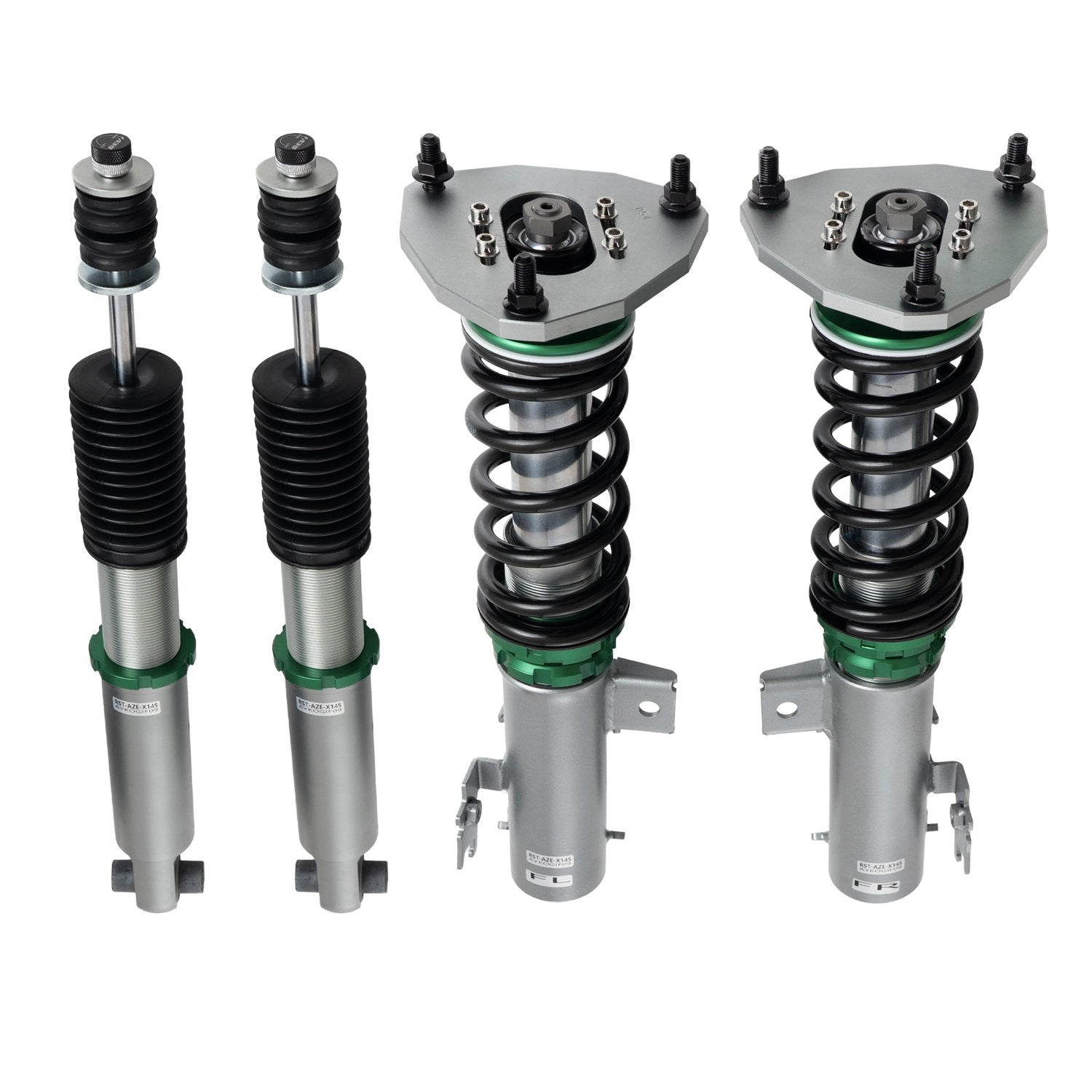

RST-AZE-X145_4 — Rev9 Hyper-Street 3 Coilovers - Toyota Prius V (ZVW41) 2012-18
Rev9 Hyper-Street 3 coilovers combine application-specific springs with adjustable mono-tube dampers and inverted shock technology where specified to improve control and ride quality on lowered vehicles.
Part Number: RST-AZE-X145_4
Key Features

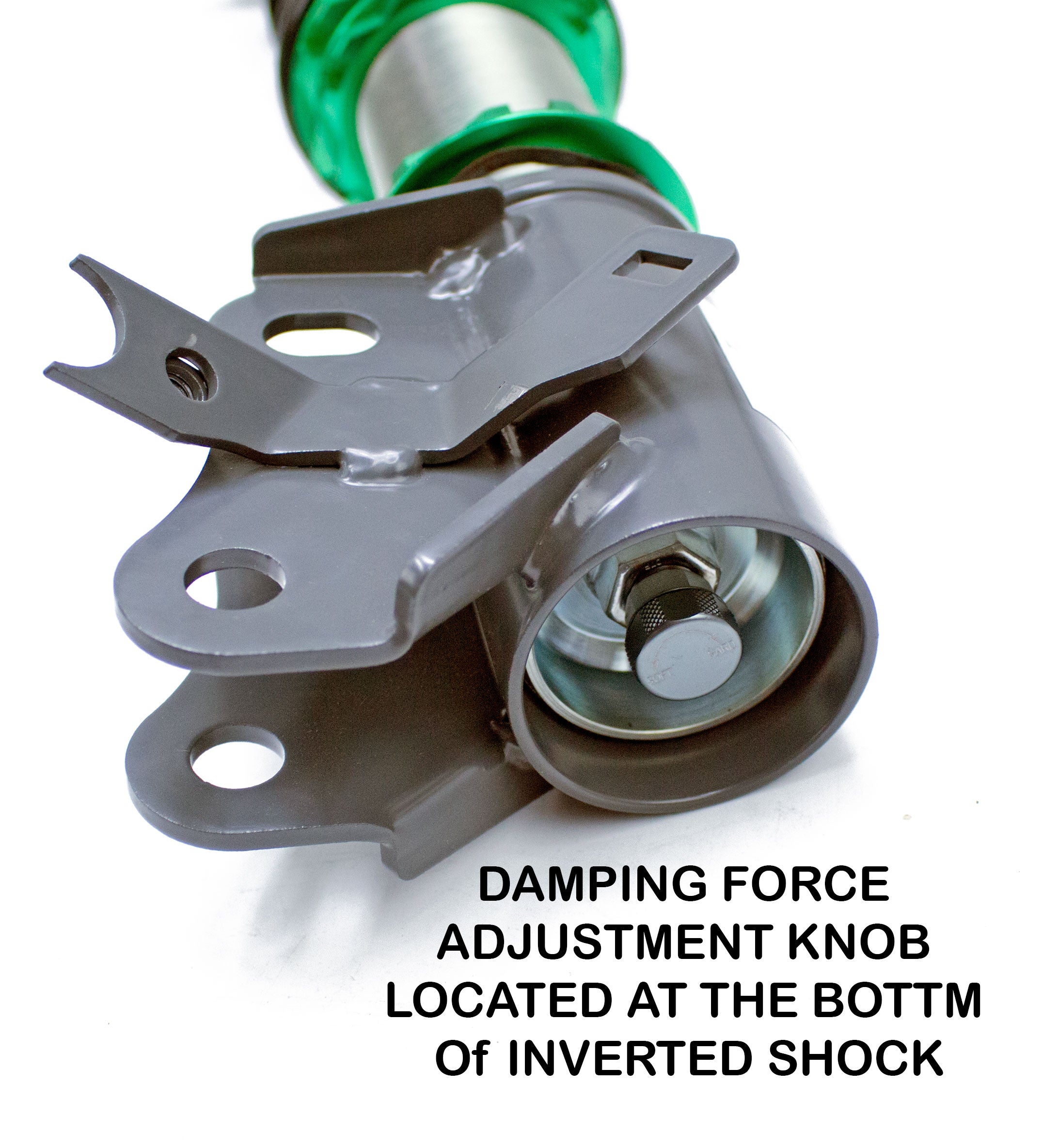

- 32-level damping adjustment from soft to firm
- Height-adjustable coilover design
- Inverted mono-tube shock technology where specified

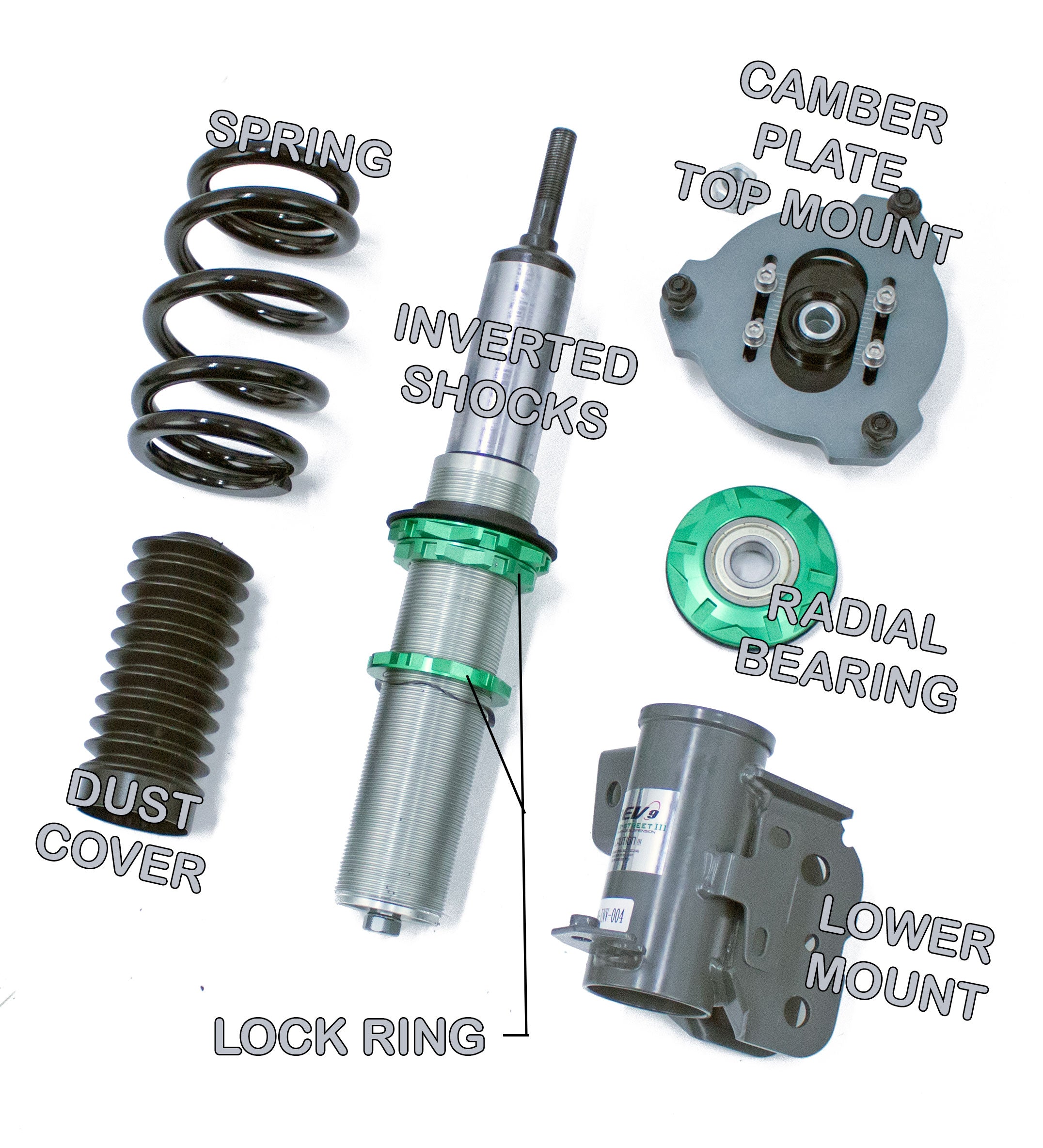

- Application-specific spring rates and top mounts
- Designed to reduce body roll and improve handling response
Vehicle Fitment
Toyota Prius V (ZVW41) 2012-18
Specifications
| Specification | Front | Rear |
|---|---|---|

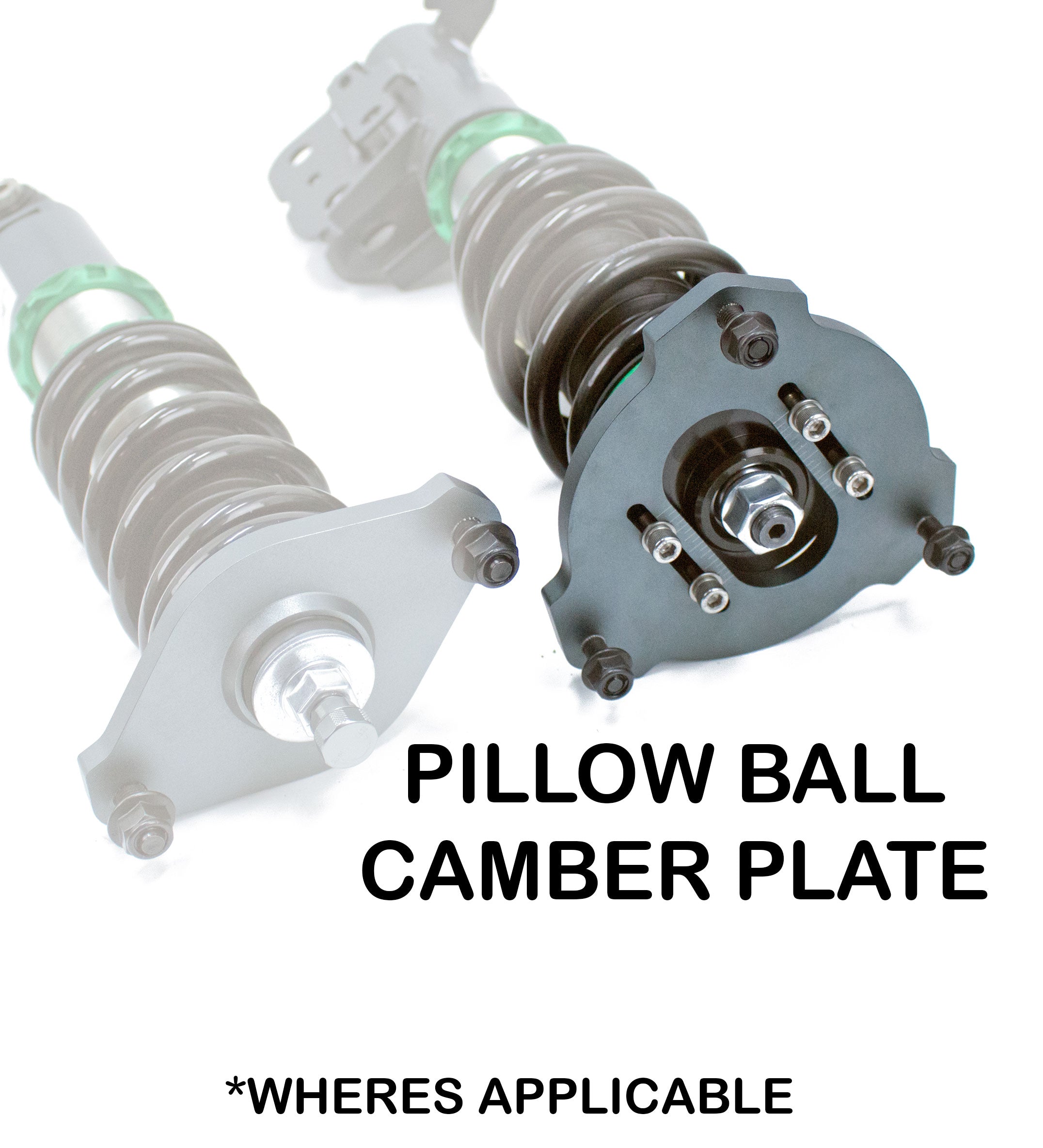

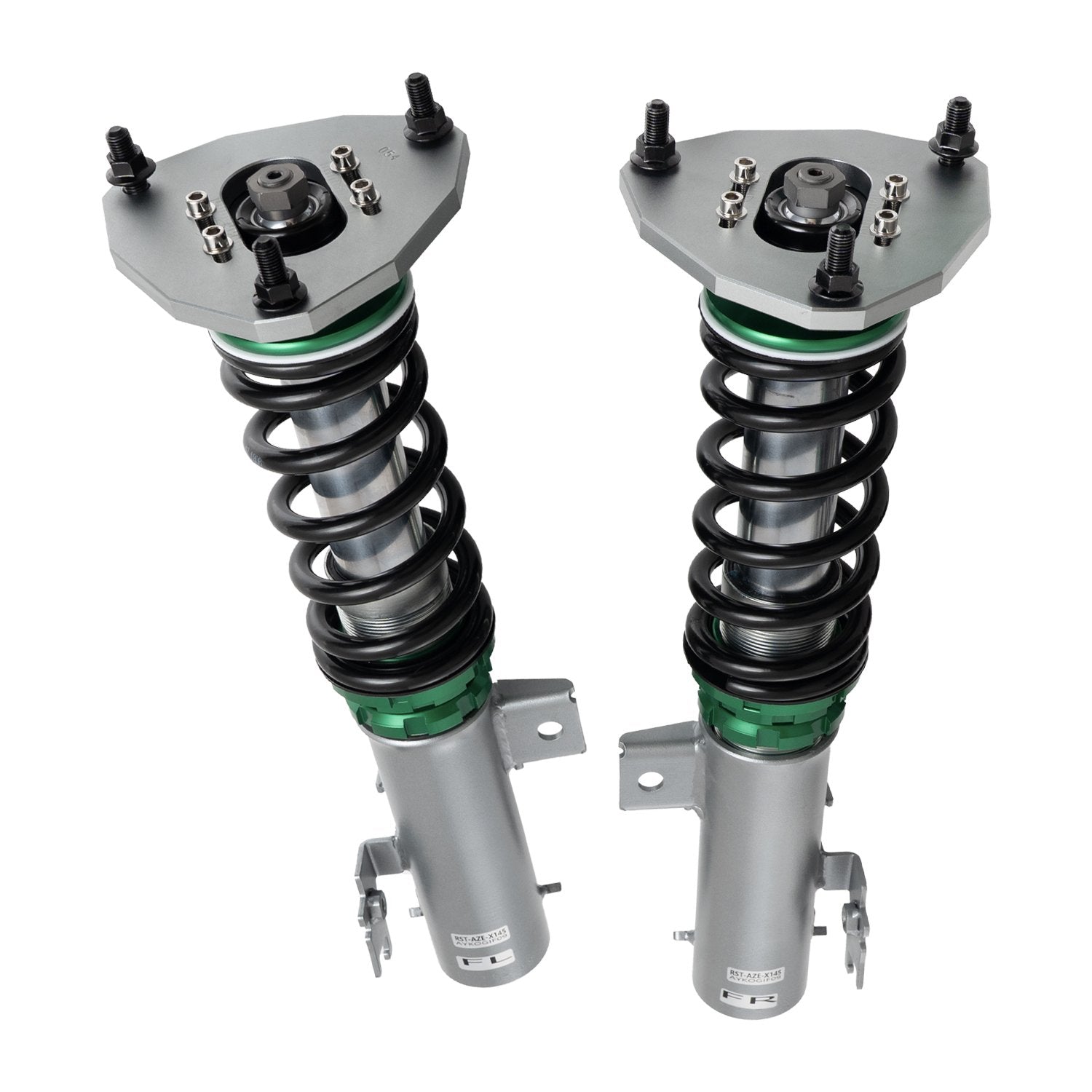

| Top Mount | Yes, Camber Plate with Pillow Ball | Yes, Standard Type |
| Spring Rate | 6 kg/mm (336 lbs/inch) | 4 kg/mm (224 lbs/inch) |
| Spring Length | 180 mm (7.09 inch) | 160 mm (6.3 inch) |
| Spring Inner Diameter | 62 mm (2.44 inch) | 62 mm (2.44 inch) |

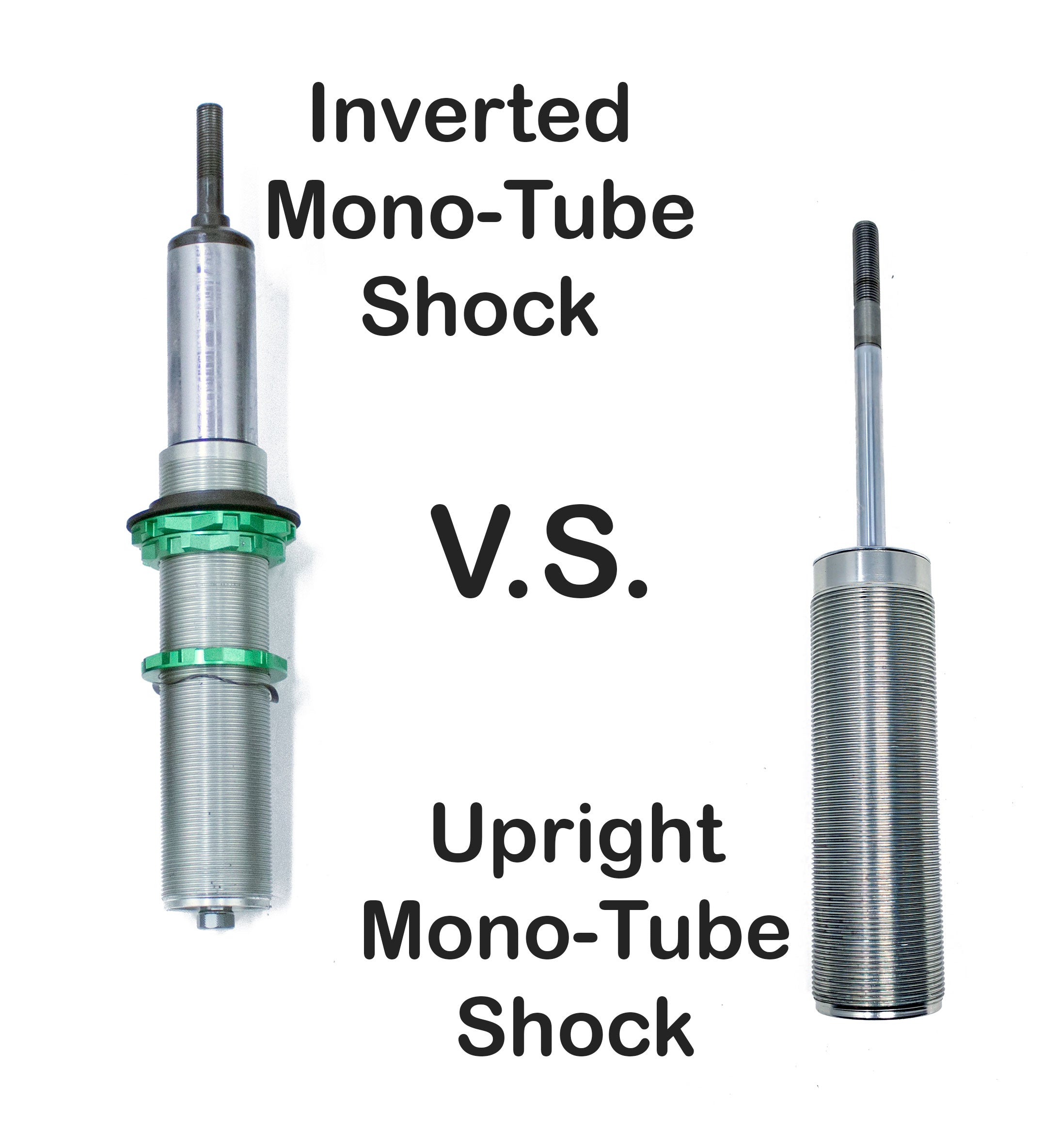

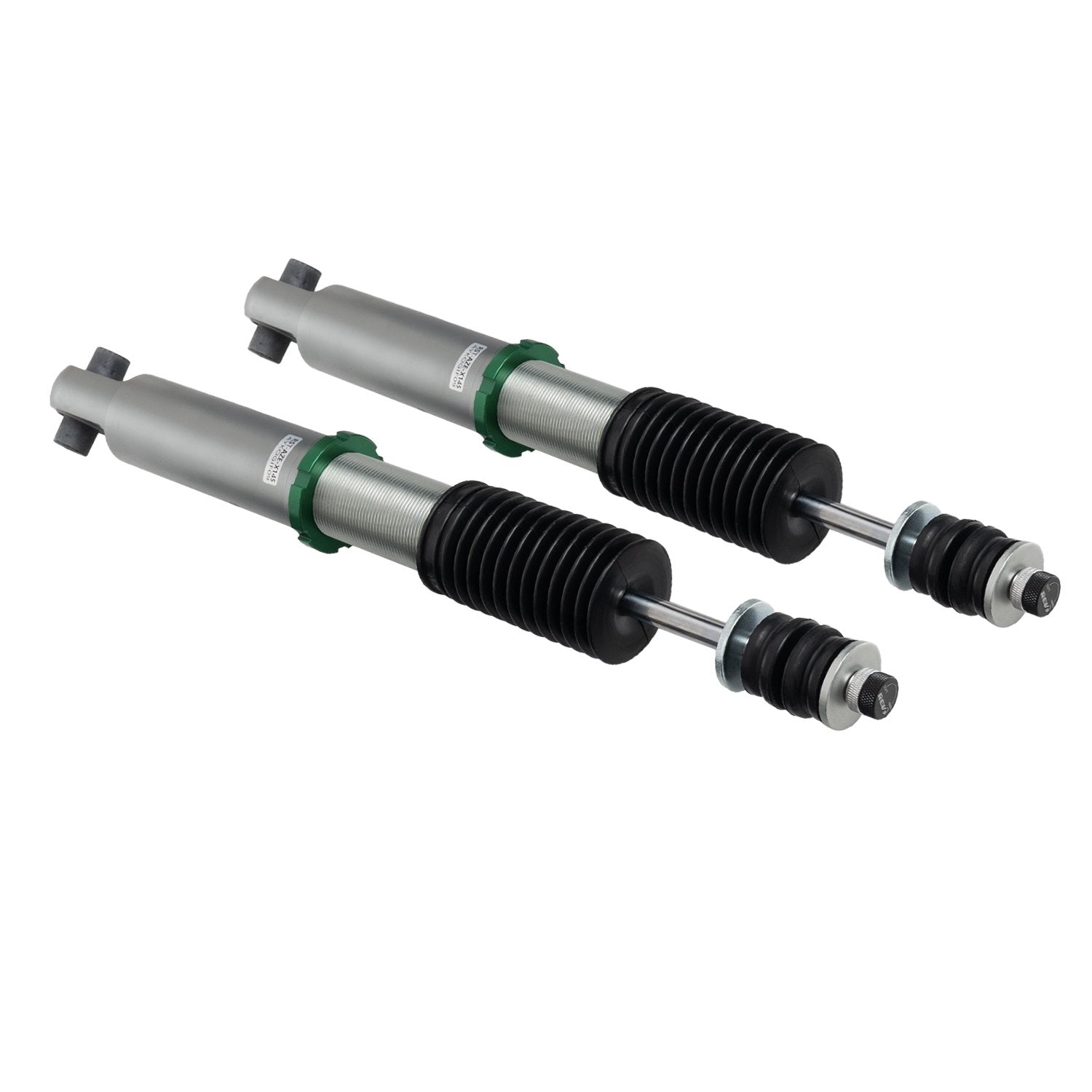

| Shock Type | Inverted Mono-Tube | Standard Mono-Tube |
| Damping Levels | 32-Level |
|---|---|
| Height Adjustment | Yes |
Installation Notes
Models with factory electronic shocks require an EDC cancellation kit or software coding (OBDeleven) to turn off the service light.
Professional installation is recommended. Perform a four-wheel alignment after installation and after the suspension has settled.
