20947 - Moroso Front Sump Road Race Baffle Steel Oil Pan - Toyota Supra 1JZ 2JZ
Moroso Front Sump JZ oil pan is 4" deep and designed to be used with the included oil pick up. OEM pick ups from shallower JZX-style pans (around 3" deep) are not recommended.
Description
Steel, Wet Sump, 4" Deep, 7-9/16" Long, 16" Wide, 6 Quart Capacity (Plus Filter)
Engine Applications: Toyota 1JZ-GE/1JZ-GTE & 2JZ-GE/2JZ-GTE, Dart 2JZ Iron Eagle, etc.
Fits; Most Toyota JZ-Equipped Chassis Requiring Front Sump (Other applications check dimensions for fitment)

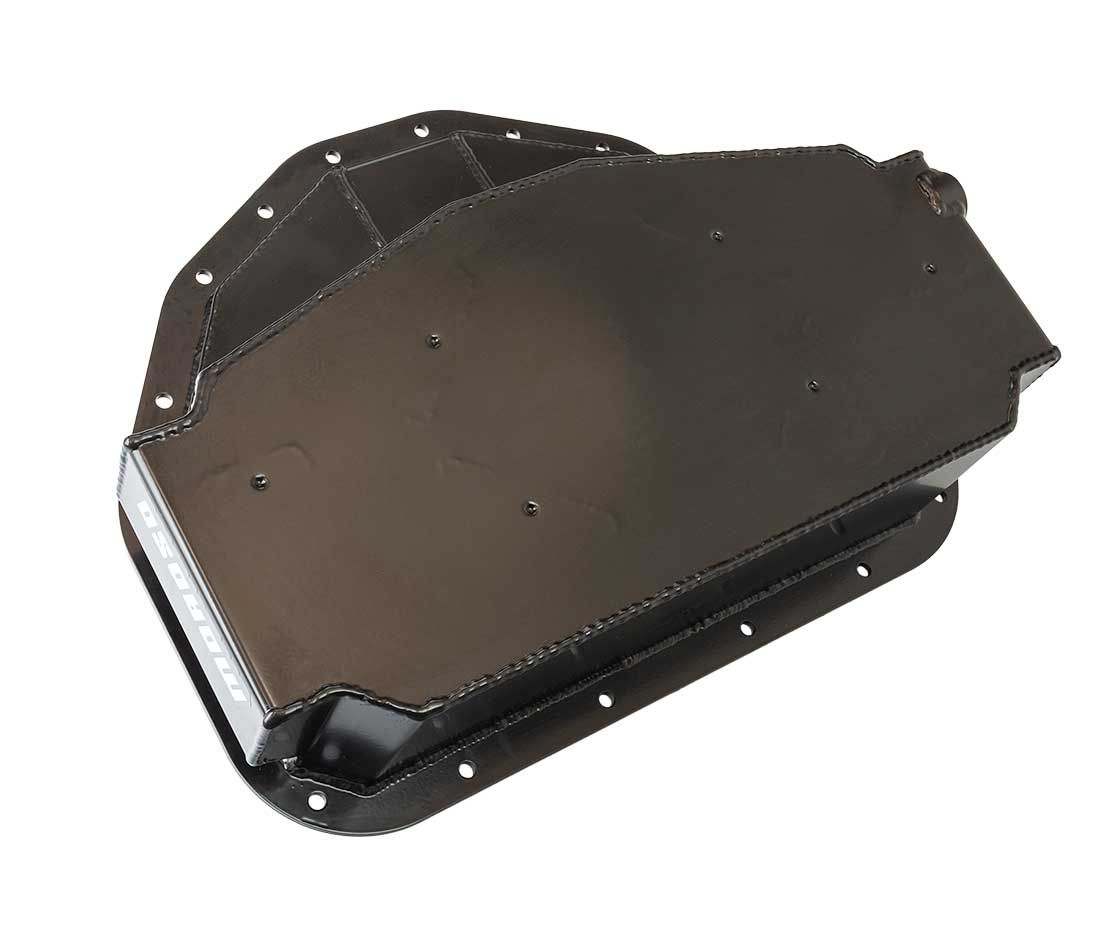

- Fully fabricated steel lower oil pan with laser cut rail

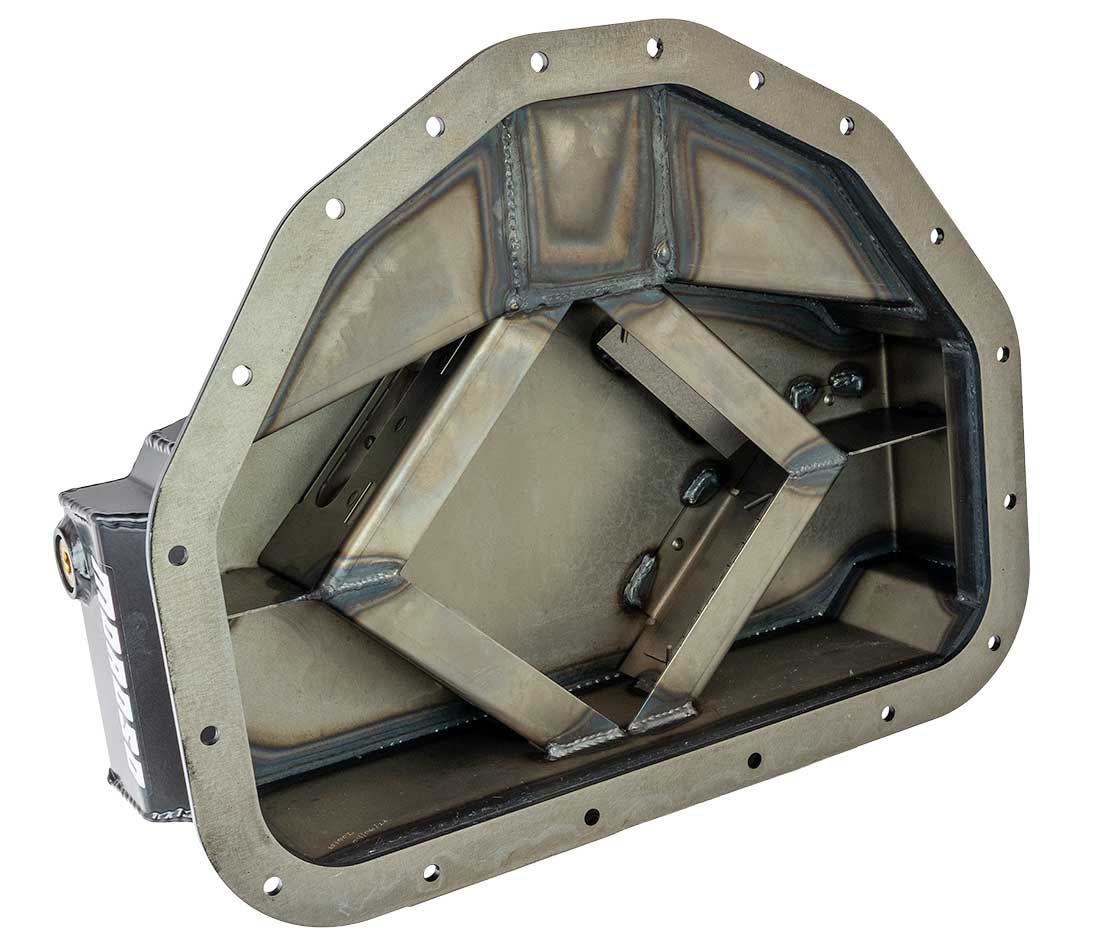

- Four integrated trap doors for superior oil control

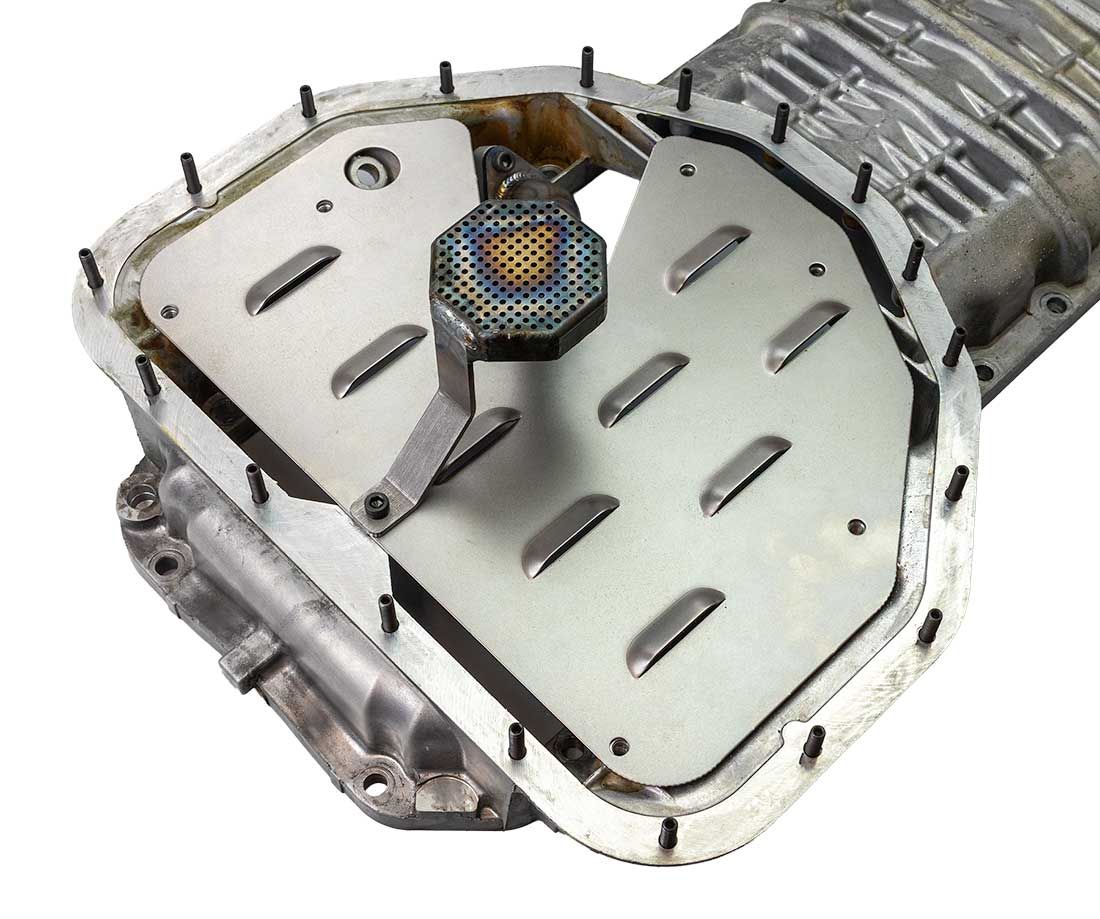

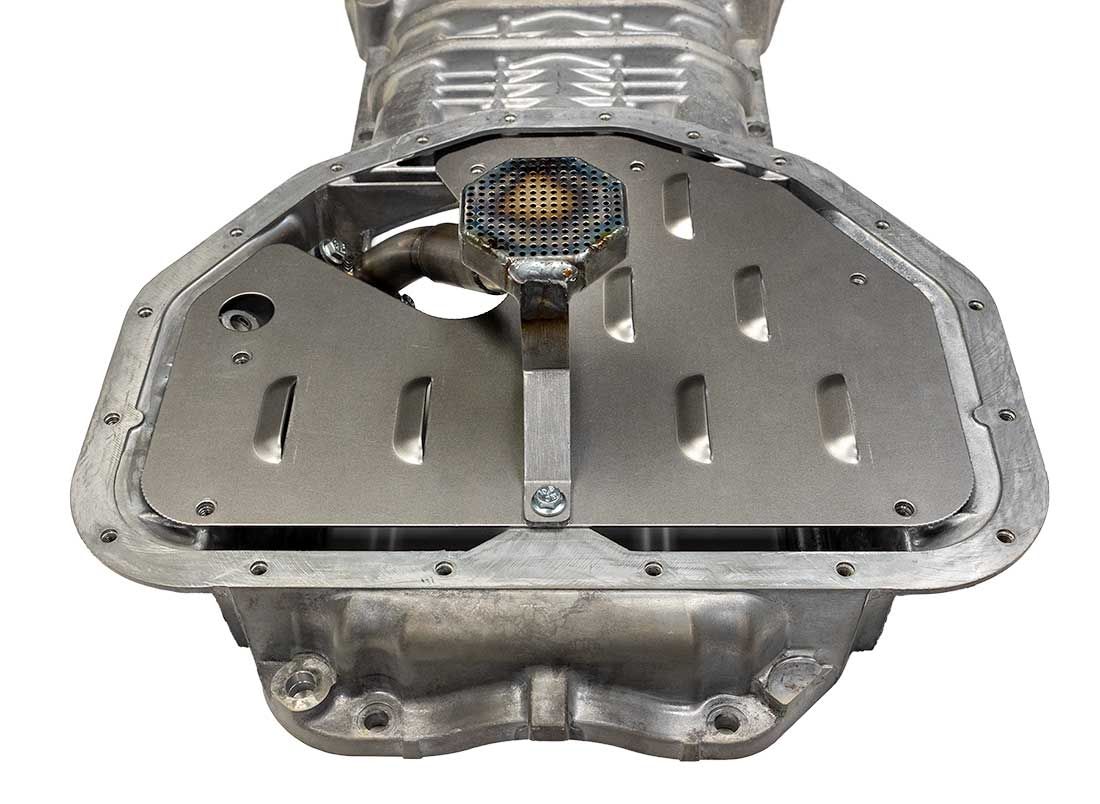

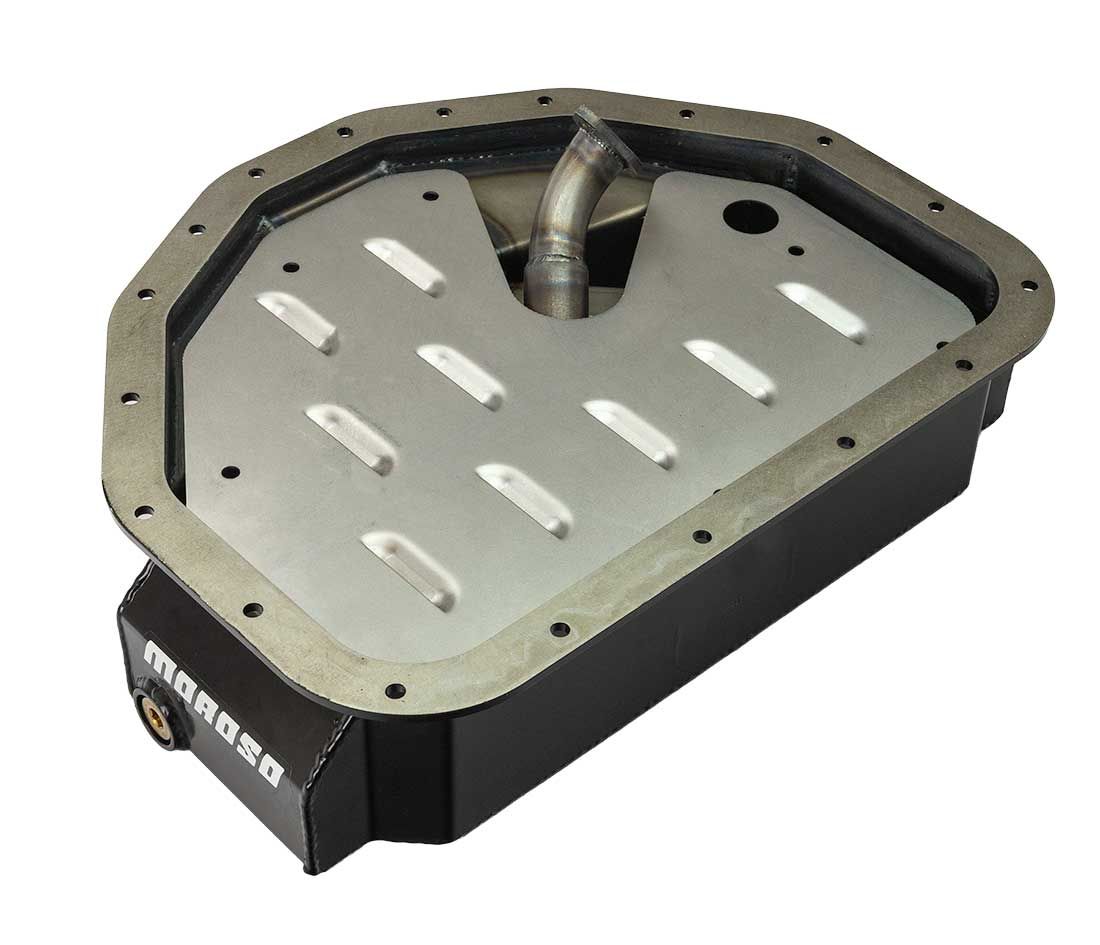

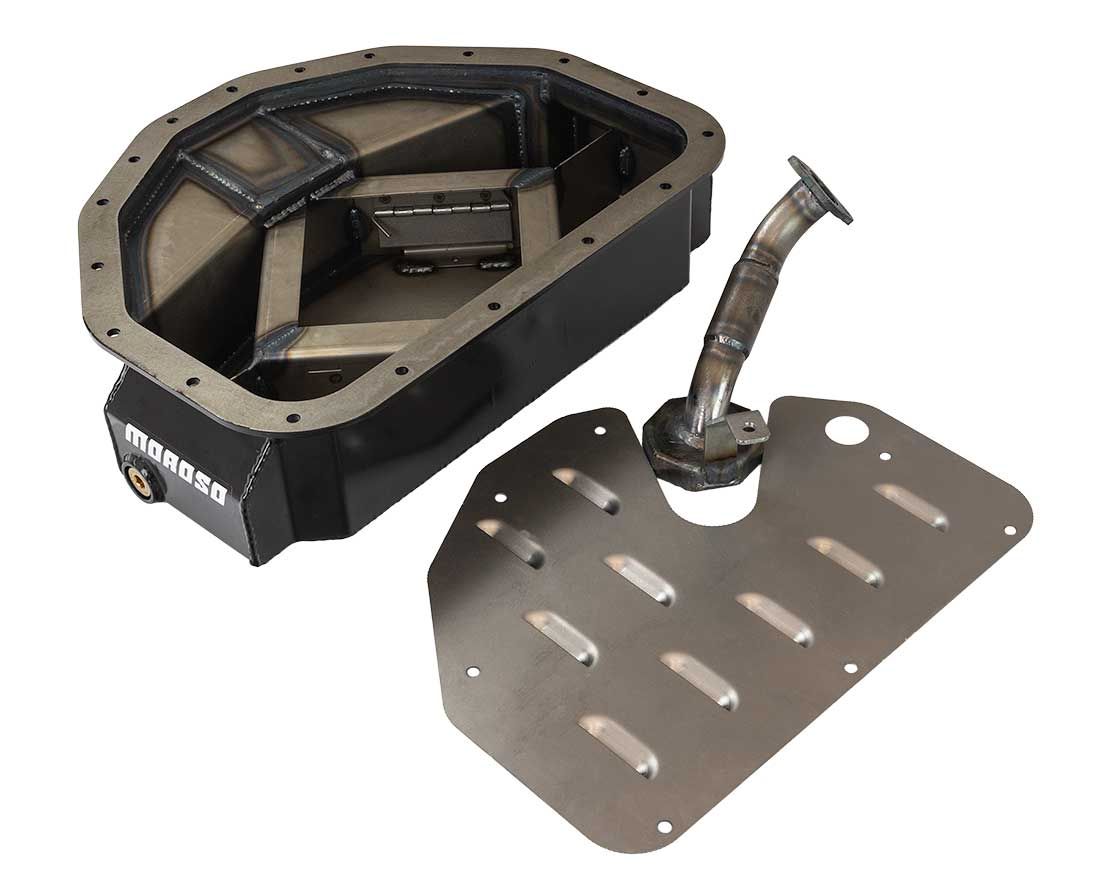

- Includes heavy duty high flow pick up* and louvered anti-slosh baffle
- Compatible with OEM Toyota cast upper pans
- Black powder coat finish by Moroso Powder Coating

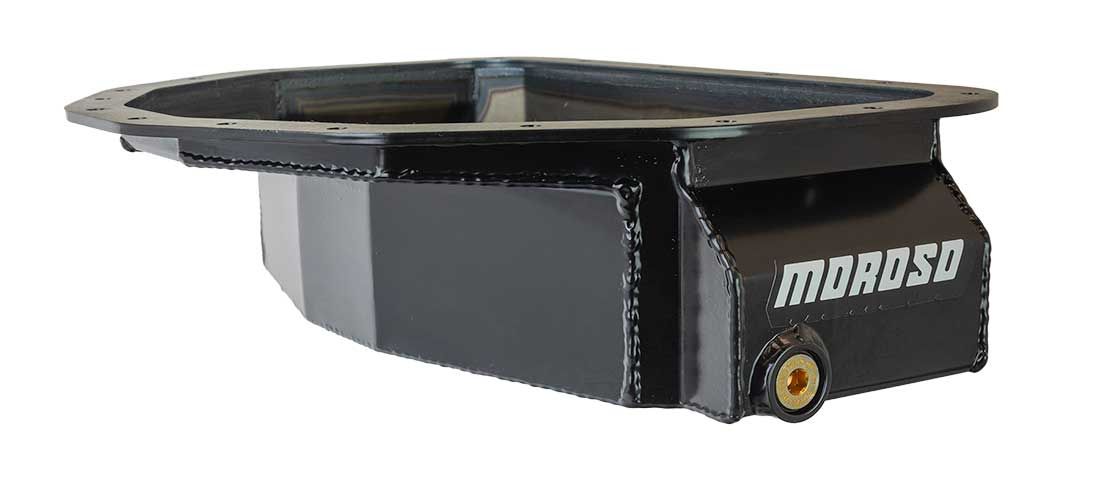

- -8AN magnetic drain plug with O-ring seal
- Compatible with JZ-equipped chassis such as Toyota JZX90/JZX100/JZX110, Altezza/IS300, GS300 and JZ-swapped applications requiring a front sump pan (check dimensions)
