Tomei Technical Trax Advance 2-Way LSD Pro Kit - Nissan 350Z / 370Z / Z RZ34 6MT

TC102A-NSHX2 - Tomei Technical Trax Advance 2-Way LSD Pro Kit - Nissan 350Z / 370Z / Z RZ34 6MT

Developed for the Nissan 350Z, 370Z, and Z/400Z (RZ34) with 6-speed manual transmission, this Pro Kit combines Tomei's aggressive 2-way mechanical limited-slip differential with a 3.916 final-drive gear set. It is engineered to improve rear traction, corner-exit acceleration, stability, and rear-wheel-drive control for circuit driving, drifting, winding roads, and other performance use.

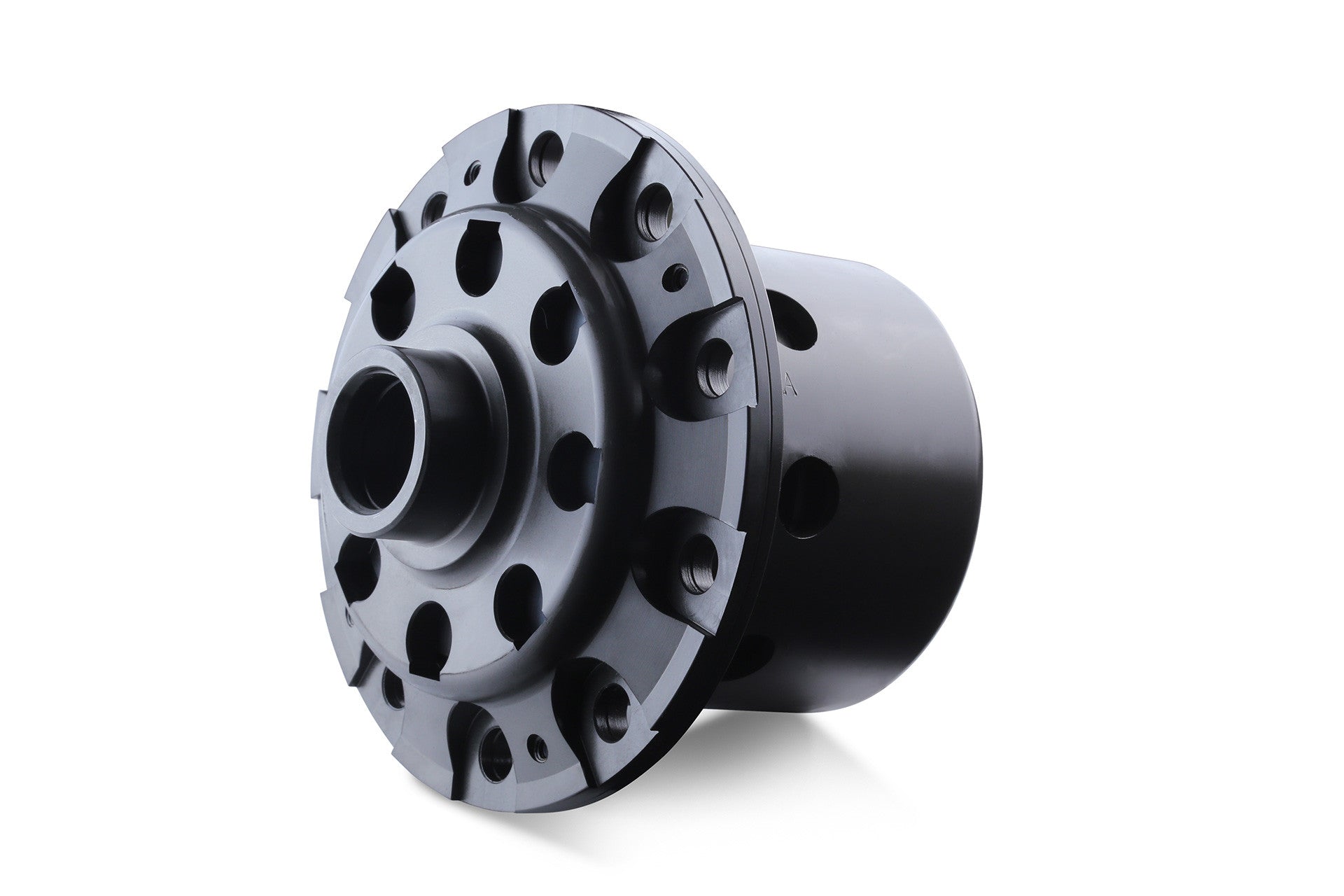

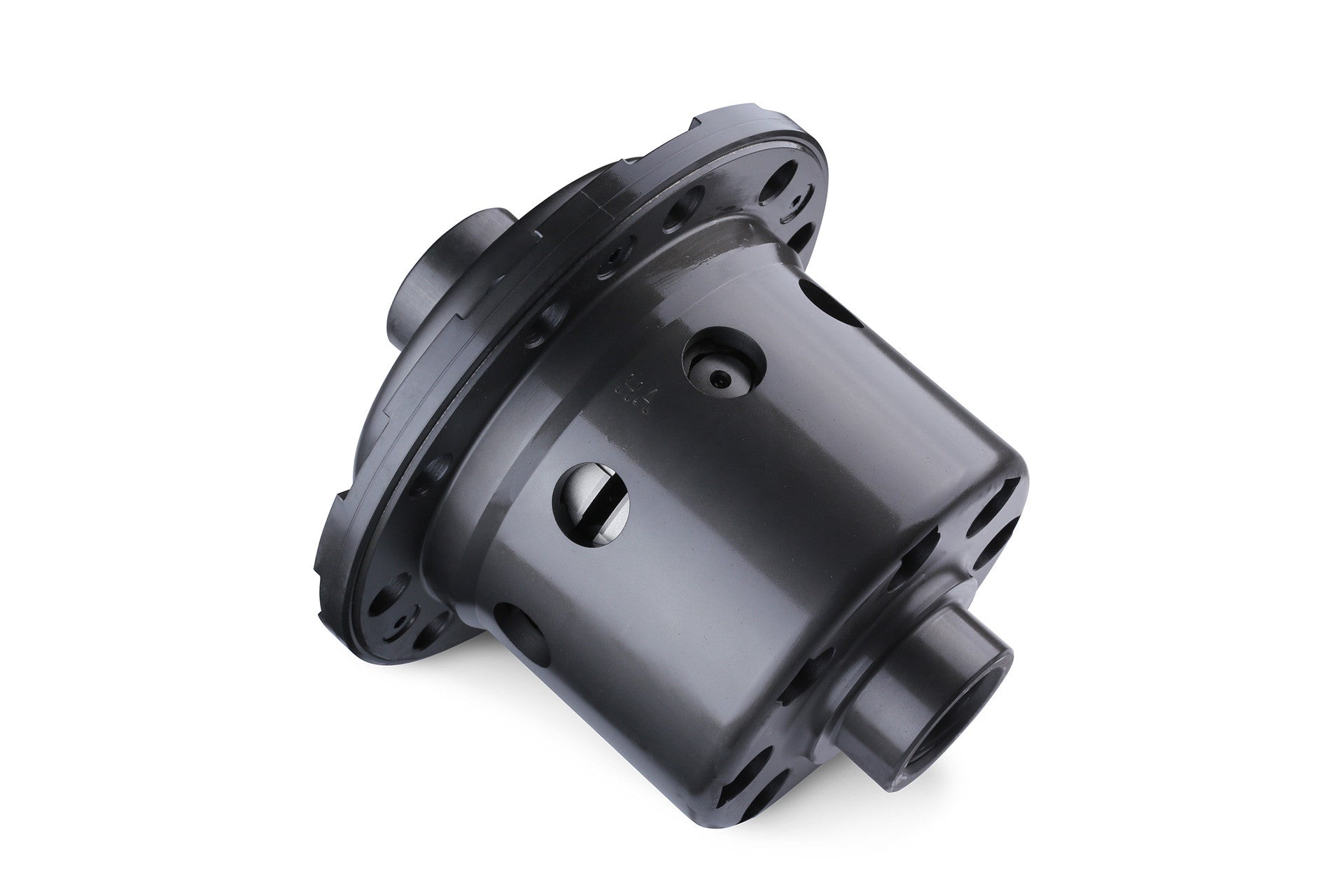

Tomei Technical Trax Advance 2-Way LSD Pro Kit

Developed for the Nissan 350Z, 370Z, and Z/400Z (RZ34) with 6-speed manual transmission, this Pro Kit combines Tomei's aggressive 2-way mechanical limited-slip differential with a 3.916 final-drive gear set. It is engineered to improve rear traction, corner-exit acceleration, stability, and rear-wheel-drive control for circuit driving, drifting, winding roads, and other performance use.

Product details

Why upgrade the LSD?

Sport-grade RZ34 vehicles use an open differential, which can allow one rear tire to spin during acceleration or corner exit. Performance, Heritage Edition, and NISMO models use a factory mechanical LSD, but its mild calibration prioritizes quiet daily operation. Tomei's Technical Trax Advance LSD provides stronger lock-up and faster response for drivers seeking sharper rear-end control.

By transferring driving force firmly to both rear tires, the unit improves rear grip during corner exit, acceleration, straight-line stability, rear contact feel, circuit lap-time potential, drift control, and confidence on winding roads.

Features

• High-capacity clutch-disc structure for strong locking performance
• Designed to maximize rear traction in front-engine, rear-wheel-drive sports cars
• Improved driving-force transfer during corner exit
• Strong operation under both acceleration and deceleration
• Suitable for drifting, circuit driving, and aggressive performance driving
• Direct mechanical-LSD feel that can also be enjoyed on the street

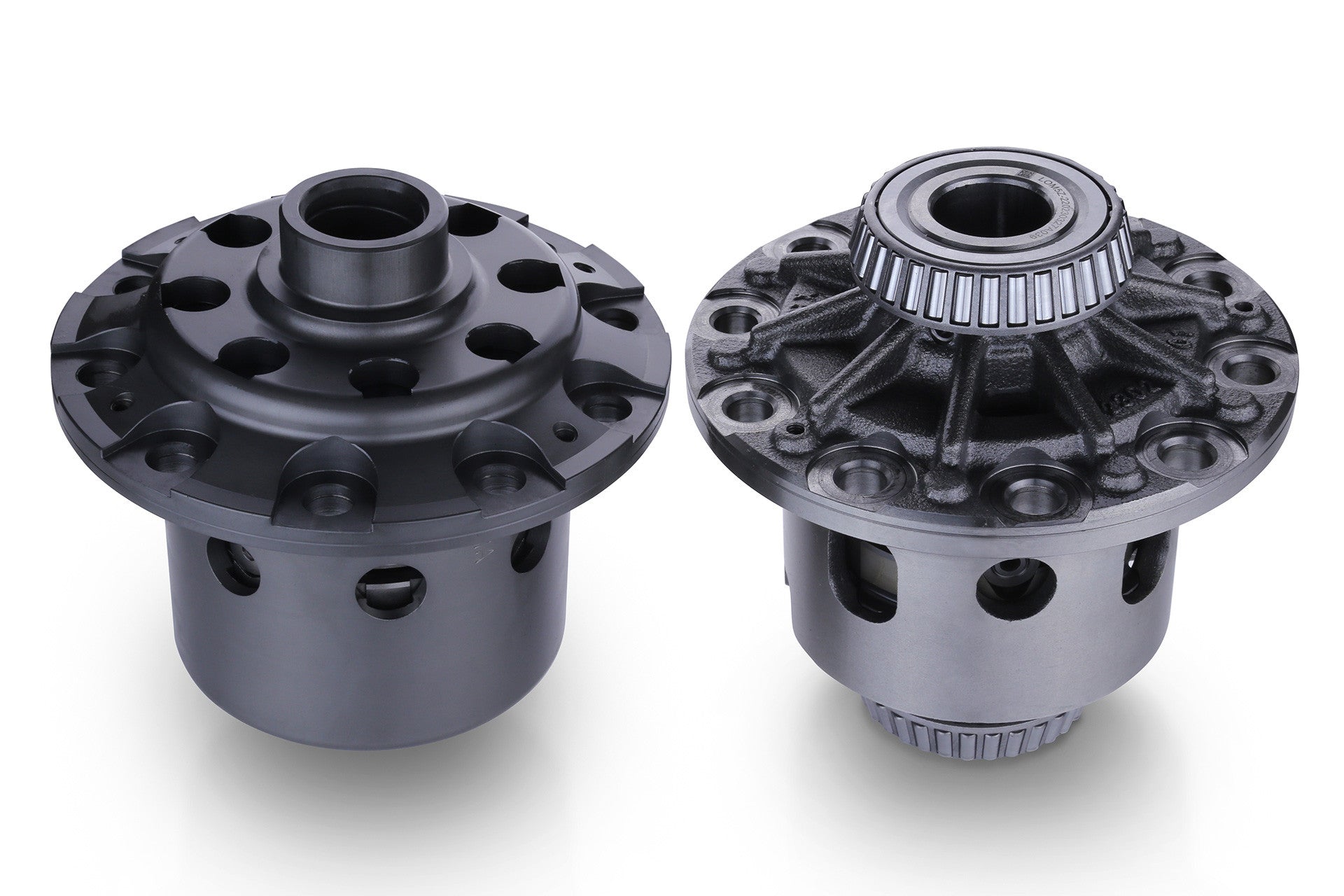

Construction compared with the OEM LSD

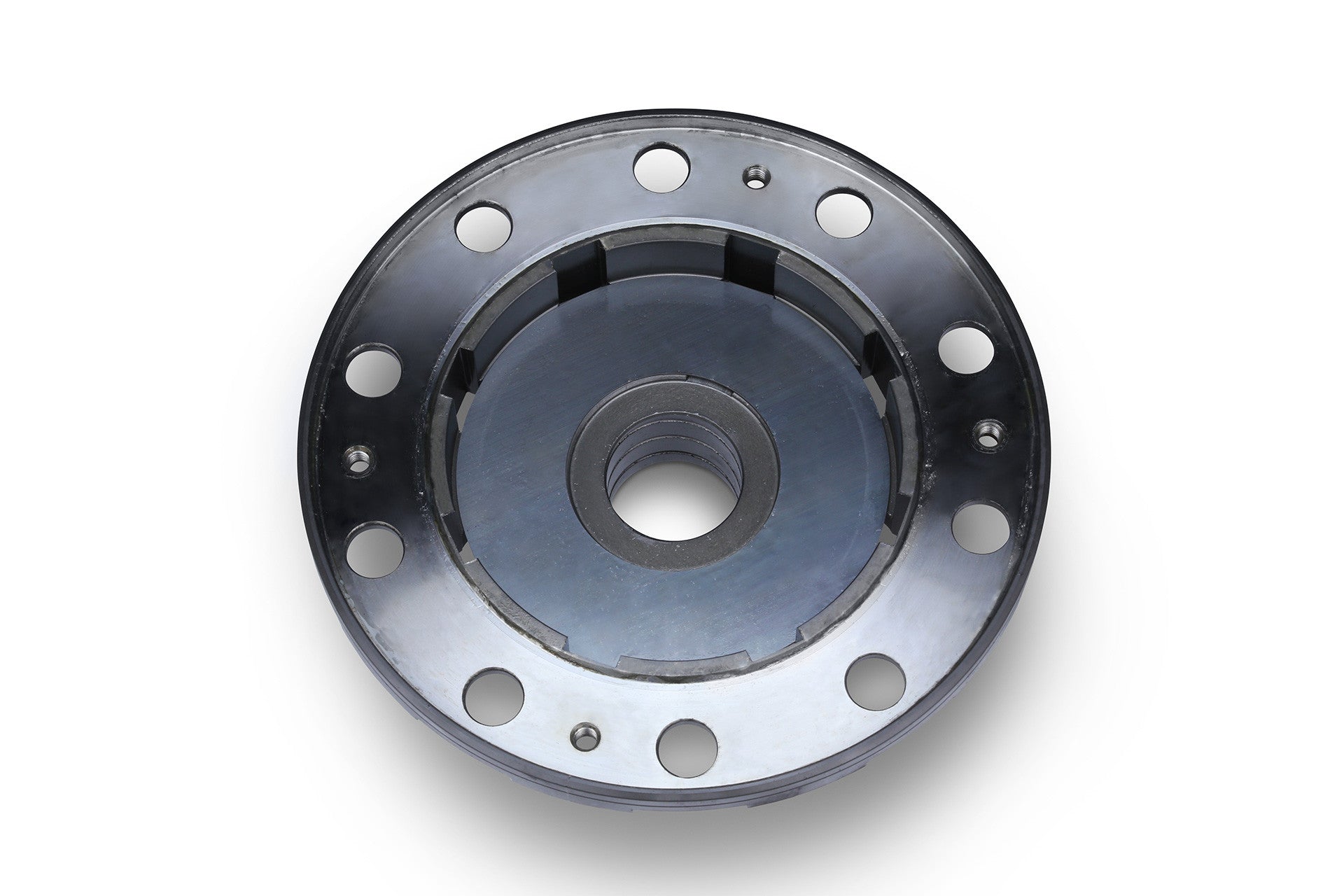

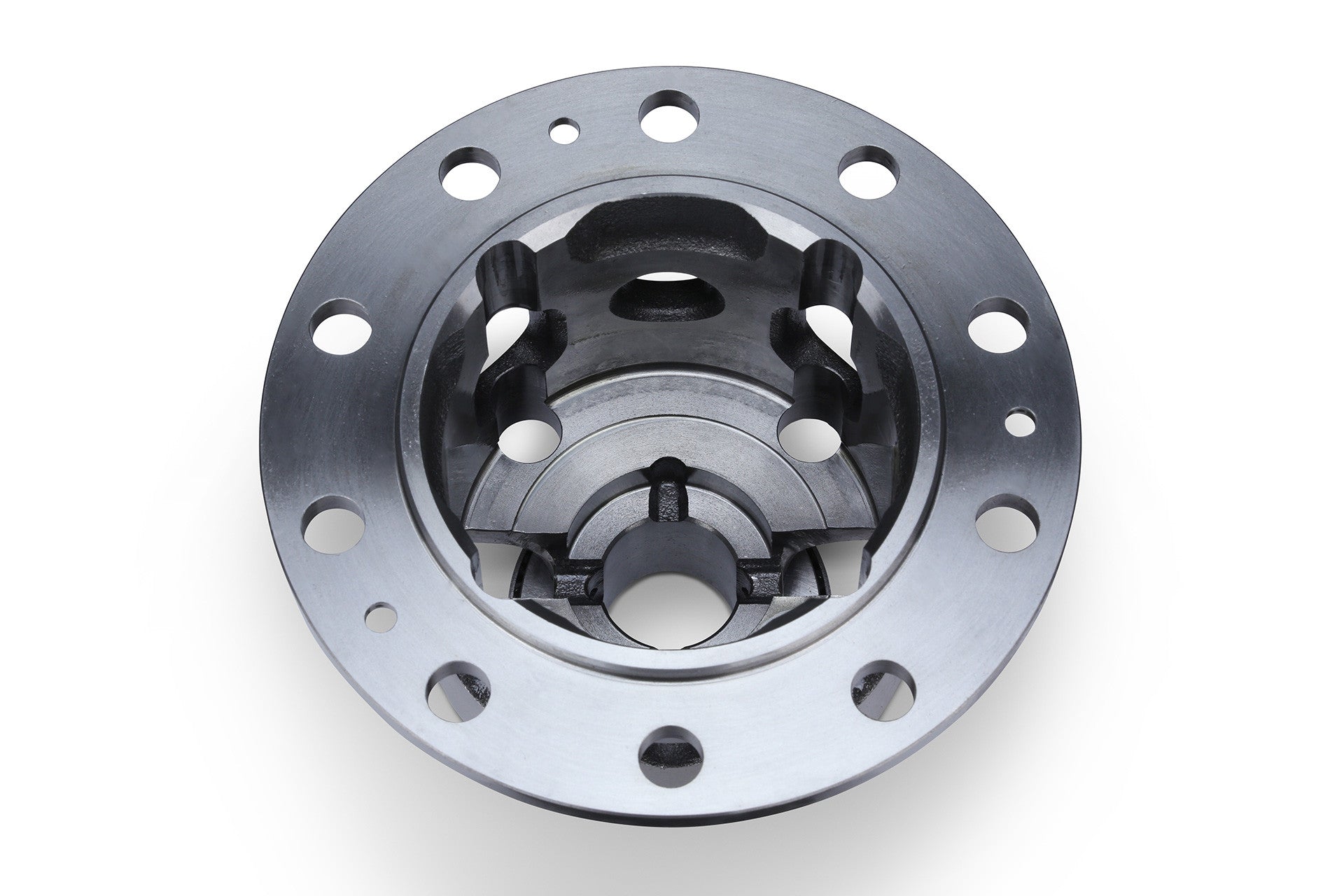

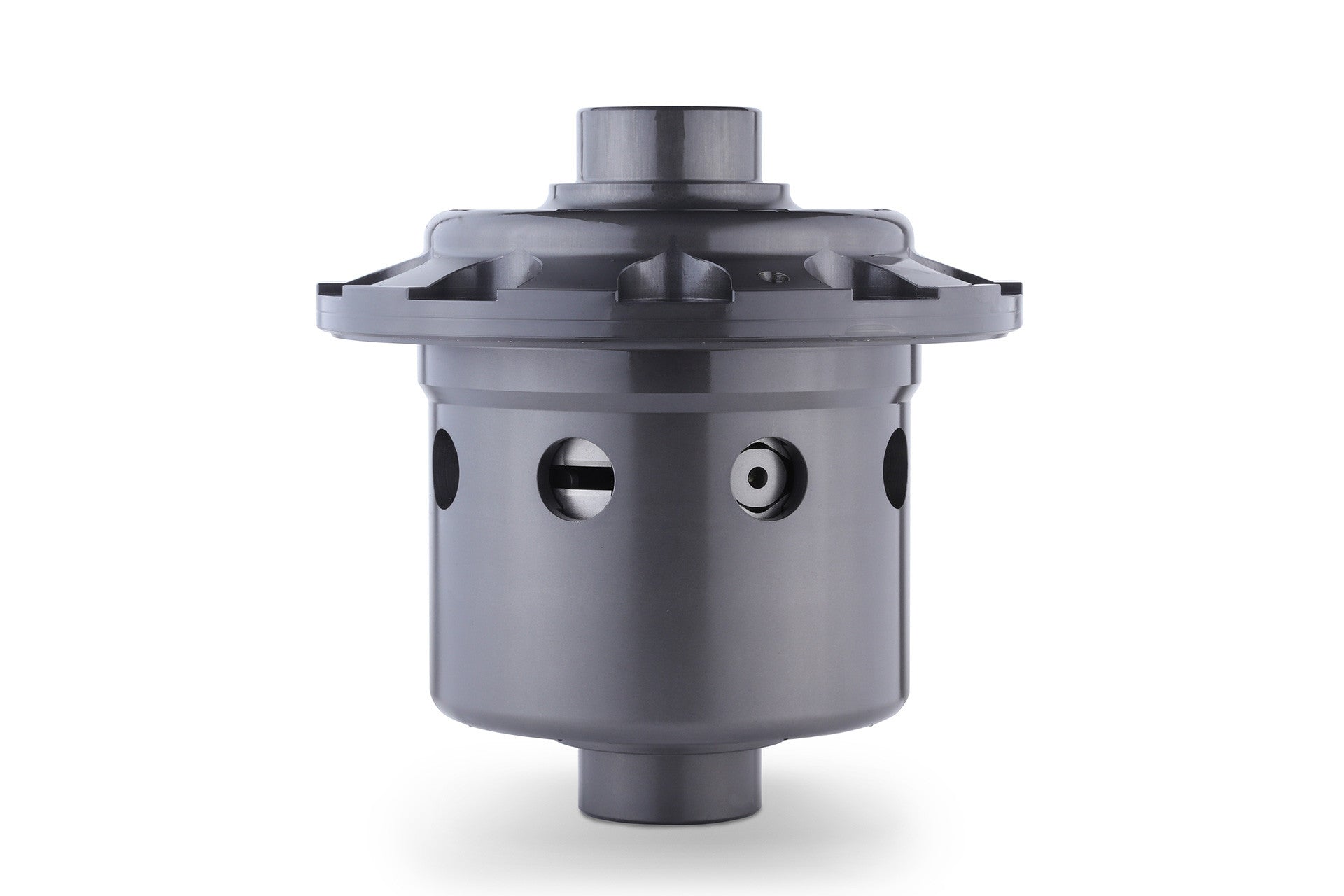

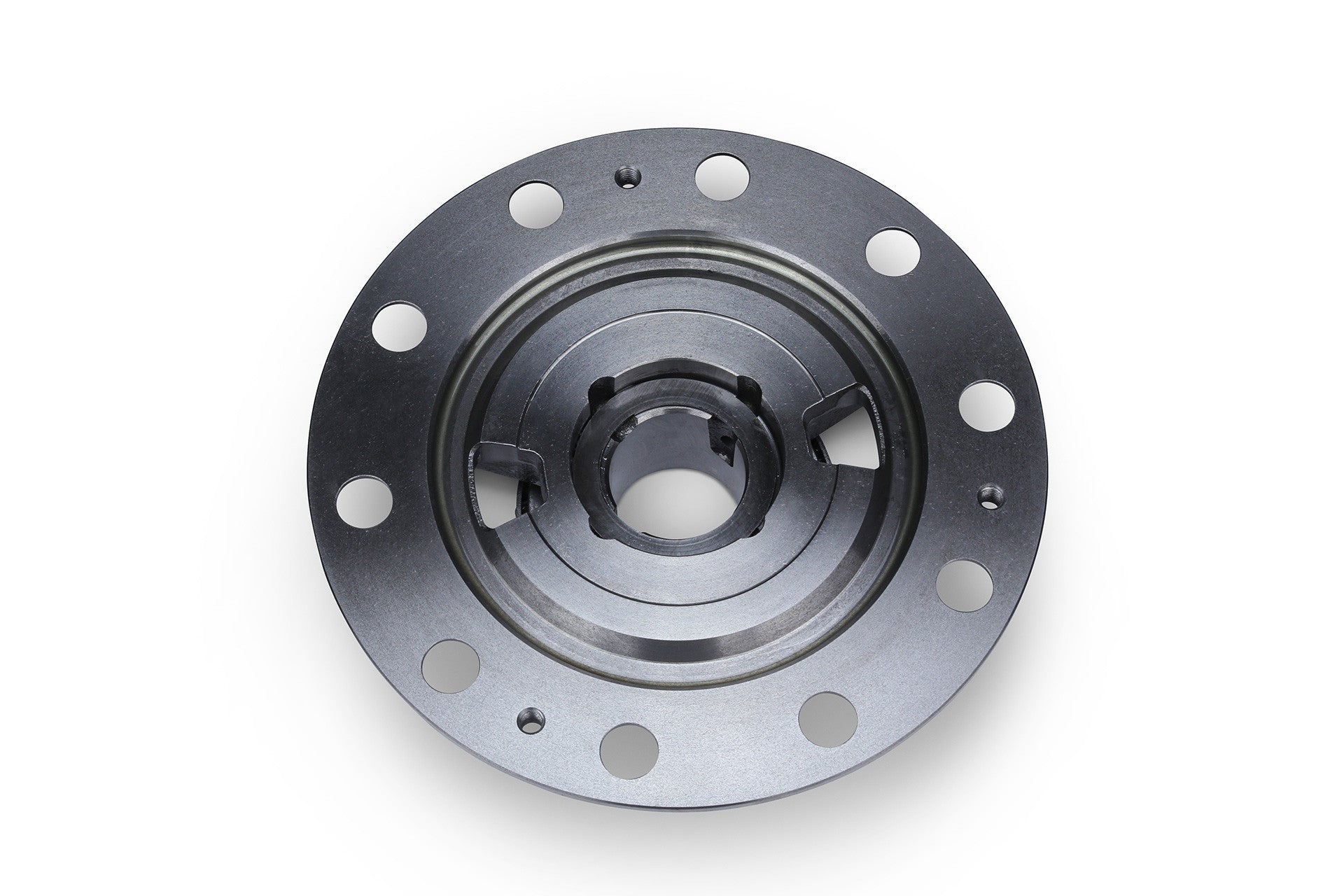

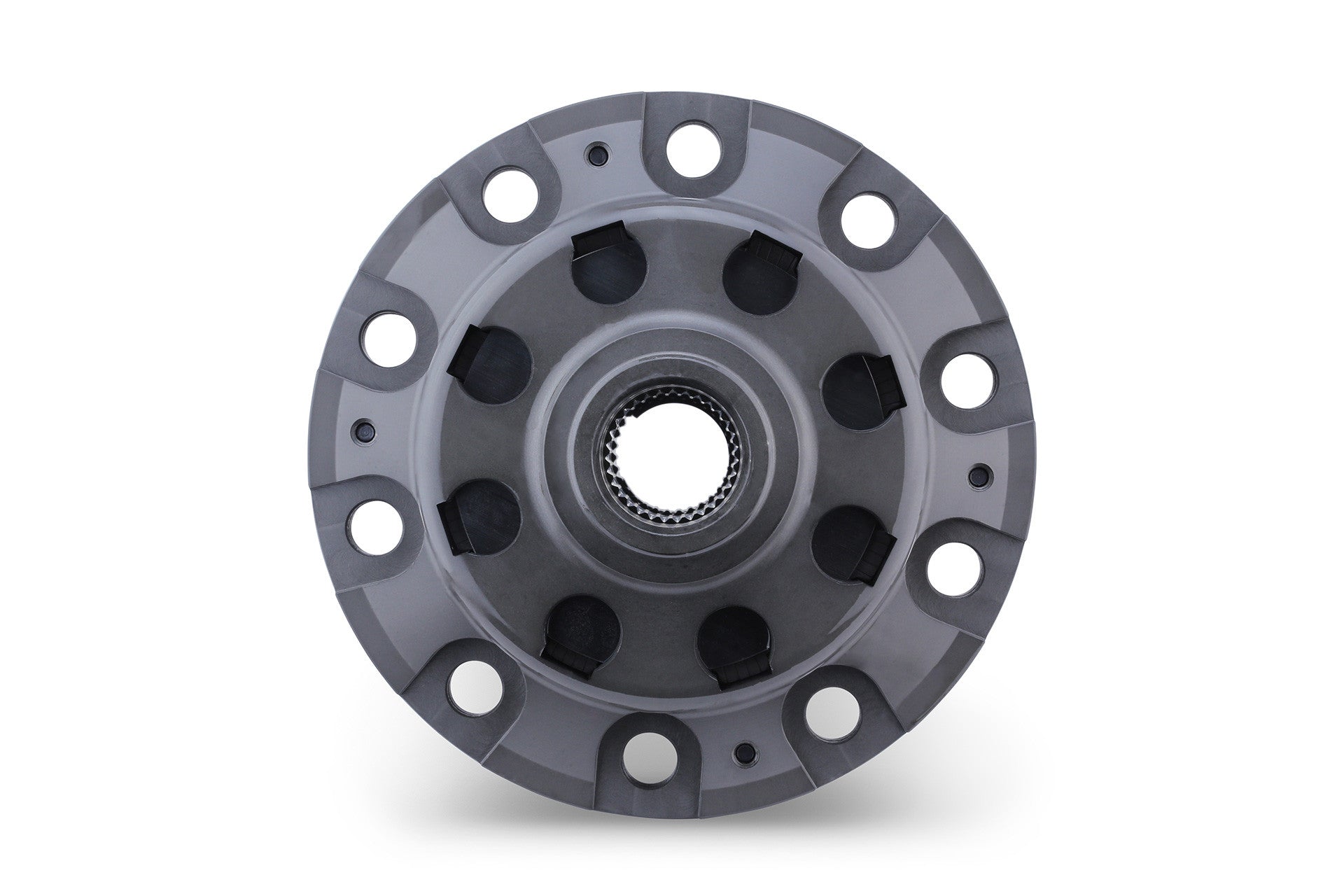

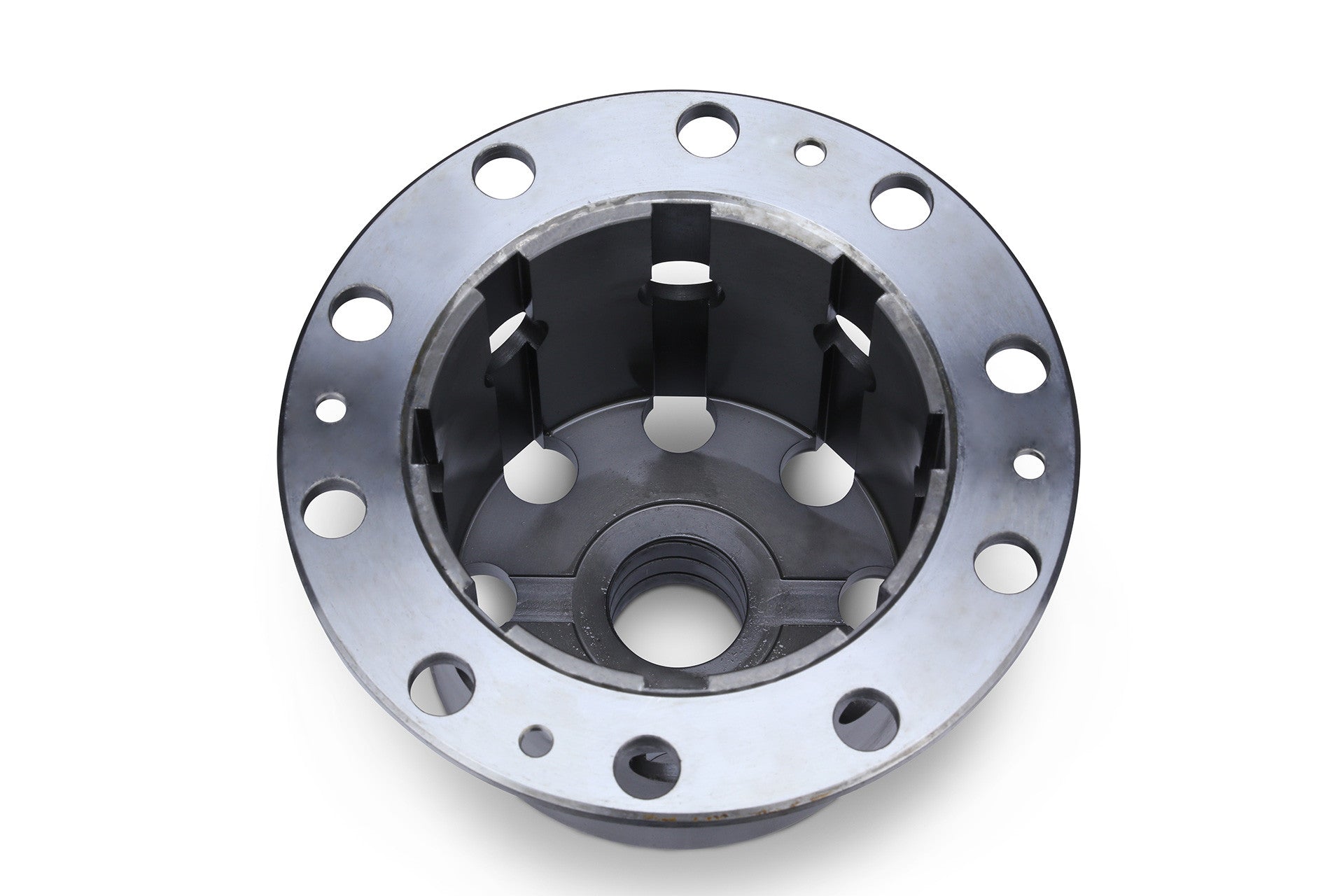

Case: Tomei uses a fully machined case, while the OEM unit is machined from a casting. The fully machined design creates more internal space for clutch discs while supporting high strength and lower weight.

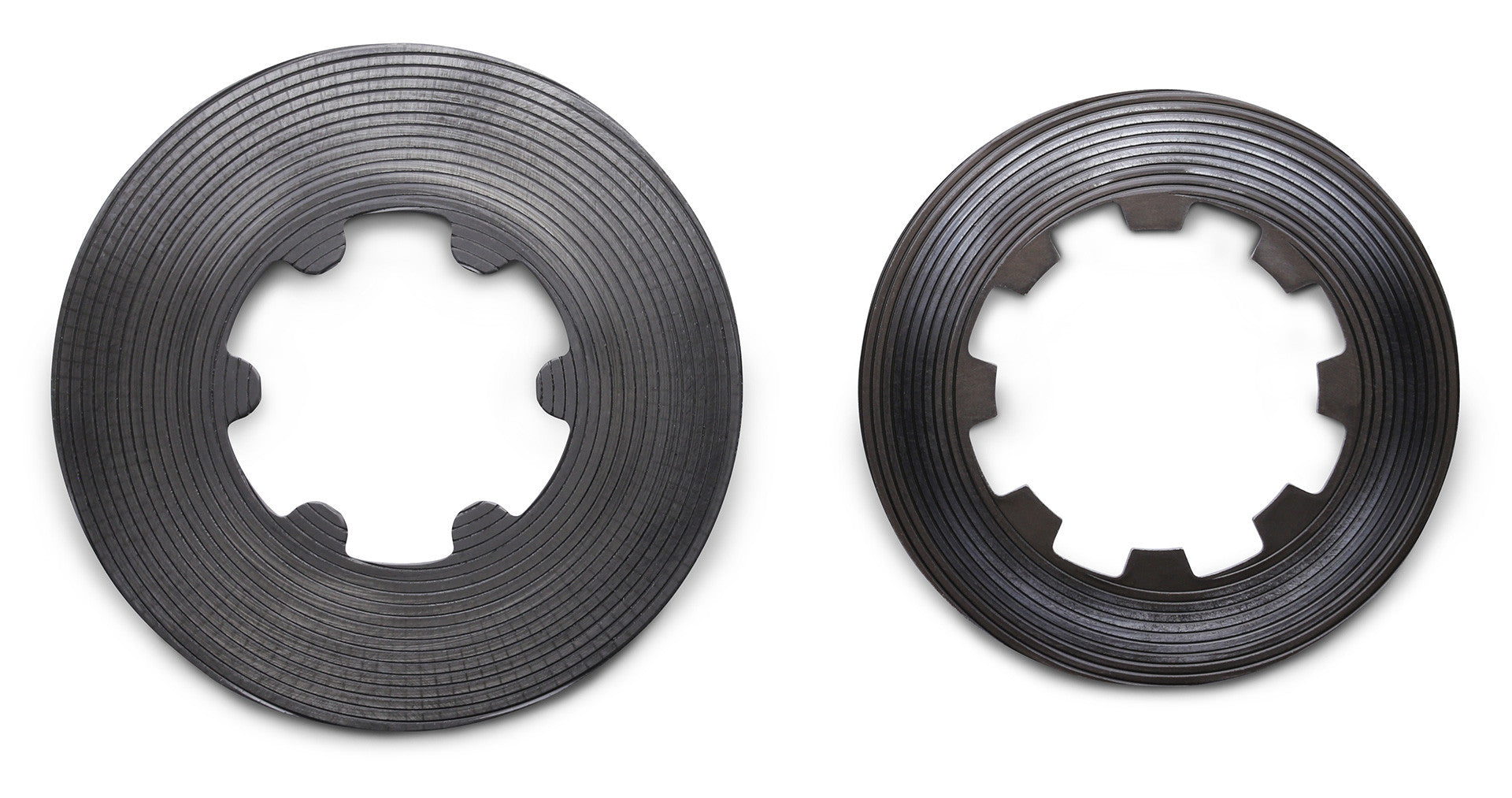

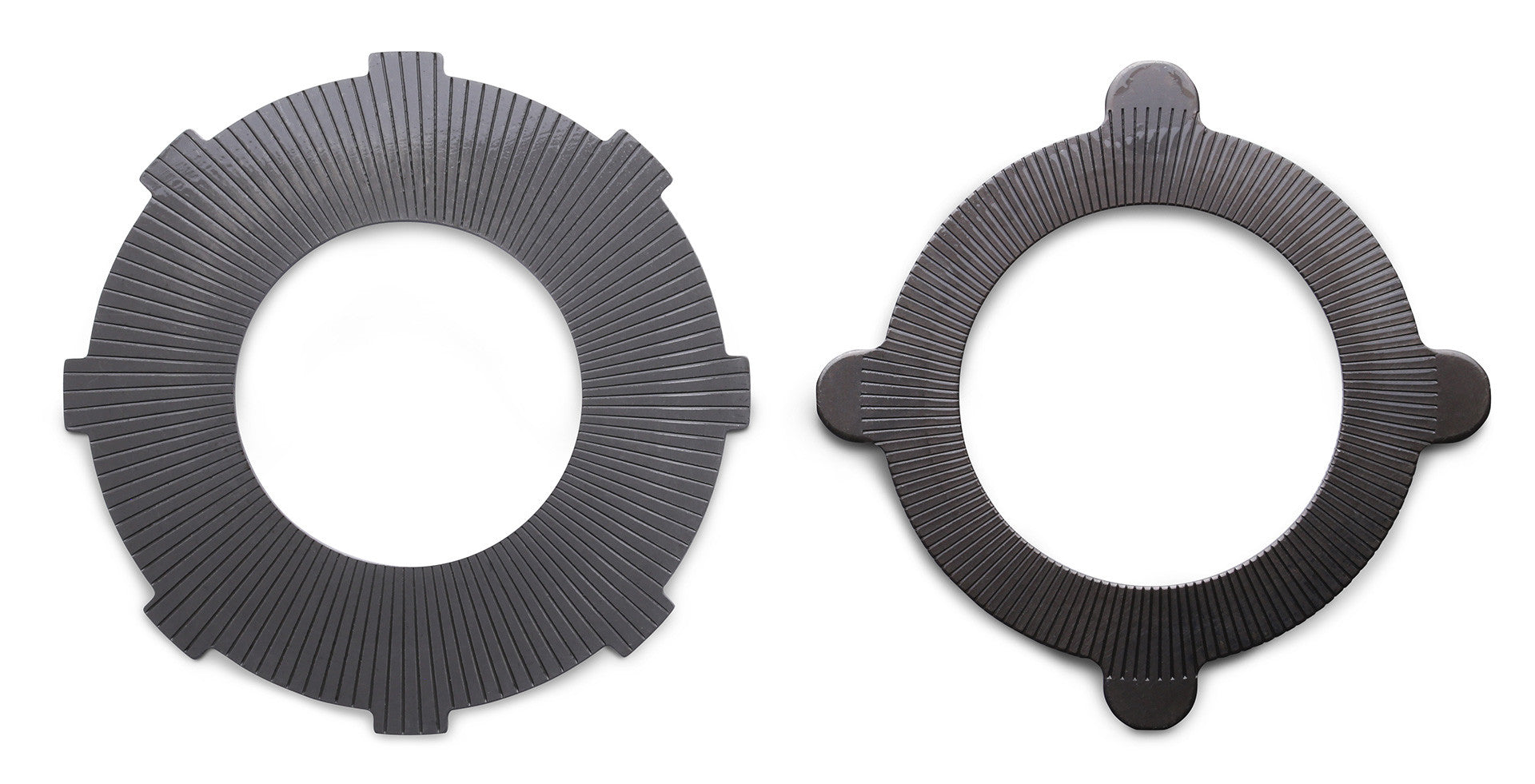

Discs: Larger-diameter external- and internal-tooth discs provide more effective friction area and stronger lock-up force.

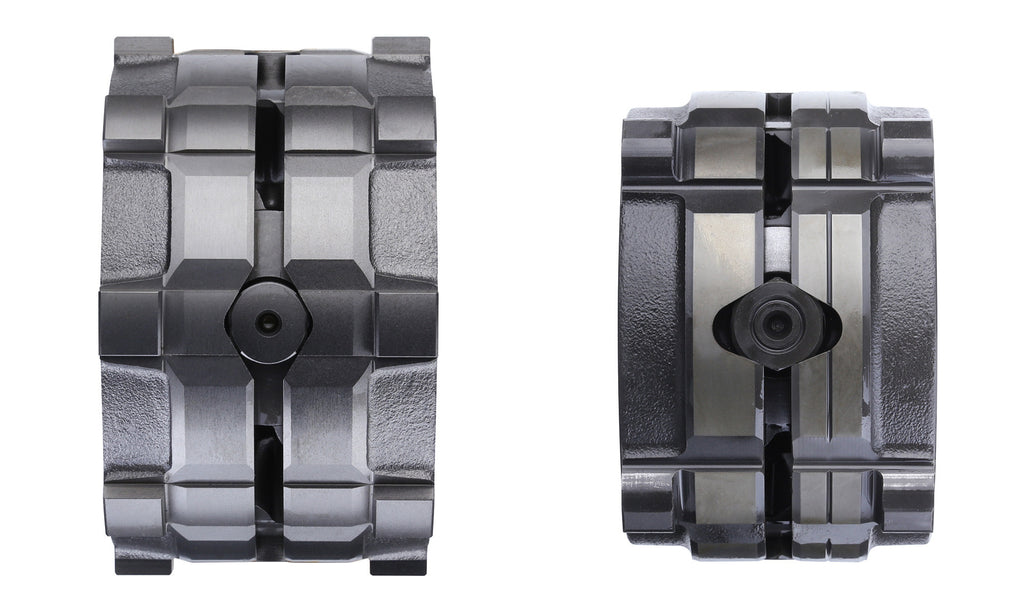

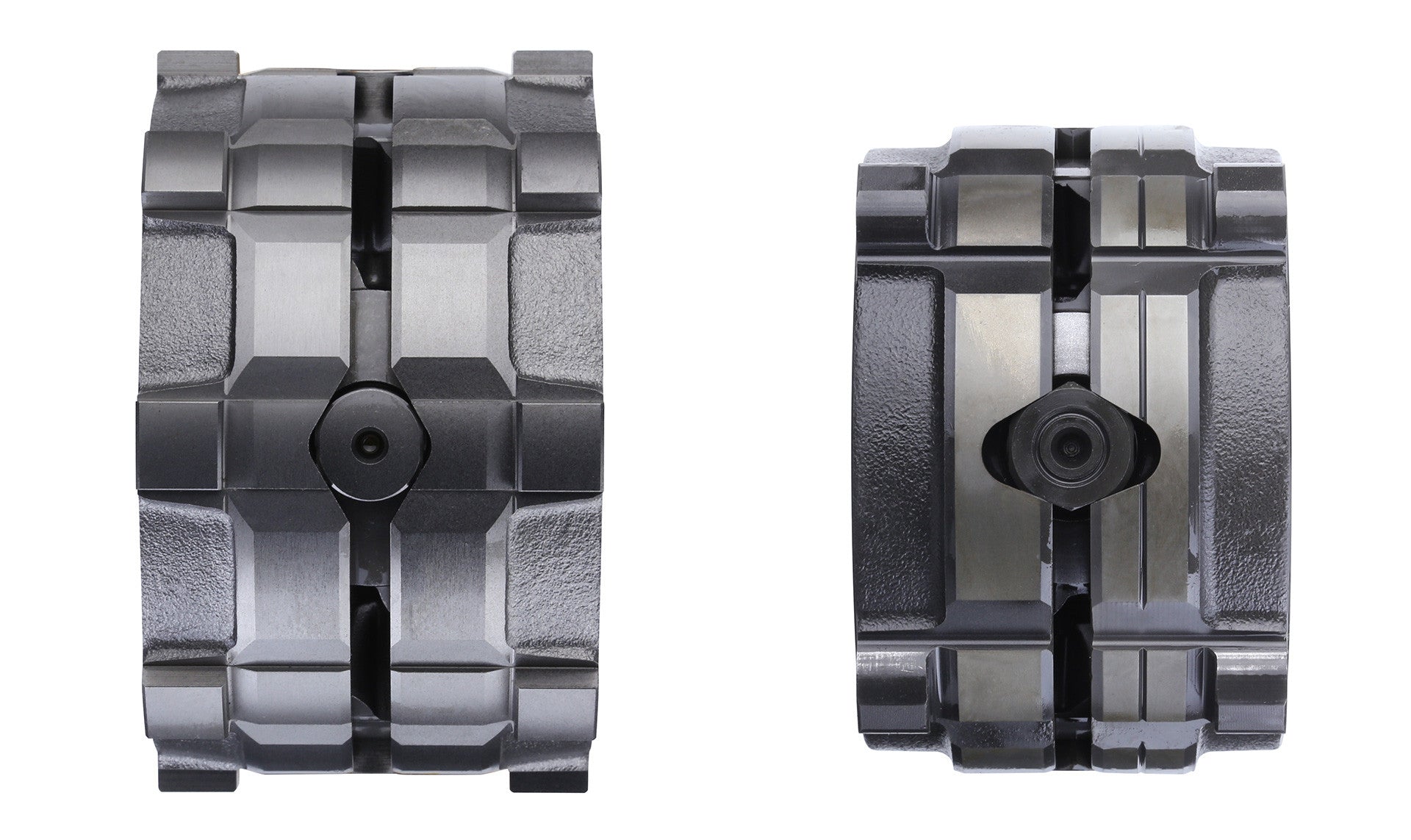

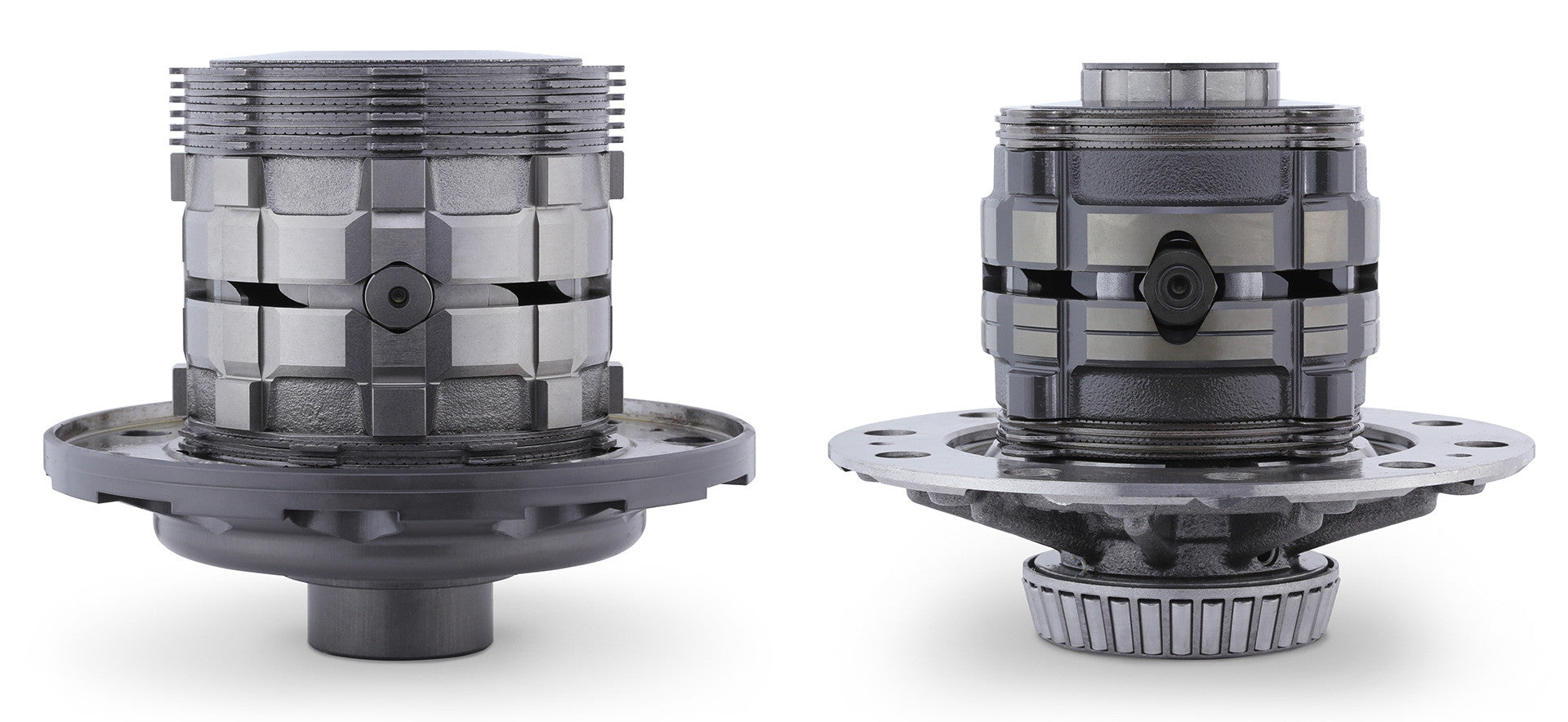

Internal parts: The Tomei unit uses 12 discs per side (24 total), compared with 5 per side (10 total) in the OEM unit. The additional friction area supports stronger lock-up, better wear resistance, and more stable operation.

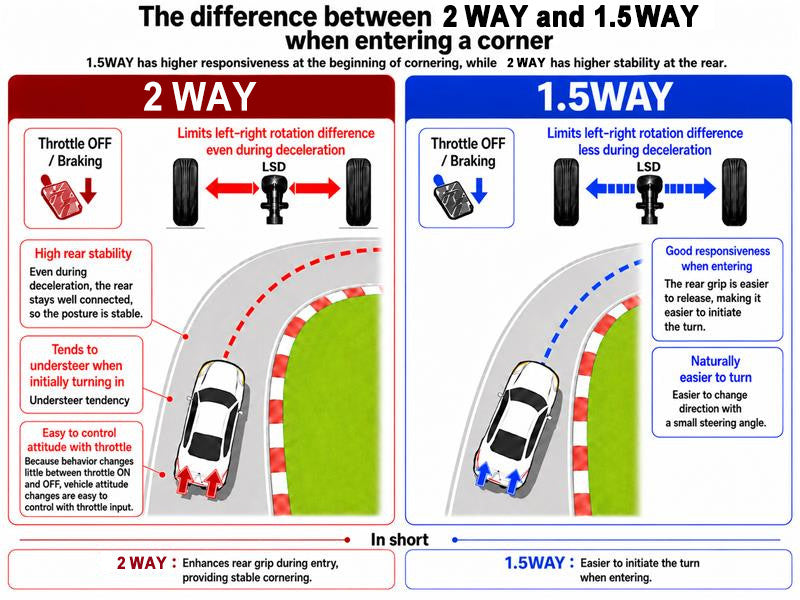

2-way characteristics

A 2-way LSD provides strong locking action during acceleration and deceleration, allowing the driver to actively control rear vehicle posture. It is recommended for drifting, circuit use, and aggressive sports driving. Drivers who prioritize easier deceleration behavior for street, winding-road, or grip use may prefer a 1.5-way configuration.

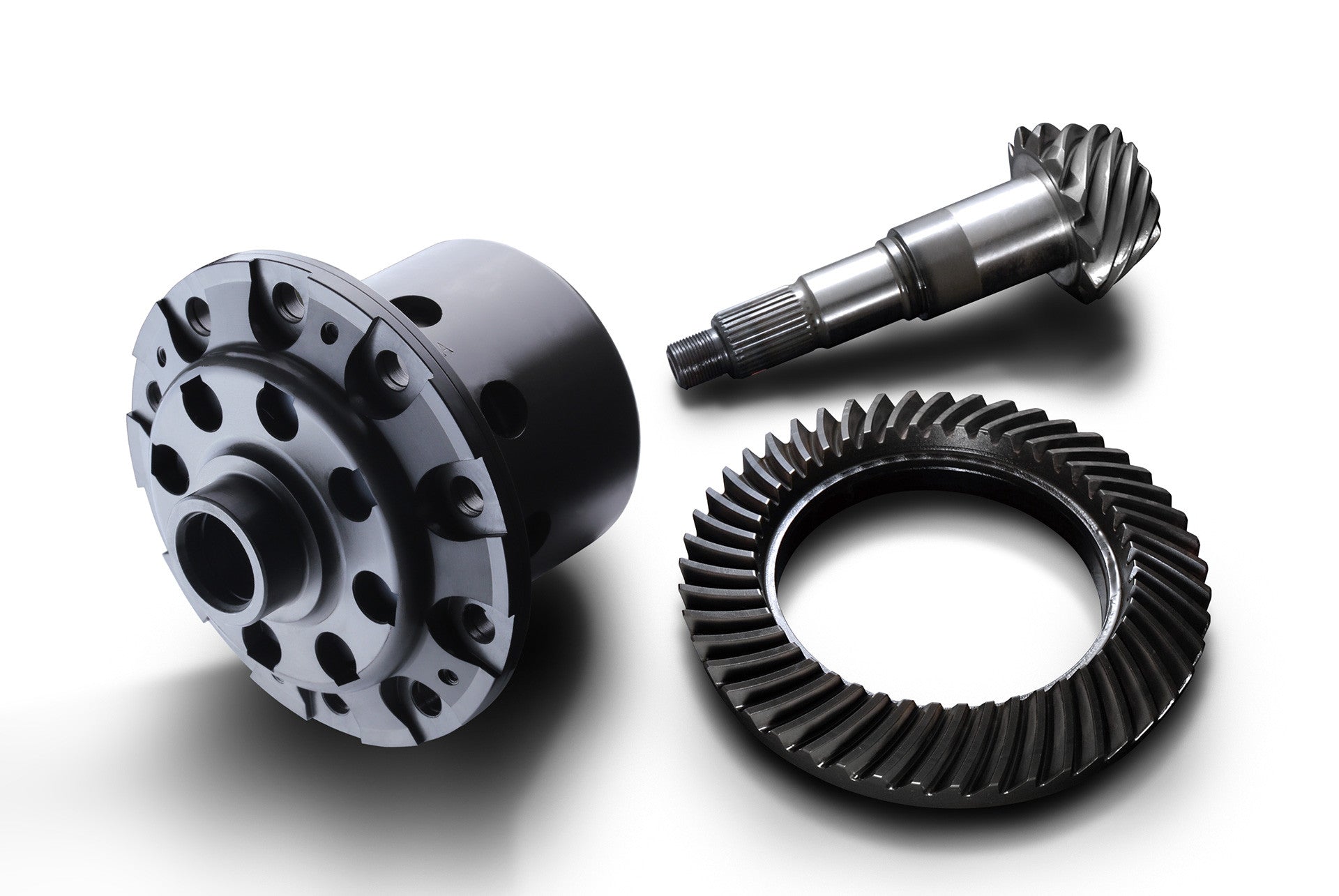

Pro Kit 3.916 final-drive gear

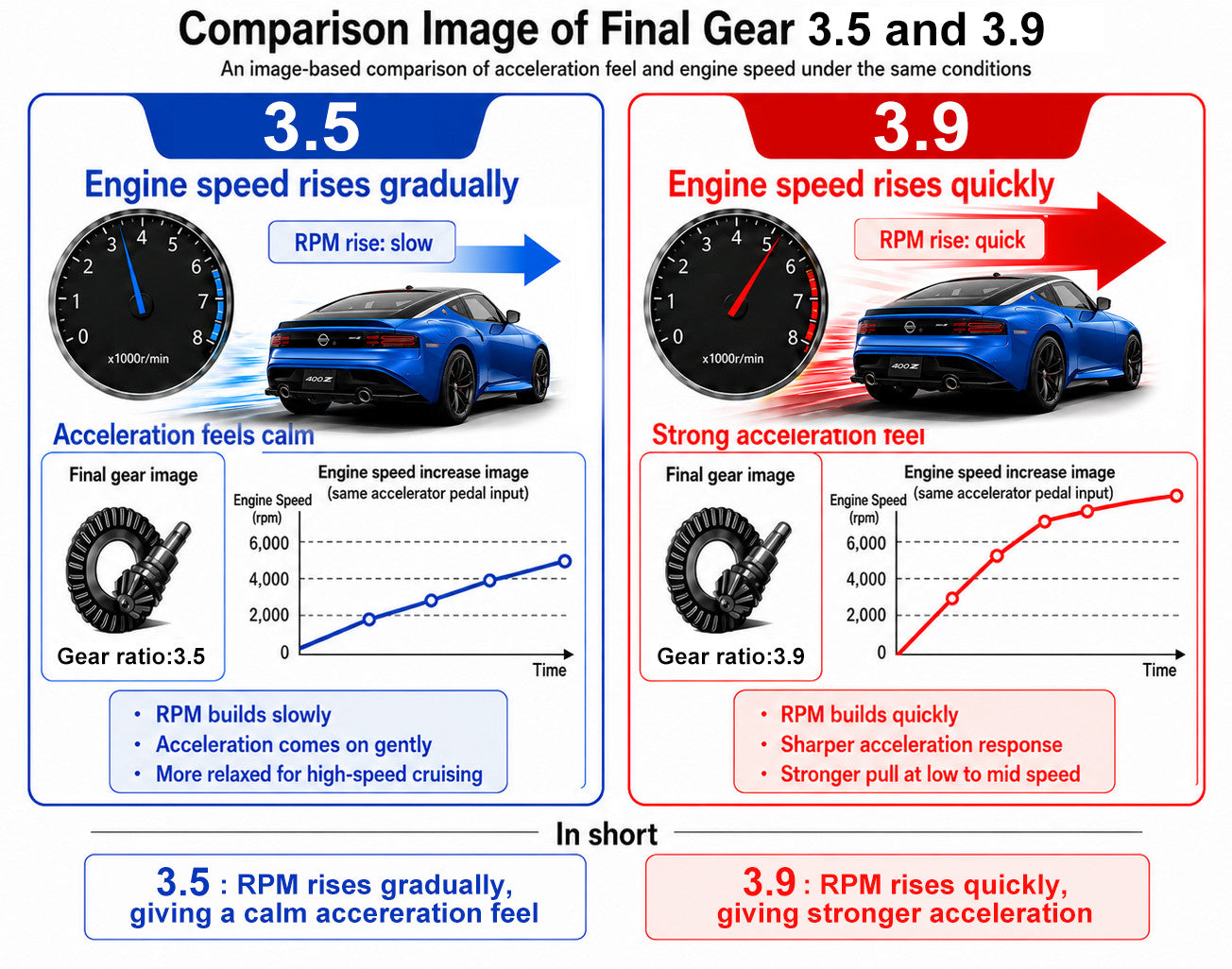

The factory RZ34 6MT final-drive ratio is 3.538. The included 3.916 gear set is approximately 10% shorter, improving acceleration response, shift feel, and the connection between second and third gear.

Nissan OEM 6MT gear ratios

RZ34 speed comparison

Important notice

This is a performance-focused mechanical LSD, not a factory-mild unit. Operating noise, chattering, and tire dragging may occur during low-speed turns or parking. It may not suit customers who prioritize quietness or OEM-like behavior.

Professional installation by an experienced, qualified technician is strongly recommended; specialized tools may be required. Always follow the supplied manual and warning labels. Performance parts may not be legal for public-road use in every area—check local regulations before installation and use.

Specifications, price, appearance, and kit contents are subject to manufacturer change without notice. Product photos are illustrative and may differ from the delivered item.

Source: Tomei Powered USA product catalog.
