Swift Standard Conventional Springs - 18" Length - 5" OD
180-500-080 | 80 lb/in | Usable 13.3 in | Max 13.3 in | Load 1,069 lb
$151.00
Sale price
$151.00
Regular price
Skip to product information
Swift Standard Conventional Springs - 18" Length - 5" OD
$151.00
Sale price
$151.00
Regular price
Free shipping within the contiguous United States. Exclusions apply.
Swift conventional racing springs in 18-inch length with a 5-inch outside diameter. Select your part number and spring specifications from the dropdown.
Each selection identifies the spring rate (lb/in), usable stroke (in), maximum stroke (in), and maximum load (lb). Choose the spring type specified for your suspension setup.
| Part number | Type | Rate (lb/in) | Usable stroke (in) | Max stroke (in) | Max load (lb) |
|---|---|---|---|---|---|
| 180-500-080 | Standard | 80 | 13.3 | 13.3 | 1,069 |
| 180-500-080 BP | Bulletproof | 80 | 14.3 | 14.3 | 1,146 |
| 180-500-100 | Standard | 100 | 13.3 | 13.3 | 1,334 |
| 180-500-100 BP | Bulletproof | 100 | 14.1 | 14.1 | 1,413 |
| 180-500-125 BP | Bulletproof | 125 | 13.8 | 13.8 | 1,727 |
F = Front; BP = Bulletproof; TH = Tight Helix. A dash means Swift does not list that specification. Manufacturer specifications may change.

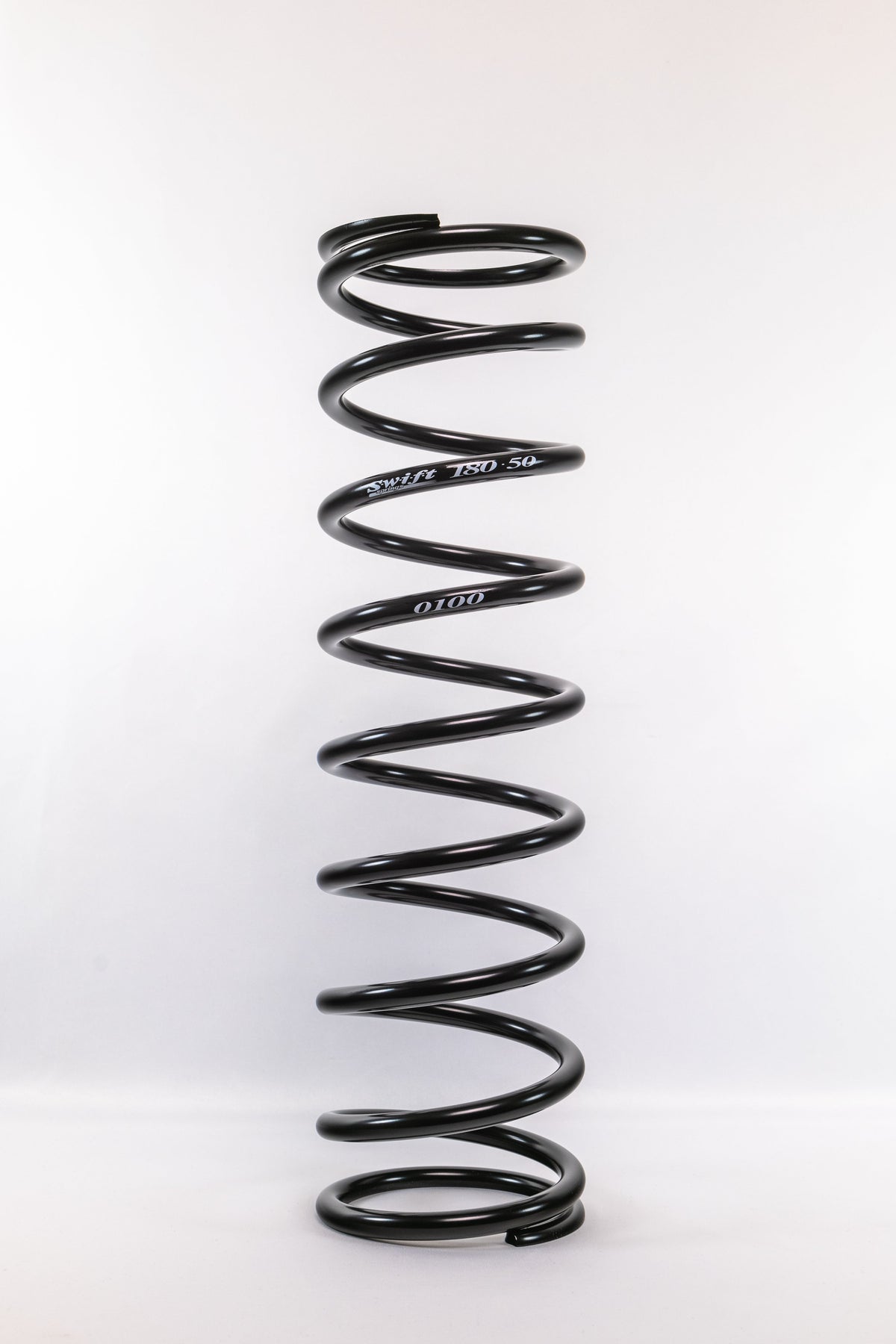

Manufacturer image is representative. Appearance may vary by part number and spring rate.
MANUFACTURER
Swift Springs
