Swift Standard Conventional Springs - 12" Length - 5" OD
120-500-175 TH | 175 lb/in | Usable 6.3 in | Max 6.3 in | Load 1,095 lb
$199.00
Sale price
$199.00
Regular price
Skip to product information
Swift Standard Conventional Springs - 12" Length - 5" OD
$199.00
Sale price
$199.00
Regular price
Free shipping within the contiguous United States. Exclusions apply.
Swift conventional racing springs in 12-inch length with a 5-inch outside diameter. Select your part number and spring specifications from the dropdown.
Each selection identifies the spring rate (lb/in), usable stroke (in), maximum stroke (in), and maximum load (lb). Choose the spring type specified for your suspension setup.
| Part number | Type | Rate (lb/in) | Usable stroke (in) | Max stroke (in) | Max load (lb) |
|---|---|---|---|---|---|
| 120-500-175 TH | Tight Helix | 175 | 6.3 | 6.3 | 1,095 |
| 120-500-200 | Standard | 200 | 8.6 | 8.9 | 1,779 |
| 120-500-200 TH | Tight Helix | 200 | 5.7 | 5.7 | 1,150 |
| 120-500-225 | Standard | 225 | 8.3 | 8.8 | 1,975 |
| 120-500-225 TH | Tight Helix | 225 | 5.6 | 5.6 | 1,258 |
| 120-500-250 | Standard | 250 | 8.0 | 8.7 | 2,175 |
| 120-500-250 TH | Tight Helix | 250 | 5.6 | 5.6 | 1,388 |
| 120-500-275 | Standard | 275 | 7.8 | 8.5 | 2,338 |
| 120-500-300 | Standard | 300 | 7.8 | 8.4 | 2,527 |
F = Front; BP = Bulletproof; TH = Tight Helix. A dash means Swift does not list that specification. Manufacturer specifications may change.

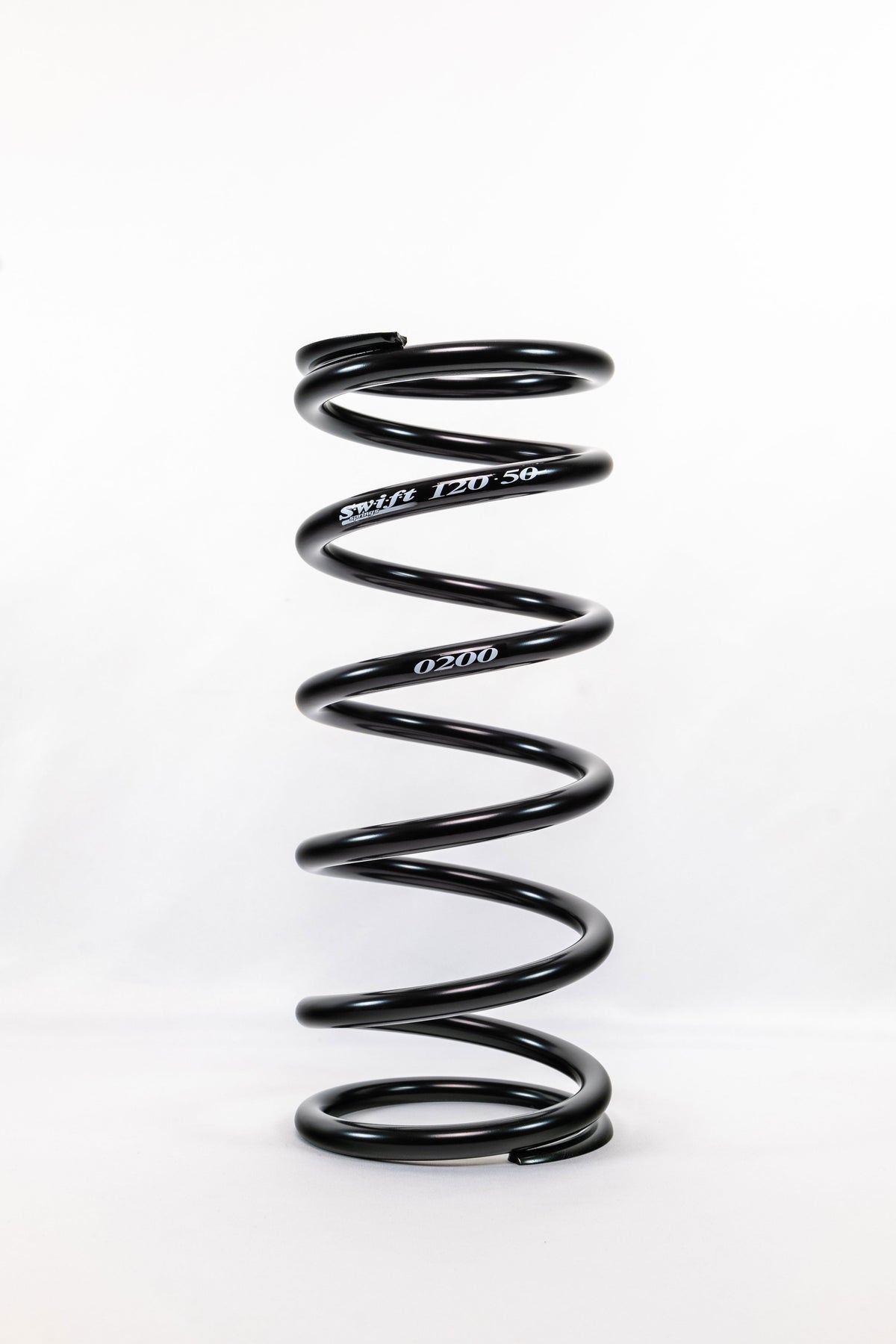

Manufacturer image is representative. Appearance may vary by part number and spring rate.
MANUFACTURER
Swift Springs
