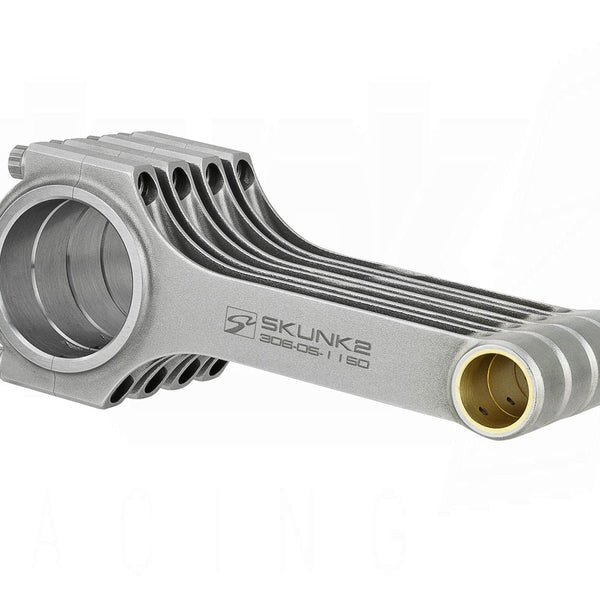

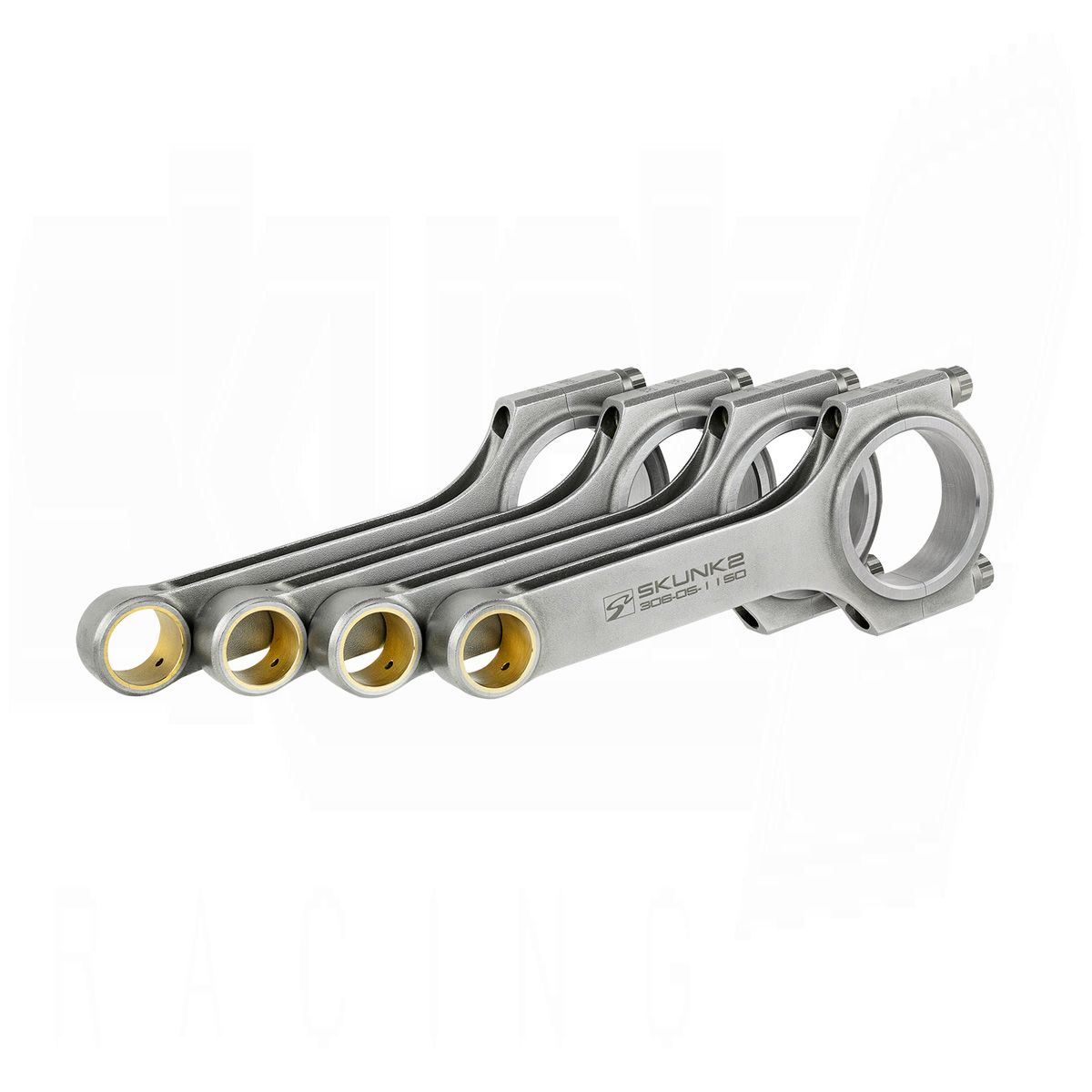

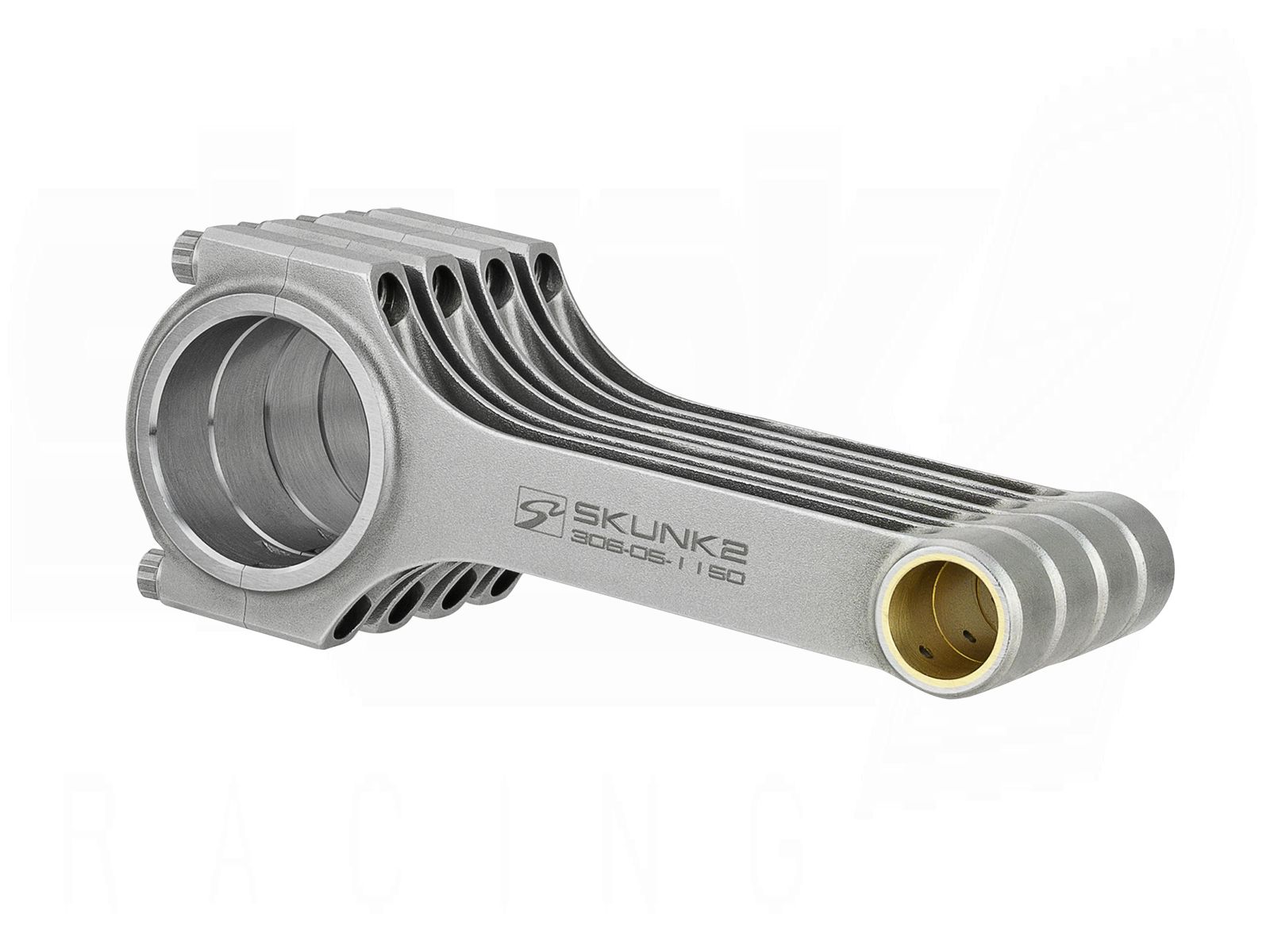

Skunk2 Racing Alpha Connecting Rods - Honda K24

306-05-1150 - Skunk2 Racing Alpha Connecting Rods - Honda K24

Skunk2s Alpha Series Connecting Rods for the Honda K24A1, K24A2, K24A4, K24A8 and K24Z engines are precision CNC machined from forged 4340 chromoly steel blanks and feature an H-beam design. The Advanced Finite Element Analysis driven design combined with a comprehensive heat treatment, tempering, and shot peening processes results in a rod with excellent strength to weight ratios. Included with each rod are high tensile strength, 3/8-inch ARP2000 bolts rated at 220,000psi. Skunk2 Alpha rods offer industry leading performance and value, and are chosen by engine builders all over the world.

Features:

• Forged Aircraft Grade 4340 Chromoly Steel
• Wide H-Beam Design for Added Strength

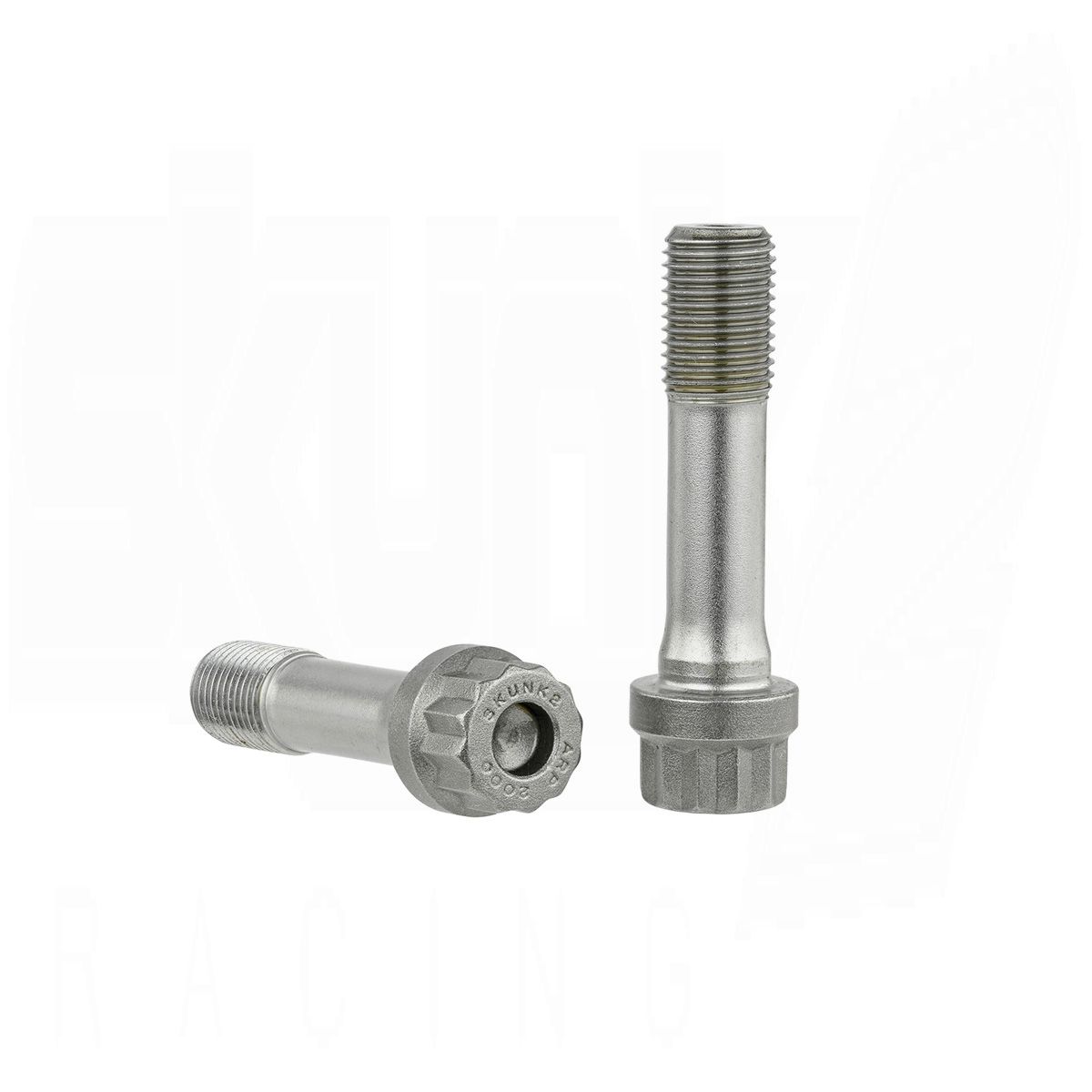

• High Strength 220,000psi ARP2000 Bolts Included
• Set of 4

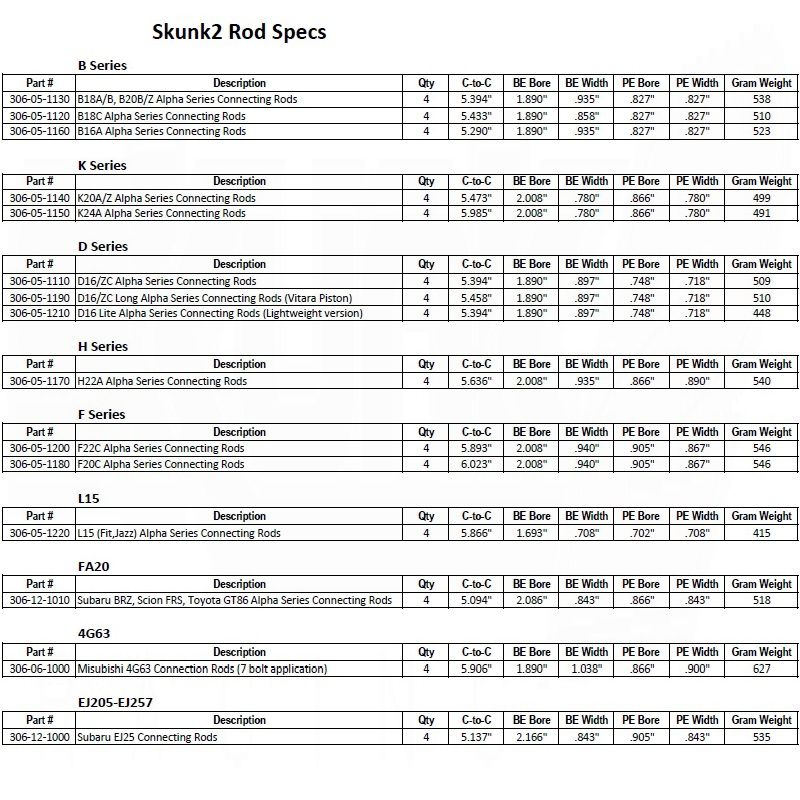

Connecting Rods Specs:

• Beam Type: H-Beam
• Weight: 508 grams
• Material: Forged 4340 Chromoly Steel
• SE (Small End) Diameter: 22mm / 0.868"
• SE (Small End) Width: 19.8mm / 0.780"
• Center to Center: 152mm / 5.984"
• Rod Bolt: 3/8" ARP 2000
• BE (Big End) Width: 19.7mm / 0.777"
• BE (Big End) Bord: 51mm / 2.008"
• Reciprocating Weight: 126 grams
• Rotating Weight: 382 grams
