S3 Suspension Coilovers - Acura Integra Type-S (DE5) (2024+)

S3 Suspension Coilovers - Acura Integra Type-S (DE5) (2024+)

Upgrade the handling, response, and stance of your 2024 or newer Acura Integra Type S DE5 with an S3 Suspension one-way adjustable coilover system. Engineered as a complete bolt-in suspension solution, this system combines premium Swift Springs, gas-pressurized monotube dampers, and application-specific valving for controlled and predictable performance.

Each S3 Suspension coilover system is assembled by hand with an emphasis on precision, consistency, and long-term durability. Spring rates and damper valving are developed through shock-dyno analysis and validated through street driving and track testing.

Multiple configurations are available for everything from performance-oriented street driving to dedicated track use. A custom-specification option is also available for specialized vehicle builds and performance requirements.

Key Features

• 32 levels of rebound damping adjustment
• One-way adjustable coilover design
• Gas-pressurized monotube dampers
• Premium Swift Springs selected for the application
• Application-specific spring rates and damper valving
• Precision-machined shock bodies
• Corrosion-resistant shock-body threads
• Independent ride-height and spring-preload adjustment

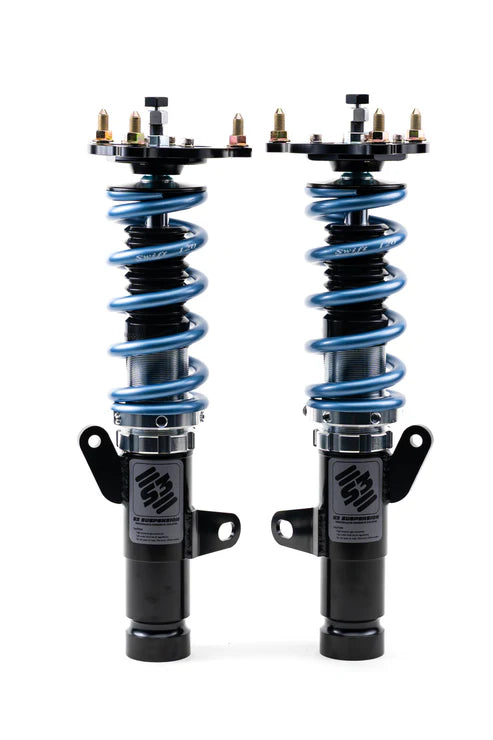

• Pillowball top mounts for improved steering response
• Camber-adjustable top hats where supported by the application

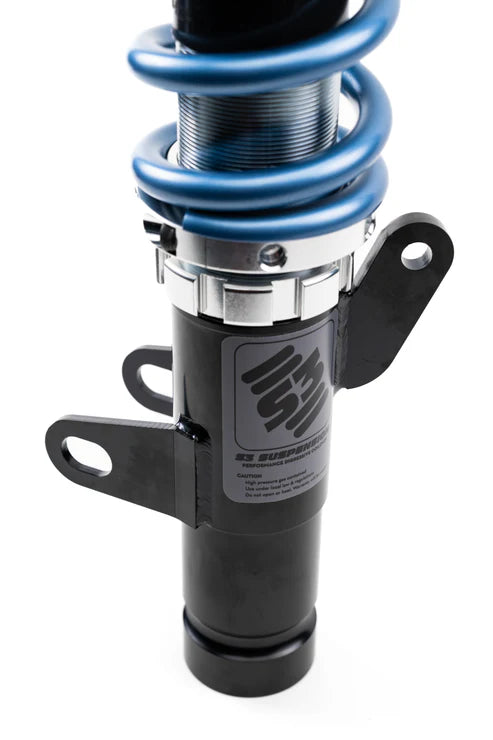

• Spherical-bearing lower mounts where applicable
• Zinc-plated hardware where applicable
• Protective bump stops and shock dust boots
• Complete bolt-in installation hardware included

Available Configurations

Street — 8KG / 10KG Rear

The Street configuration provides balanced spring rates and application-specific valving for improved handling while retaining comfort for daily driving. It is ideal for owners seeking a sharper vehicle response, adjustable ride height, and better chassis control without an excessively aggressive street setup.

Street/Track — 10KG / 12KG Rear

The Street/Track configuration offers a more aggressive balance of spring rates and damping. It is intended for spirited street driving and occasional track use while remaining suitable for a performance-oriented street vehicle.

Track — 12KG / 14KG Rear

The Track configuration uses increased spring rates and more aggressive damping to maximize grip, chassis response, and suspension control during track use. Due to its performance-focused setup, this configuration is not recommended for regular daily street driving.

Custom Specifications

Custom spring rates and damper valving are available for vehicles with specialized requirements. This option may be appropriate for competition cars, unique vehicle builds, specialized tire packages, weight-reduced vehicles, or other applications requiring a tailored suspension system.

Please contact us before ordering a custom-specification system. Vehicle modifications, intended use, tire selection, vehicle weight, and performance goals may be required to determine the appropriate setup.

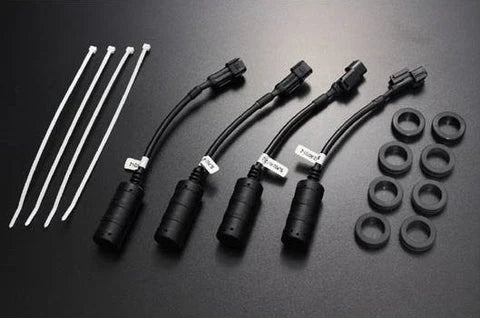

Optional Tein Suspension Error Canceller

A Tein Suspension Error Canceller is available as an optional product selection. Choose the appropriate option when configuring your coilovers. Contact us before ordering if you are unsure whether the error canceller is required for your vehicle or installation.

Monotube Damper Performance

The gas-pressurized monotube dampers separate the oil and gas chambers to help reduce aeration, heat buildup, and shock fade. This design provides responsive damping and more consistent suspension performance during demanding street or track driving.

Independent Height and Preload Adjustment

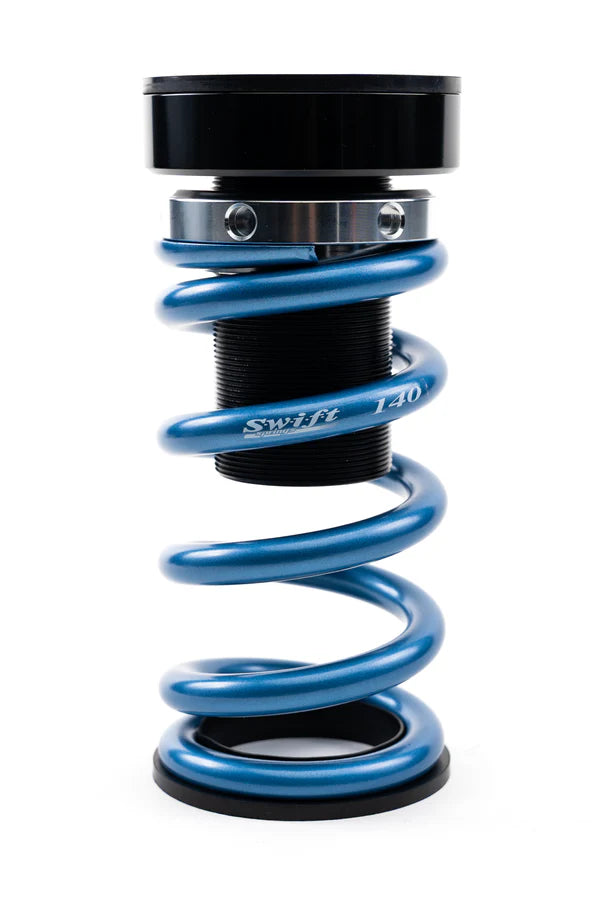

Independent adjustment collars allow ride height and spring preload to be adjusted separately. This provides greater control over vehicle stance and suspension setup without relying solely on spring compression to change ride height.

Vehicle Fitment

• 2024 and newer Acura Integra Type S
• DE5 chassis
• Type S models only

Fitment notice: This listing is specifically for the Acura Integra Type S. Do not order for a standard Integra or Integra A-Spec unless fitment has been confirmed. Verify the vehicle’s year, model, chassis, and intended use before ordering.

What Is Included?

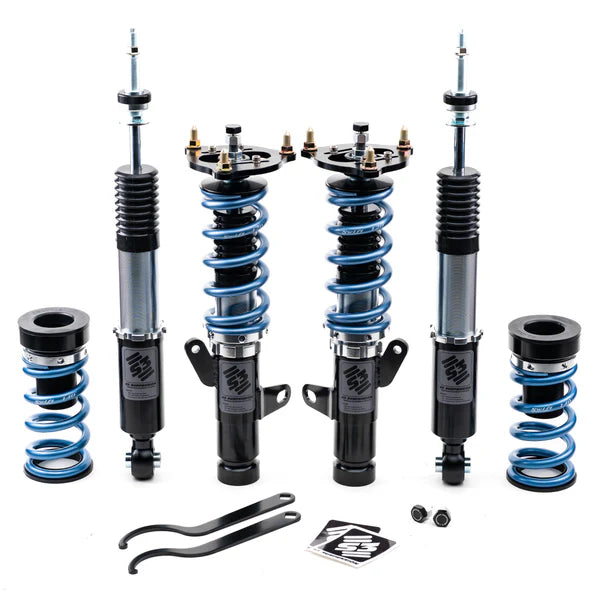

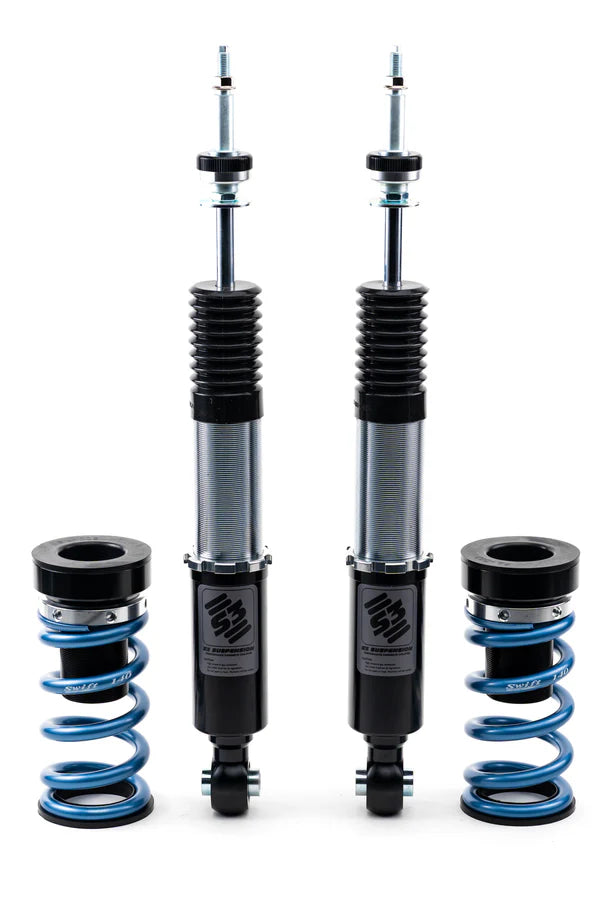

• S3 Suspension coilover assemblies
• Application-selected Swift Springs
• Top mounts and applicable mounting components
• Bump stops and shock dust boots
• Required bolt-in installation hardware
• Tein Suspension Error Canceller only when selected

Manufacturer Warranty

S3 Suspension coilover systems include a limited two-year manufacturer warranty. Warranty eligibility, coverage, exclusions, and approval are subject to S3 Suspension’s current warranty terms and conditions.

Need Help Choosing a Configuration?

The correct suspension configuration depends on how the vehicle will be used. Contact us before ordering if you need help choosing between the Street, Street/Track, Track, or Custom Specification options.
