Rev9 TX-Series - TX-66-62 Billet Compressor Wheel Turbocharger .68 AR, T4 Flange, 3 in. V-Band Exhaust Flange

TX-66-BW-62-T4-3V-68 — Rev9 TX-Series - TX-66-62 Billet Compressor Wheel Turbocharger .68 AR, T4 Flange, 3 in. V-Band Exhaust Flange

Rev9 TX-Series turbocharger configured for the listed compressor, turbine housing, flange, and outlet combination. Designed for custom forced-induction builds where careful component matching, fuel delivery, engine management, and professional tuning are essential.

Manufacturer Stock Notice: Rev9 currently shows this item out of stock. Availability and lead time may vary.

Part Number: TX-66-BW-62-T4-3V-68

Key Features & Specifications

• TX-66-62 Billet Compressor Wheel Turbocharger .68 AR, T4 Flange, 3 in. V-Band Exhaust Flange
• Compressor Inlet: 4.00"
• Compressor Outlet: 2.50"
• Compressor Cover: Anti Surged 70 Series Cover

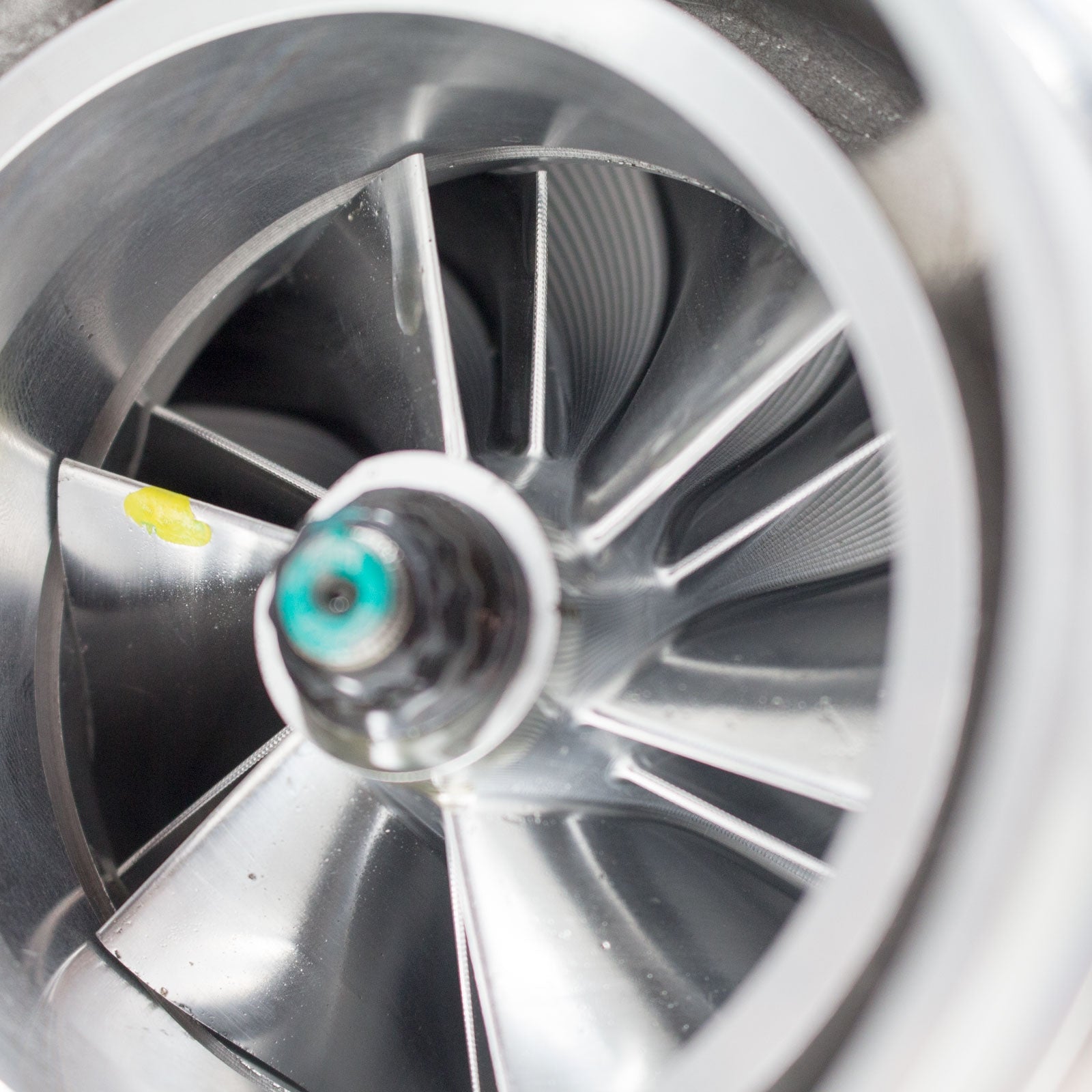

• Billet Compressor Wheel Diameter:  65mm /  91mm
• Turbine Wheel Diameter: 62mm / 70mm
• Exhaust Trim: .68 AR

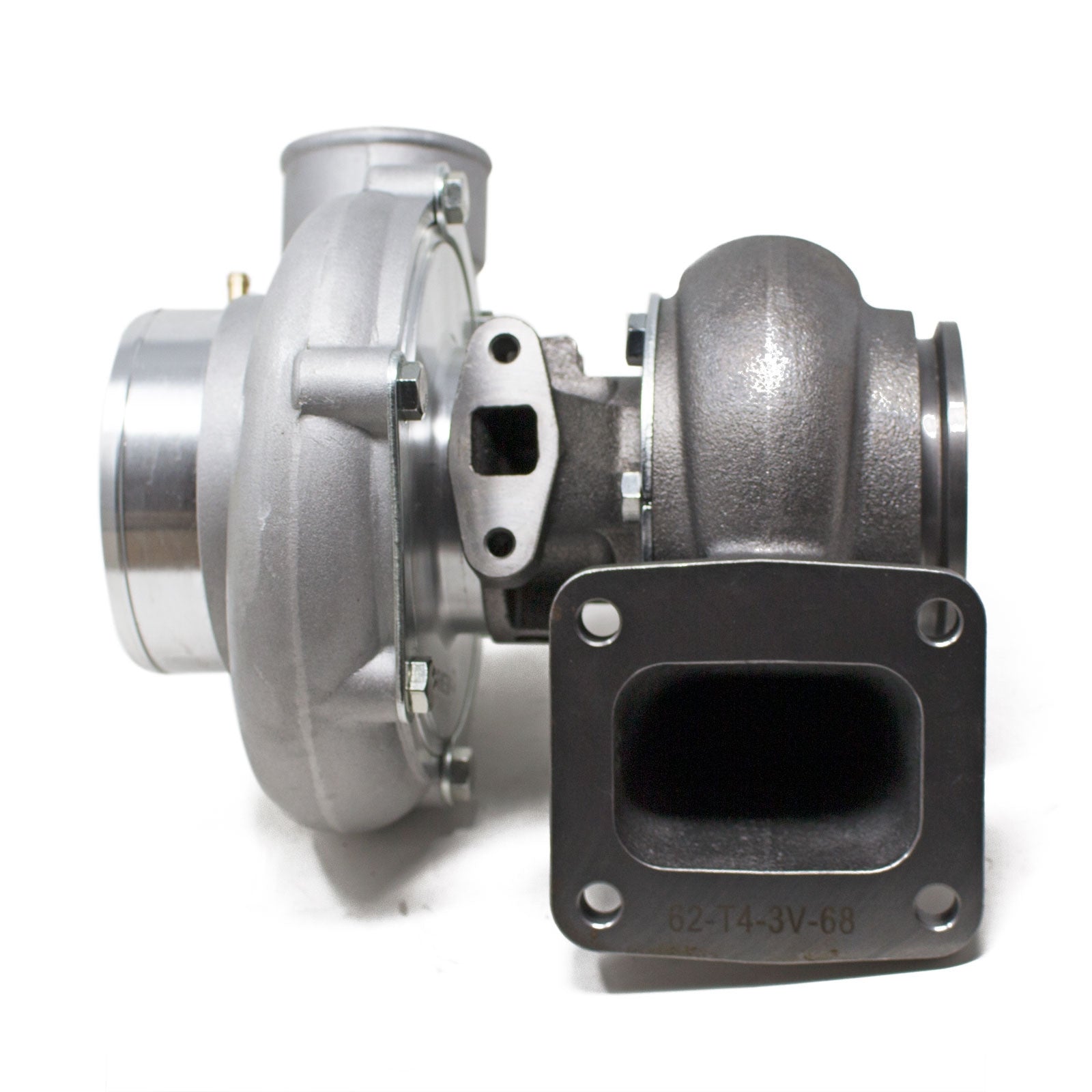

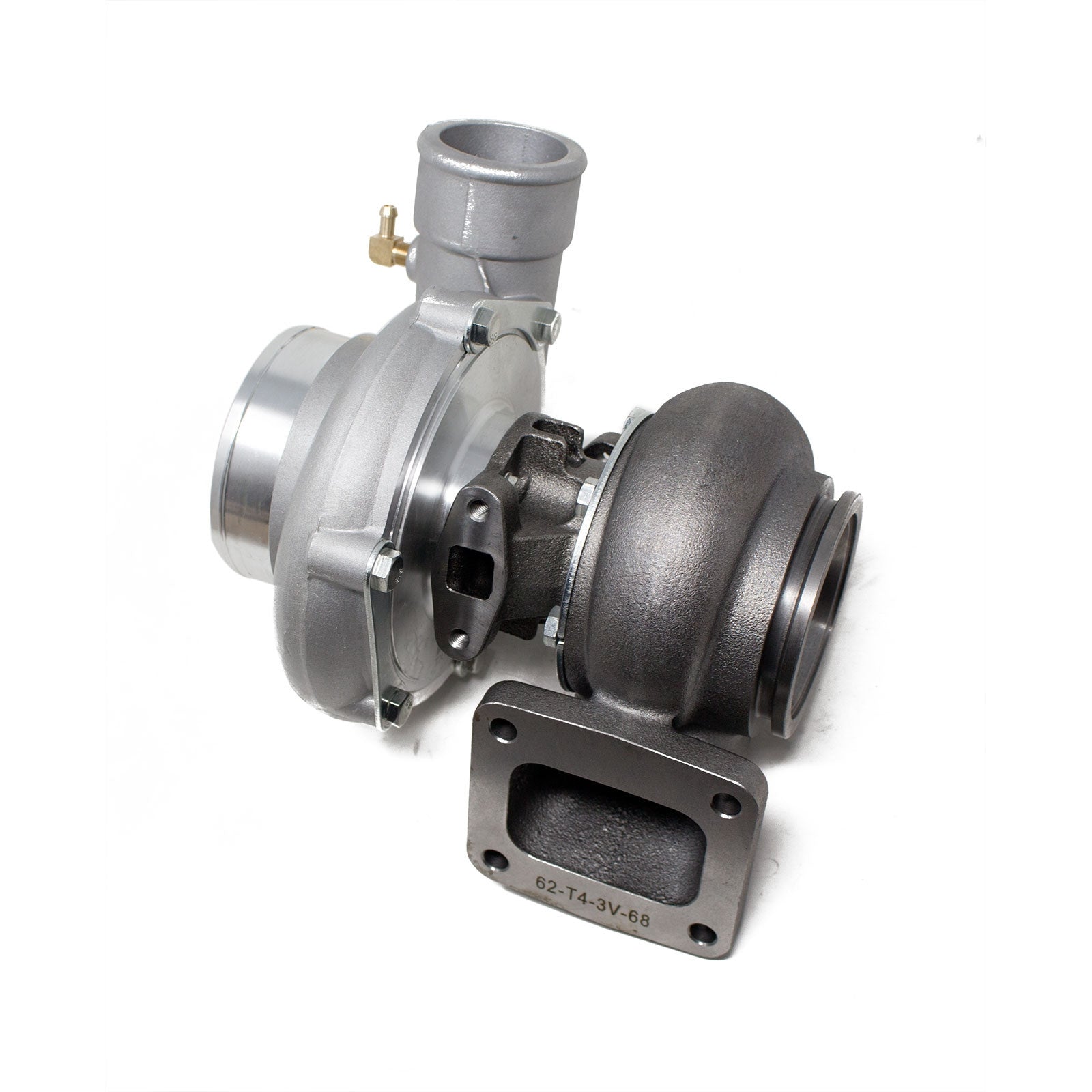

• Turbine Flange Type: T4 Flange
• Downpipe Flange Type: 3.00" V-Band
• Cooling Type: Oil Cooled Only
• Horsepower Rating: 300-600 HP+
• **Recommended Oil Restrictor Size: 0.065"

Application

Universal/custom turbo system component. Confirm all dimensions, flange patterns, A/R, exhaust outlet, oiling, cooling, and engine-management requirements before purchase.

Installation Notes

Professional installation by an experienced turbo-system fabricator is recommended. Proper oil feed and drain routing, cooling connections where applicable, intake and exhaust fabrication, fuel-system capacity, engine management, and professional calibration are required.
