Rev9 Power K20A T3 / T4 Turbocharger Kit - Acura RSX & Type S

TCK-001 - Rev9 Power K20A T3 / T4 Turbocharger Kit - Acura RSX & Type S

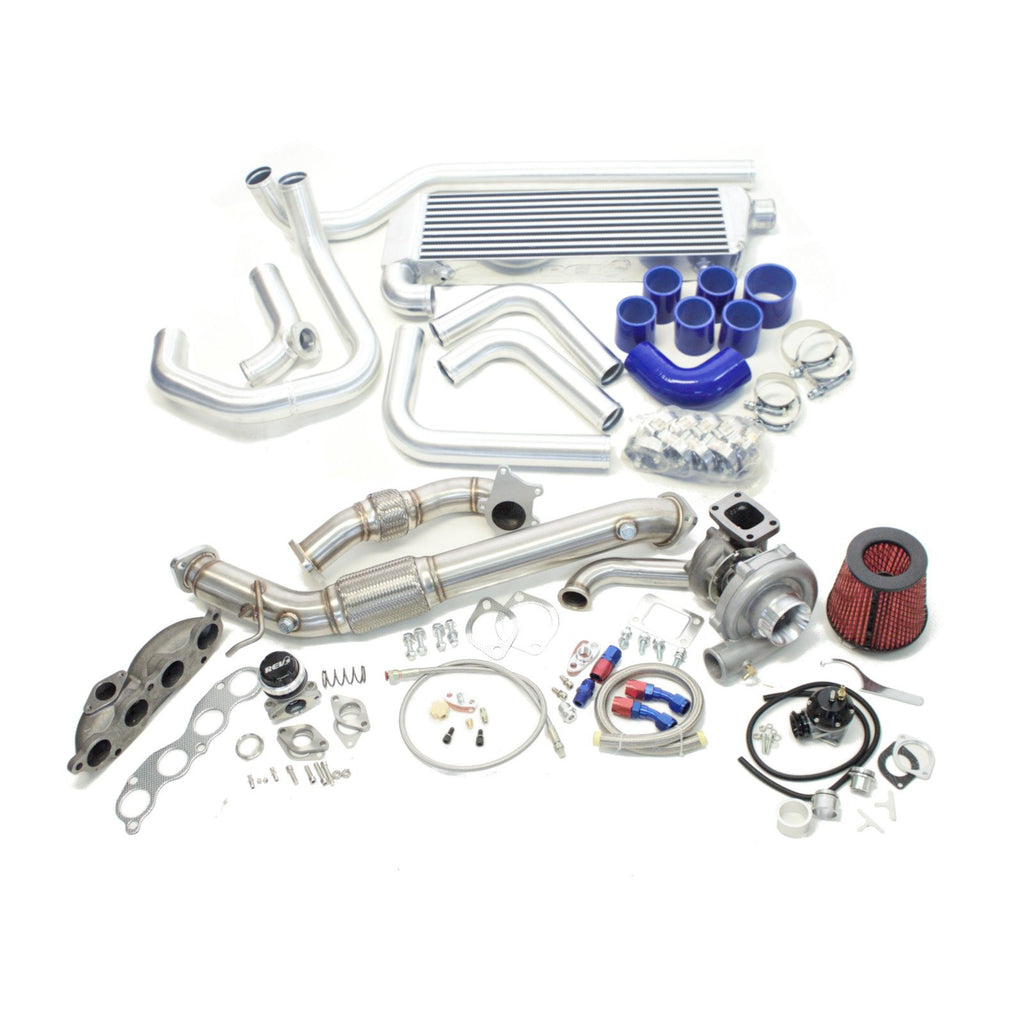

Kit Includes:

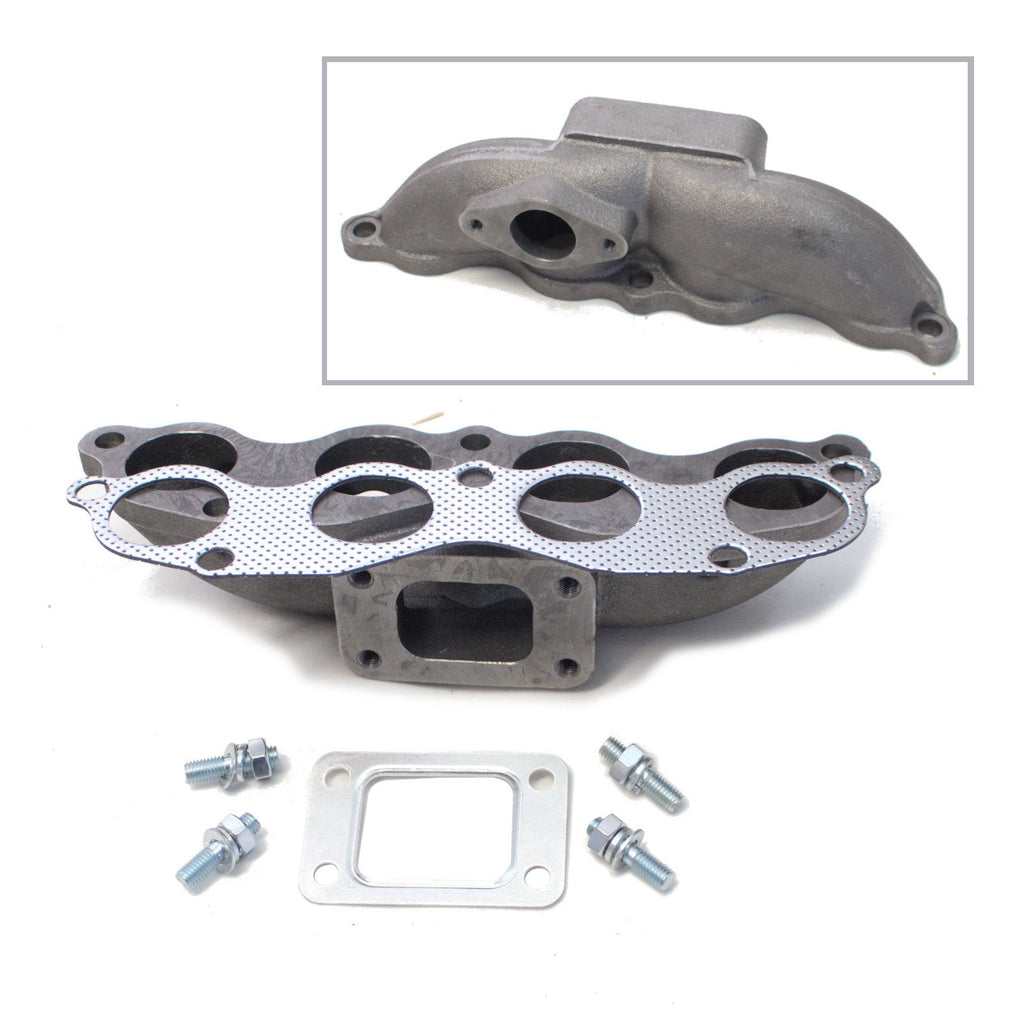

• K20A cast manifold
• direct bolt-on aluminum intercooler piping for RSX (includes silicone and clamps)
• intercooler
• TX-50E-57 .63 AR turbocharger
• 38mm Wastegate (Set at 5PSI) Comes With Extra 10 PSI Spring In Order To Make 15 PSI Maximum Setting.

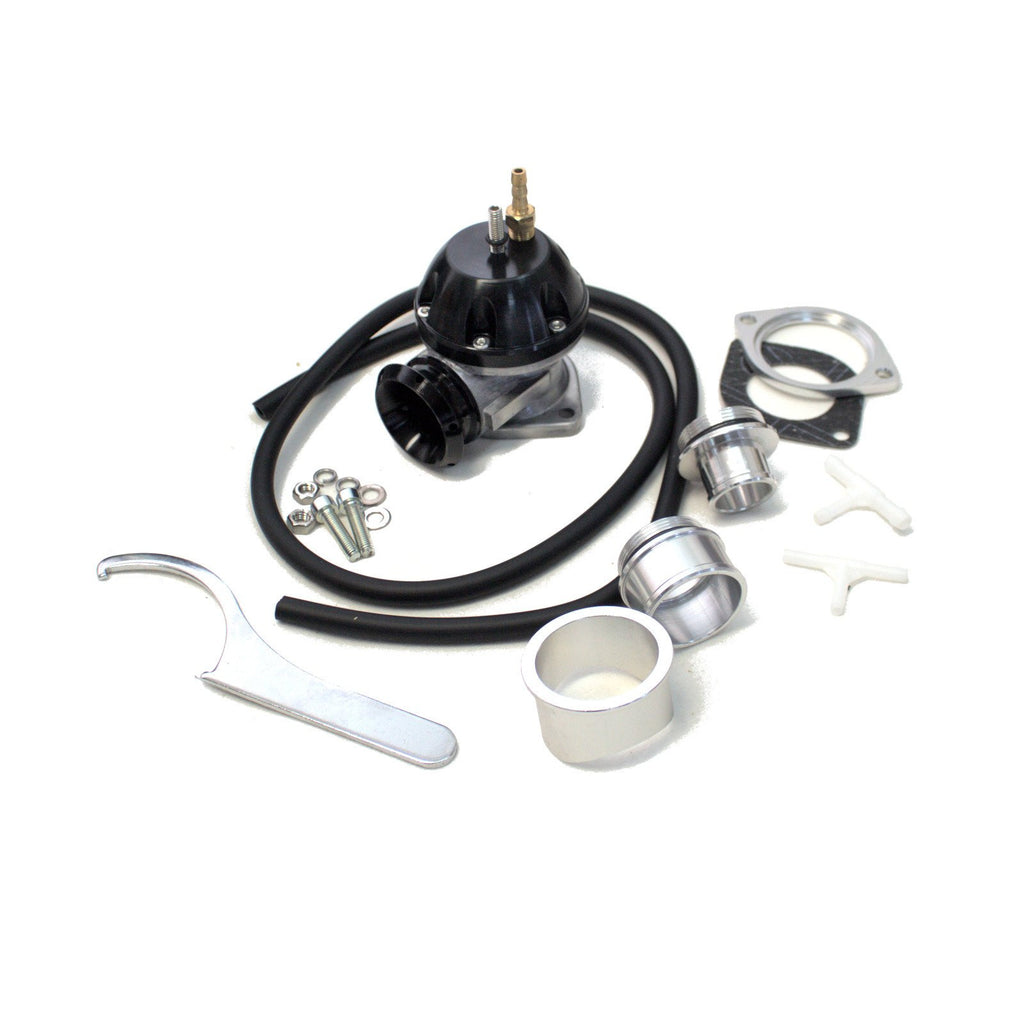

• Blow Off Valve
• intake piping and intake cone
• wastegate dump tube
• oil feed line and oil return line kit
• stainless steel turbo elbow

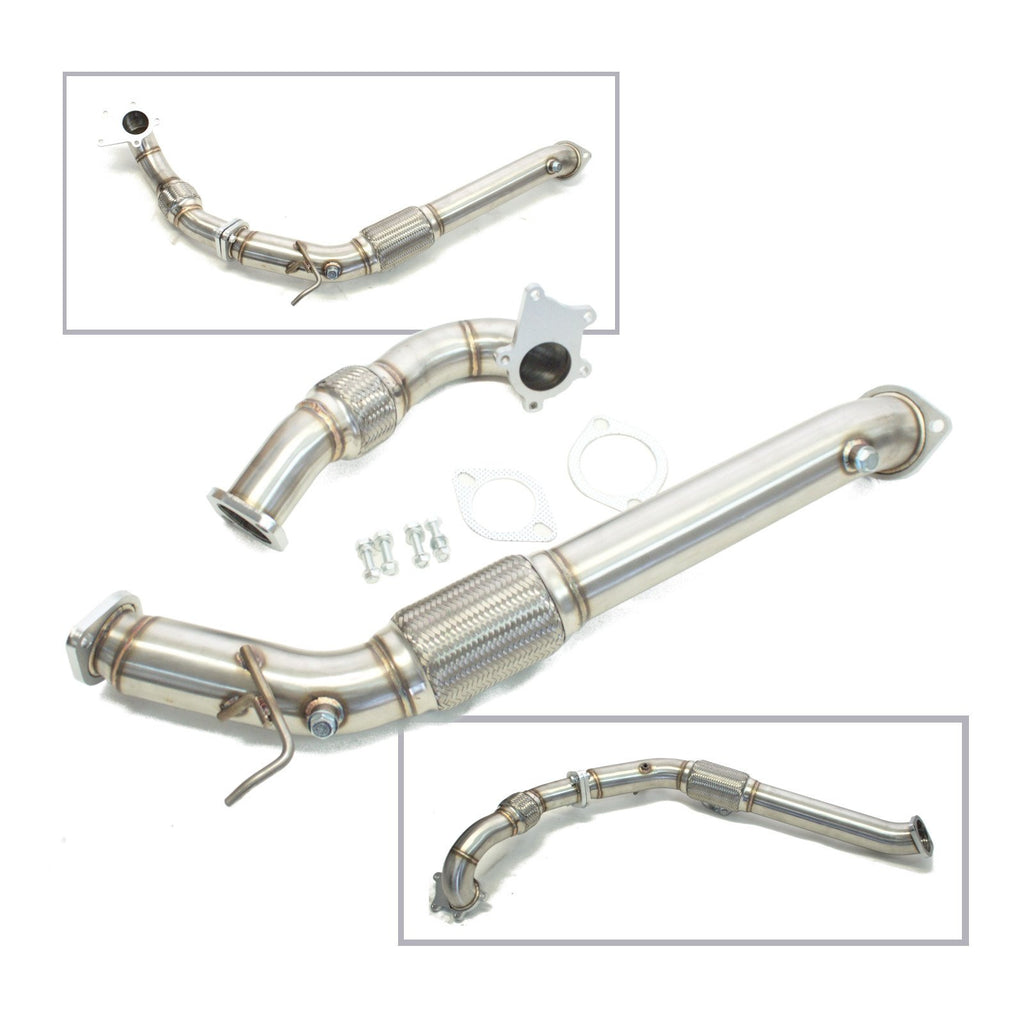

• 3" stainless steel turbo downpipe

Includes all hardware. Requires ECU upgrade, larger injectors and a high flow fuel pump.

Specifications:

TX-50E Turbocharger .63 AR

Compressor Inlet: 3.00" Inch
Compressor Outlet: 2.00" Inch
Compressor Cover: TX-50E Cover
Compressor Wheel Diameter: 53mm / 75mm
Turbine Wheel Diameter: 57mm / 65mm
Exhaust Trim: .63 AR
Turbine Flange Type: T3 Flange
Downpipe Flange Type: 5-Bolt Standard Type
Cooling Type: Oil Cooled Only
Horsepower Rating: 200-400HP+

1 Year Warranty (must be installed by a professional mechanic to be valid)
