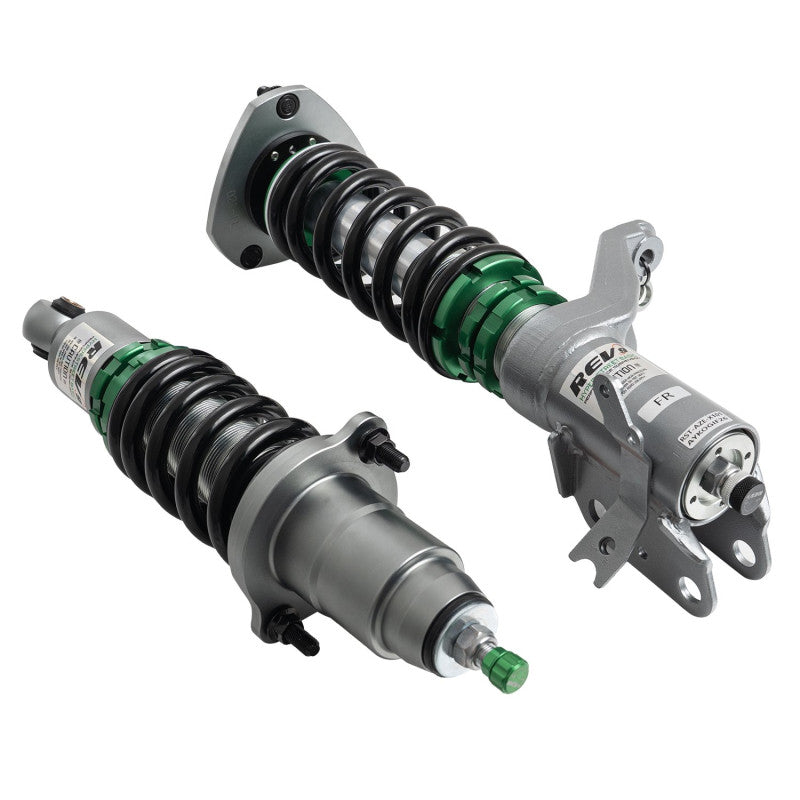

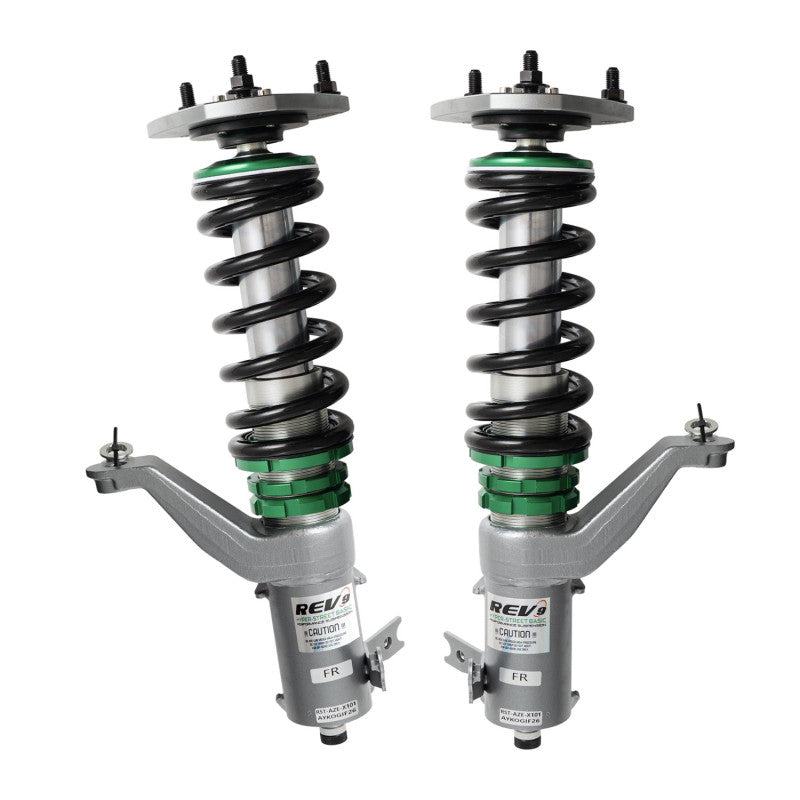

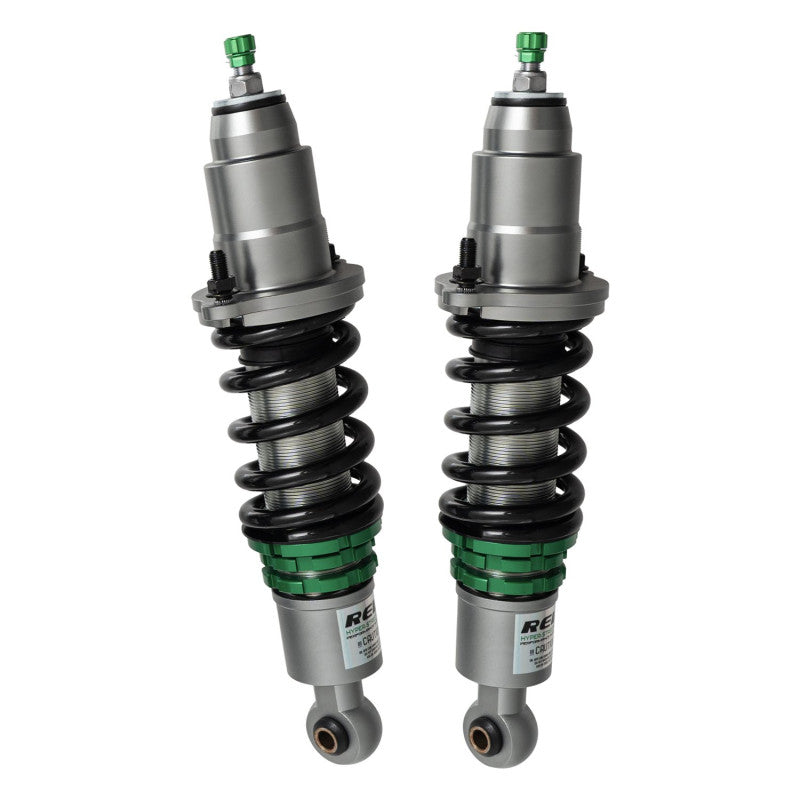

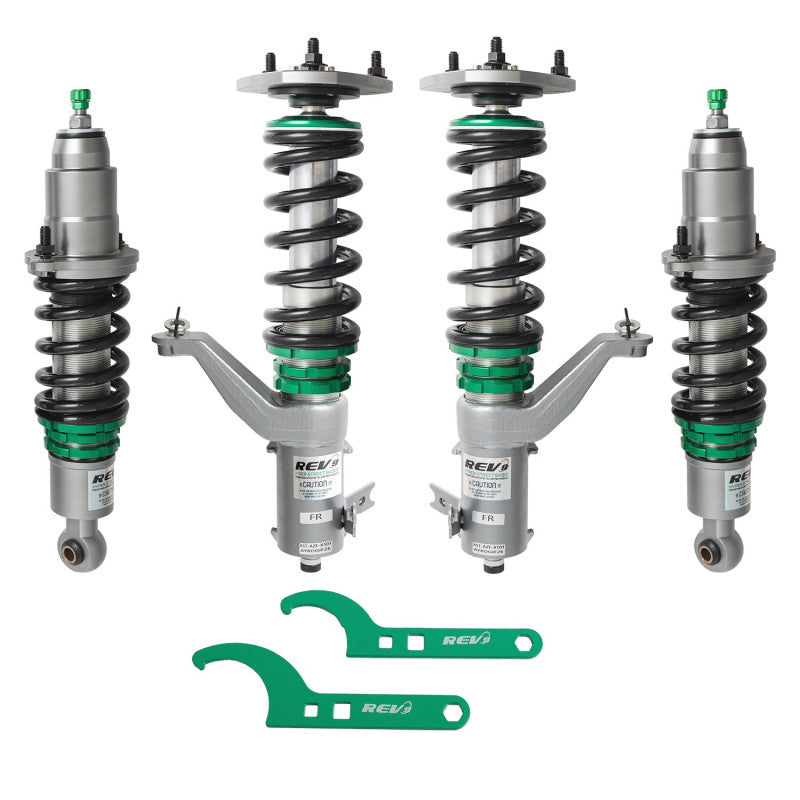

Rev9 Power Hyper-Street III Coilovers (Inverted Shocks, Extended Rear Top Hat 2.5") - Acura RSX (DC5) 2002-06

RST-AZE-X101_1 - Rev9 Power Hyper-Street III Coilovers (Inverted Shocks, Extended Rear Top Hat 2.5") - Acura RSX (DC5) 2002-06

Take your vehicle’s handling to the next level with the Rev9 Power Hyper-Street 3 Coilover Kit. Engineered specifically for the Acura RSX (DC5) 2002-2006, this premium upgrade combines race-inspired inverted front struts with 32-level damping adjustment. Whether daily driving or carving canyon roads, the Hyper-Street 3 balances an aggressive drop with refined ride comfort.

Fitment

Acura RSX (DC5) 2002-2006

The Inverted Shock Advantage

• Sharper steering response: Reduced unsprung weight helps the suspension react quickly to road imperfections.
• Improved structural rigidity: The large outer casing helps minimize strut deflection under cornering loads.
• Stable damping: Increased oil capacity improves heat management for consistent performance.

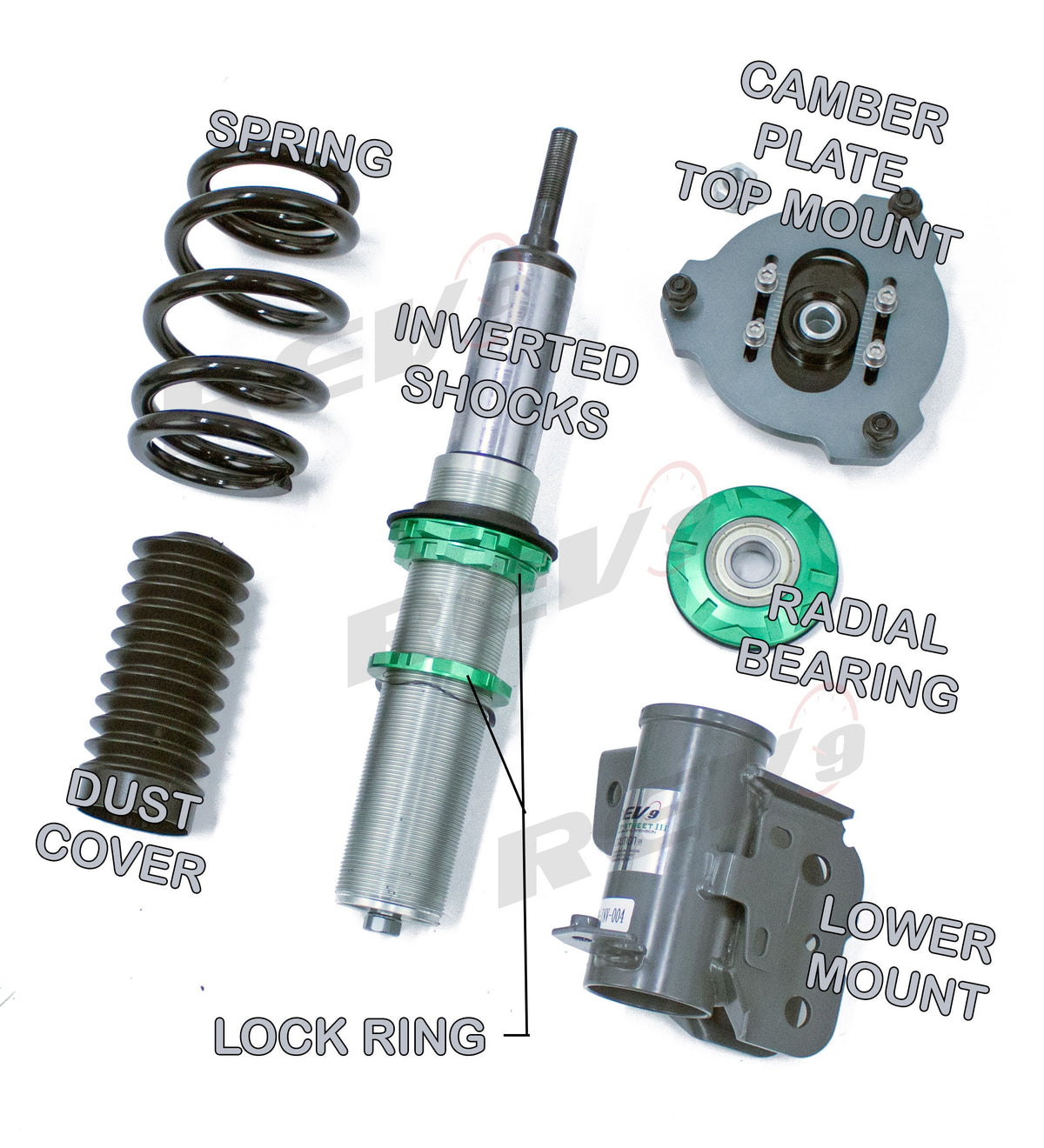

Key Features

• Inverted mono-tube front struts with standard mono-tube rear shocks
• 32-level adjustable damping
• Independent full-length ride-height adjustment
• Front pillow-ball camber plates and standard rear top mounts
• Extended 2.5-inch rear top-hat configuration
• Lightweight aluminum hardware
• Front spring rate: 10 kg/mm (560 lb/in)
• Rear spring rate: 12 kg/mm (672 lb/in)
• Front spring: 180 mm length, 62 mm inner diameter
• Rear spring: 140 mm length, 62 mm inner diameter

Front shocks: Inverted
Rear shocks: Traditional upright

Important — please read before purchasing

Before installation, verify all hardware and properly preload the suspension to 10 mm. A vehicle alignment is recommended after installation. Professional installation is strongly recommended. Rev9 Power warranty coverage requires installation by an ASE-certified mechanic.
