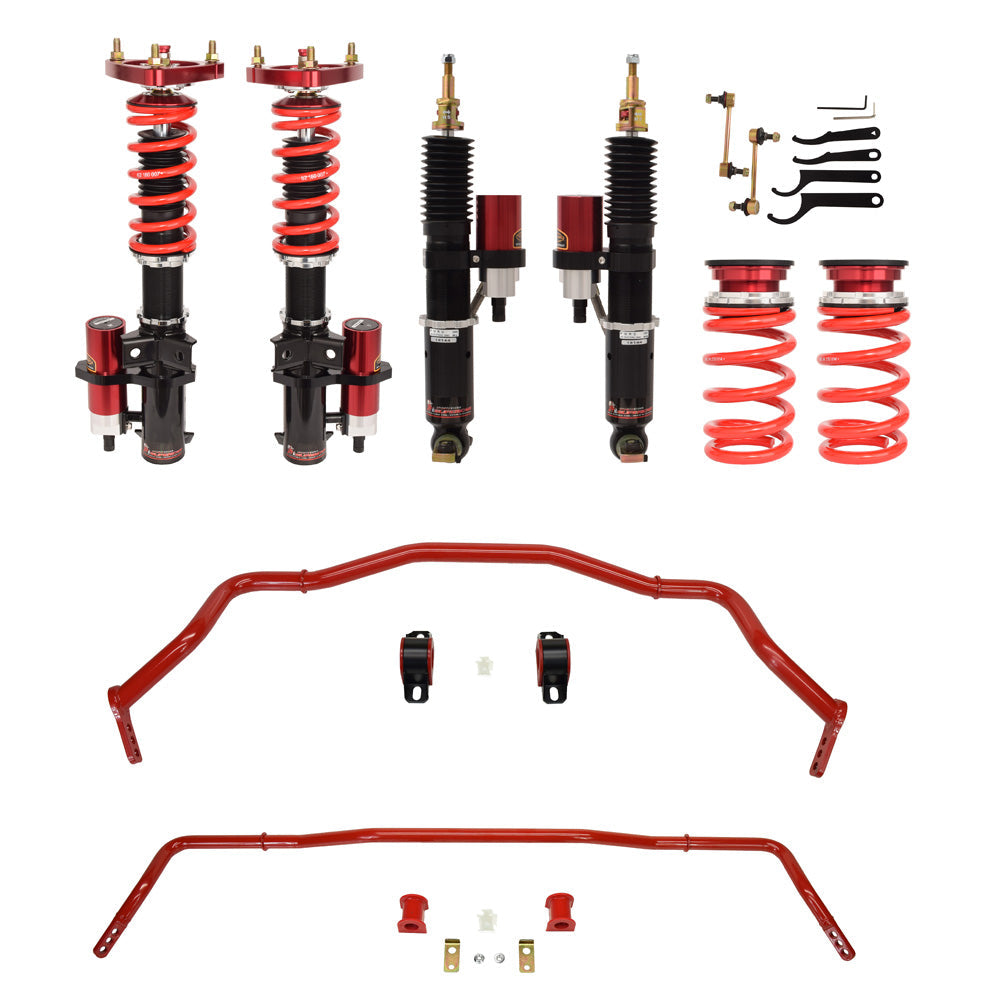

Pedders Supercar Suspension Kit - Ford Mustang S550 (2015-2023)

PED-814110 - Pedders Supercar Suspension Kit - Ford Mustang S550 (2015-2023)

Vehicle Application

Ford Mustang. Verify your trim and the installation restrictions below.

Description

A Pedders eXtreme XA Suspension kit fitted to your vehicle provides exceptional ride and handling characteristics. This complete suspension kit includes our best selling PED-164099 coilovers paired with our PED-814098 adjustable front and rear sway bar kit.

• 30 Position Independent Bump and Rebound Adjustment
• Alloy Steel Motorsport Coils.
• 52mm Fully Threaded Mono-Tube Damper.
• Remote Reservoirs Offer up to 50% additional Capacity
• Pre-installed Camber Plates with 5044 roller bearing spring perches.
• Tubular 35mm 3 point adjustable front sway bar.
• Tubular 25mm 3 point adjustable front sway bar.

Note: Not compatible with Magneride equipped vehicles.

Note: Strut tower holes may need to be widened to adjust camber on car.

Tech/Specs

Front Spring Rate: 6 kg/mm

Rear Spring Rate: 14 kg/mm

Front Sway Bar Size: 35mm Tubular 3pt Adjustable

Rear Sway Bar Size: 25mm Tubular 3pt Adjustable

Installation Instructions:
