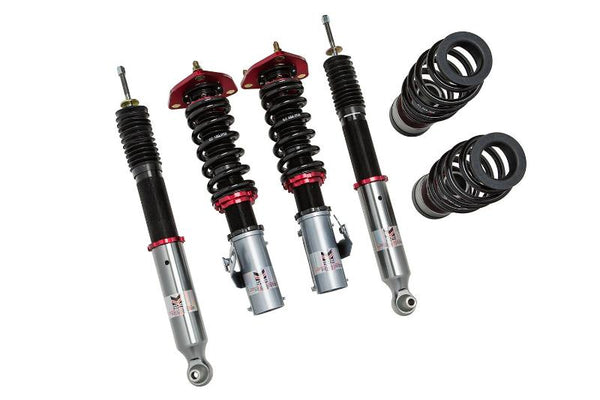

By popular demand, Megan Racing Inc. has developed a Coil-over Damper Kit for the 1984-1988 Nissan 200SX (S12) chassis. This kit allows full ride height and damper adjustment for both the front and the rear of the vehicle allowing corner balancing and fine tune adjustments to be possible. The wide range of allowable ride-height adjustment allows for a conservative drop to more aggressive ride heights for an aggressive stance, or to fine tune your suspension for the circuit to gain full potential of your vehicle's handling capabilities.
For the front, the suspension is from the later 89-98 Nissan 240SX S13 and S14 chassis and will require all the necessary pieces to convert the front, these are not available from Megan Racing Inc.
The rear is a completely innovative design that utilizes a separate shock and spring combination that allows for independent ride height adjustment to retain full suspension stroke and once proper adjustment is achieved, a full 130mm of shock travel is readily available.
The spring rates have been chosen to evenly balance the chassis but is interchangeable with springs within a +/-2kg/mm Tolerance to cater to your specific driving style and/or handling characteristics.
F: 8 kg/mm
R: 5 kg/mm
-Full Ride-Height Adjustment with separate spring perch and shock length adjustment
-1-Year Manufacturers Defect Warranty
-Anodized Damper Cylinders for Durability
1985-1988 Nissan 200SX w/ S13 Front Suspension
NOTE: THIS WILL NOT WORK WITH OEM FRONT SUSPENSION!!! YOU MUST DO THE CONVERSION FOR THE S13 FRONT SUSPENSION.
NOTE: THIS WILL ONLY WORK WITH INDEPENDENT REAR SUSPENSION. WILL NOT WORK WITH SOLID AXLE TYPE SUSPENSION!
