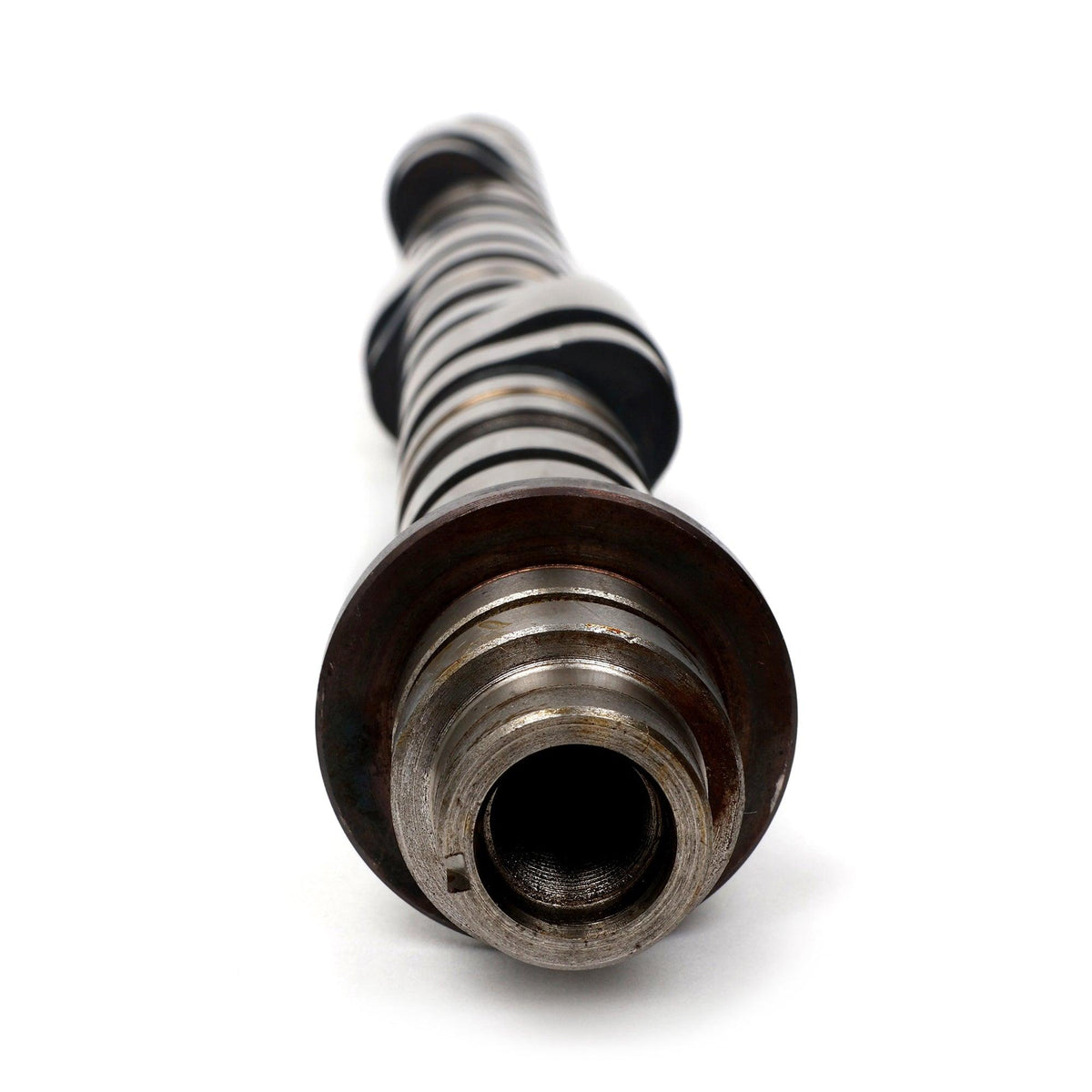

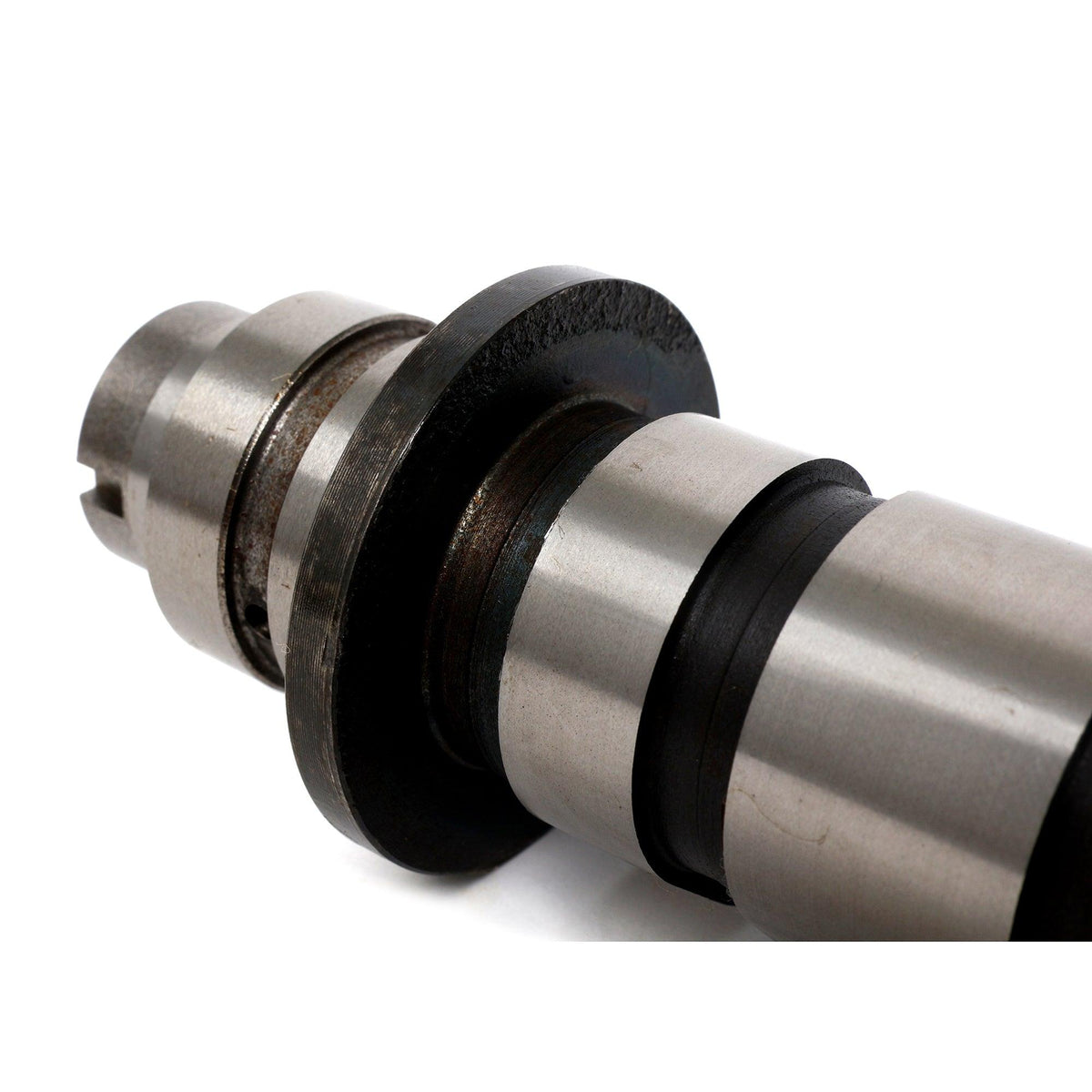

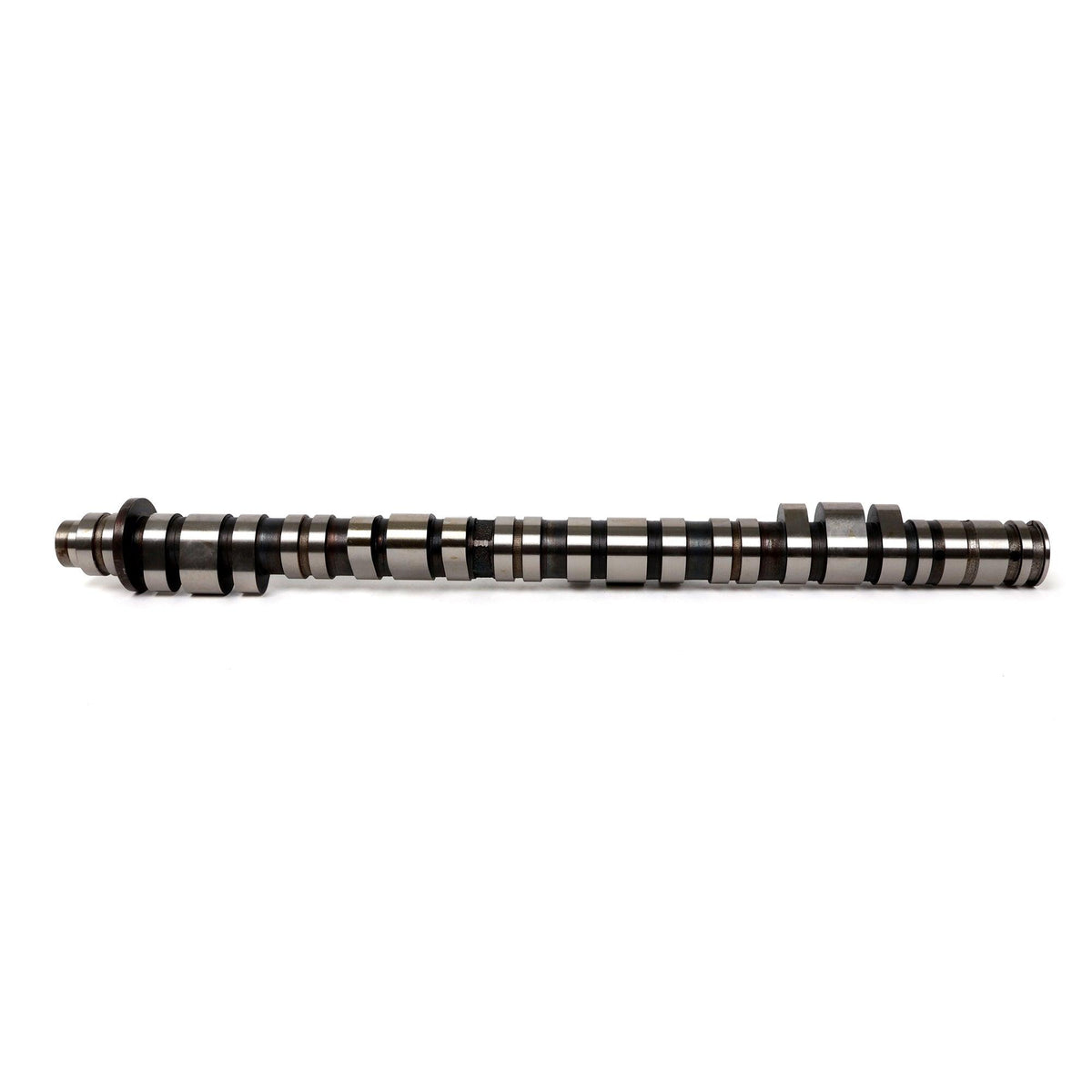

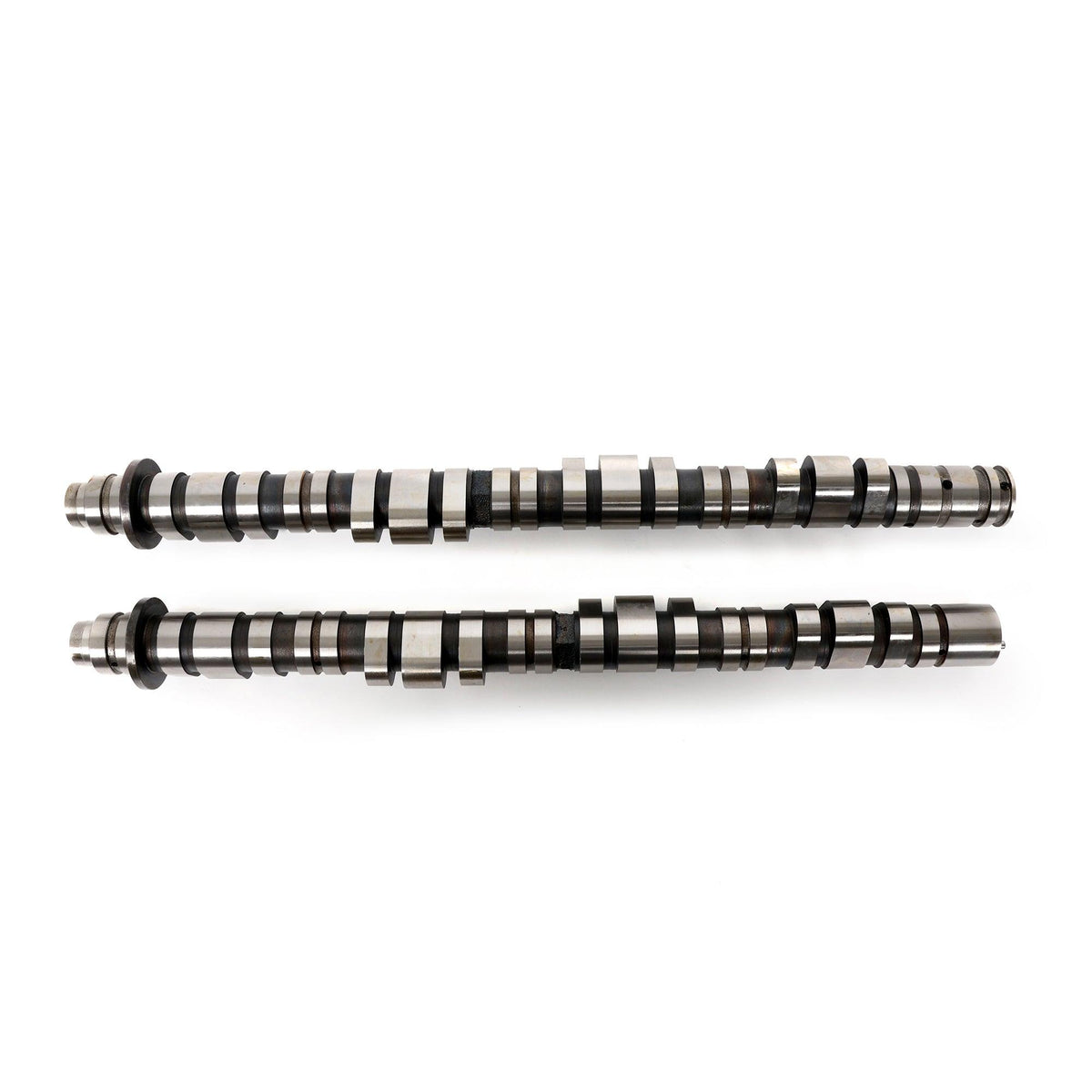

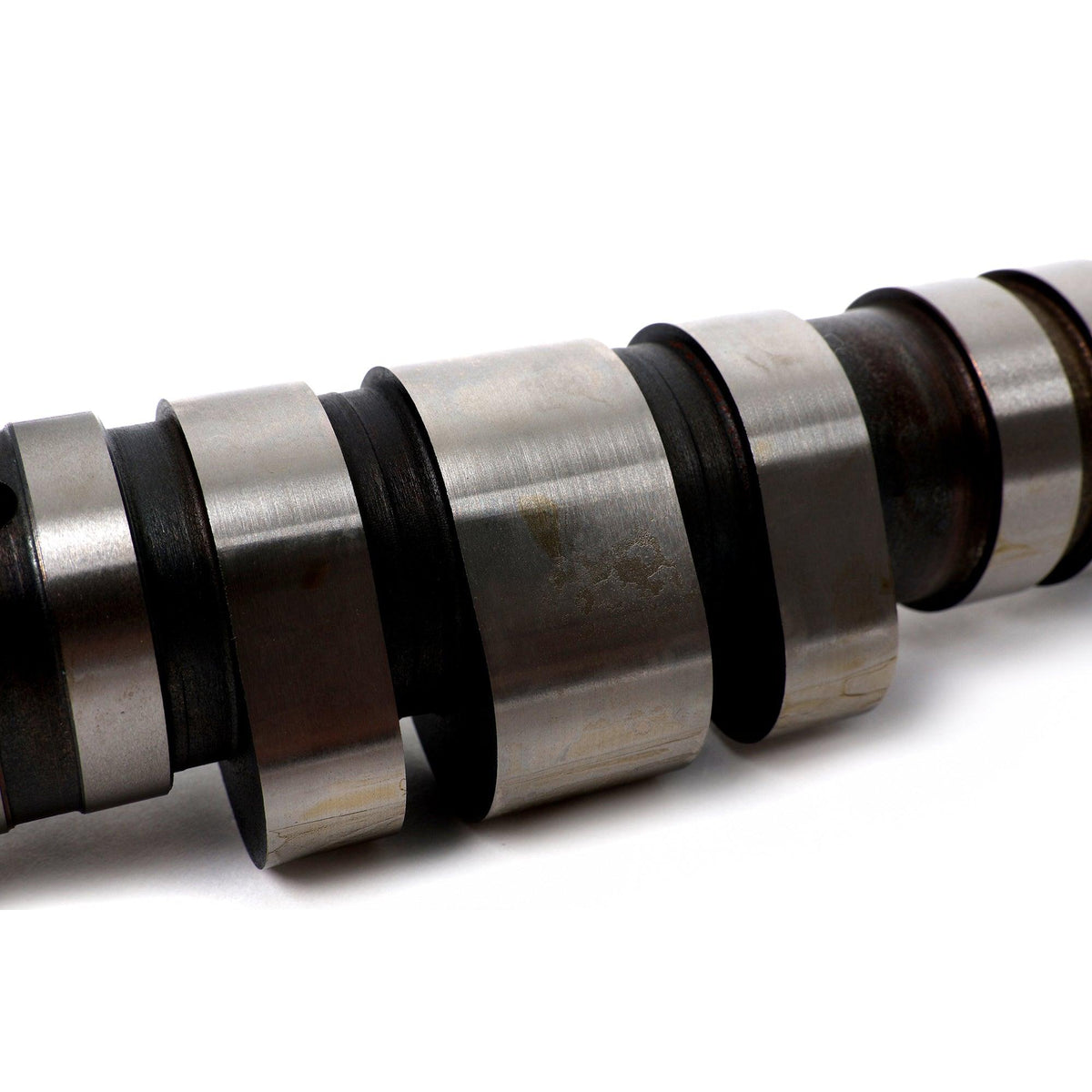

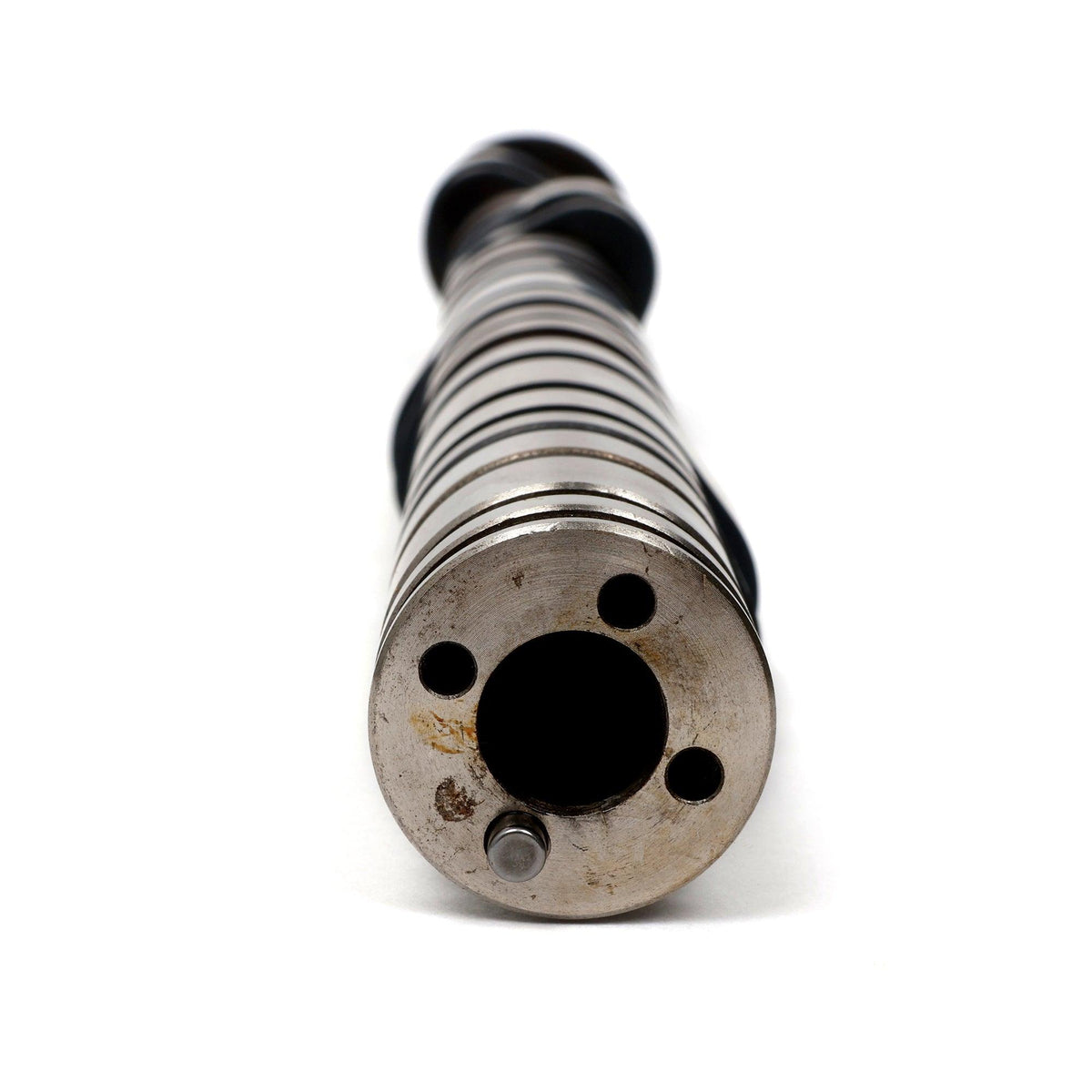

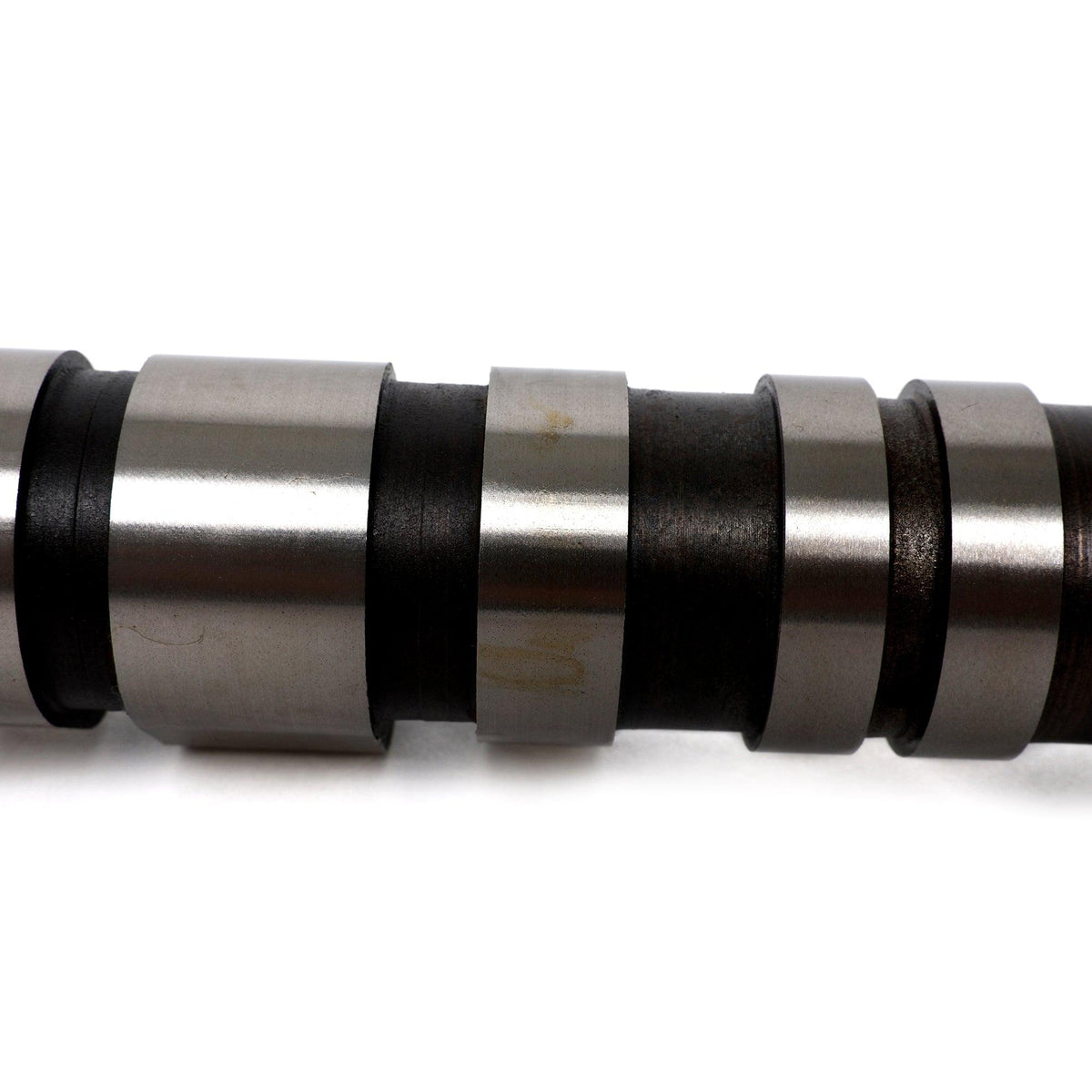

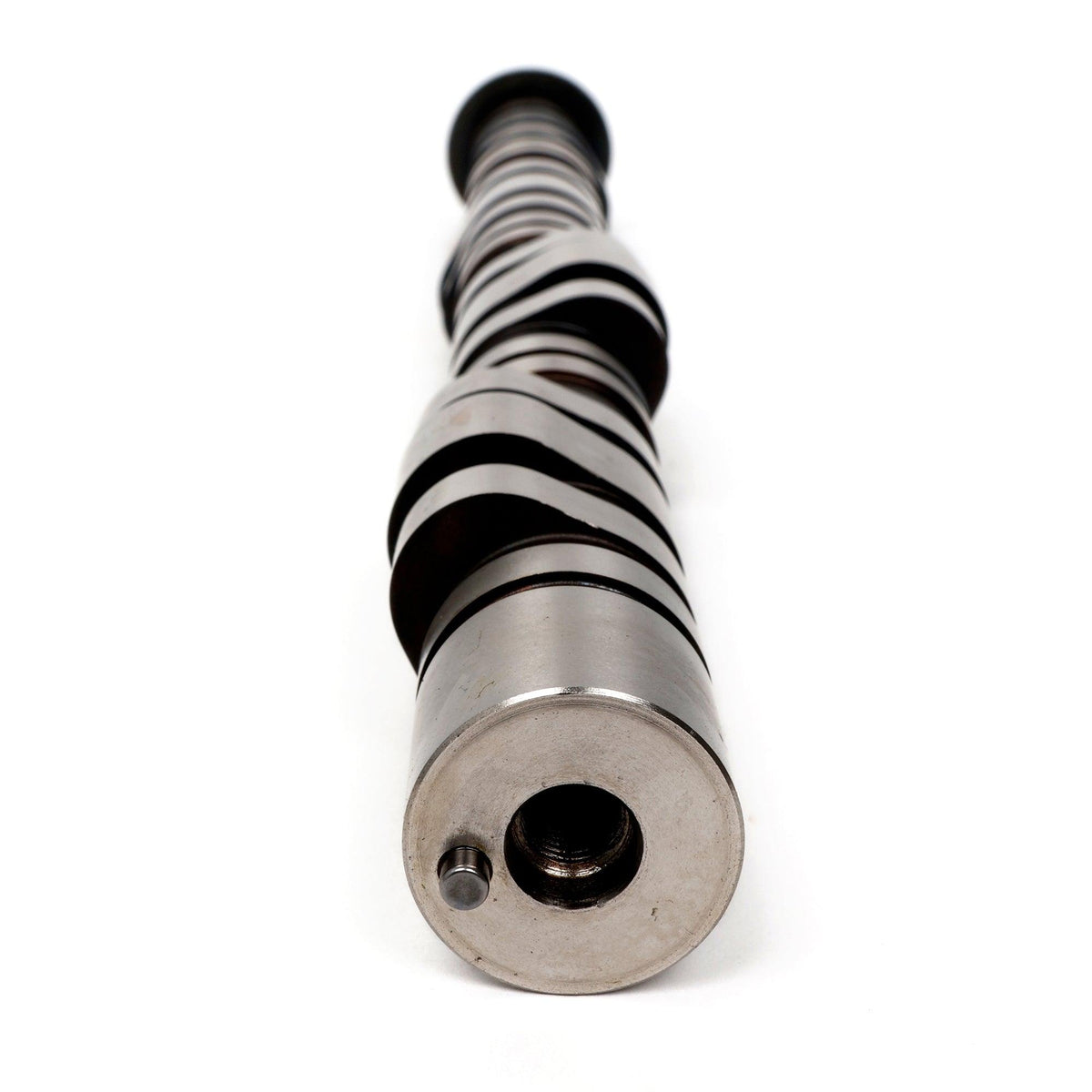

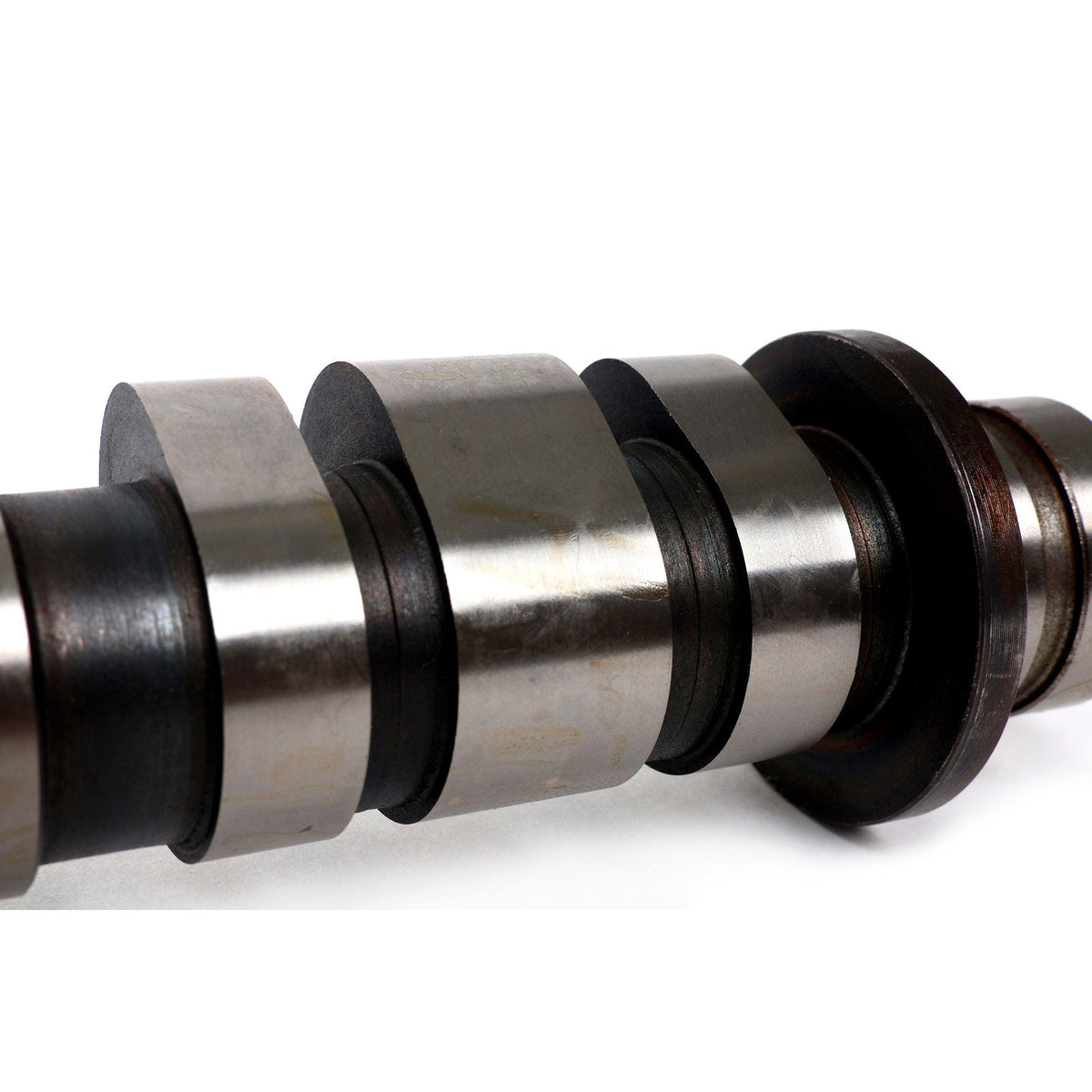

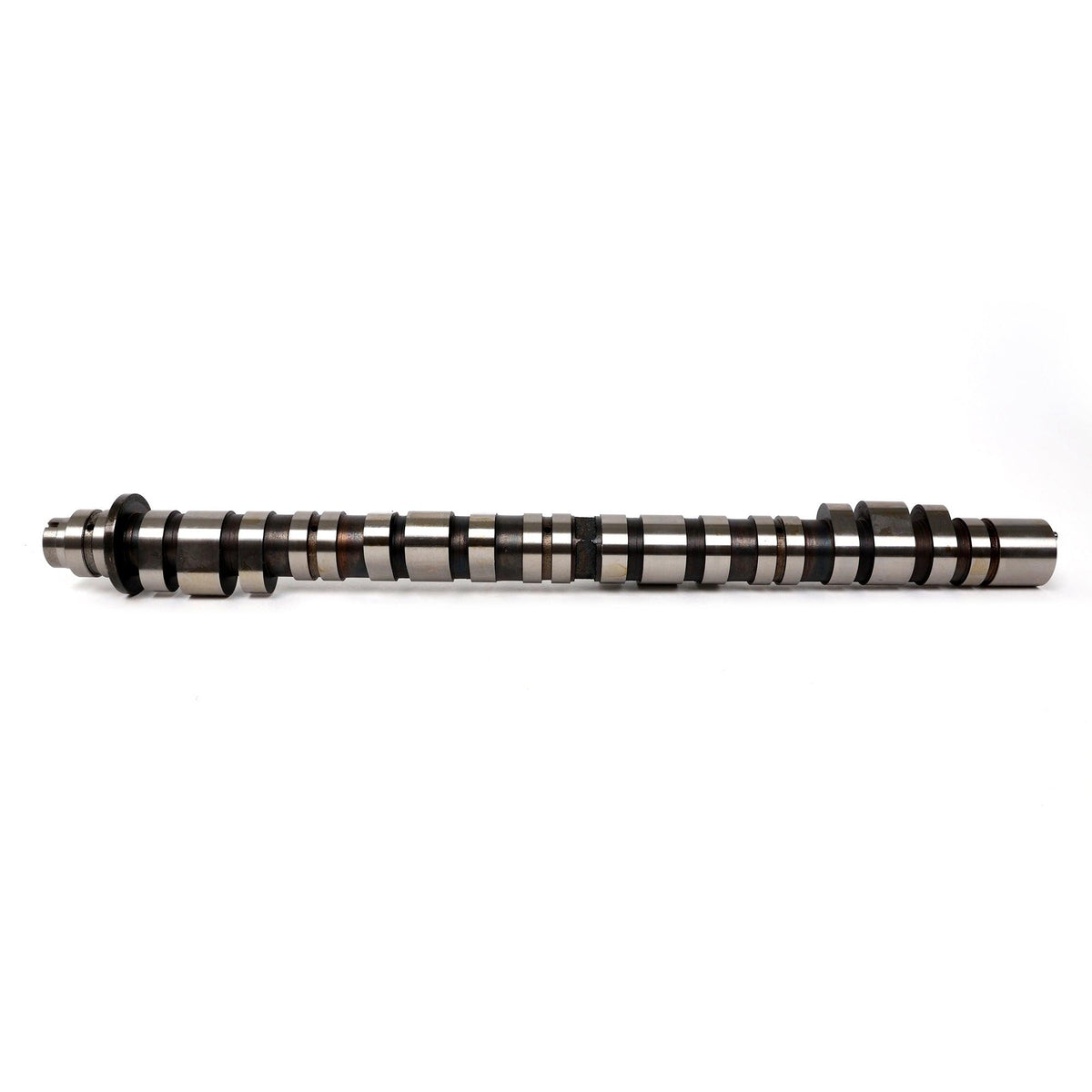

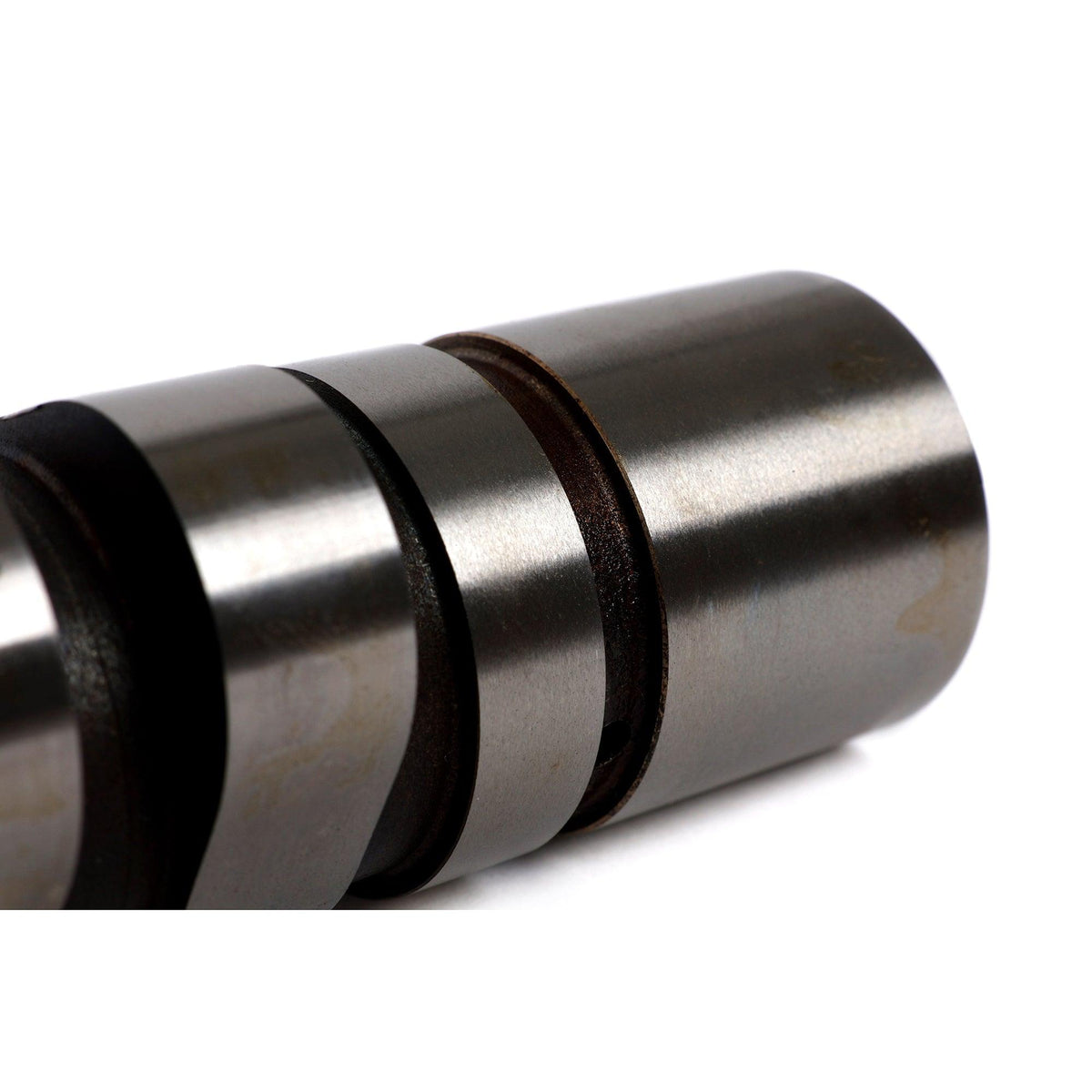

BLOX Racing Type-B iVTEC Camshafts - Honda K20A/K20A2/K20Z1/K20Z3/K24A2

BXCM-10201 - BLOX Racing K-Series iVTEC Camshafts - Type-B

BLOX Racing offers performance enthusiasts and racers its high performance line of Tuner and Competition Series camshafts in several different profiles, as well as, its line of semi-blank camshaft cores. All camshafts are designed and manufactured using the latest software and casting technologies, then CNC-ground to precise tolerances and performance specifications. Each camshaft profile designed offers increased horsepower and torque across the entire RPM range.

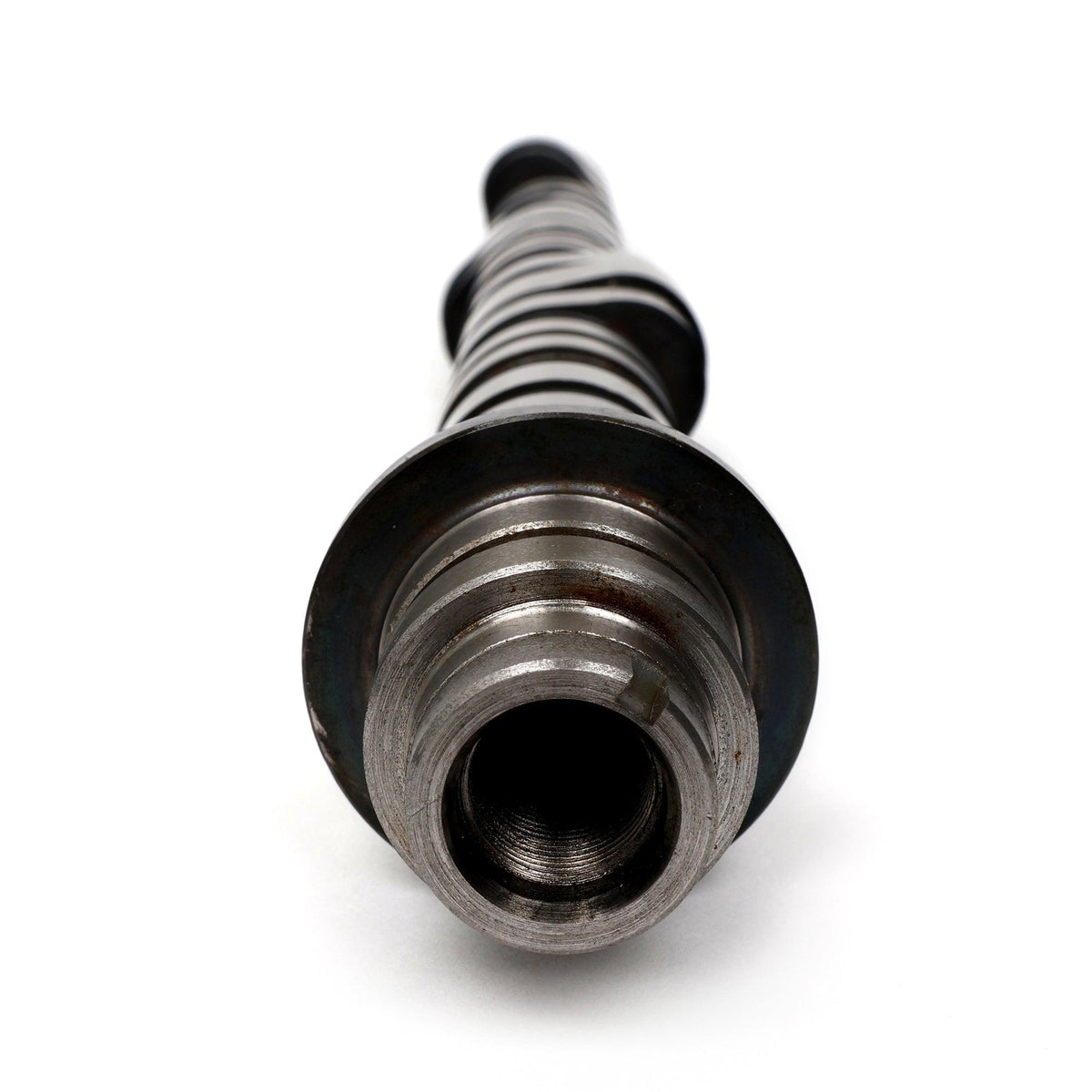

BLOX Racing camshafts are designed and manufactured using OEM-spec, gun-drilled camshaft cores.

BLOX Racing K-Series Type-B camshafts are ideal for mild to highly modified engine builds.

Upgraded valvetrain is required.

Honda RBC or RRC intake manifold is recommended.

Type-B Camshaft Specifications

• Measured at Primary Lobes @ 0.050 Duration
  INTAKE: 210.6° / 0.364”
  EXHAUST: 203.5° / 0.319”

• Measured at Secondary Lobes @ 0.050 Duration
  INTAKE: 259° / 0.523”
  EXHAUST: 252° / 0.466”

APPLICATIONS

• K20A, K20A2, K20Z1, K20Z3, and K24A2

Installation Guide / Product Spec Sheet
