Hybrid Racing Formula Cold Air Intake - Honda Civic Type R FK8 (2017-2021)

Hybrid Racing Formula Cold Air Intake - Honda Civic Type R FK8 (2017-2021)

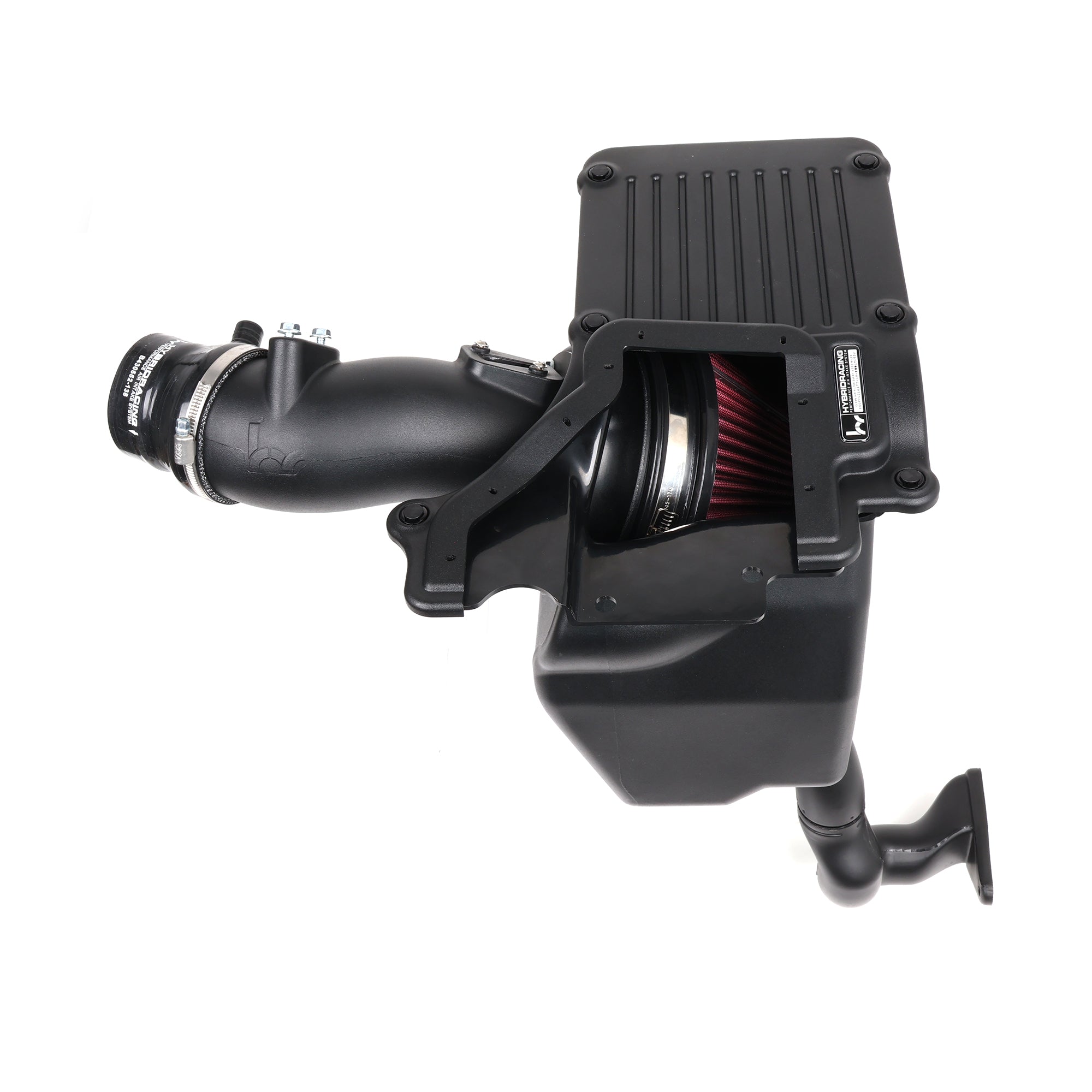

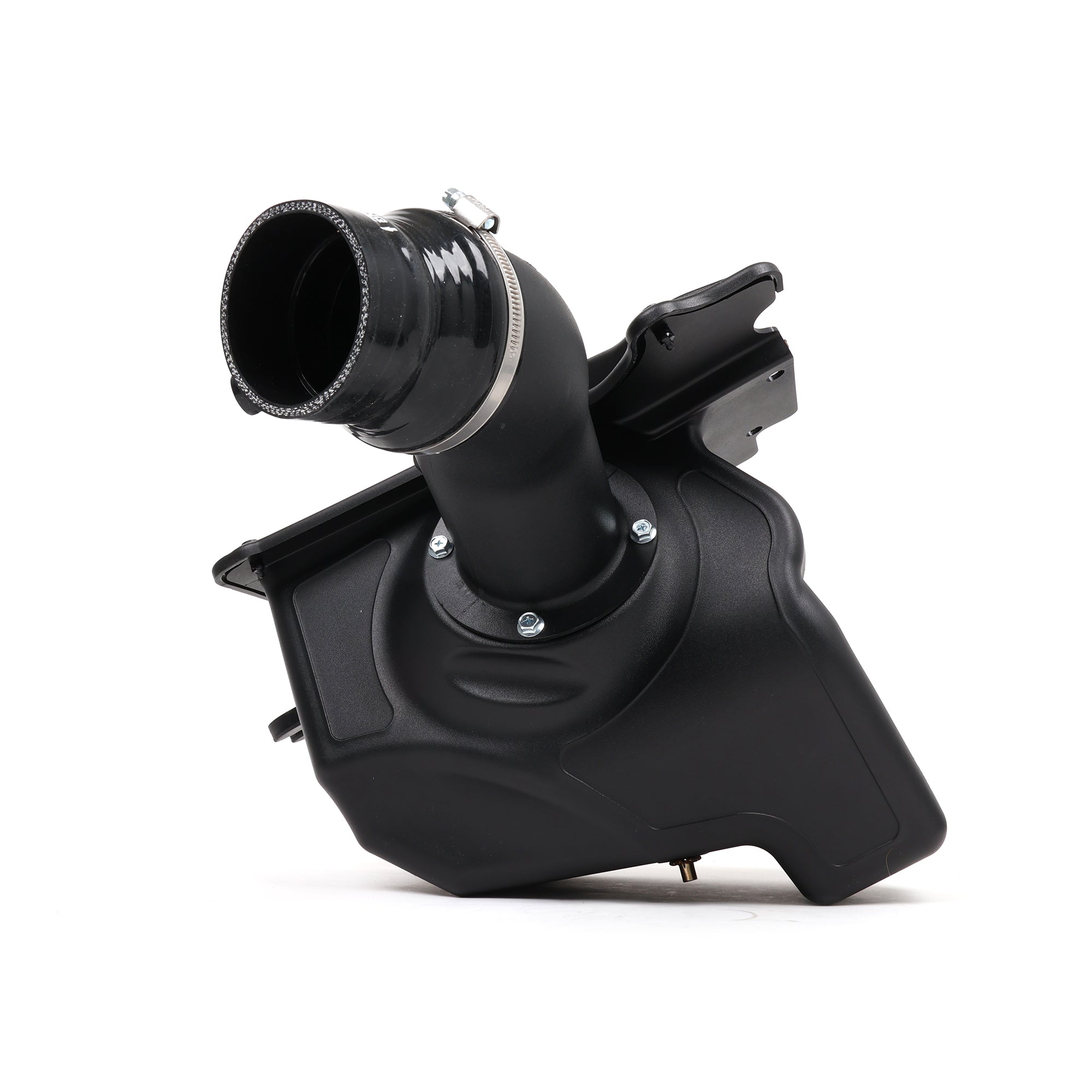

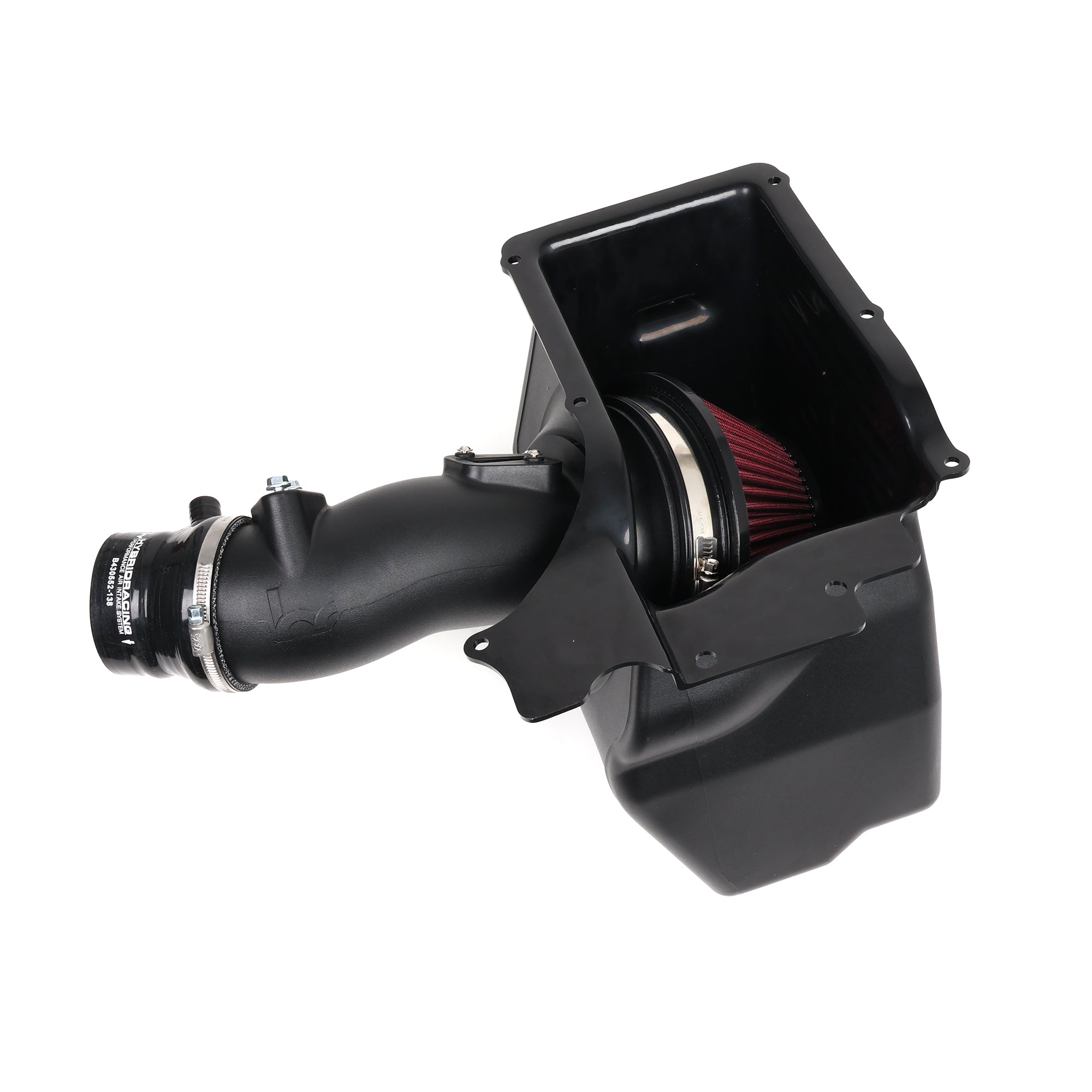

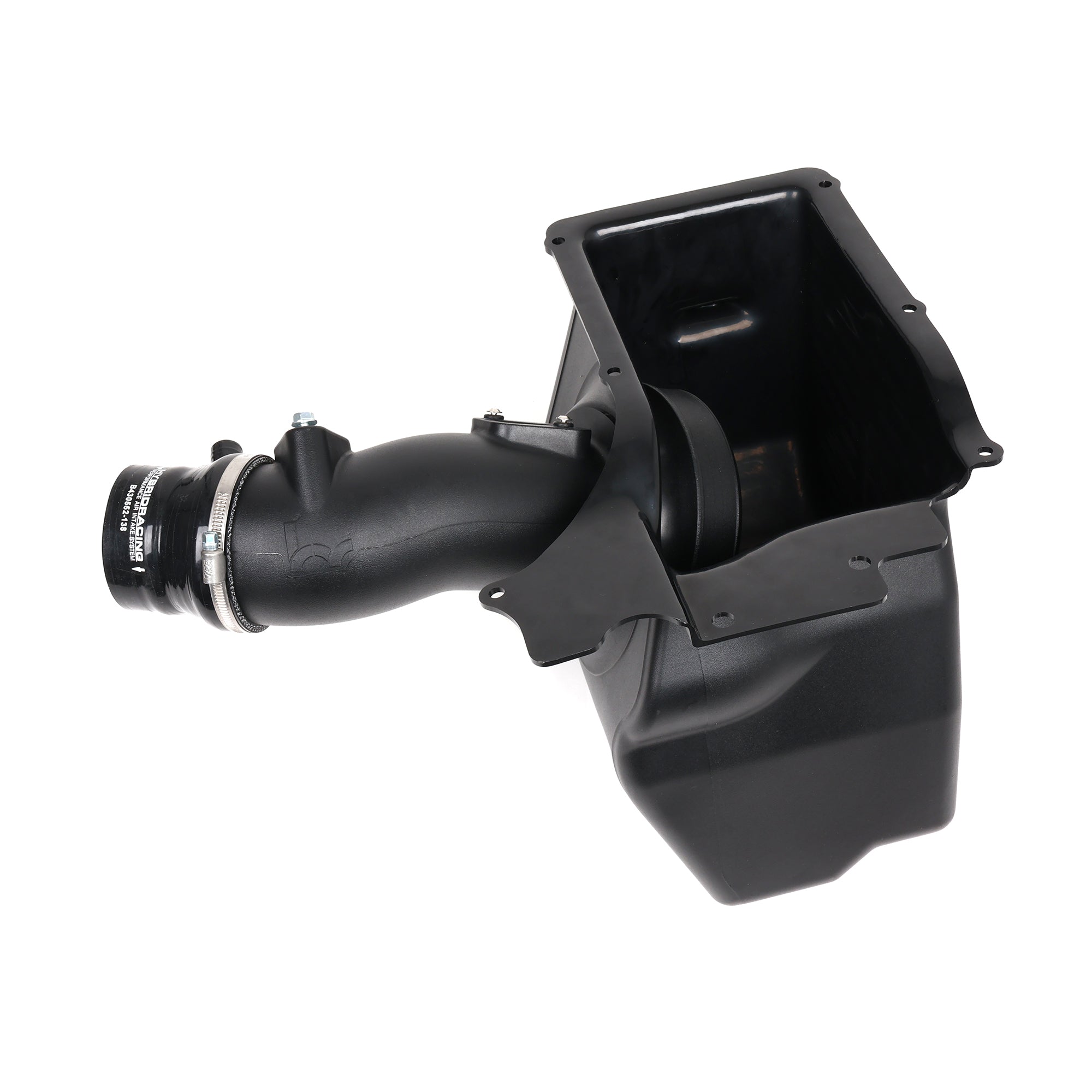

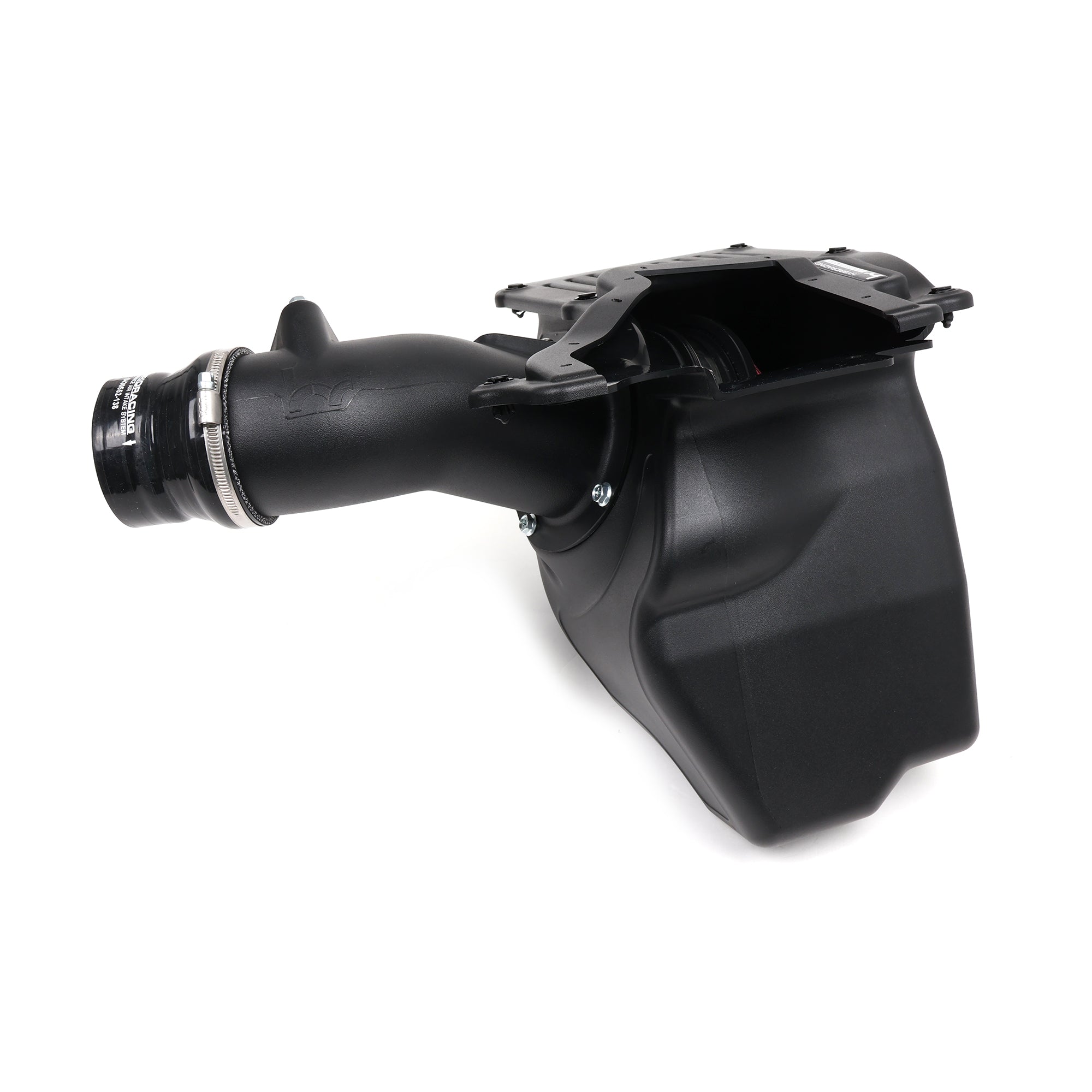

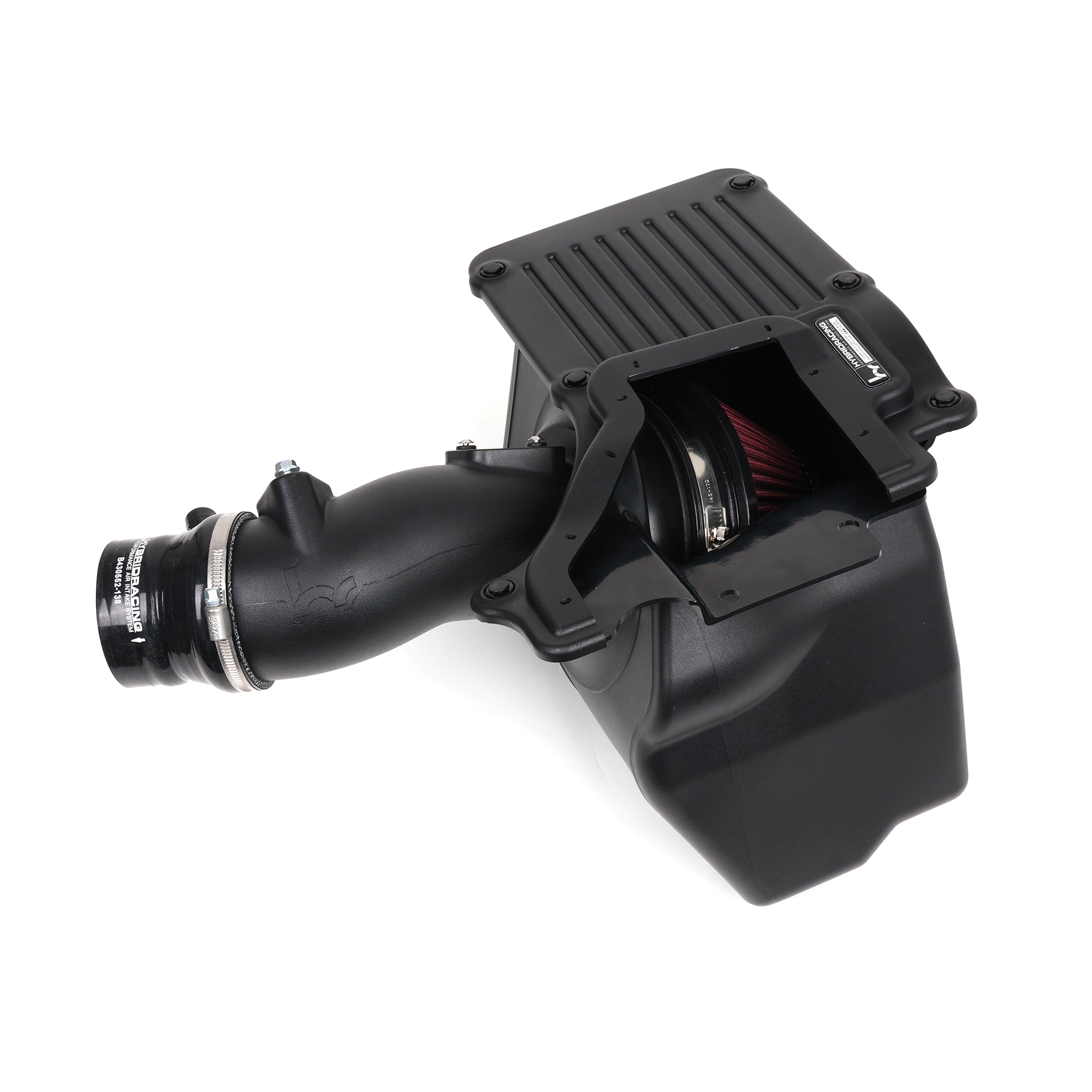

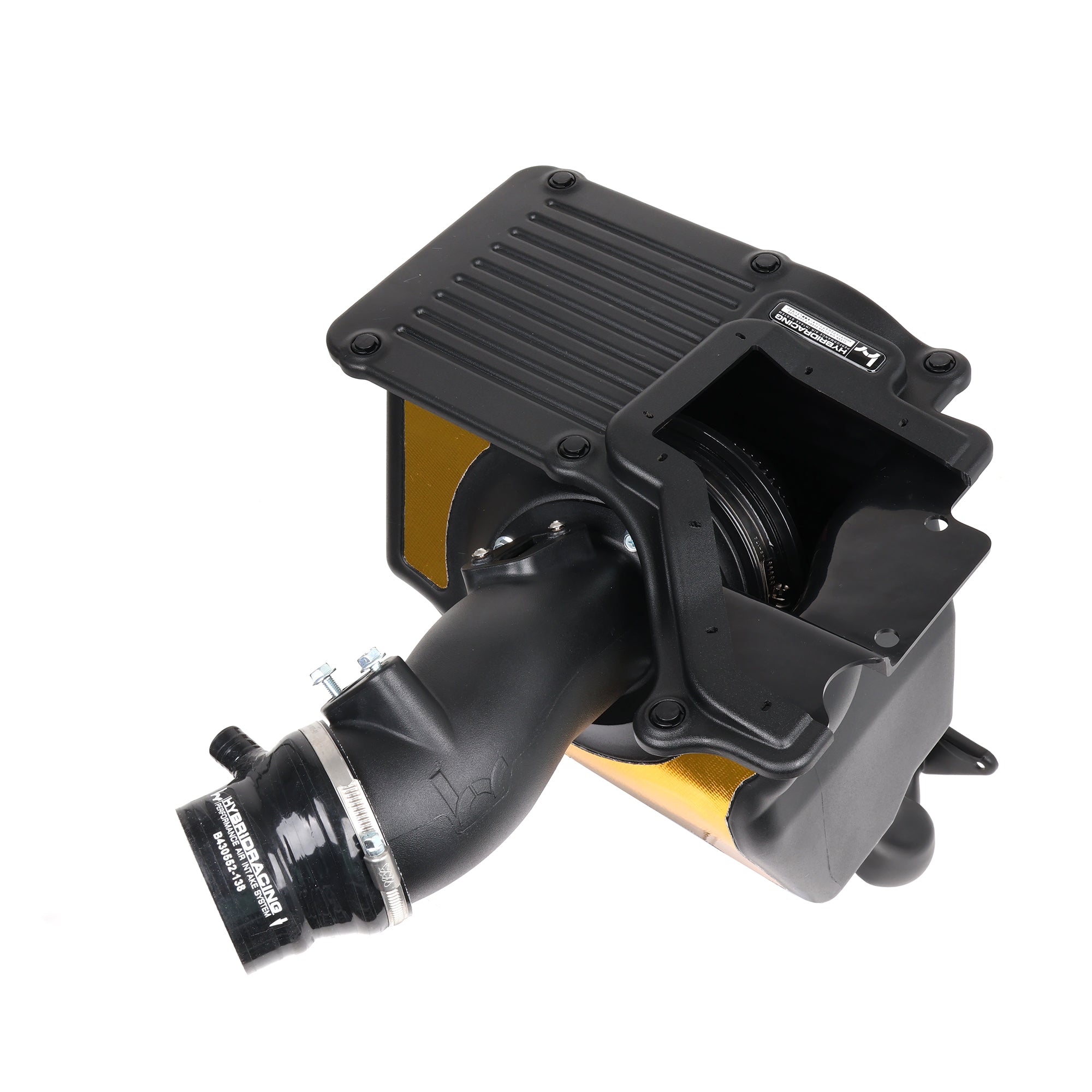

Developed for the 2017-2021 Honda Civic Type R FK8, the Hybrid Racing Formula Intake combines an enclosed XLPE airbox, dual outside-air feeds, a reusable filter, easy service access, and your choice of 76mm Street or 89mm Race MAF housing.

• 76mm Street housing for stock and lightly modified FK8s
• 89mm Race housing for higher-power and larger-turbo builds

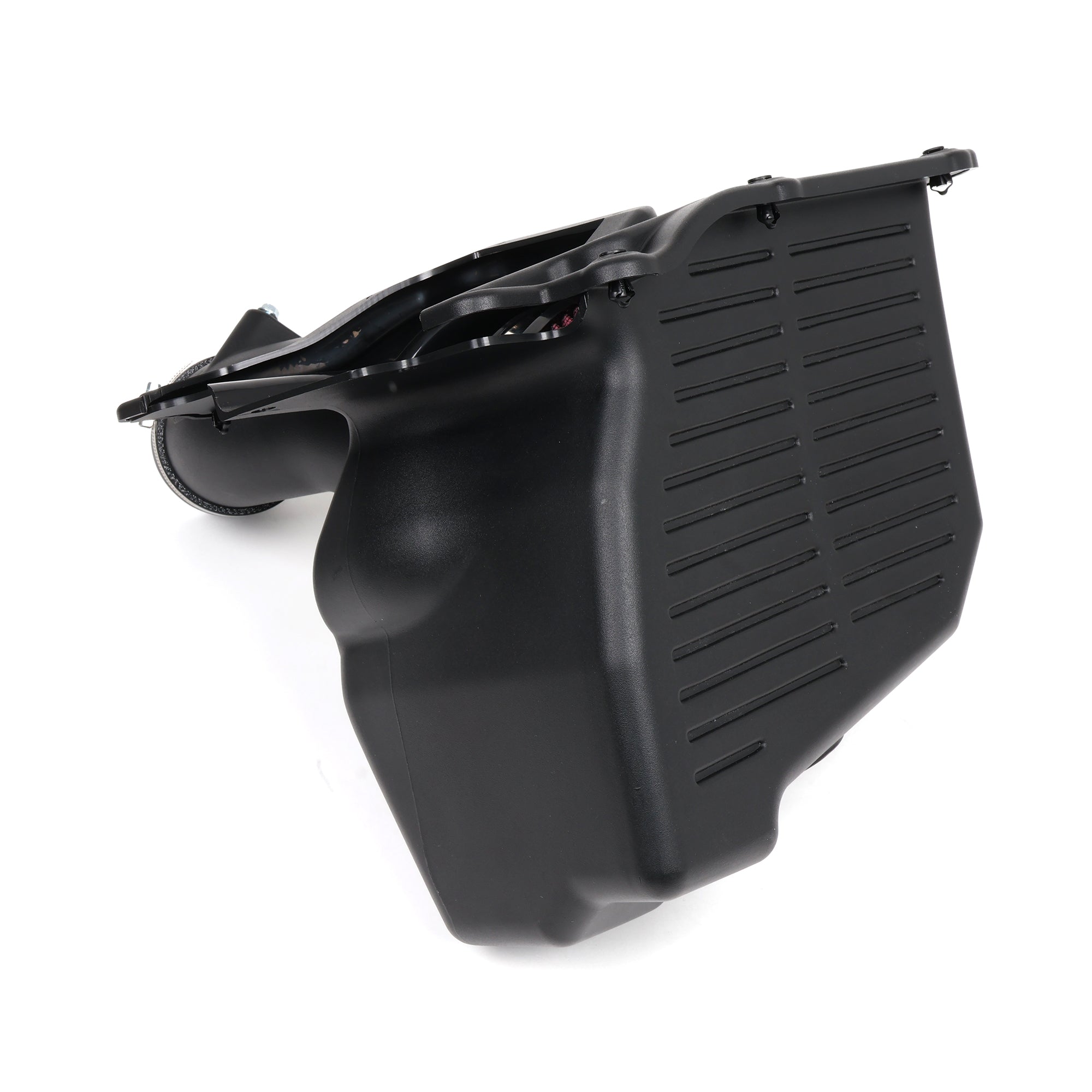

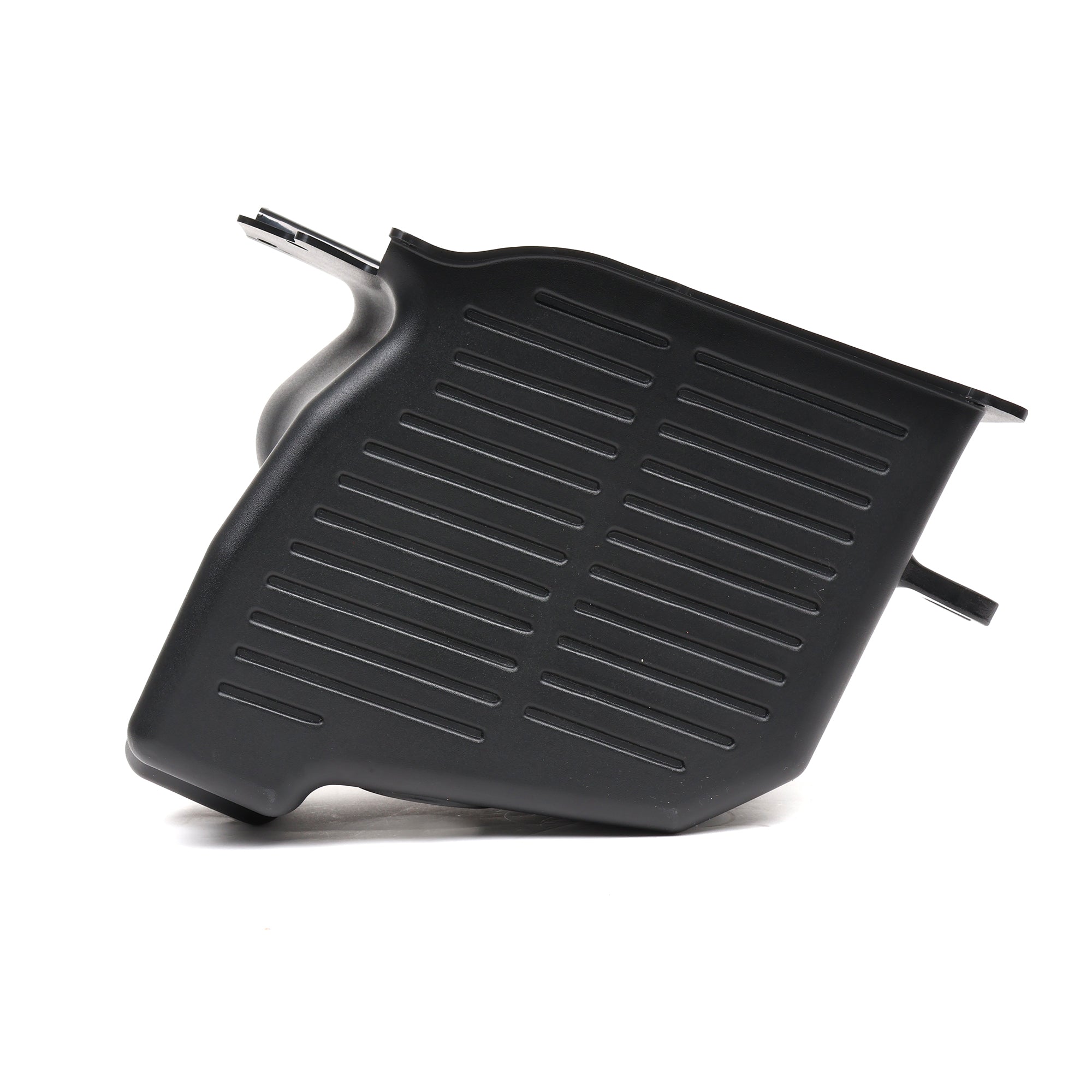

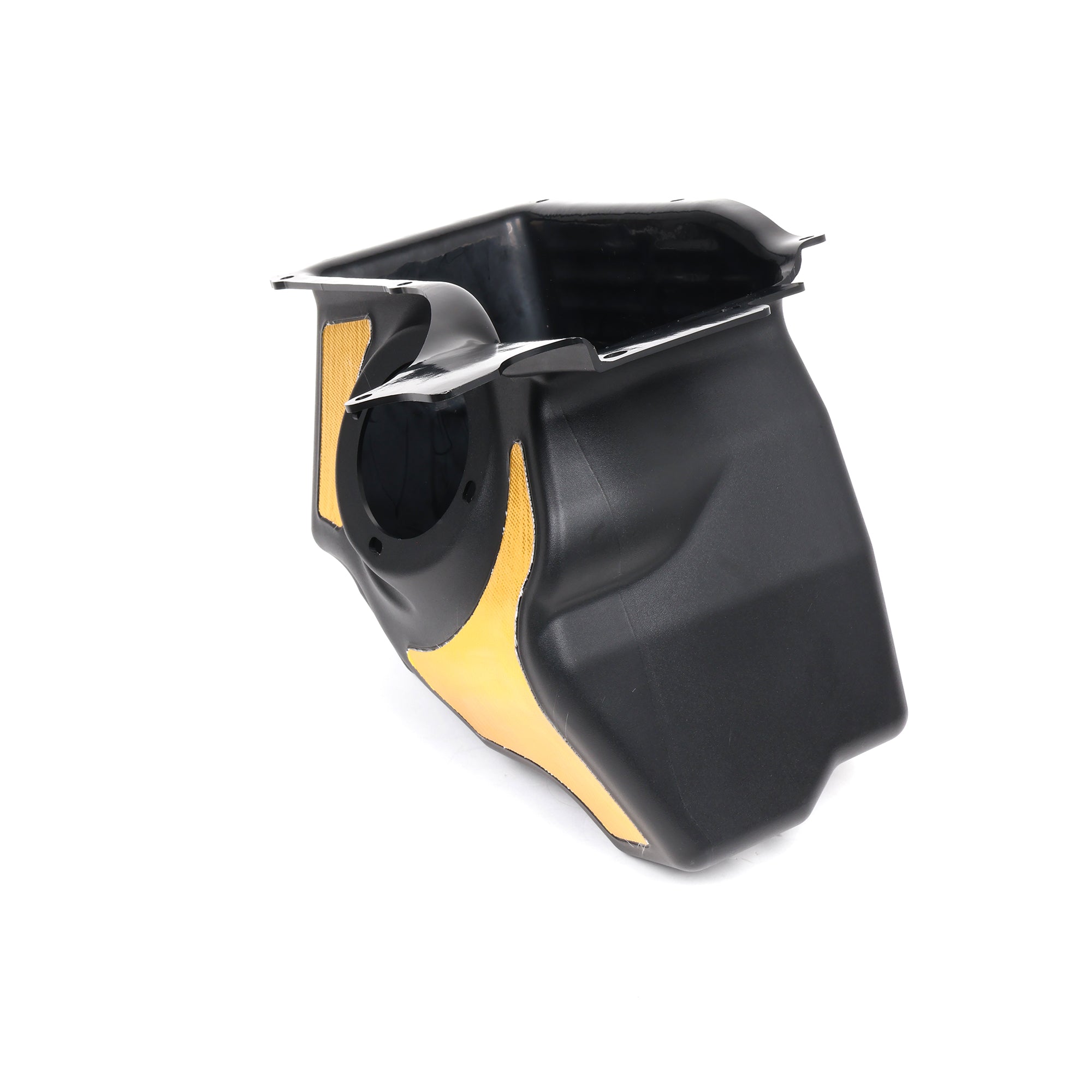

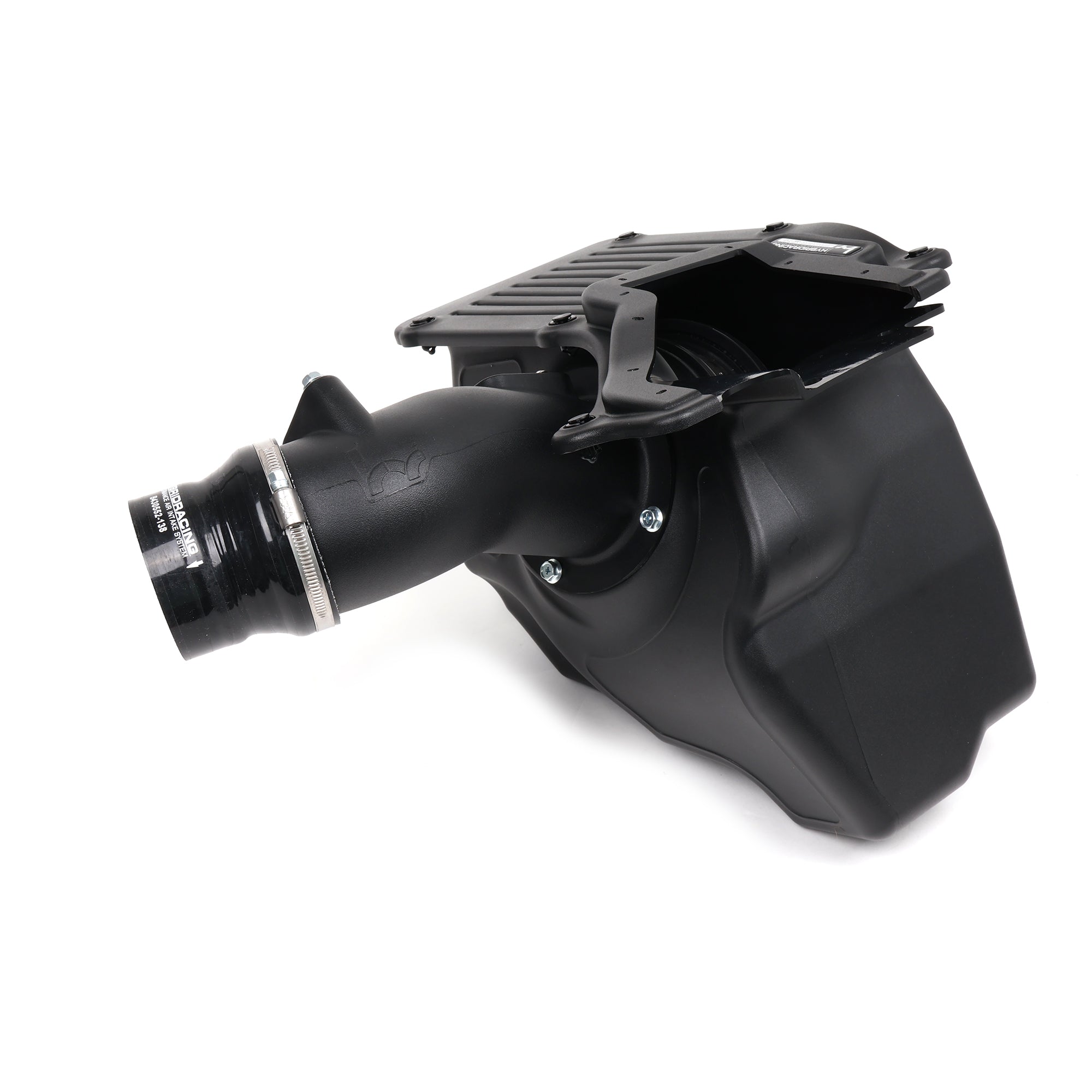

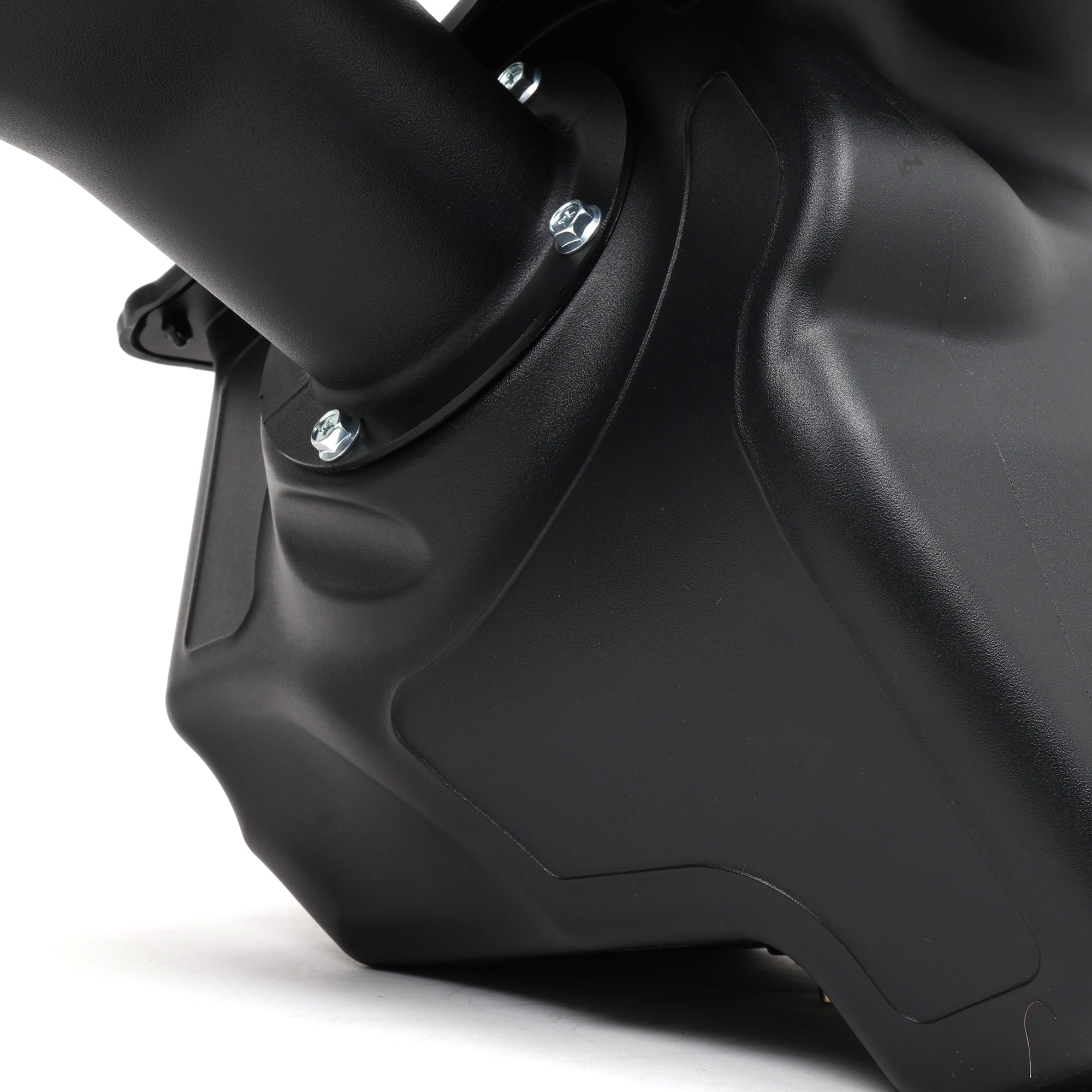

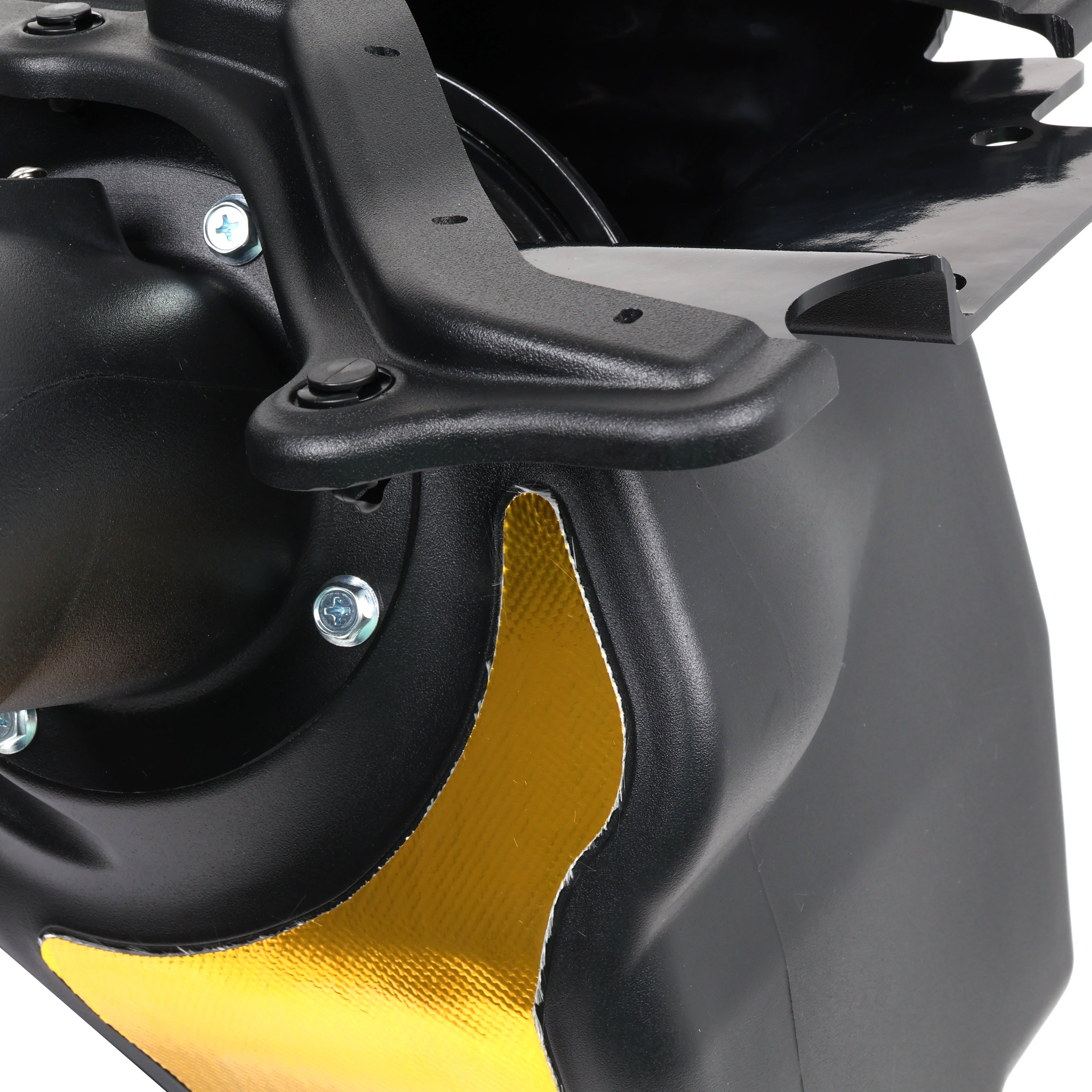

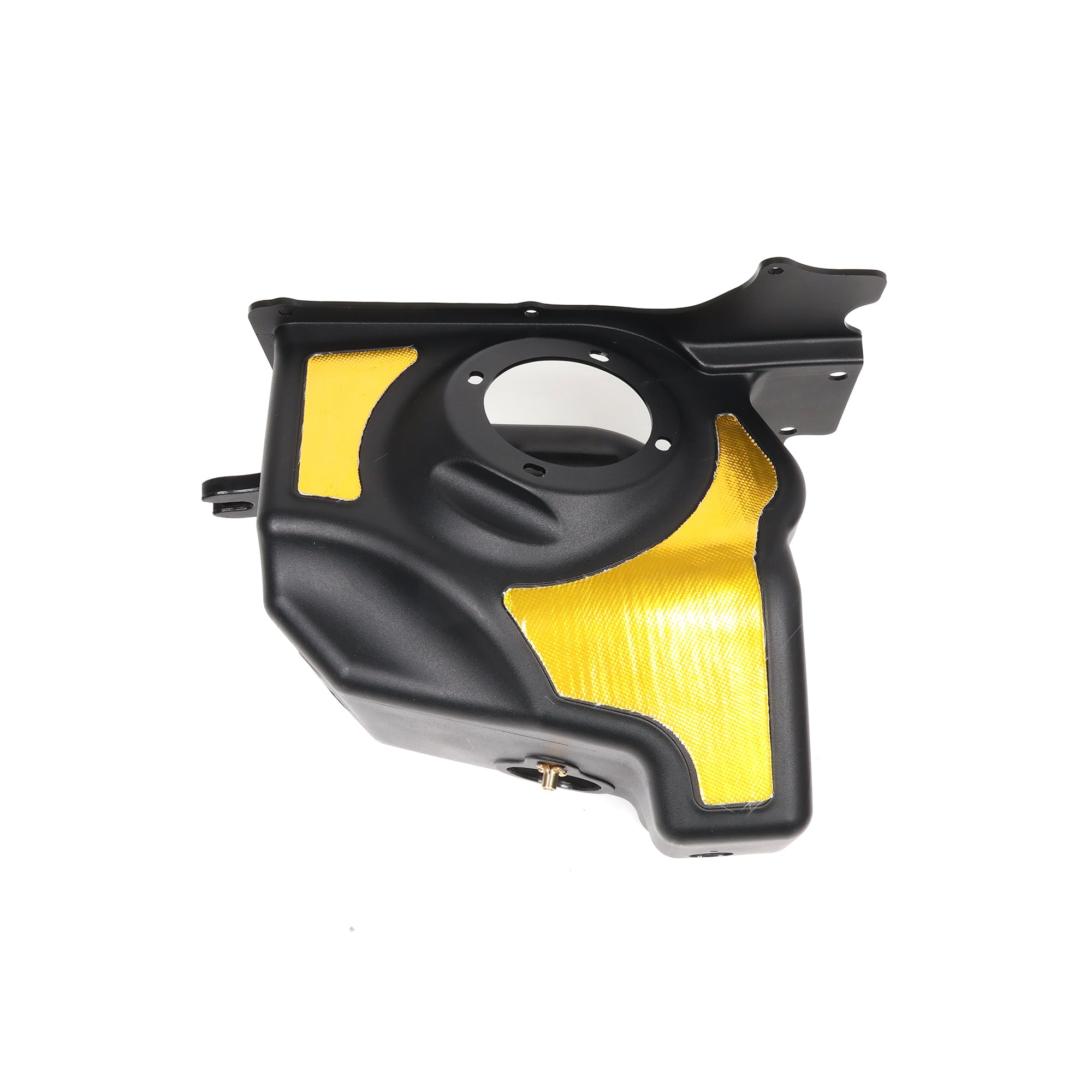

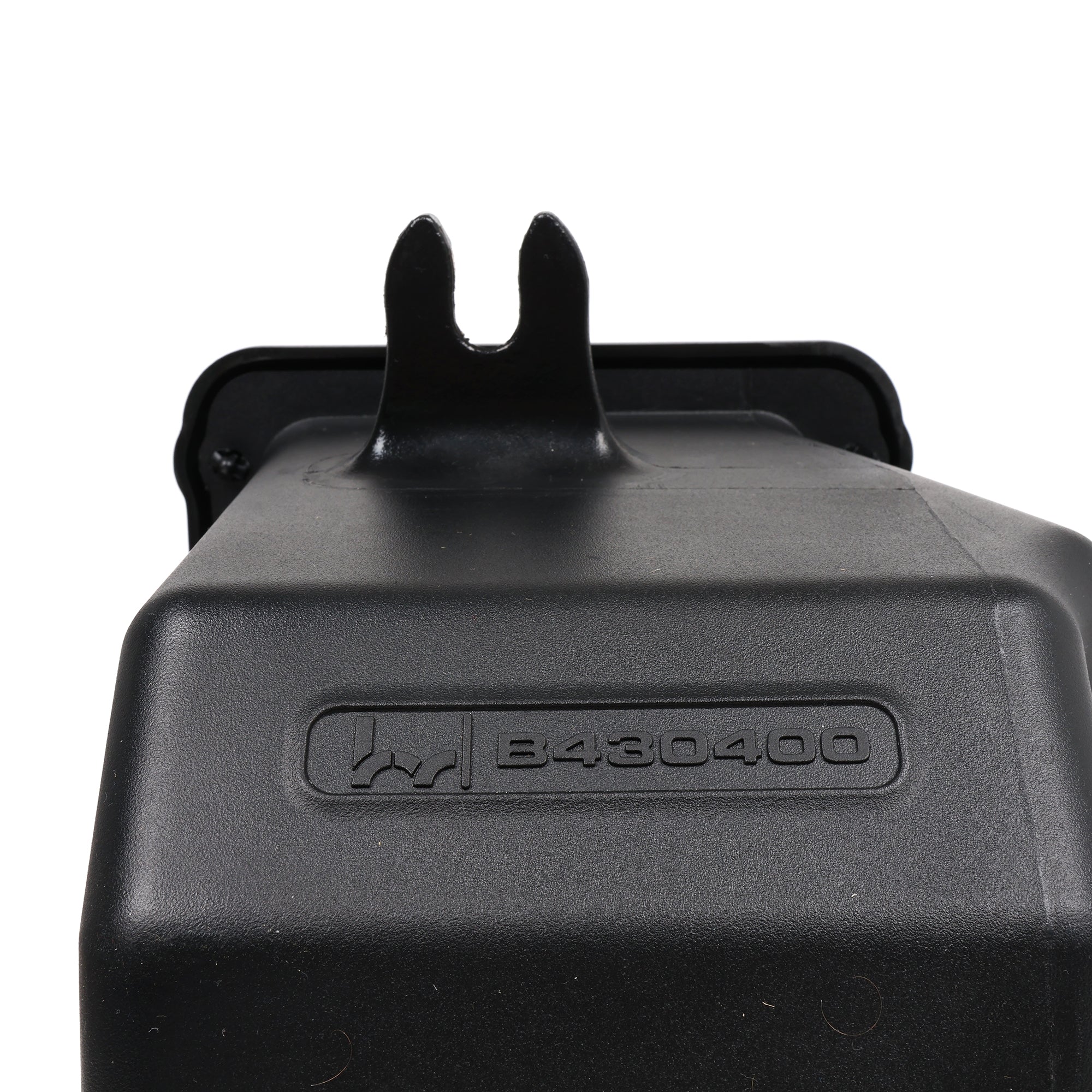

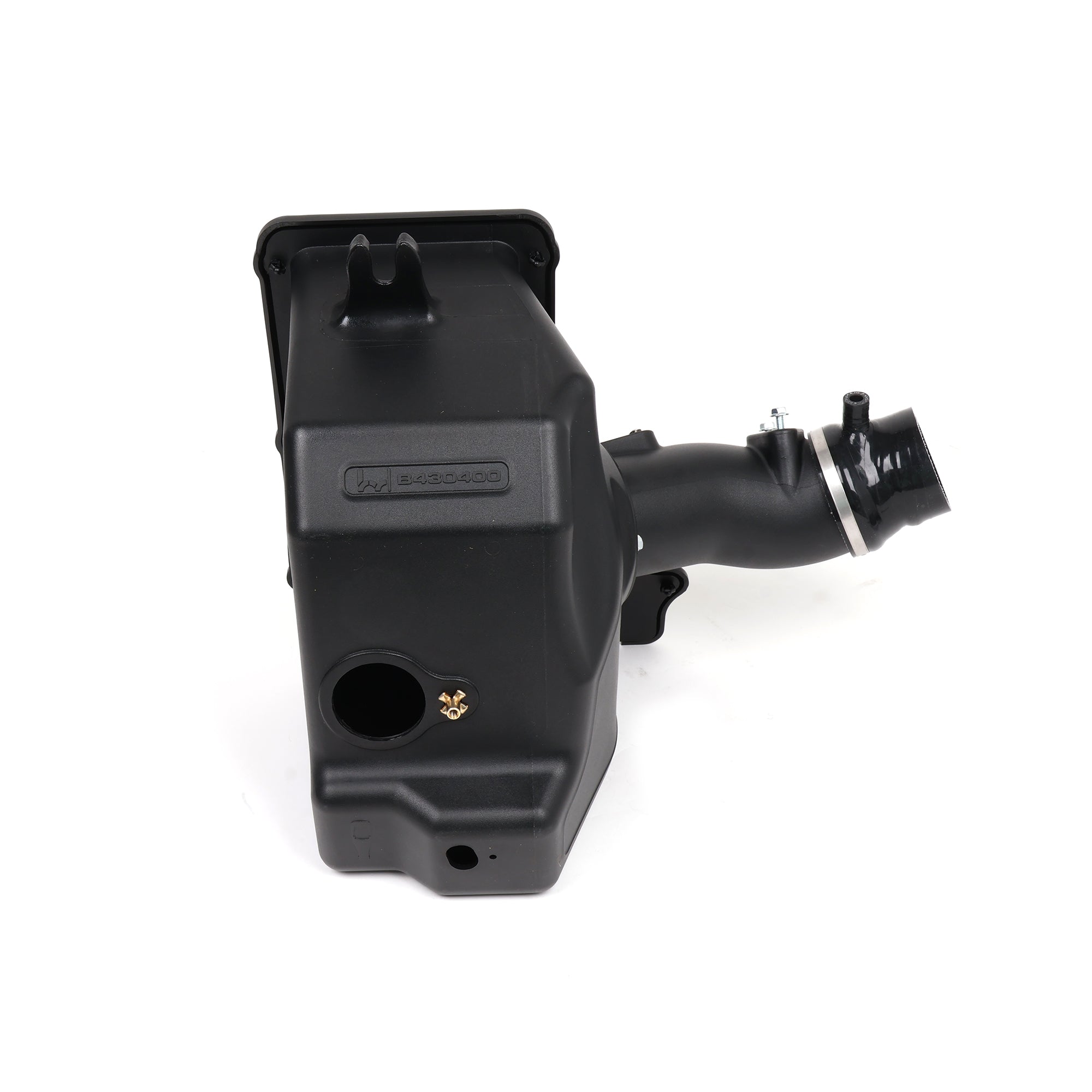

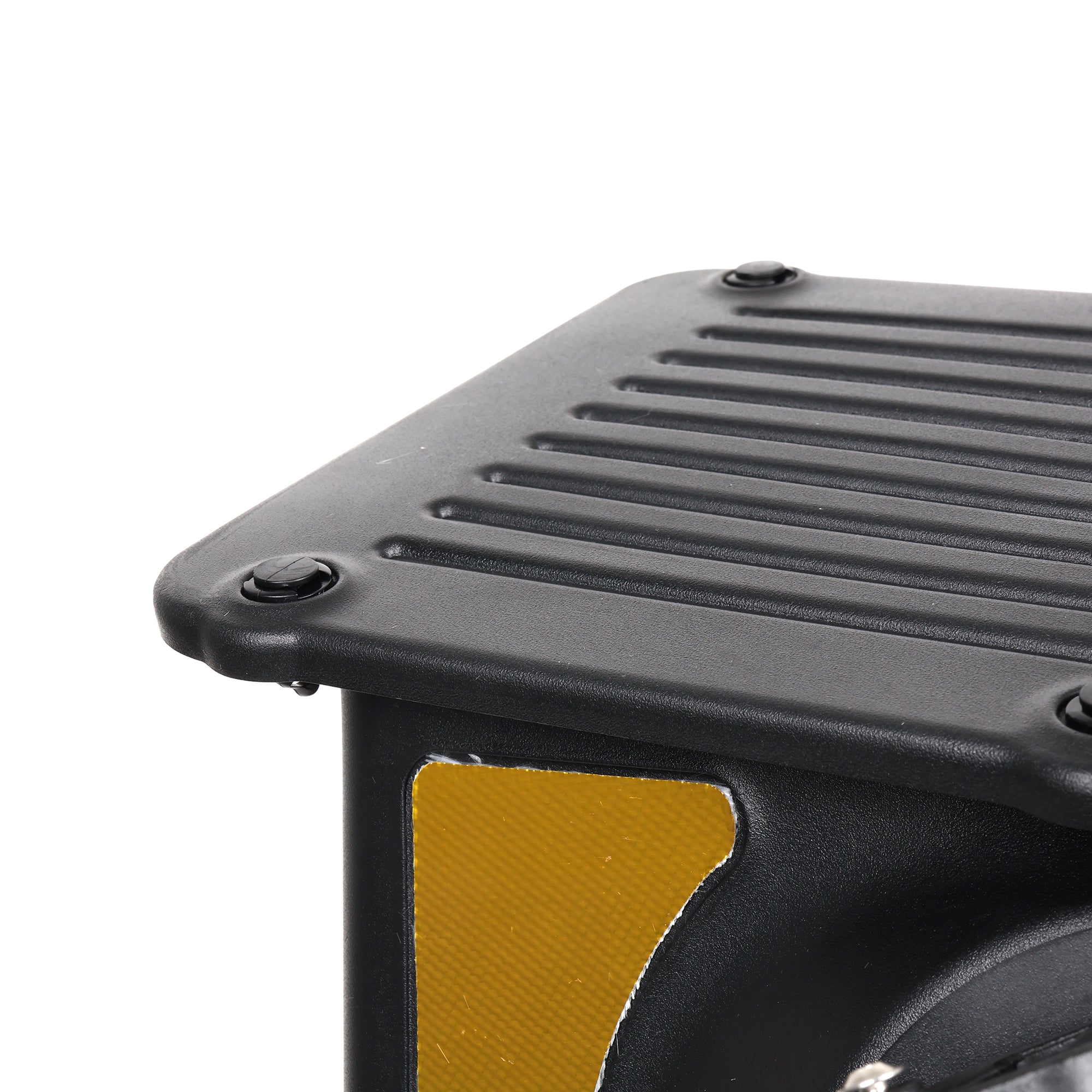

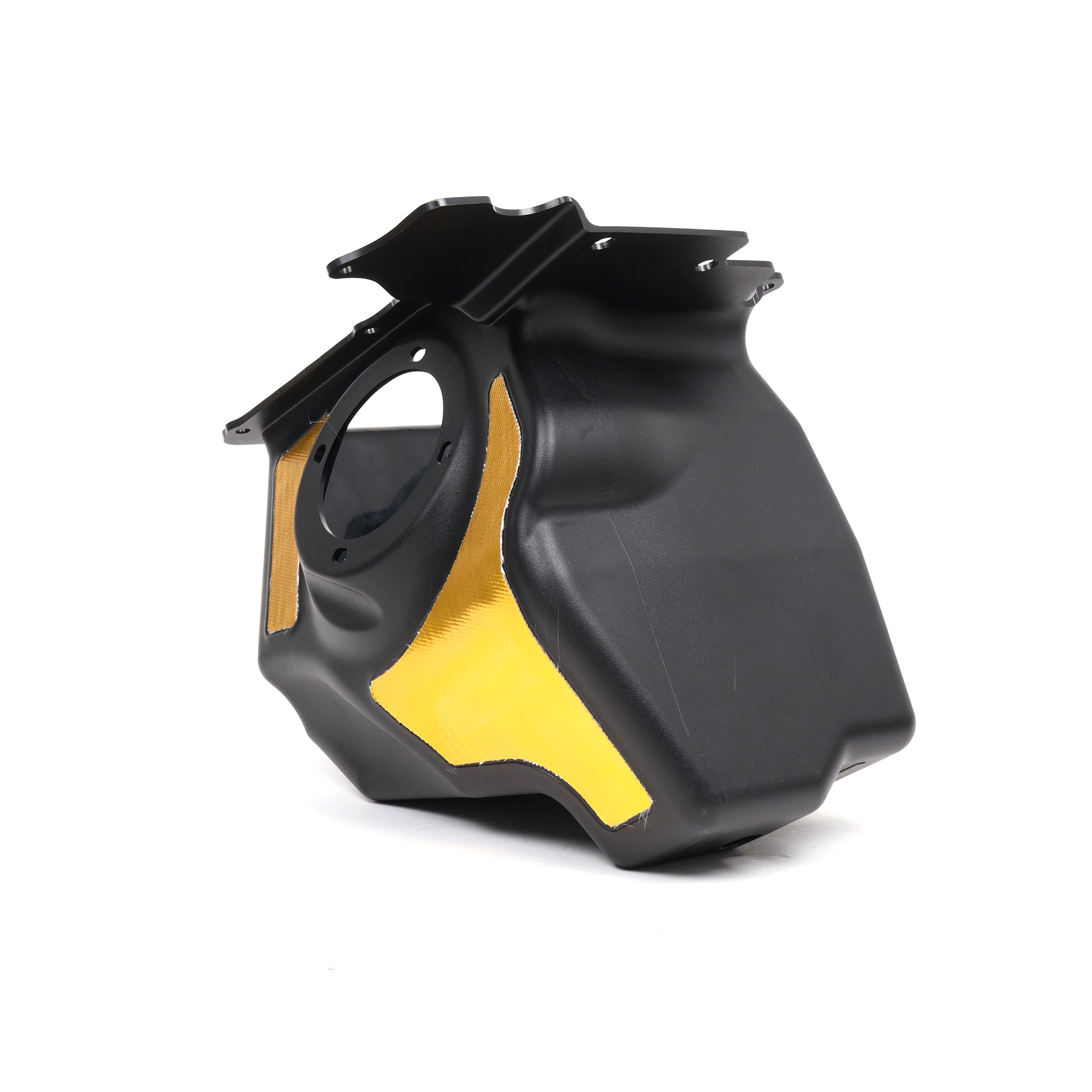

• Enclosed XLPE airbox with reflective turbo-side heat shielding

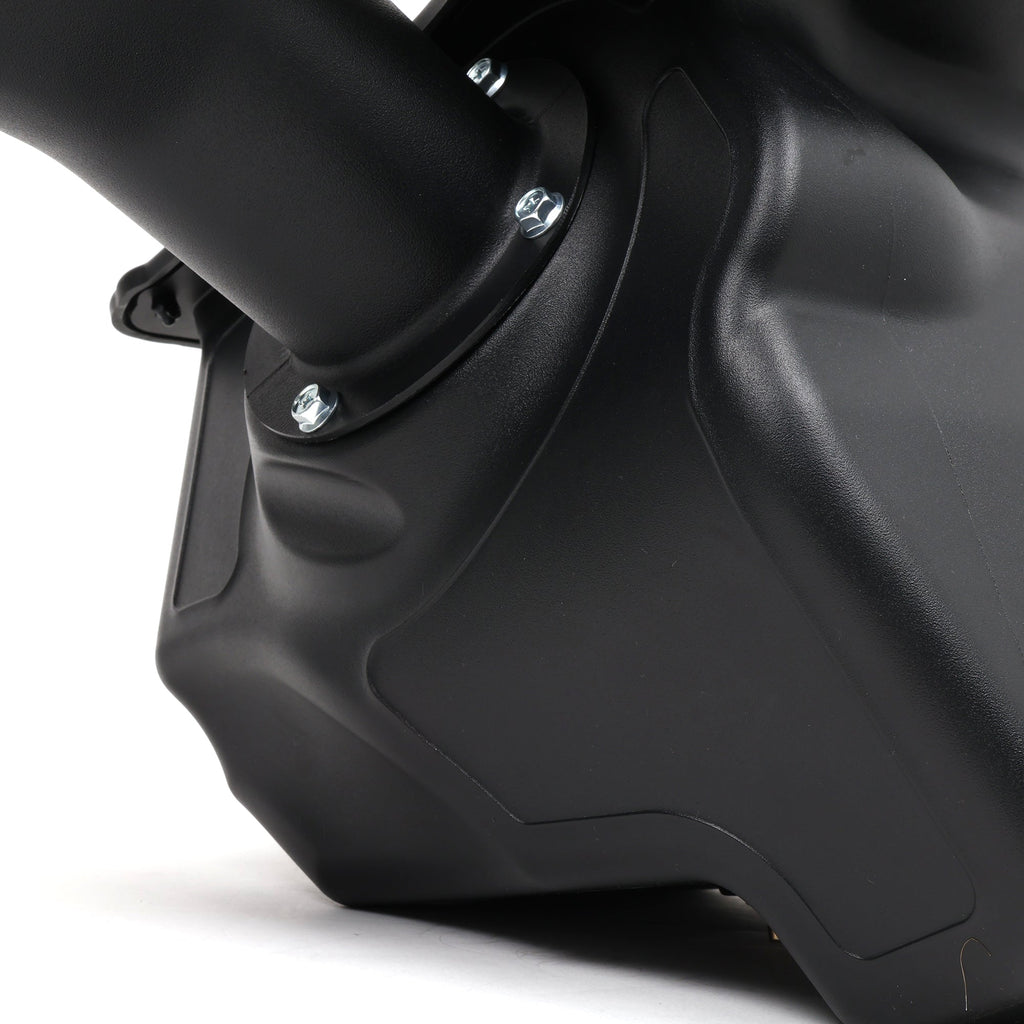

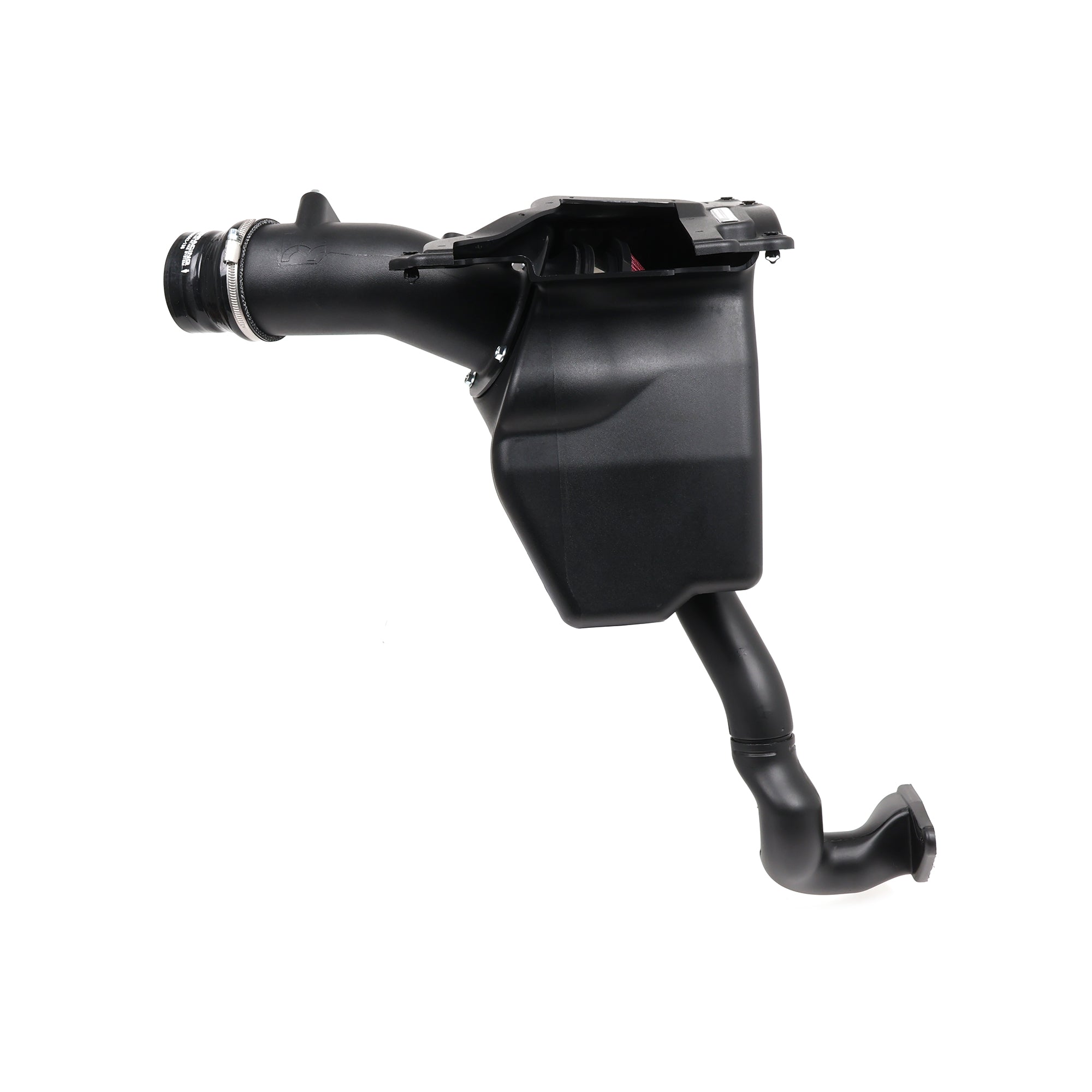

• Upper factory grille feed plus two lower outside-air inlet tubes

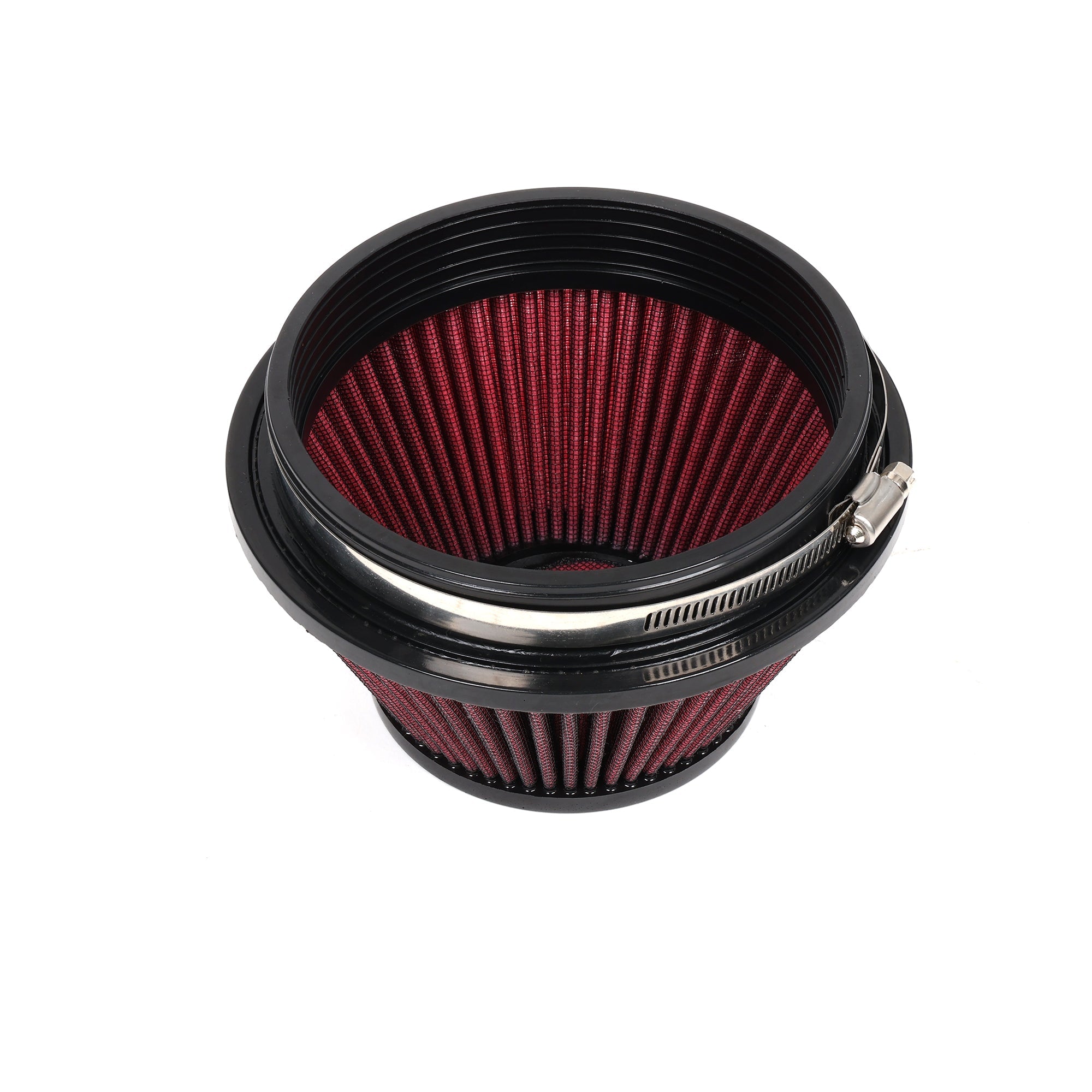

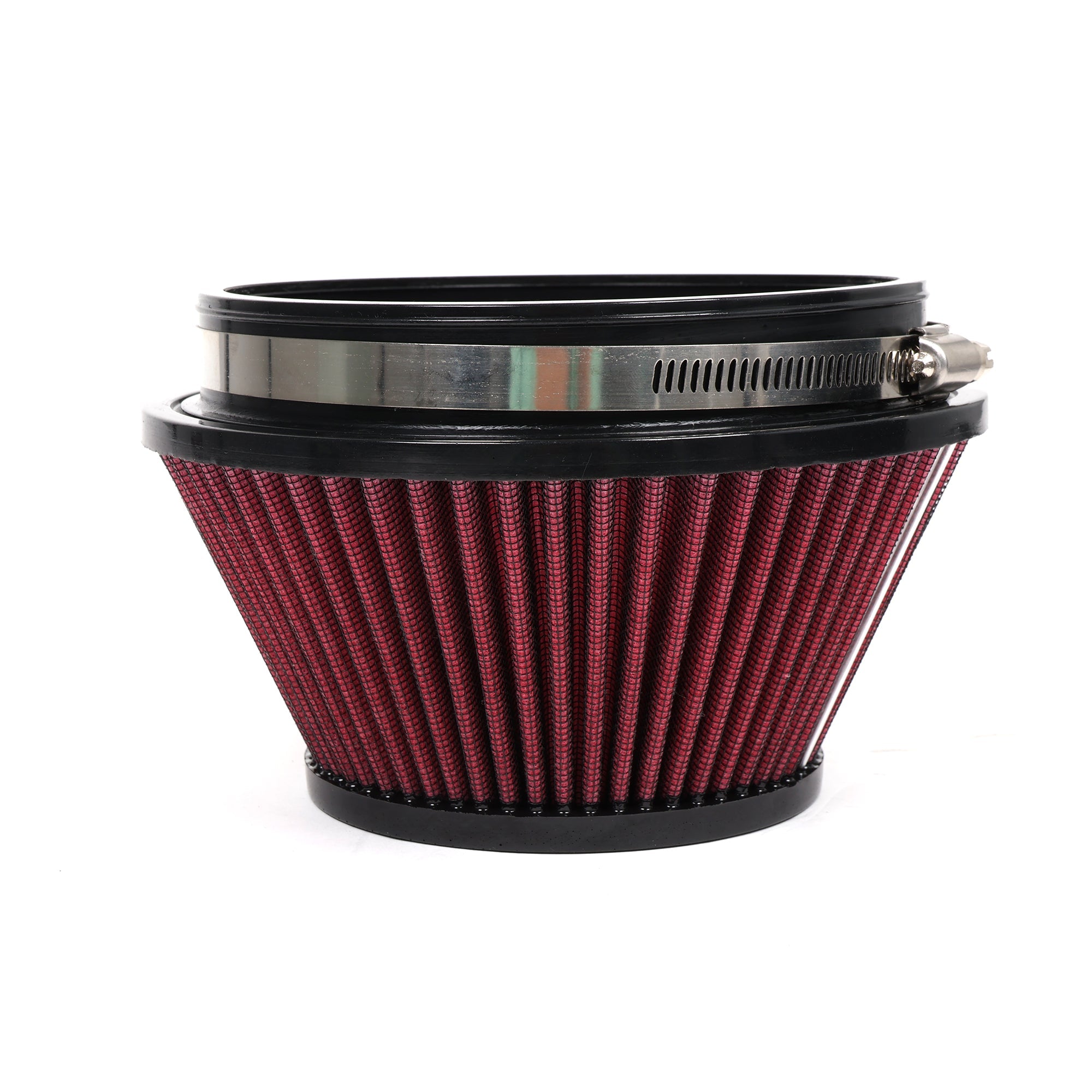

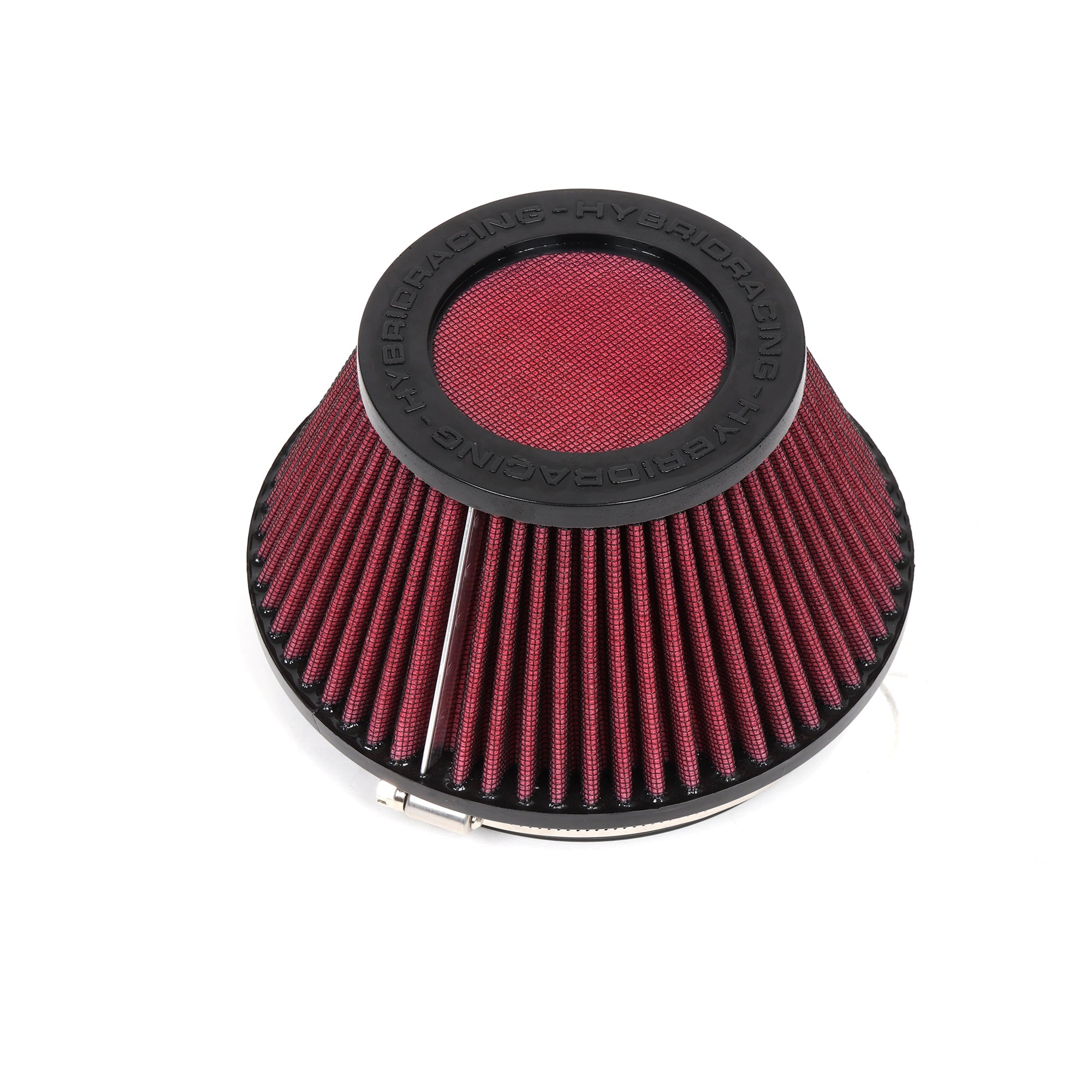

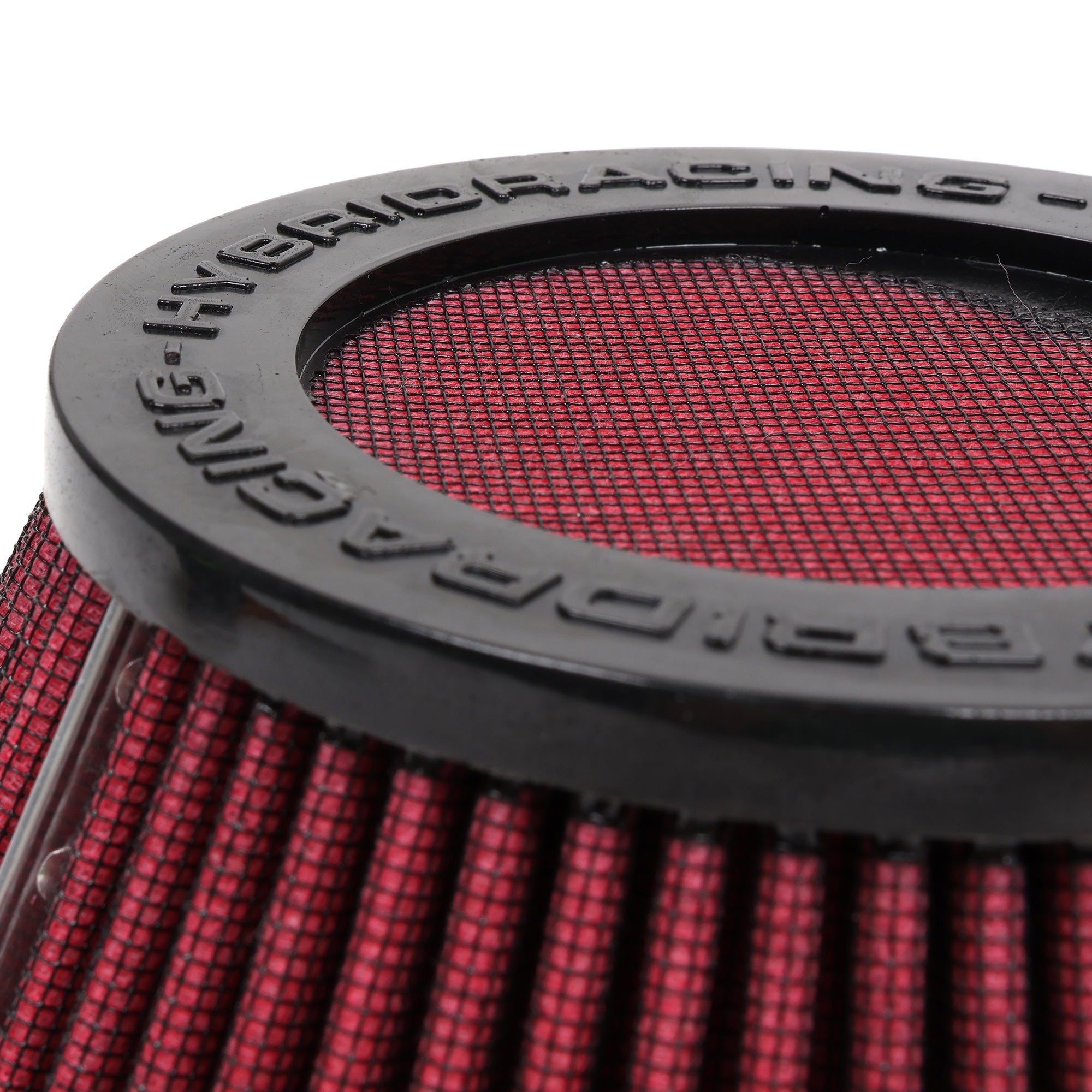

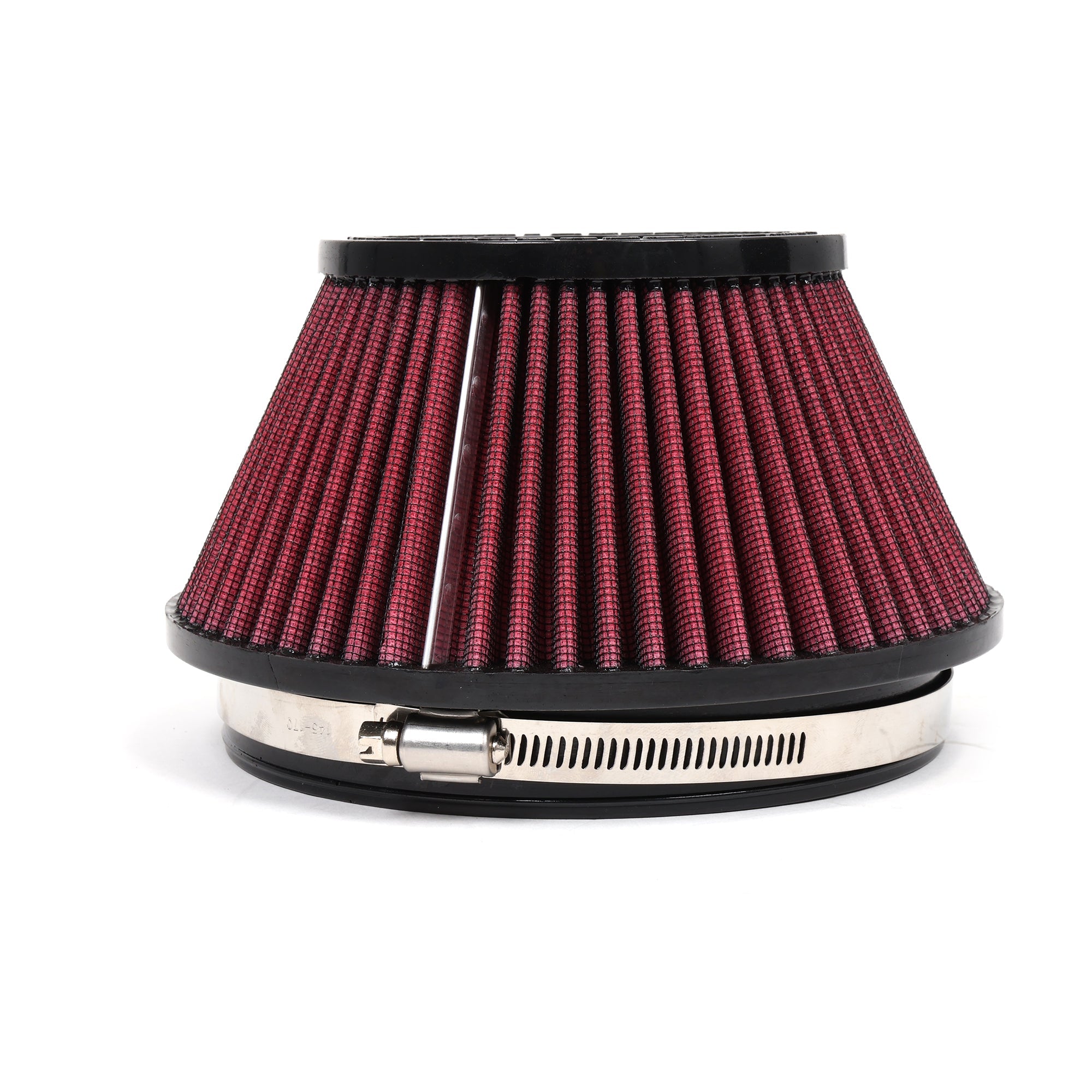

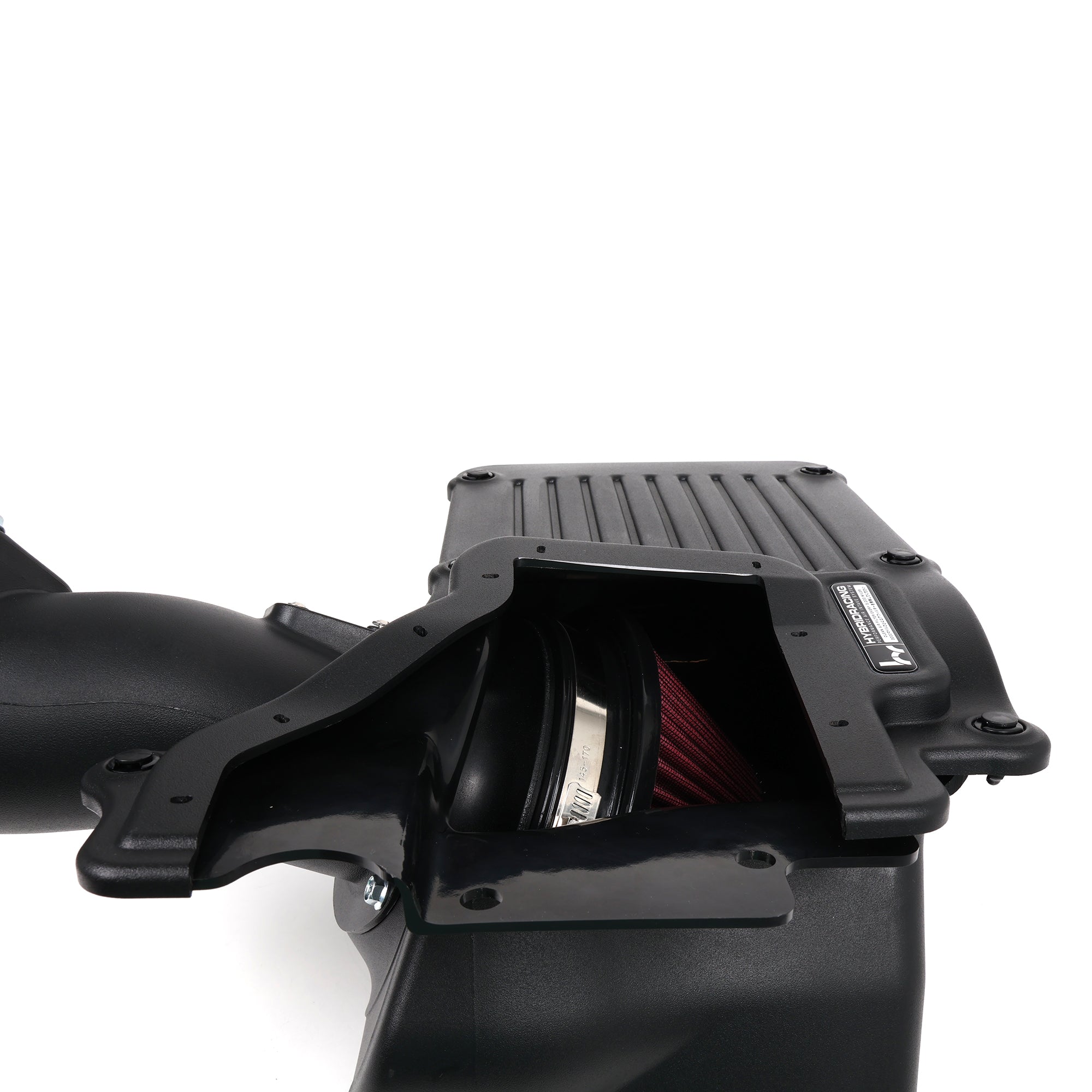

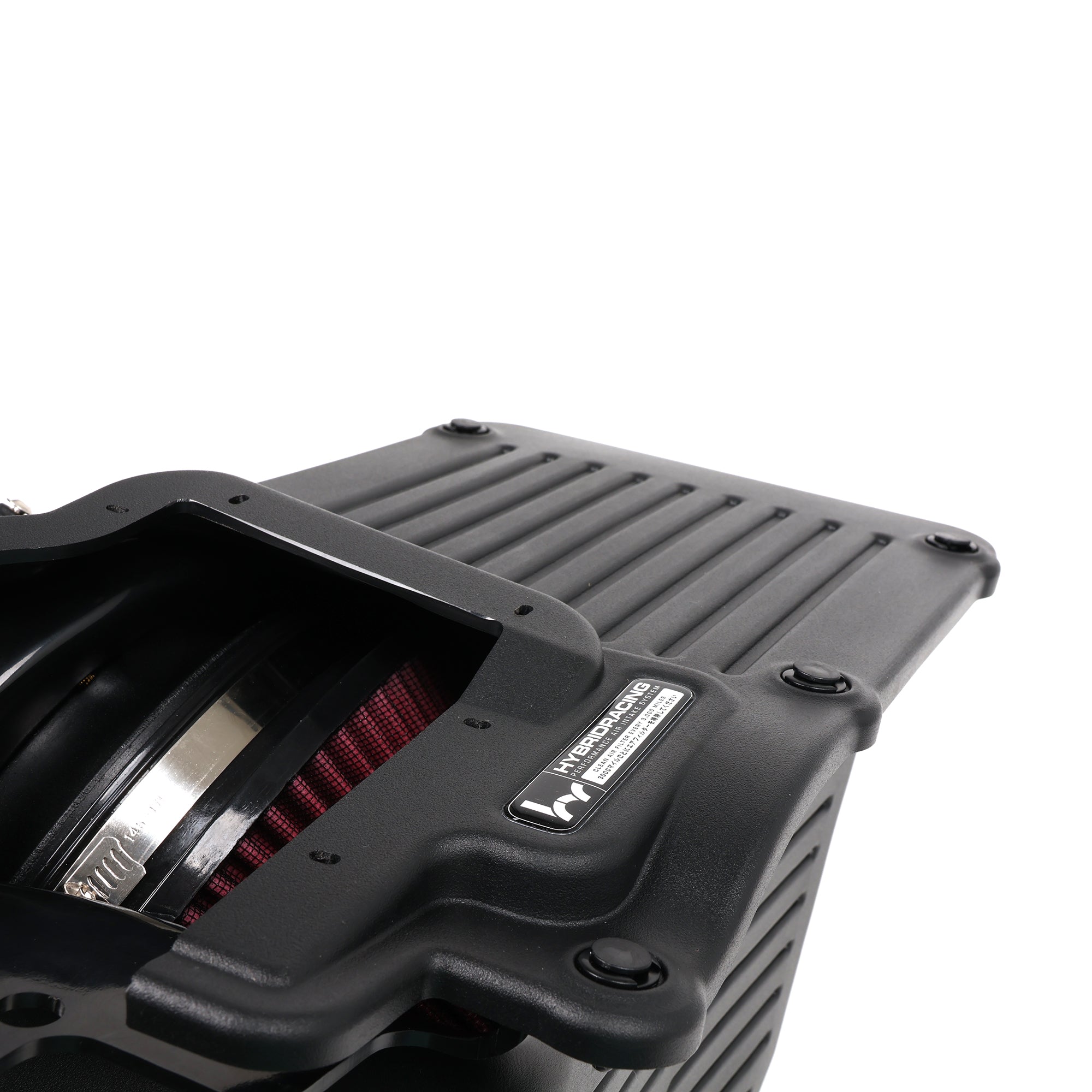

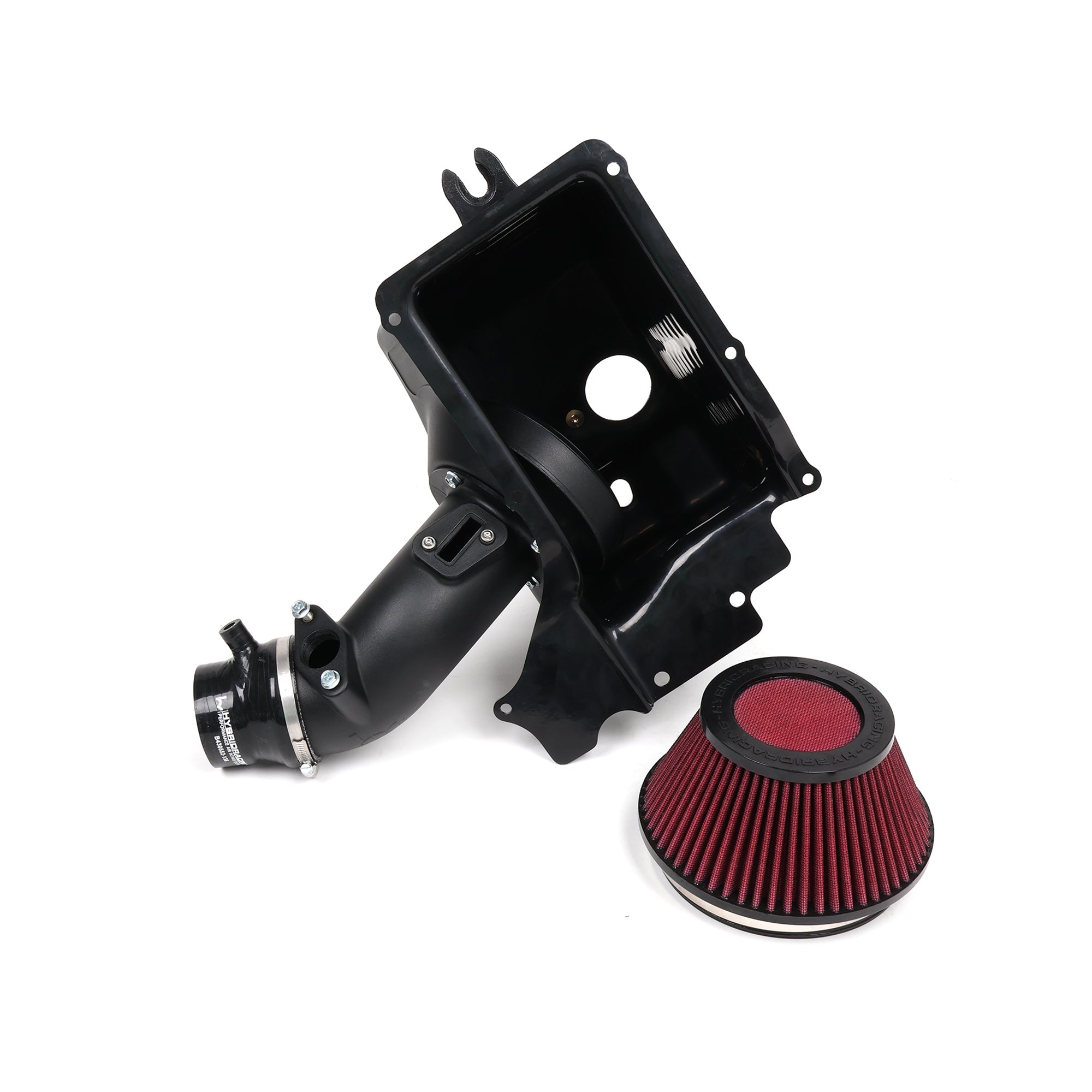

• Washable, reusable oiled-cotton filter removes through the lid

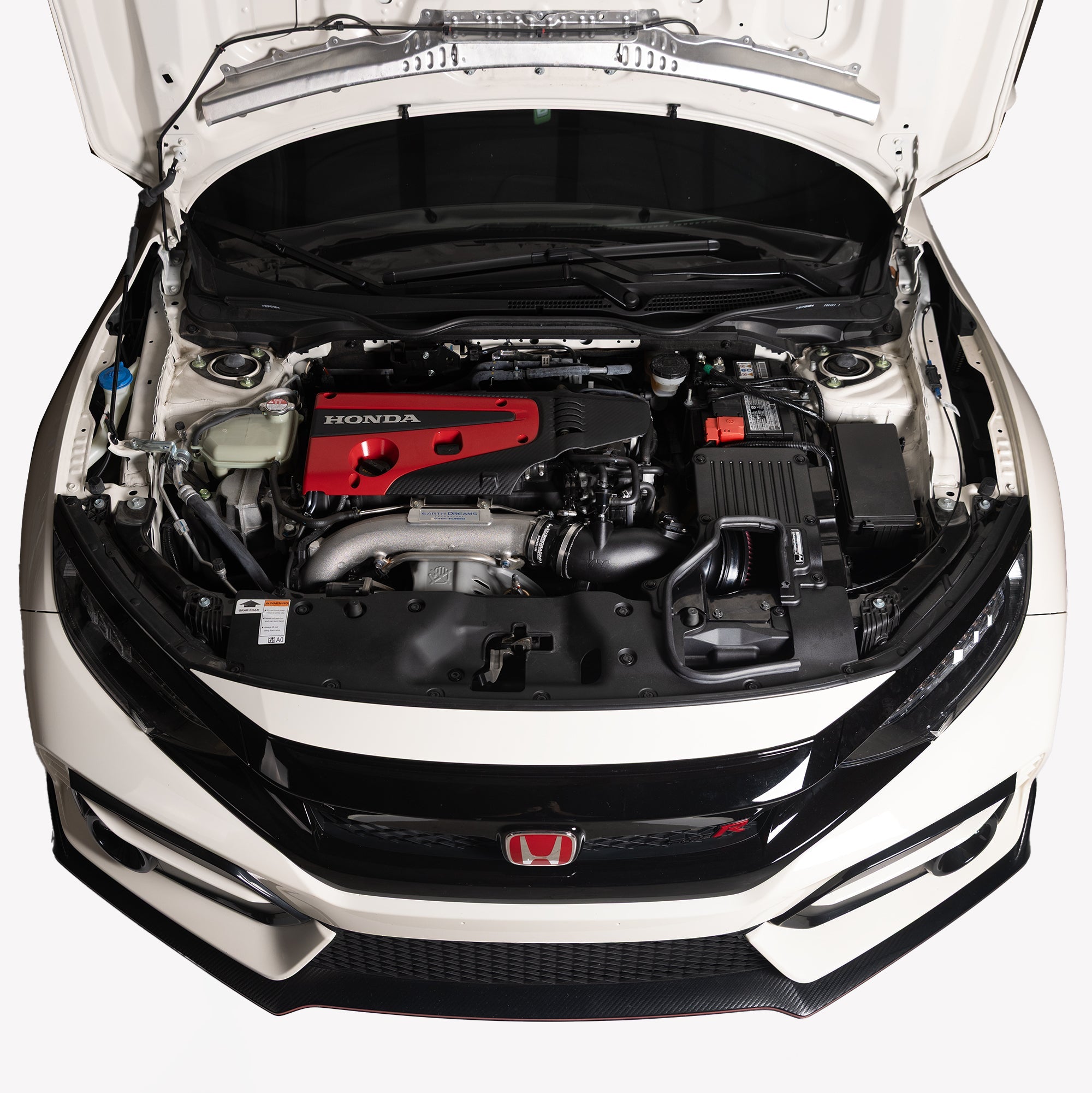

• Bolts to factory mounting points with no cutting, drilling, or bumper removal
• Works with the factory turbo inlet pipe and factory Honda MAF sensor
• More turbo, induction, and recirculating-valve sound under throttle

MAF Housing Selection

76mm Street: Recommended for most stock and lightly modified FK8s. It can operate on the factory ECU; proper MAF scaling with Hondata FlashPro or an equivalent solution is recommended for best results.

89mm Race: Intended for higher-power builds that need additional MAF sensor range. FlashPro or an equivalent tuning solution with the matching MAF calibration is required.

Fitment

• 2017-2021 Honda Civic Type R (FK8)
• 2021 Honda Civic Type R Limited Edition

The system reuses the factory mounting points, intake seal, rubber grommets, MAF sensor, and wiring. Typical installation takes one to two hours with basic hand tools. The included coupler fits the factory turbo inlet and measures approximately 69mm at the connection; verify compatibility with aftermarket turbo inlet pipes.

What's Included

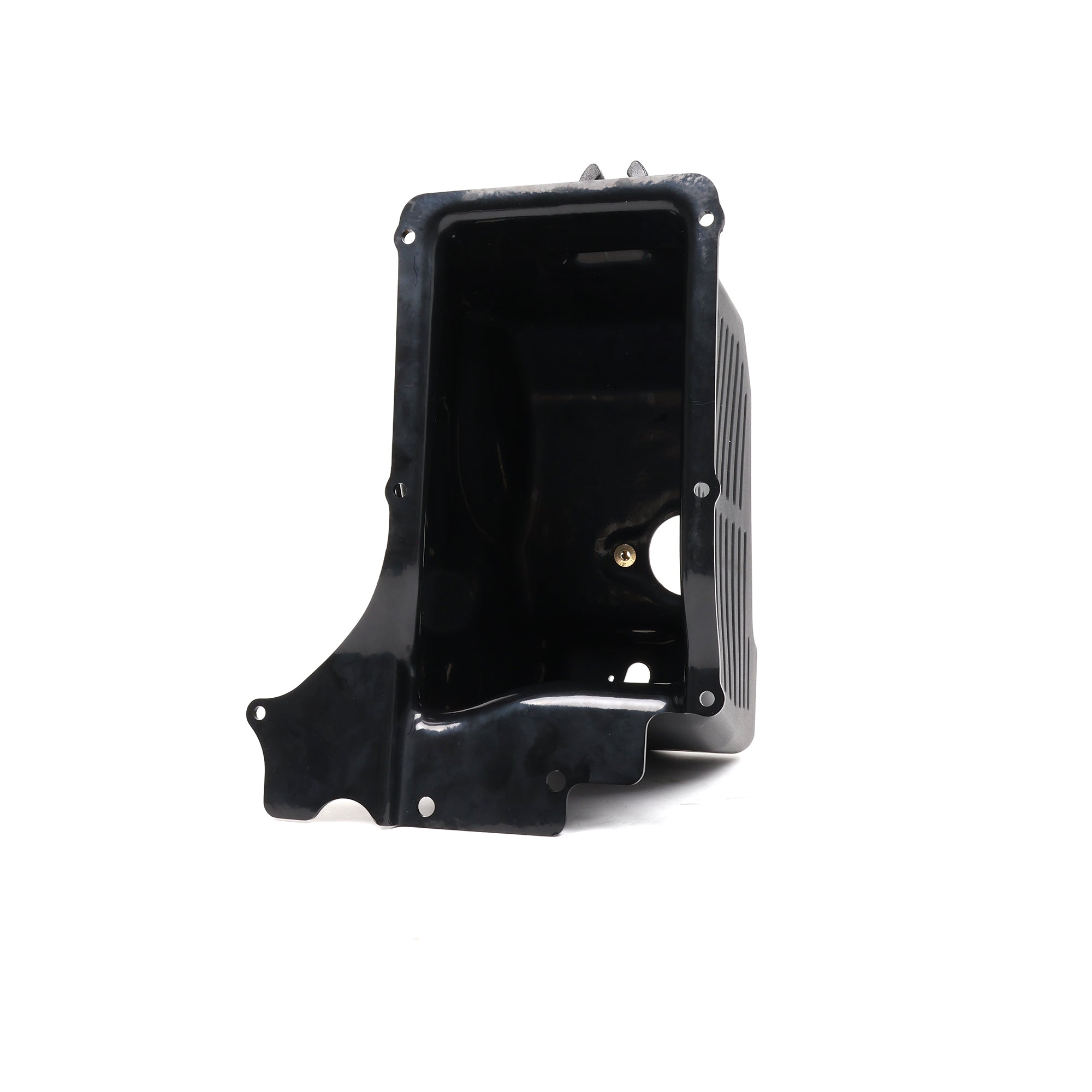

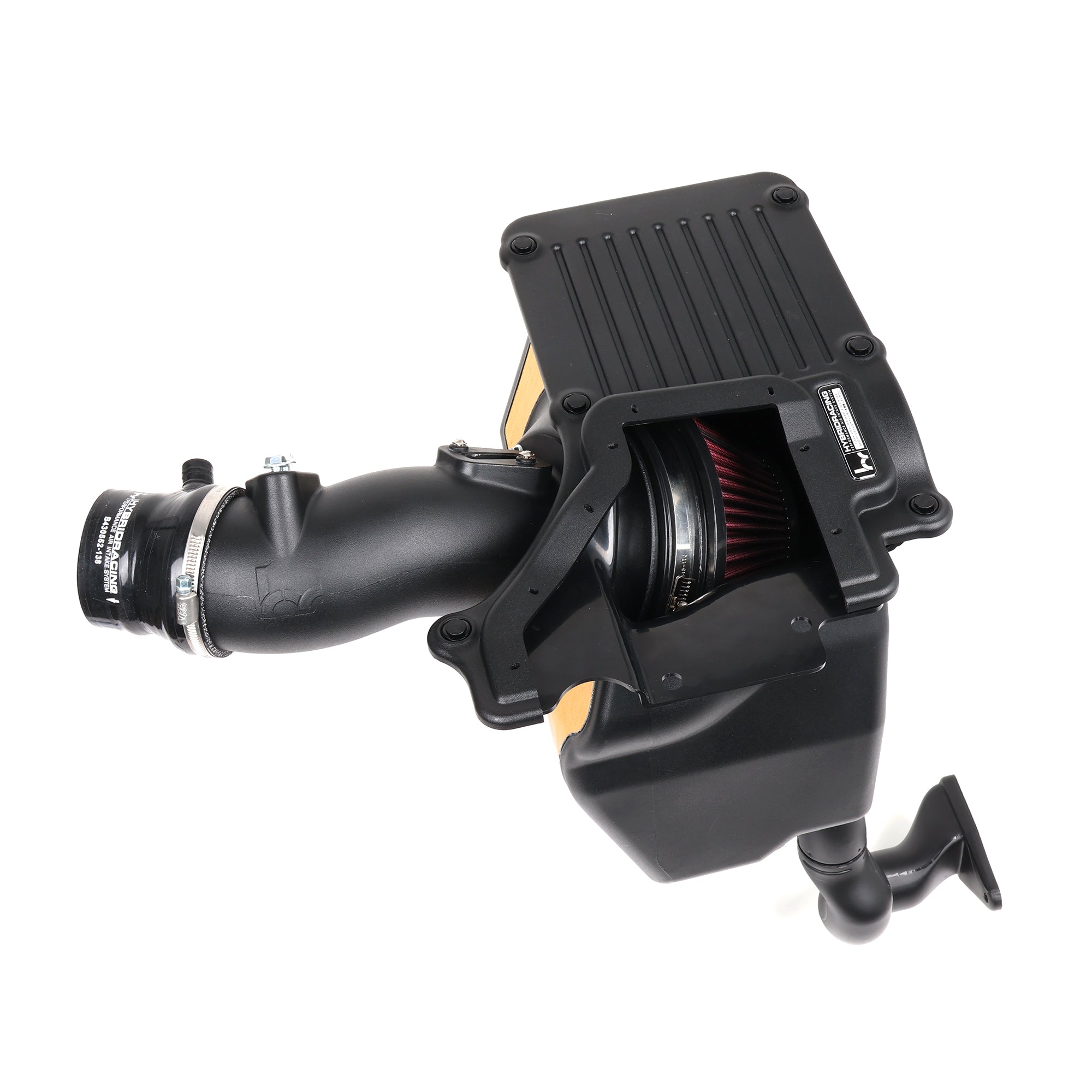

• XLPE airbox and lid
• Selected 76mm or 89mm MAF housing and matching velocity stack
• Reusable red oiled-cotton filter

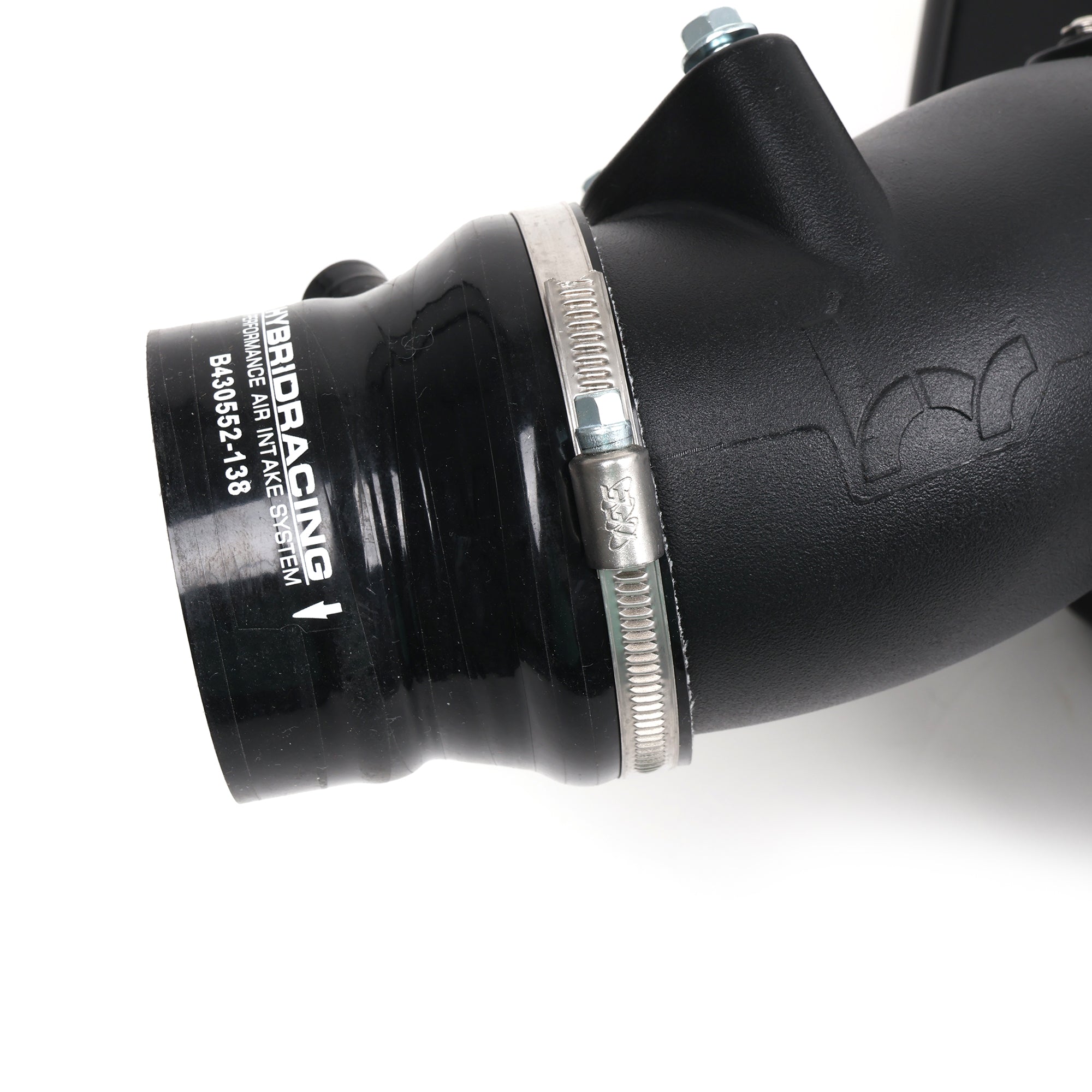

• Factory-turbo-inlet silicone coupler

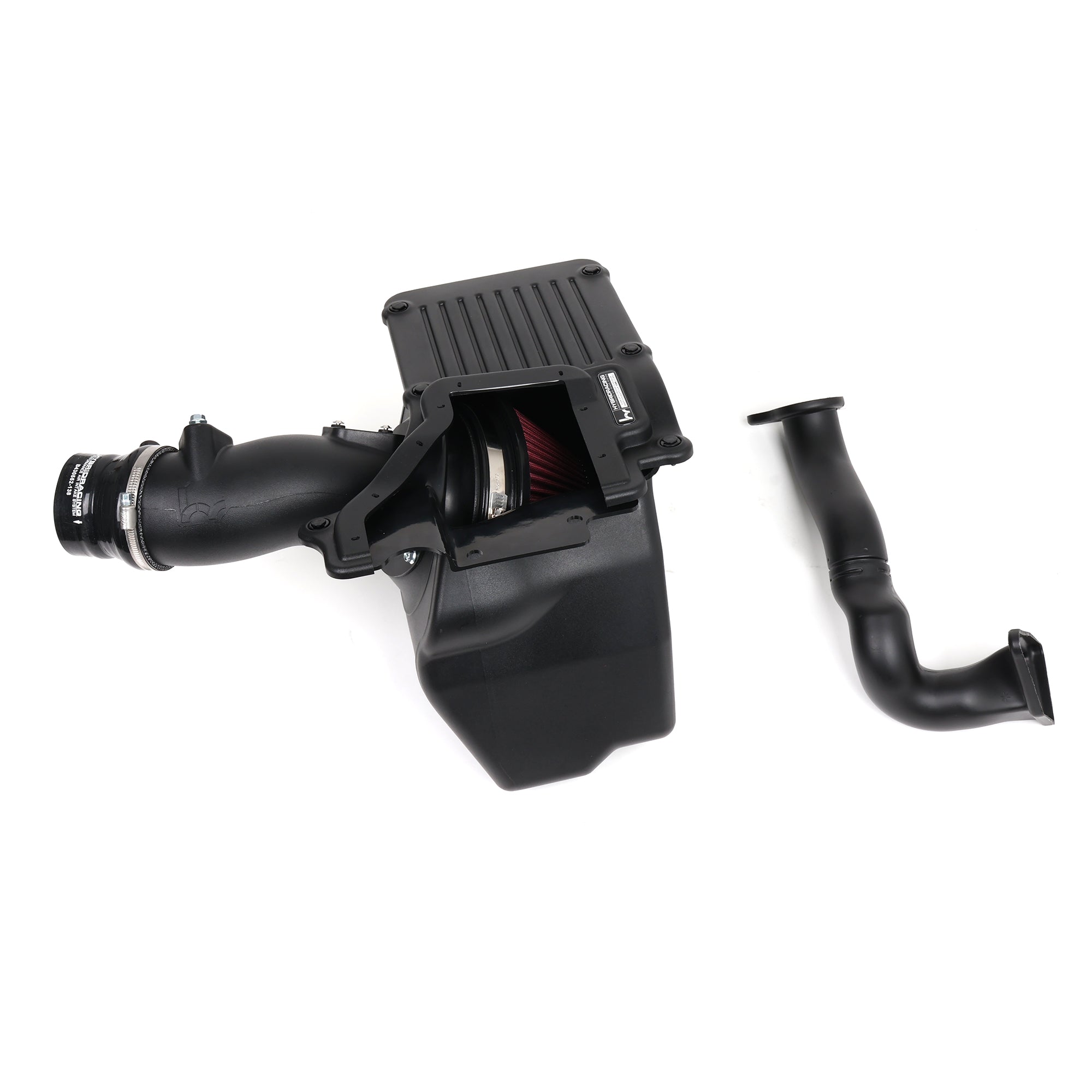

• Upper and lower outside-air inlet tubes
• Reflective heat shields
• Stainless clamps and mounting hardware
• 2.5mm hex key, installation card, and MAF harness split loom

Important Tuning Note

The 76mm housing can run on the factory ECU, although MAF scaling is recommended. The 89mm housing requires suitable engine-management software and calibration. Vehicle modifications, elevation, weather, and calibration can affect ECU behavior.

View the installation guide
