MARS-6057-B - Godspeed Project Mono-Air Strut Kit - BMW 6-Series F06 AWD 2012-2019

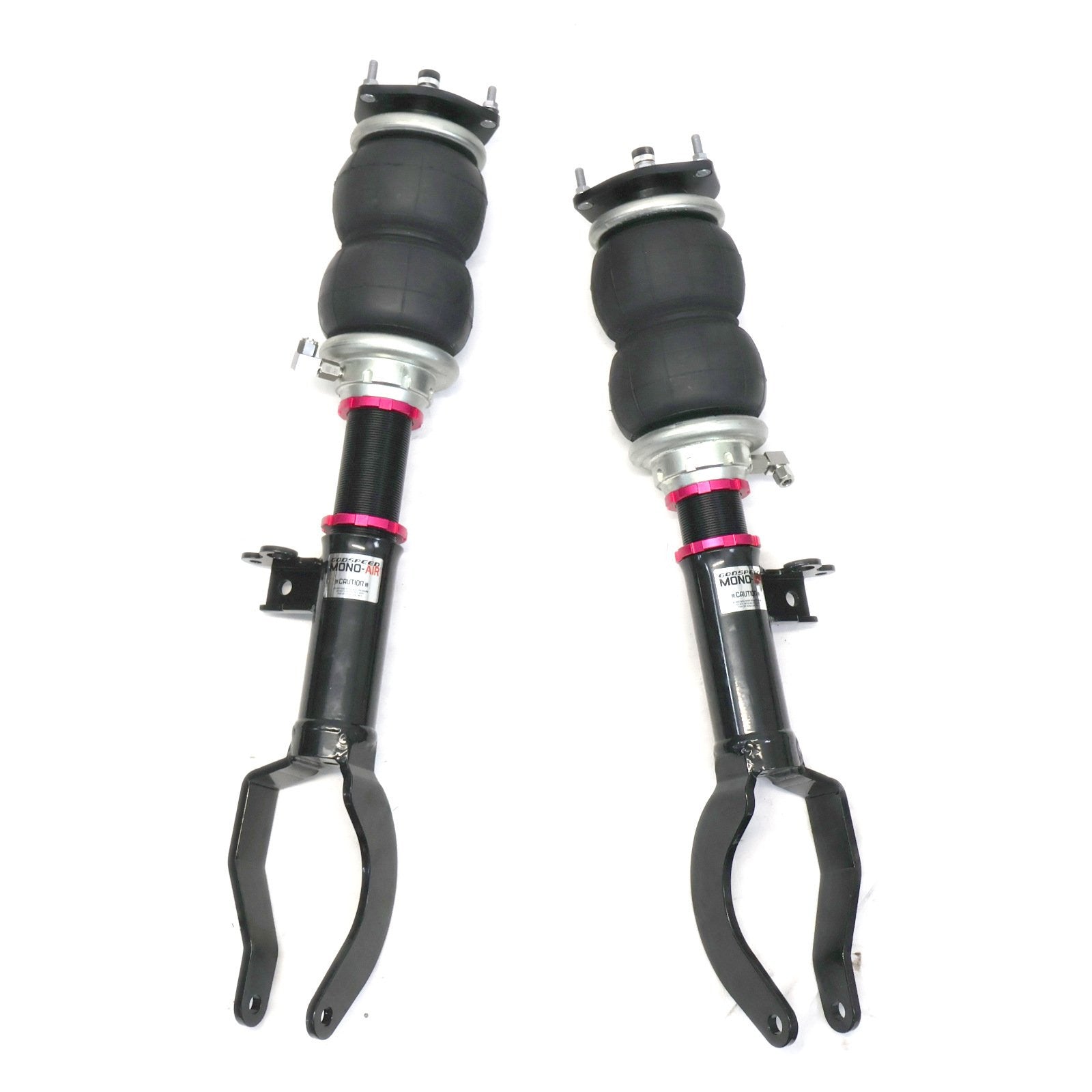

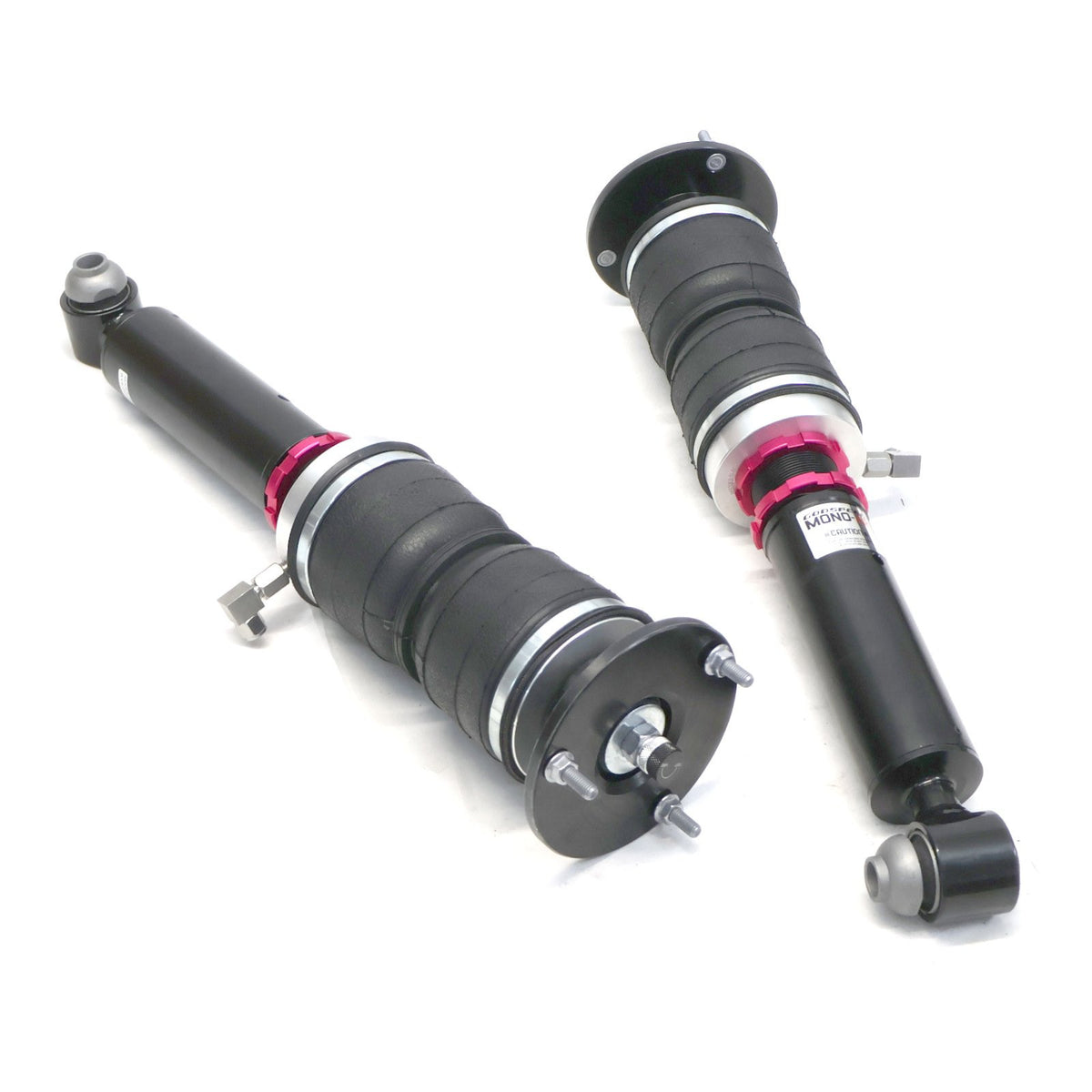

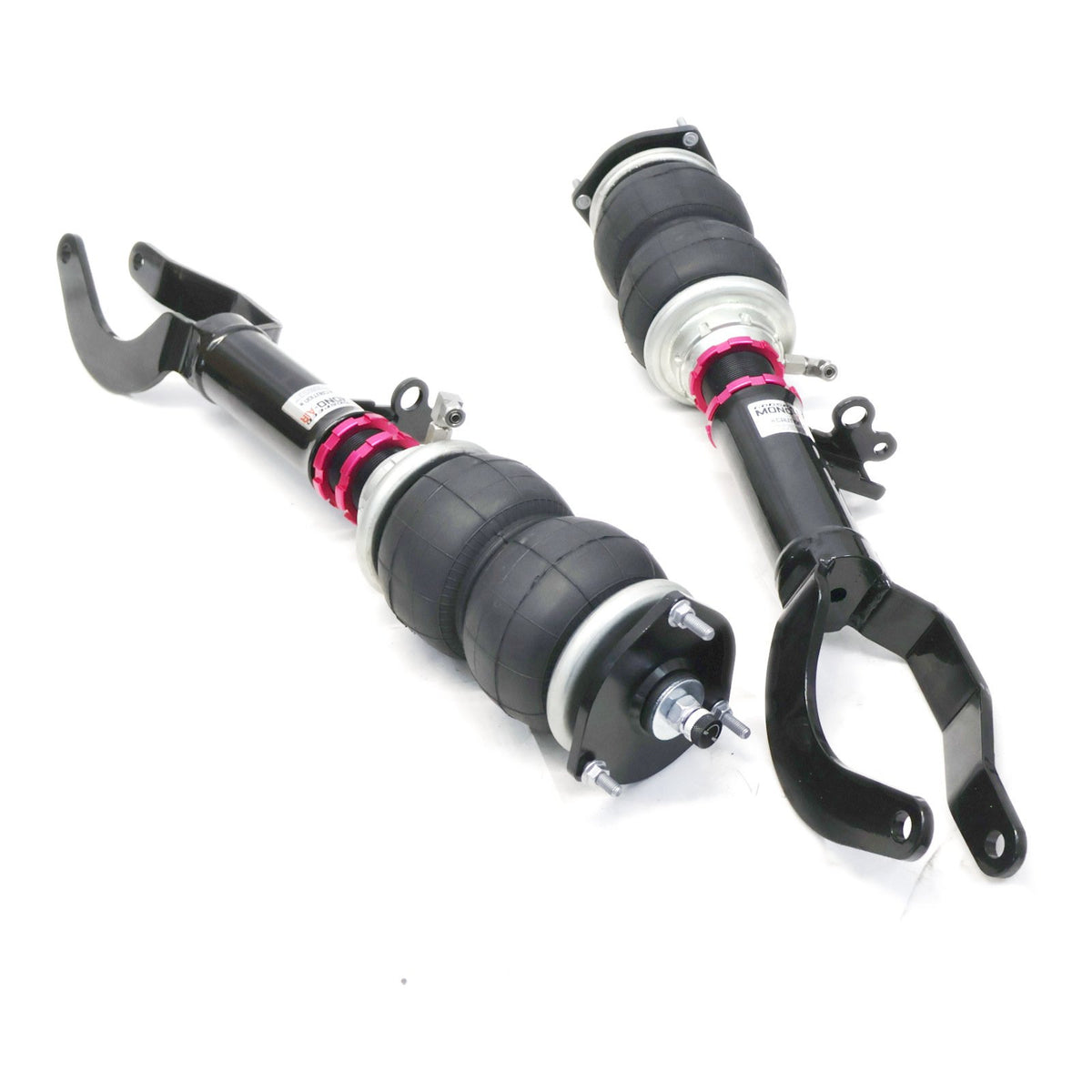

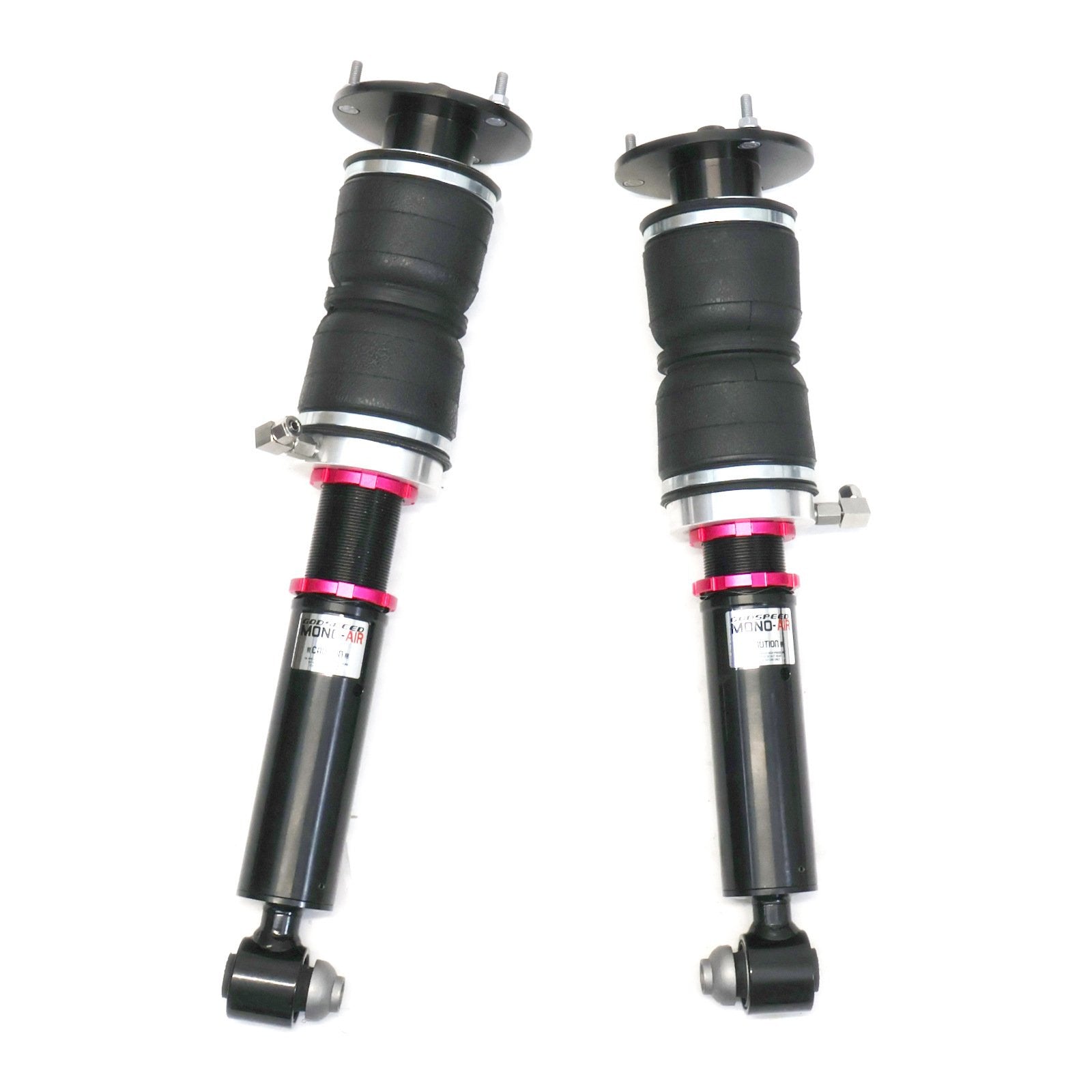

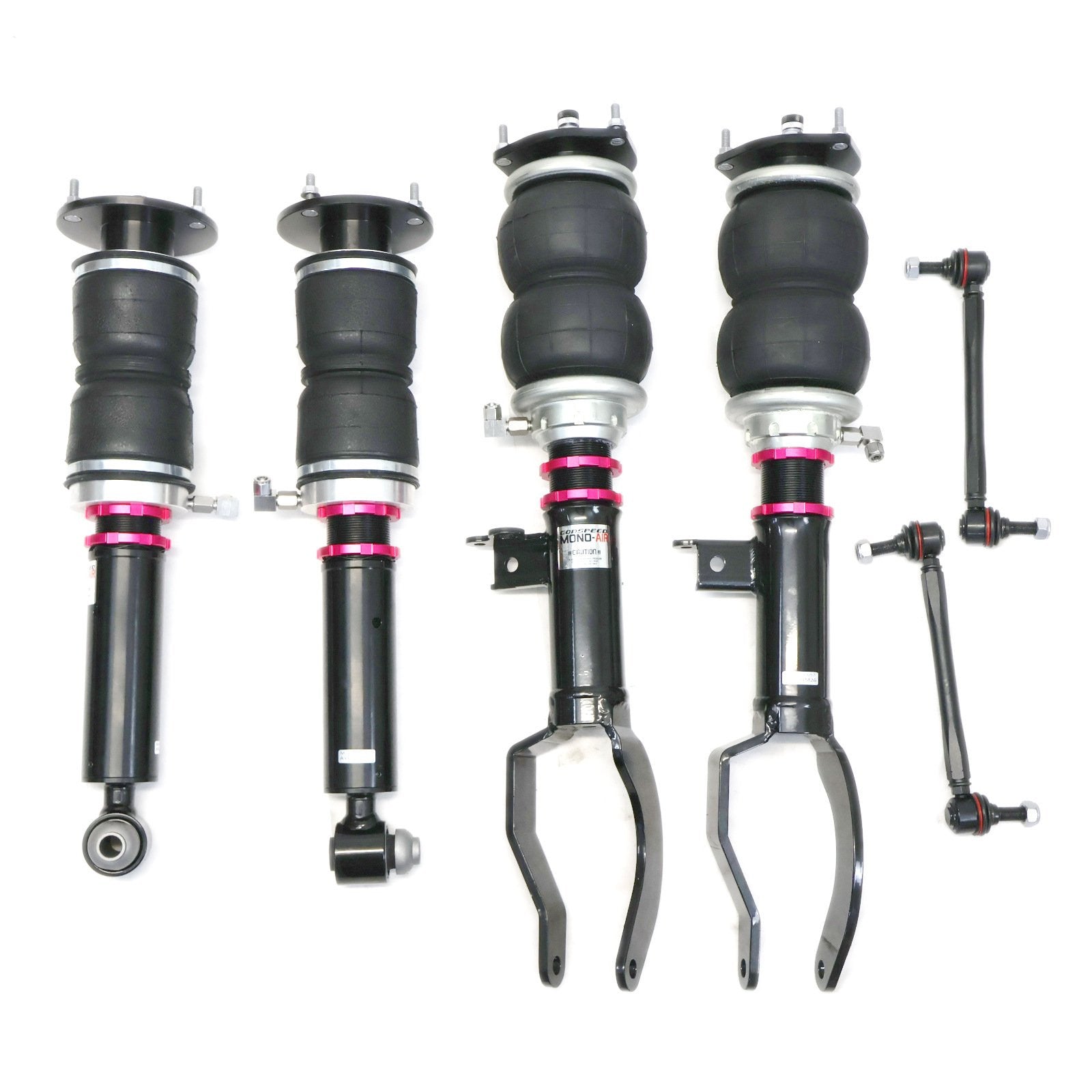

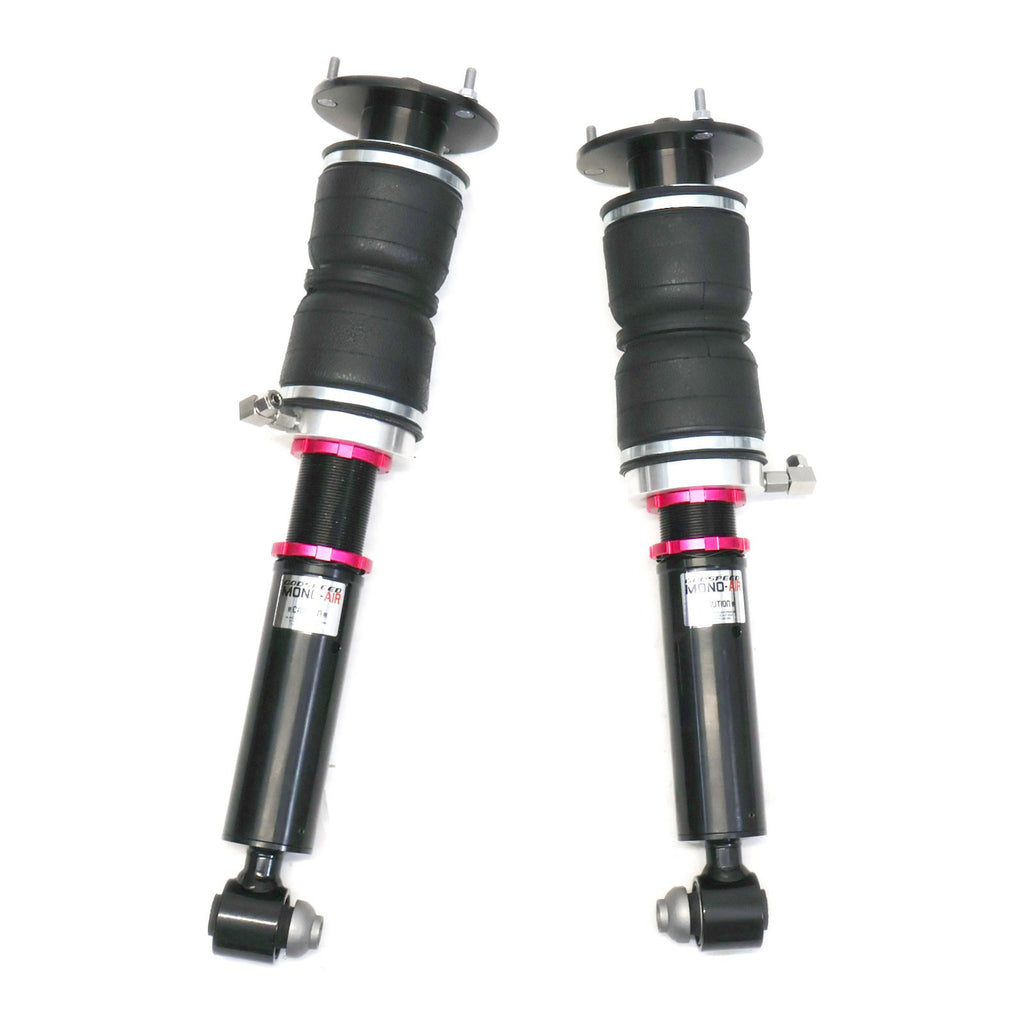

The Godspeed Project Mono-Air strut kit equips the 2012-2019 BMW 6-Series Gran Coupe F06 AWD with adjustable front and rear air struts. The kit combines 32-way rebound-adjustable monotube dampers with durable rubber air bags and stainless-steel fittings for customizable ride height and damping response.
Part Number: MARS-6057-B
Key Features
- 52 mm monotube shock bodies with anodized finish and performance shafts
- 32 levels of rebound damping adjustment
- High-quality rubber air bags with stainless-steel fittings
- Aluminum and carbon-steel hardware with factory-style mounting points
- G1/8 and/or G1/4 fittings for 8 mm outside-diameter pneumatic tubing
- Compatible with most aftermarket air-management systems
- Maximum air-bag pressure: 150 PSI
- Includes two front air-strut assemblies, two rear air-strut assemblies, fittings, spanner wrenches, and damping-adjustment knobs
Vehicle Fitment
- 2012-2019 BMW 6-Series Gran Coupe (F06) AWD
- Not a direct replacement for factory air struts
- Vehicles with factory electronic suspension require a bypass module to disable the warning light
- Vehicles with adaptive dampers may display an adaptive-damping warning light, but the vehicle will continue to function
Specifications
| Specification | Front | Rear |
|---|---|---|
| Top Mount | Included, standard type | Included, standard type |
| Spring Type | Air bag | Air bag |
| Damping Adjustment | 32 levels | 32 levels |
| Height Adjustment | Yes | Yes |
Installation Notes
Designed for bolt-on installation using factory-style mounting points. A separate air-management system—including a compressor, tank, controller, and air lines—is required and sold separately. Professional installation and alignment are recommended.
California Proposition 65 Warning: This product contains nickel, a chemical known to the State of California to cause cancer and reproductive harm. For more information, visit P65Warnings.ca.gov.
