Eibach PRO-TRUCK-LIFT Stage 2R Lift Kit - Ford Ranger 4WD (2024-2026)

E86-35-062-04-22 - Eibach PRO-TRUCK-LIFT Stage 2R Lift Kit - Ford Ranger 4WD (2024-2026)

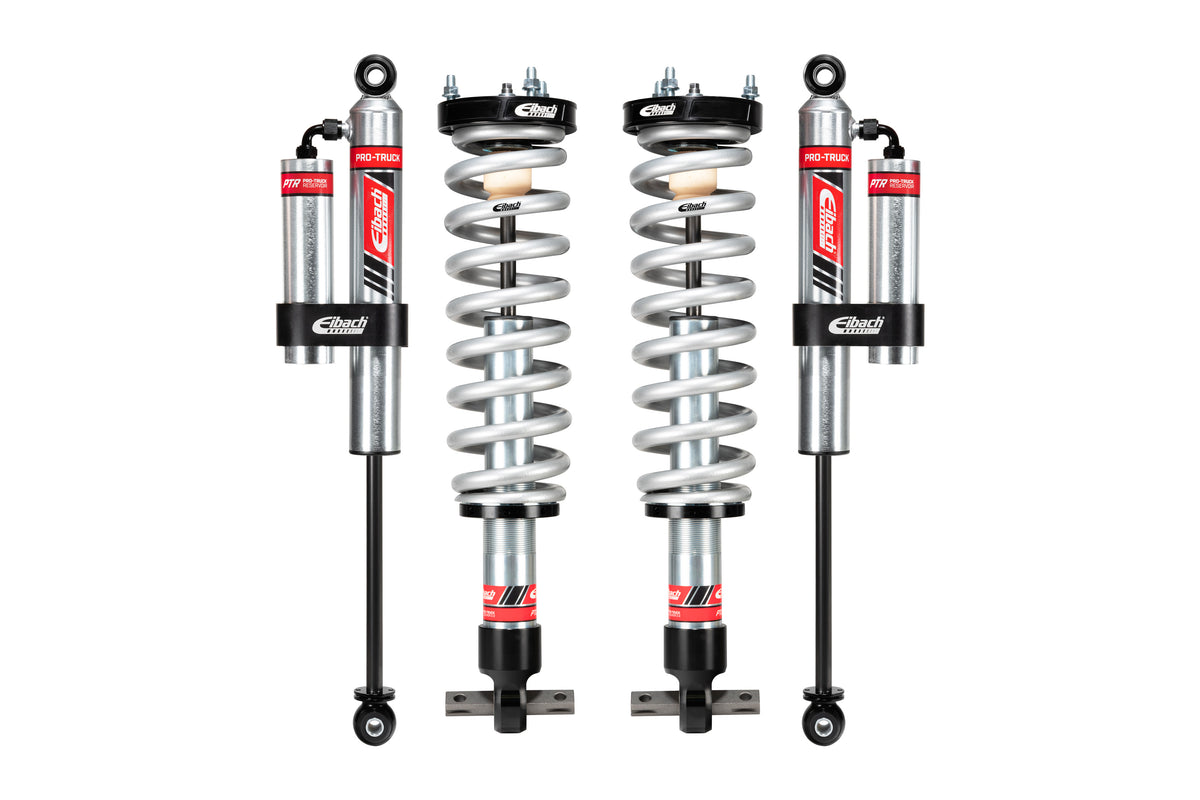

Pair of Front Coilovers + Rear Reservoir Shocks

Vehicle Applications, Lift Heights & Installation Notes

• 2024-2026 Ford Ranger XL, XLT, LARIAT Super Crew 2.3L EcoBoost 4WD P703: +0-3" Front | +0-1.5" Rear
  • Note: Exact lift heights may vary depending on exact packages and weight distributions of vehicle Out of the box coil-over height is set to be level with OE rear height. Do not exceed the max called out lift height, poor ride quality will result. 2.7L V6 Ecoboost: Adjust lower spring perch to a preload of 115mm/4.5". Measure from the top of the bottom mount to the bottom of the spring perch.
  • Note: We do not guarantee fitment, height or warranties on unlisted applications.
• 2024-2026 Ford Ranger XL, XLT, LARIAT Super Crew 2.7L V6 EcoBoost 4WD P703: +0-3" Front | +0-1.5" Rear
  • Note: Exact lift heights may vary depending on exact packages and weight distributions of vehicle Out of the box coil-over height is set to be level with OE rear height. Do not exceed the max called out lift height, poor ride quality will result. 2.7L V6 Ecoboost: Adjust lower spring perch to a preload of 115mm/4.5". Measure from the top of the bottom mount to the bottom of the spring perch.
  • Note: We do not guarantee fitment, height or warranties on unlisted applications.

Features

• Stage 2 system featuring Pro-Truck-Coilover 2.0's + Pro-Truck Reservoir Sport Shocks

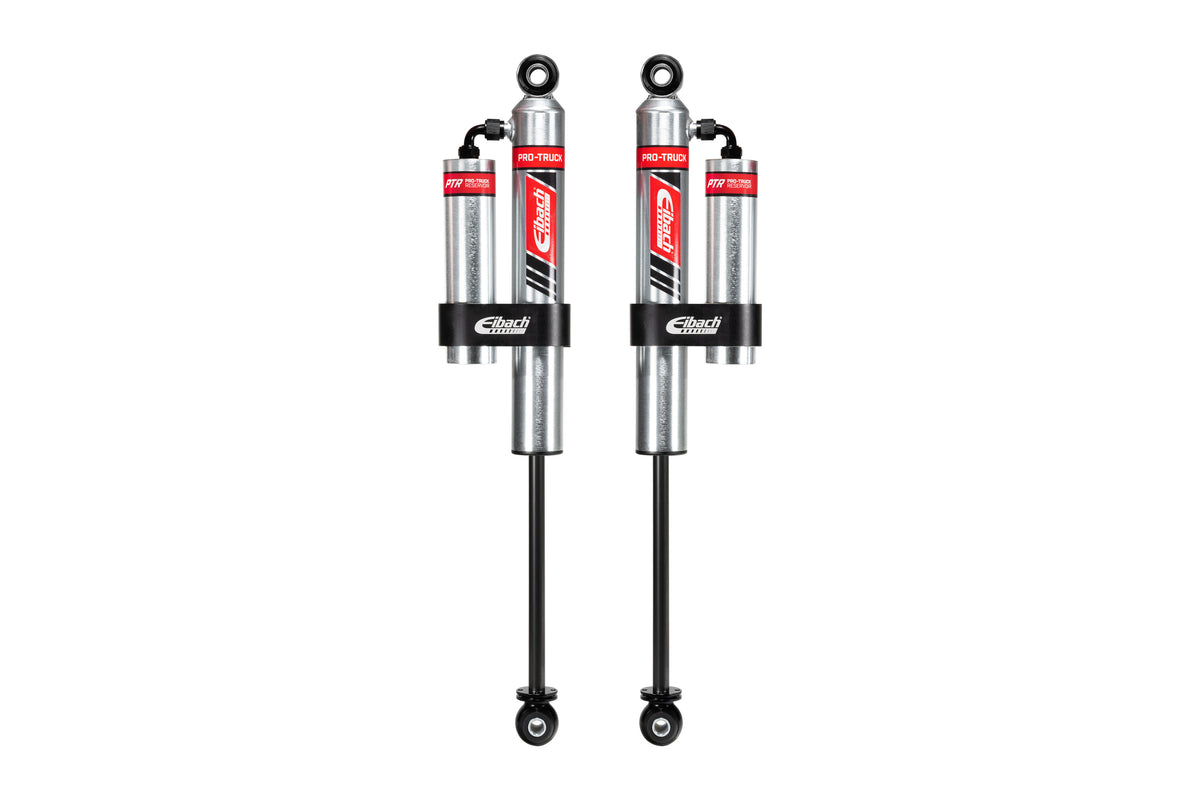

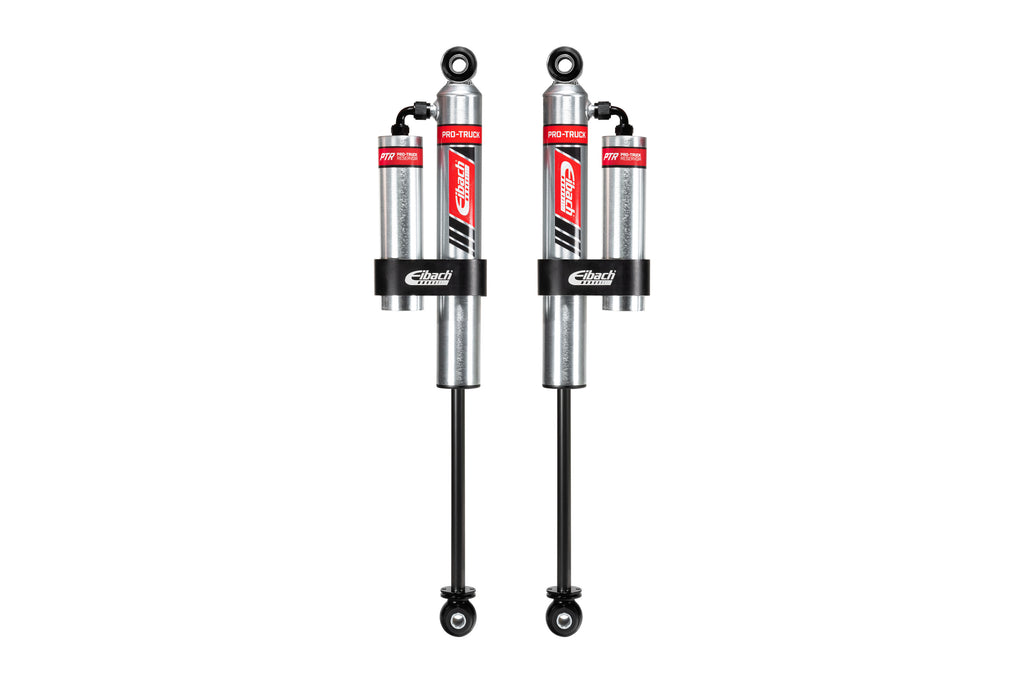

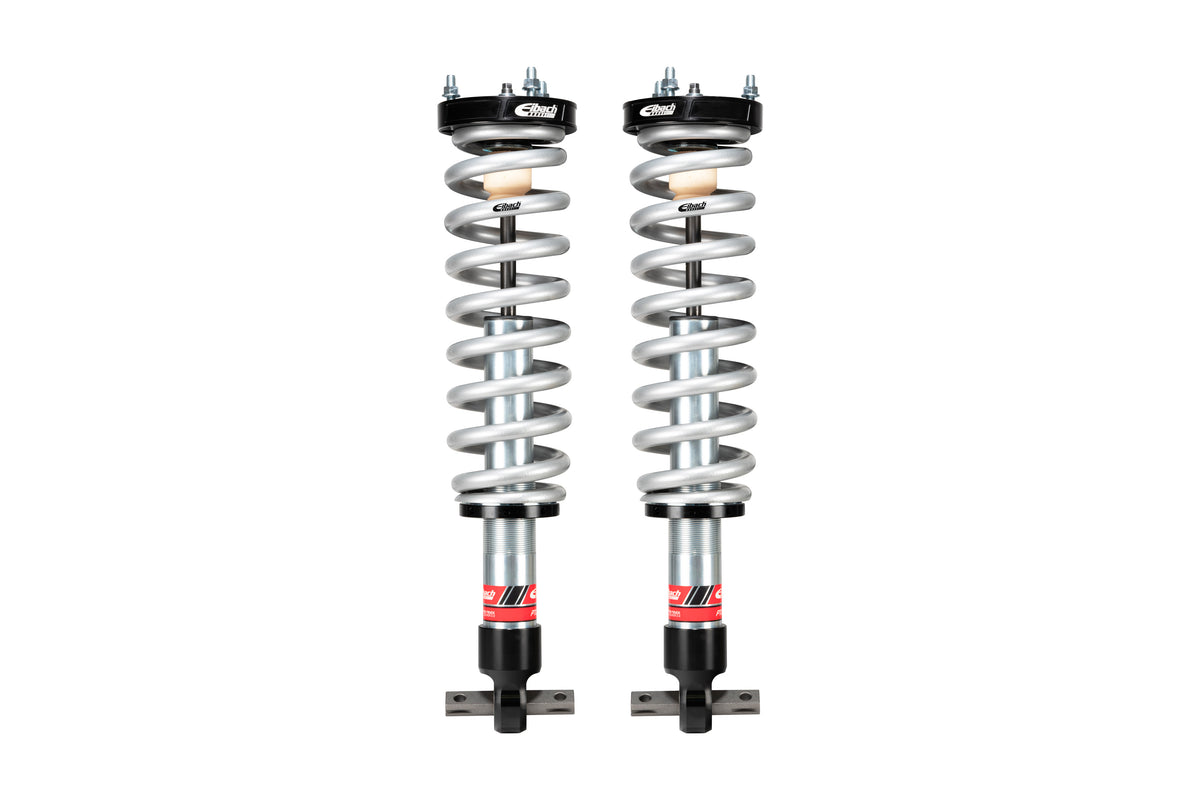

• Height Adjustable Front Coilover and External Reservoir Rear Shocks for Increased Off-Road Performance
• Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
• Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
• Engineered, Tested and Manufactured by Eibach in the U.S.A.
• Two-year Warranty

Installation Instructions

• D4354.pdf
• D4444.pdf
