Eibach PRO-TRUCK-LIFT Stage 2 Lift Kit - GMC Canyon (2015-2022)

E86-23-007-01-22 - Eibach PRO-TRUCK-LIFT Stage 2 Lift Kit - GMC Canyon (2015-2022)

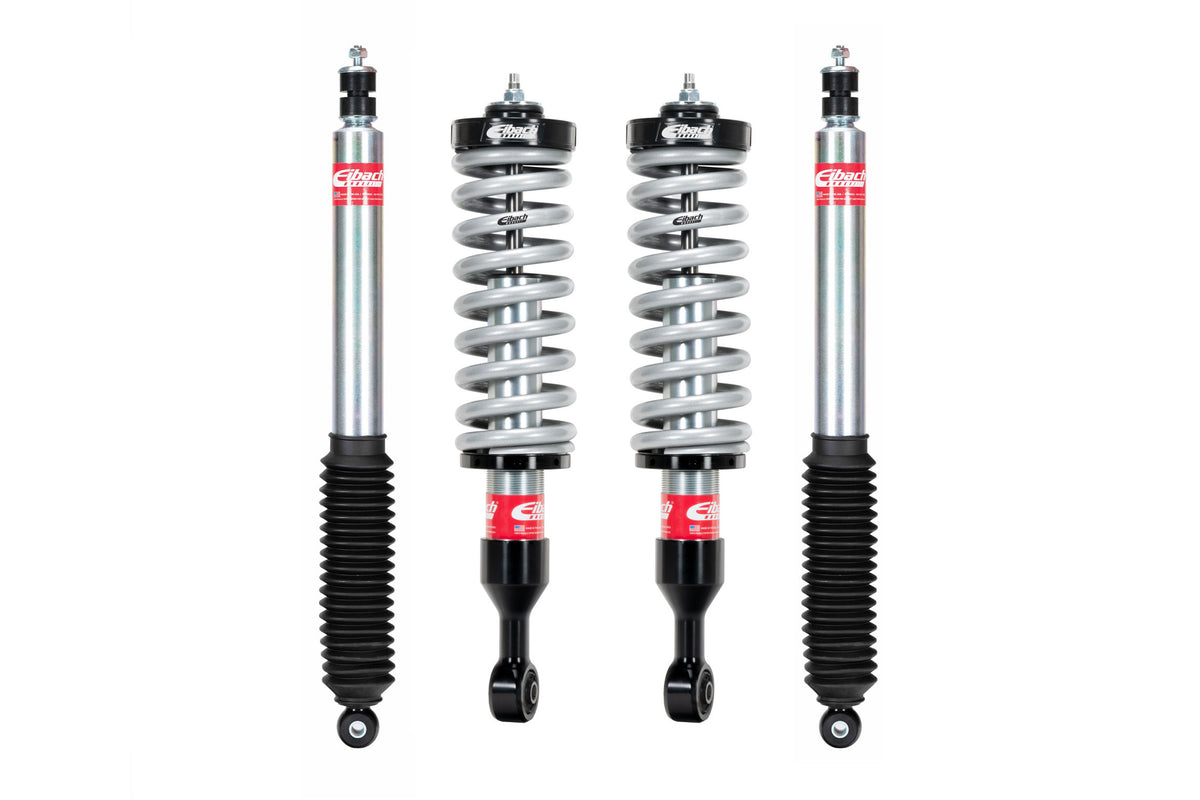

Pair of Front Coilovers + Rear Shocks

Vehicle Applications, Lift Heights & Installation Notes

• 2015-2022 GMC Canyon 4WD: +1.0-3.0" Front | +0-1.5" Rear
  • Note: Do not install with a factory 1" leveling spacer.
  • Note: We do not guarantee fitment, height or warranties on unlisted applications.
• 2021-2022 GMC Canyon AT4 4WD: +1.0-3.0" Front | +0-1.5" Rear
  • Note: Do not install with a factory 1" leveling spacer.
  • Note: We do not guarantee fitment, height or warranties on unlisted applications.
• 2015-2022 GMC Canyon SLE, ELEVATION, SLT 3.6L 2WD RG: +1.0-3.0" Front | +0-1.5" Rear
  • Note: Do not install with a factory 1" leveling spacer.
  • Note: We do not guarantee fitment, height or warranties on unlisted applications.

Features

• Stage 2 system featuring Pro-Truck-Coilover 2.0's + Rear Sport Shocks
• Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
• Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
• Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
• Engineered, Tested and Manufactured by Eibach in the U.S.A.
• Two-year Warranty

Installation Instructions

• D3424.pdf
• D3854.pdf
