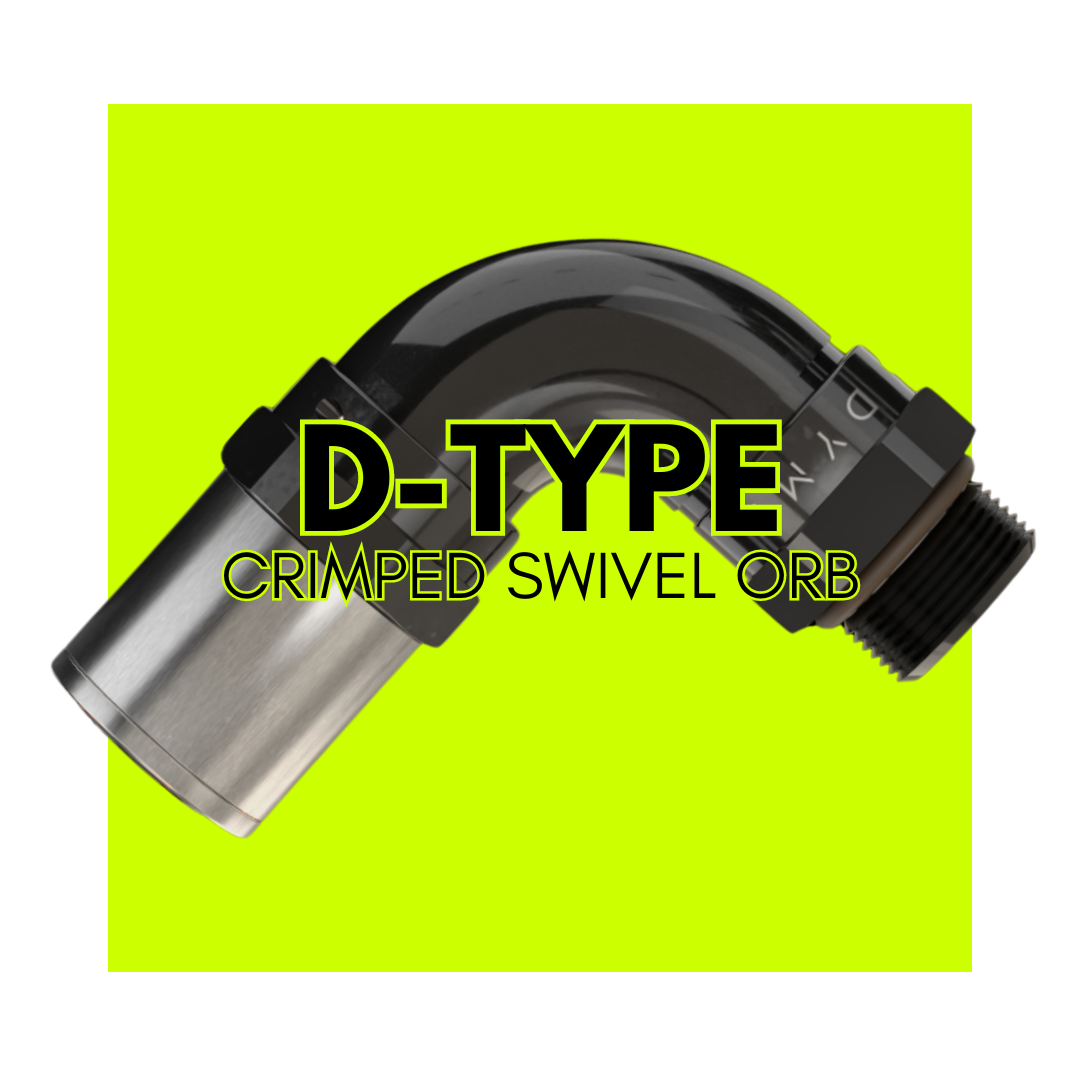

Dyme FATBOY D-Type Crimp-On ORB Swivel

Dyme FATBOY D-Type ORB (SAE) Crimp-On Swivel Fitting: Experience reliable high-performance sealing and flexible routing with a one-piece, thick-tube, no-weld crimp-on design, dual FLUOROK™-P FKM sealing, and 180° swivel angle adjustment. Built as a permanent crimp-on fitting for high-performance hose assemblies, it uses the same ORB (SAE) Male end termination as the FATBOY C-Type and the same hose connection compatibility as the FATBOY A-Type: Dyme SUPERLEGGERA PTFE and SUPERSTRASSE (crimp) rubber hose types. ORB (SAE) termination—not AN/JIC.

KEY FEATURES

• 6061-T6 Billet Aluminum Body: Black anodized for corrosion resistance and durability. Thick-tube, no-weld construction for strength and reliability.

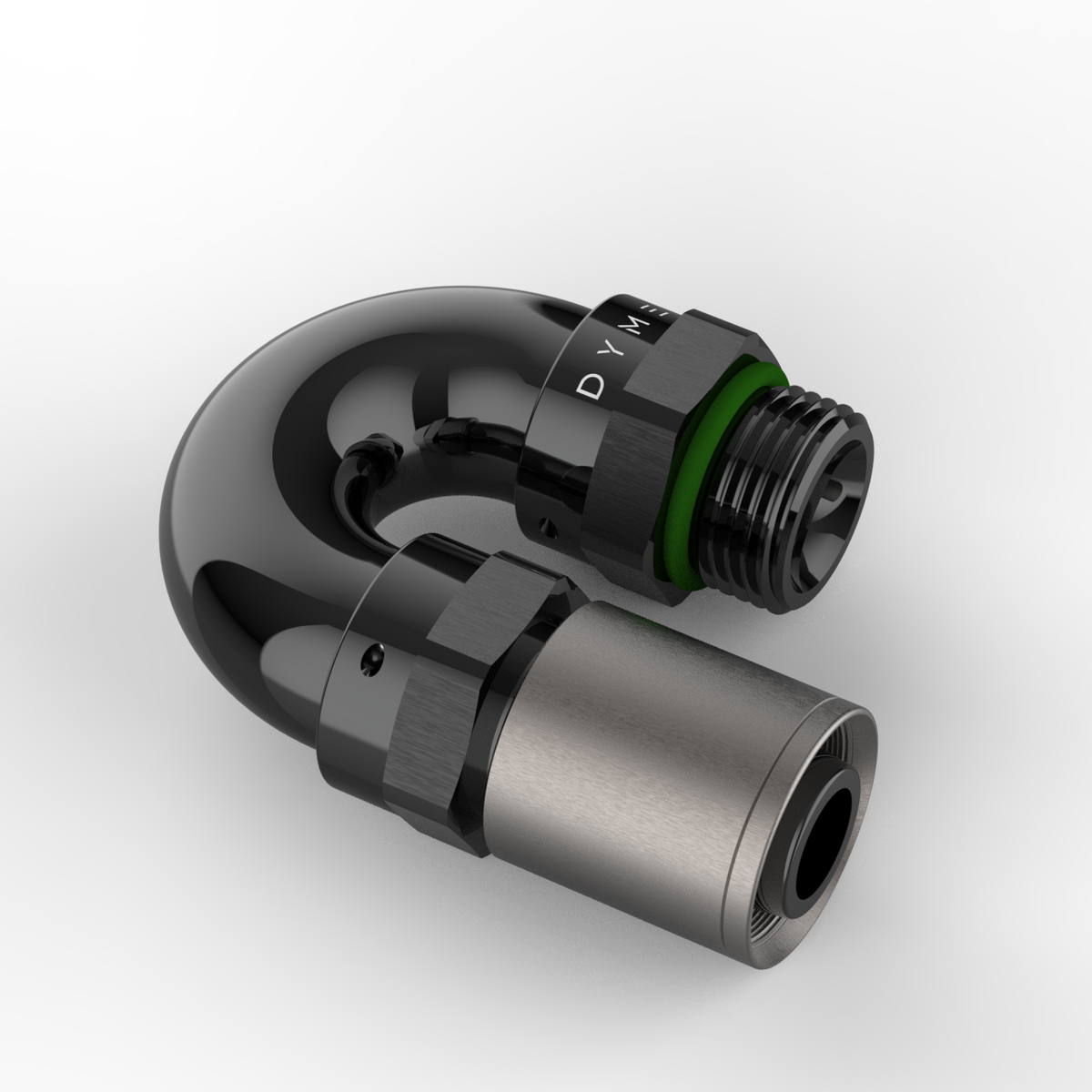

• 180° Swivel Adjustment: Straight-through-to-180° swivel angle adjustment helps simplify hose routing and alignment in tight spaces.

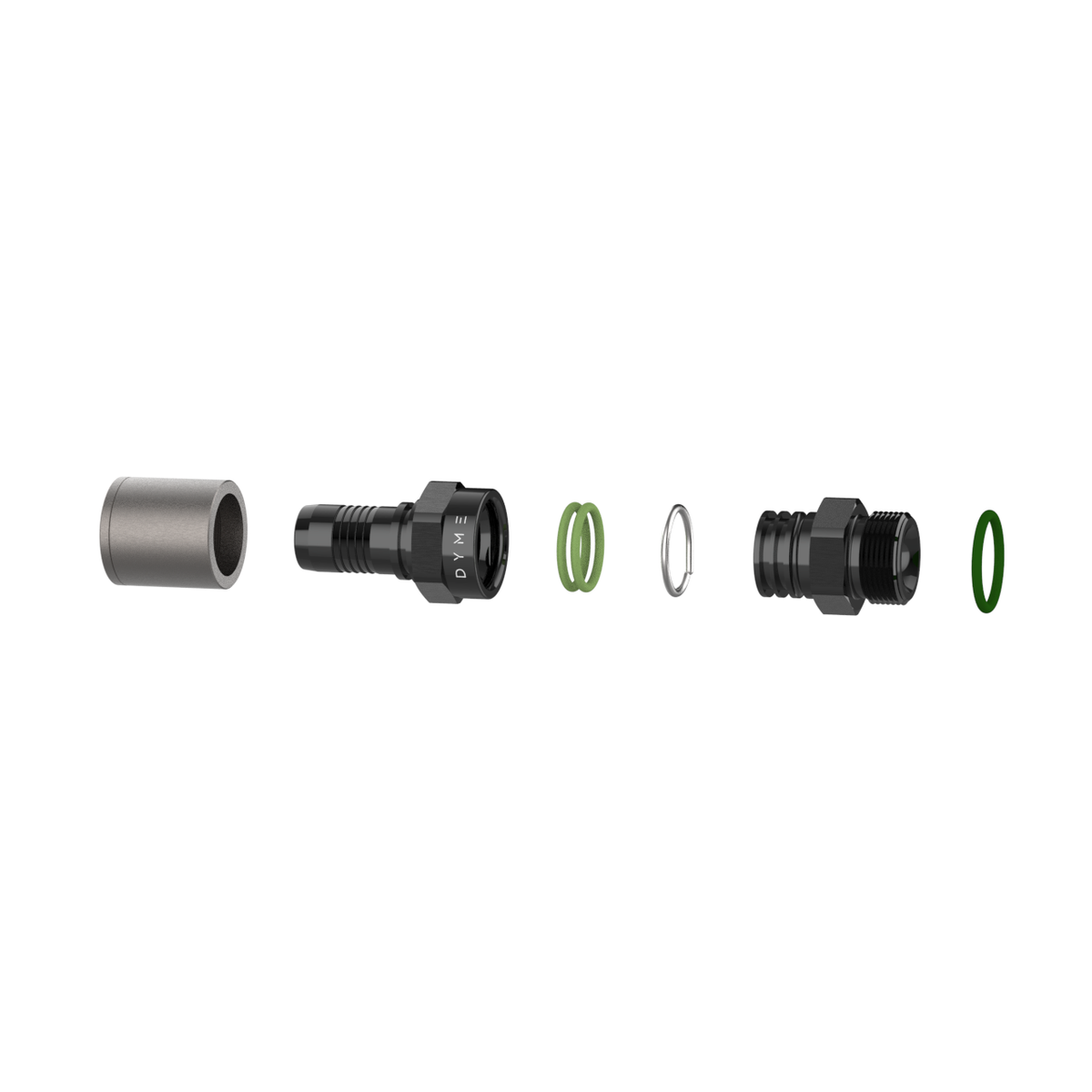

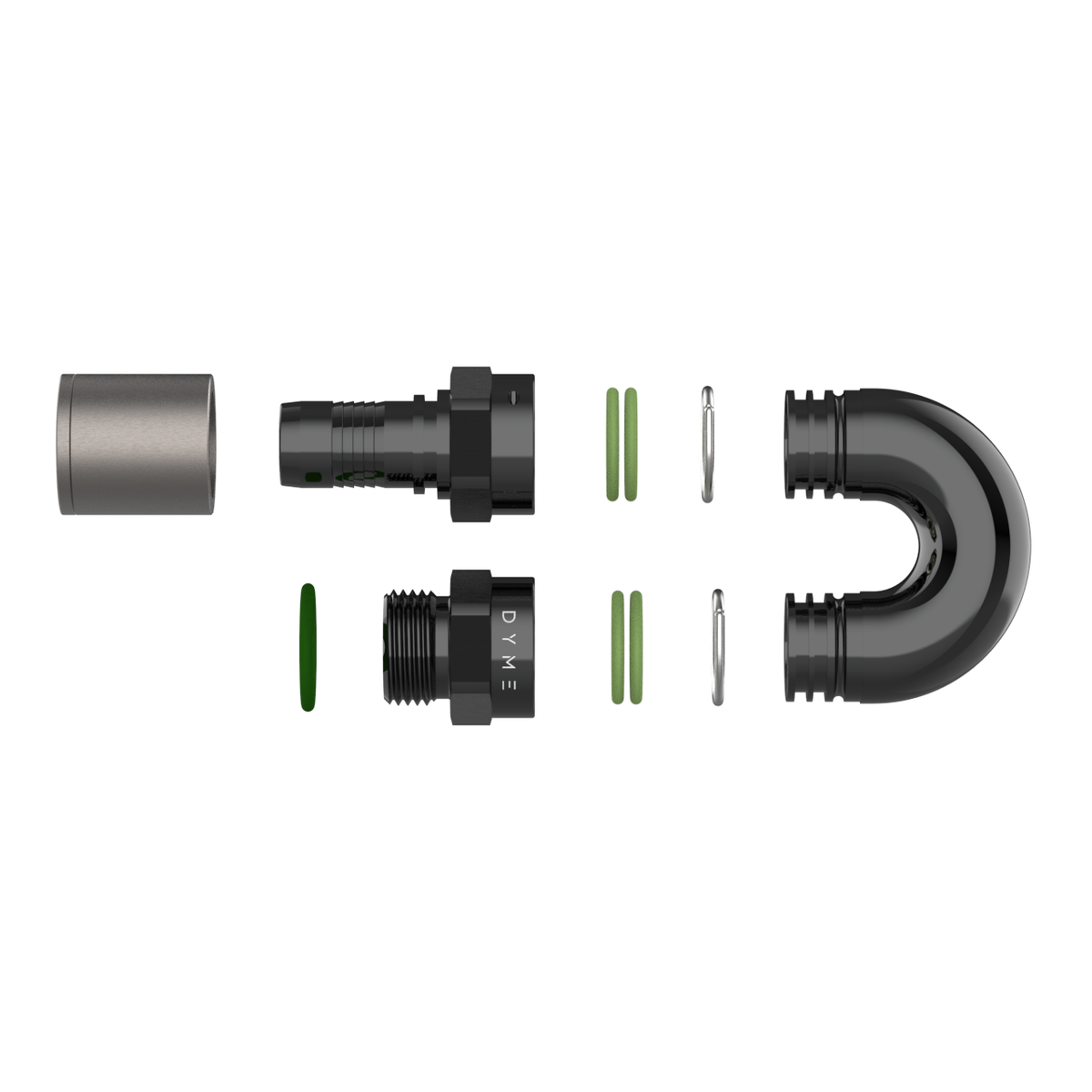

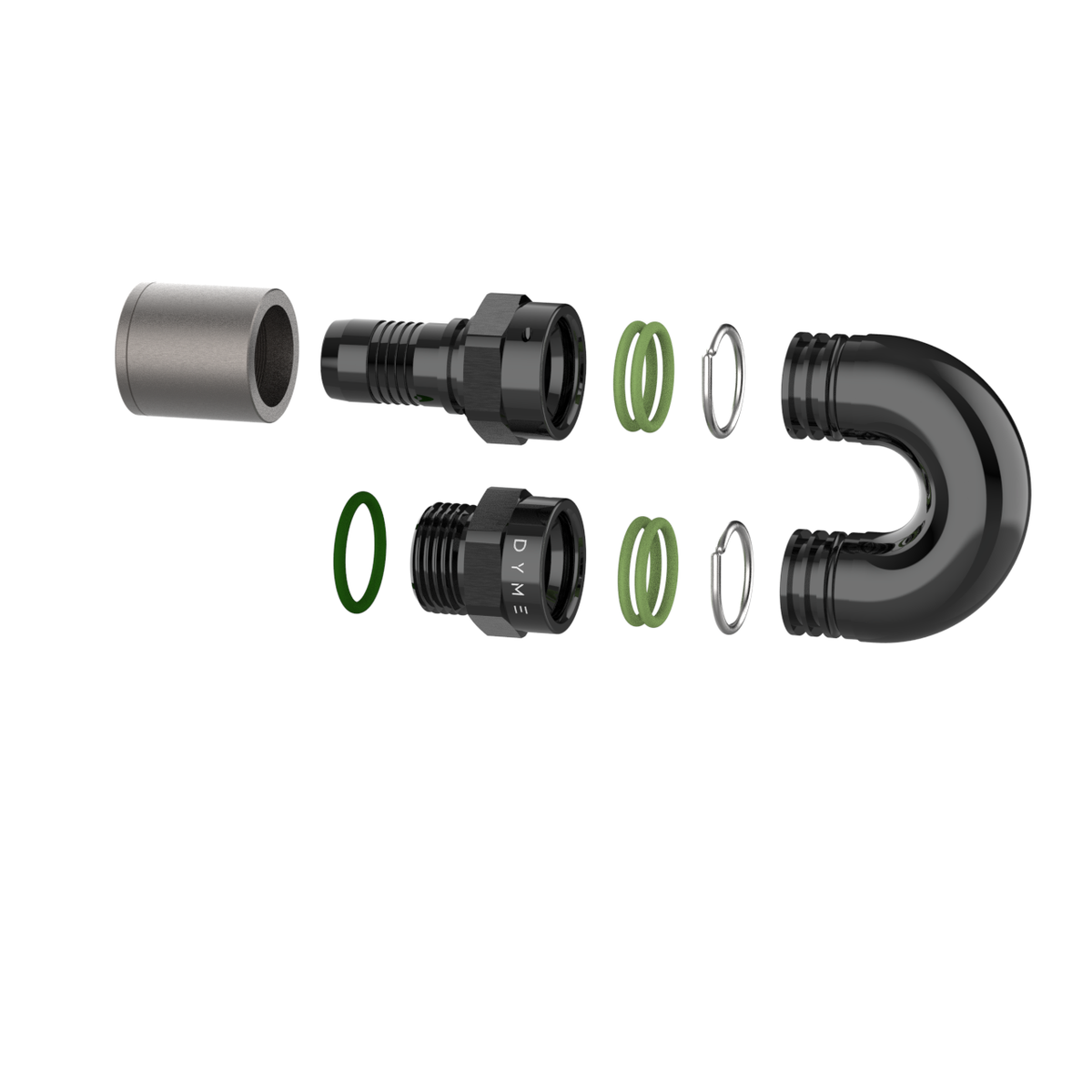

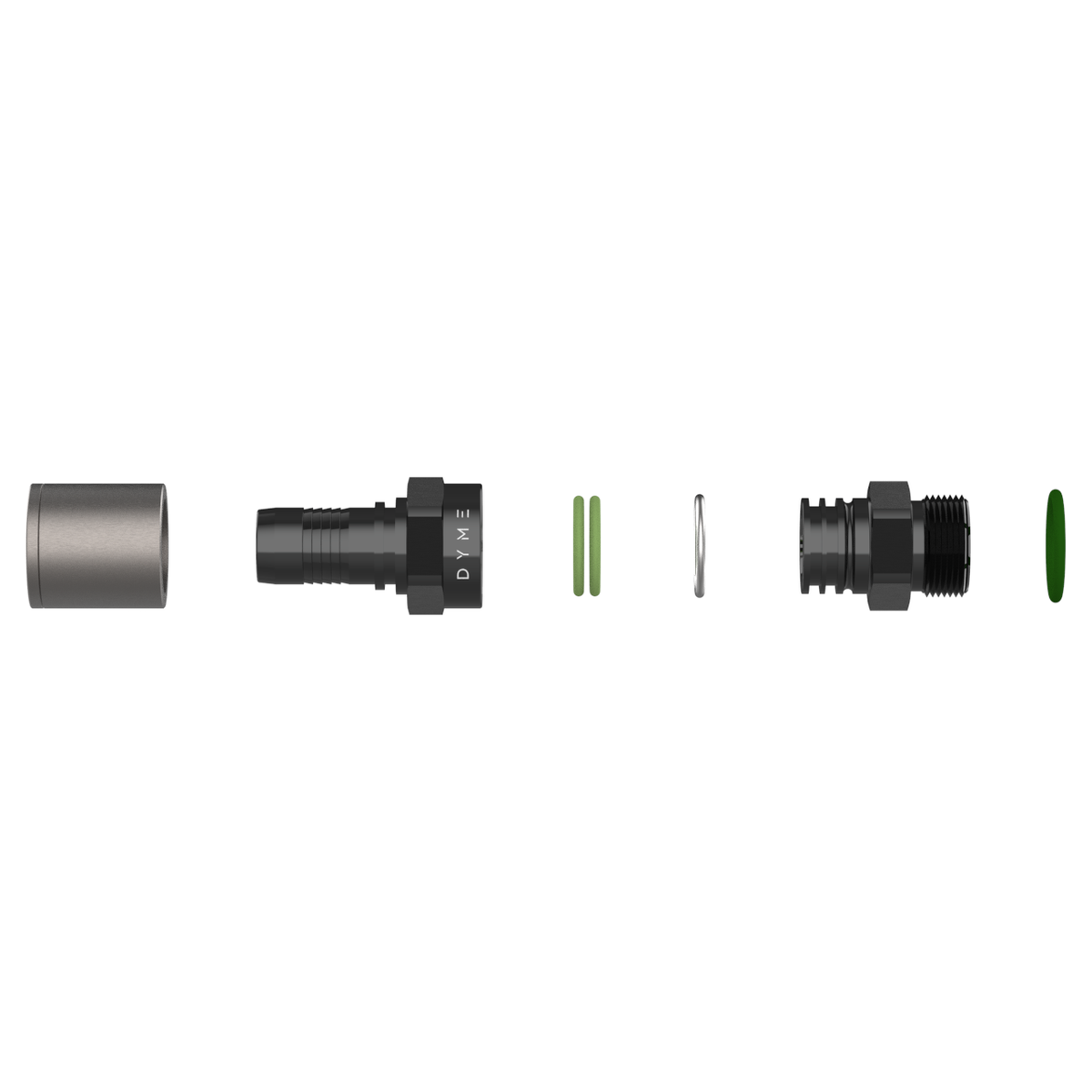

• Dual FLUOROK™-P FKM Seals: Dual-seal swivel design for reliable sealing and added redundancy.

• Crimp-On Design: Permanent crimp connection for high-performance hose assemblies.

• Thick-Tube No-Weld Construction: One-piece body eliminates welded weak points where possible for reliable performance.

• ORB (SAE) Male End Termination: For ORB port connections; not AN/JIC. Same ORB termination as FATBOY C-Type.

COMPATIBILITY

• Compatible with Dyme SUPERLEGGERA PTFE and SUPERSTRASSE (crimp) rubber hose types. Dyme cannot endorse or guarantee the performance of non-Dyme hose combinations.

• ORB Port Compatibility: ORB (SAE) Male end termination requires a compatible ORB port; verify thread size and port standard.

• Fluid Compatibility: Confirm media compatibility for your hose and seal selection at https://www.dymepsi.com/technical.

⚠️ IMPORTANT CRIMP NOTE
Crimp only. Follow the crimp specifications at https://www.dymepsi.com/technical.

WHY CHOOSE FATBOY?

• Engineered Durability: Billet aluminum, thick-tube, no-weld construction, and high resistance to impact, torque, and vibration.

• Flexible Routing: 180° swivel adjustment for easier installation in confined areas.

• Reliable Sealing: Dual FLUOROK™-P FKM seals.

• High-Performance Crimp Connection: Permanent crimp-on design for high-performance hose assemblies.

• Hose System Compatibility: Works with Dyme SUPERLEGGERA PTFE and SUPERSTRASSE (crimp) rubber hose types.

• ORB (SAE) Termination: For ORB port connections; not AN/JIC. Same ORB termination as FATBOY C-Type.
