Dyme FATBOY C-Type Reusable ORB Swivel

Dyme FATBOY C-Type ORB Male Reusable Compression Swivel Fitting: Experience field-serviceable flexibility with a one-piece, thick-tube, no-weld reusable compression design, dual FLUOROK™-P FKM sealing, and 180° swivel angle adjustment. Built for use with Dyme SUPERSTRASSE CPE (reusable type) rubber hose, it is assembled with a left-hand threaded compression nut and requires no crimp equipment. ORB Male end termination—not AN/JIC.

KEY FEATURES

• 6061-T6 Billet Aluminum Body: Black anodized for corrosion resistance and durability. One-piece, thick-tube, no-weld construction for strength and reliability.

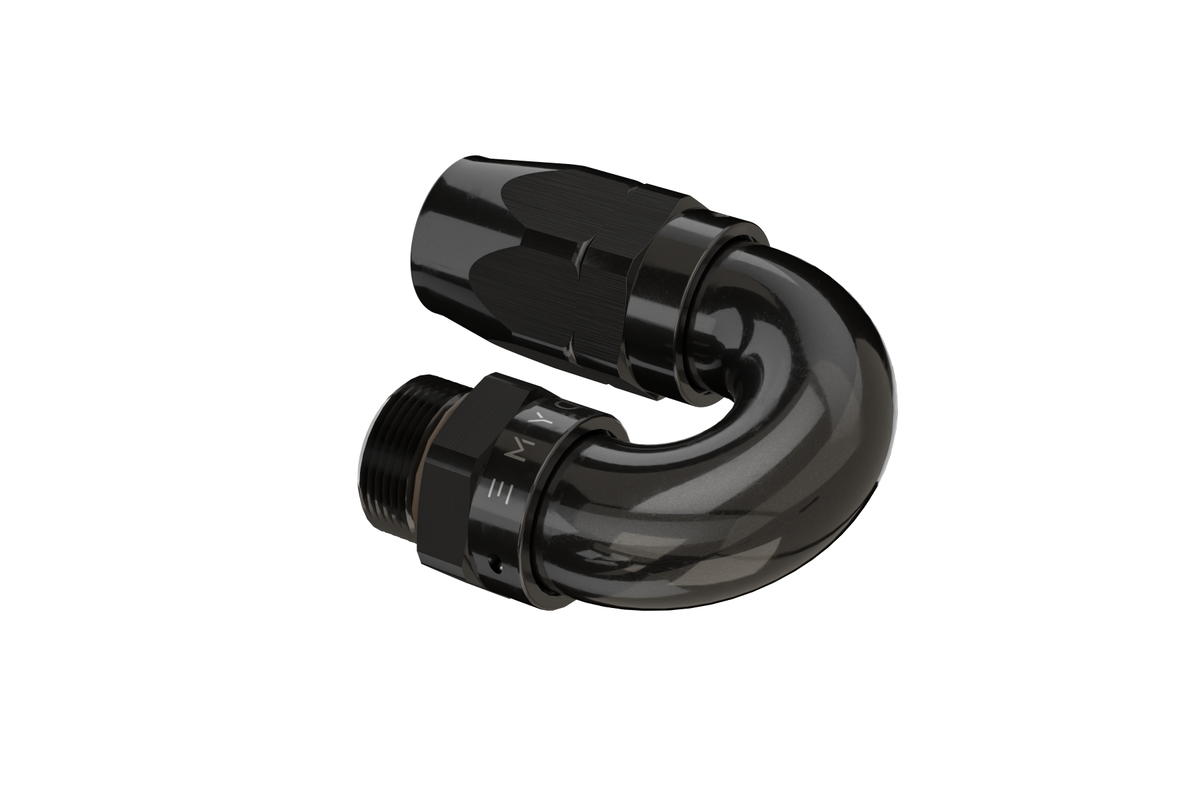

• 180° Swivel Adjustment: Straight-through-to-180° swivel angle adjustment helps simplify hose routing and alignment in tight spaces.

• Dual FLUOROK™-P FKM Seals: Dual-seal swivel design for reliable sealing and added redundancy.

• Reusable Compression Design: Left-hand threaded compression nut for field assembly and service. No crimp equipment required.

• Thick-Tube No-Weld Construction: One-piece body eliminates welded weak points where possible for reliable performance.

• ORB Male End Termination: Male ORB termination for ORB port connections; not AN/JIC.

COMPATIBILITY

• Compatible with Dyme SUPERSTRASSE CPE (reusable type) rubber hose. Dyme cannot endorse or guarantee the performance of non-Dyme hose combinations.

• ORB Port Compatibility: ORB Male end termination requires a compatible ORB port; verify thread size and port standard.

• Fluid Compatibility: Confirm media compatibility for your hose and seal selection at https://www.dymepsi.com/technical.

⚠️ IMPORTANT ASSEMBLY NOTE
FATBOY C-Type & B-Type compression-style fittings feature a left-hand threaded compression nut. Screw this nut onto the rubber hose in a left-handed direction until it bottoms out on the hose. Then screw the lubricated male side of the fitting into the nut and hose combination until bottomed out. Mark the position of the hose in the nut to ensure the hose is not pushed out during assembly. Follow the assembly instructions at https://www.dymepsi.com/technical.

WHY CHOOSE FATBOY?

• Reusable Field-Serviceable Convenience: Compression-style design allows assembly and service without crimp equipment.

• Flexible Routing: 180° swivel adjustment for easier installation in confined areas.

• Reliable Sealing: Dual FLUOROK™-P FKM seals.

• Engineered Durability: Billet aluminum, thick-tube, no-weld construction.

• Hose System Compatibility: Works with Dyme SUPERSTRASSE CPE (reusable type) rubber hose.

• ORB Male Termination: For ORB port connections; not AN/JIC.
