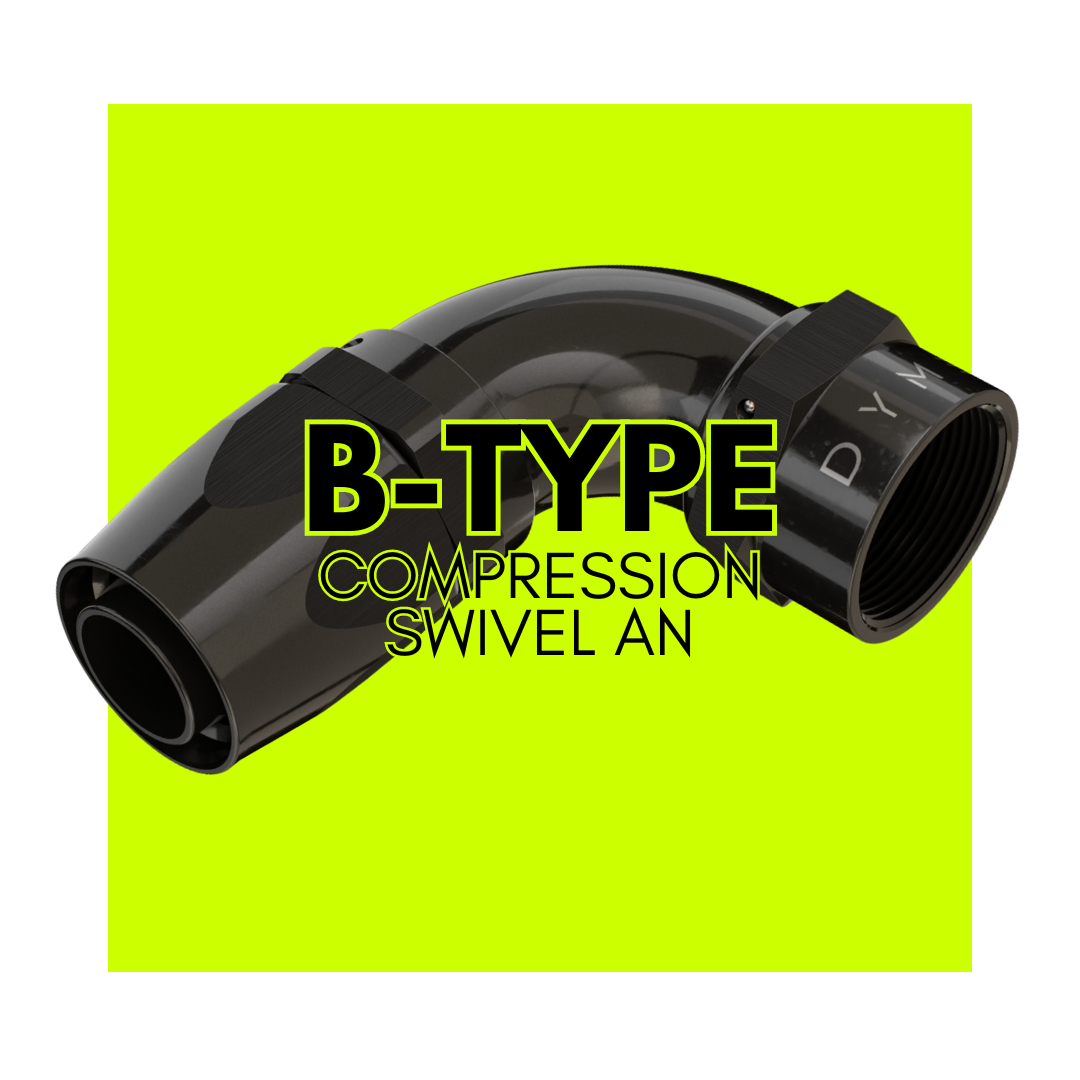

  • Dyme B-Type Compression Swivel AN fitting for E85 hose

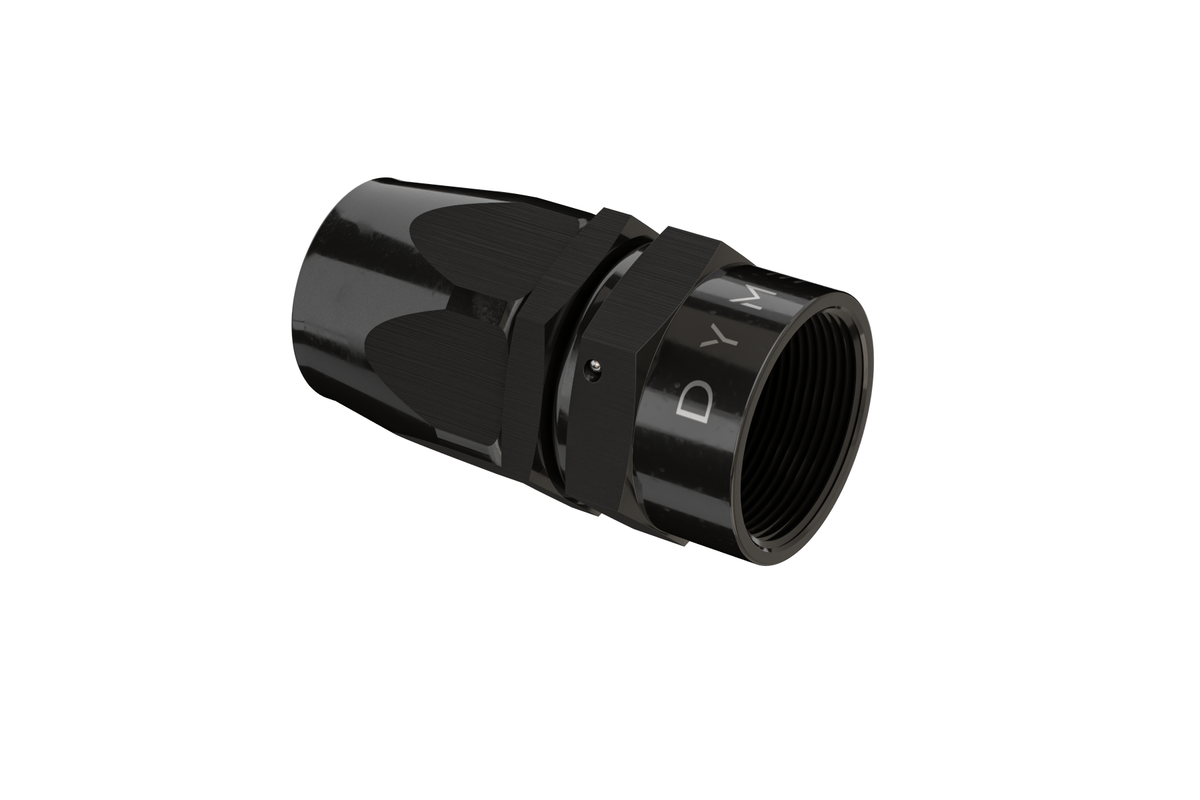

  • Dyme SUPERSTRASSE-C crimp fitting for E85 rubber hose.

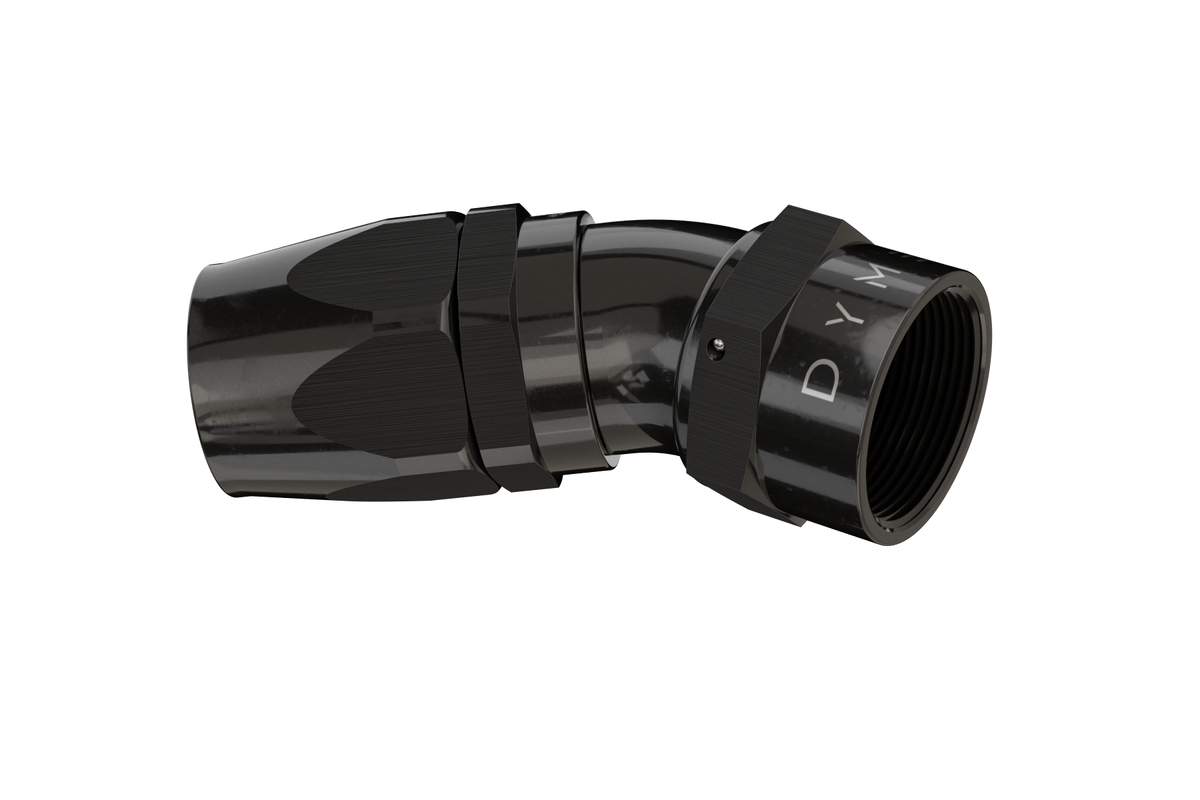

  • Dyme SUPERSTRASSE-C crimp fitting for CPE rubber E85 hose

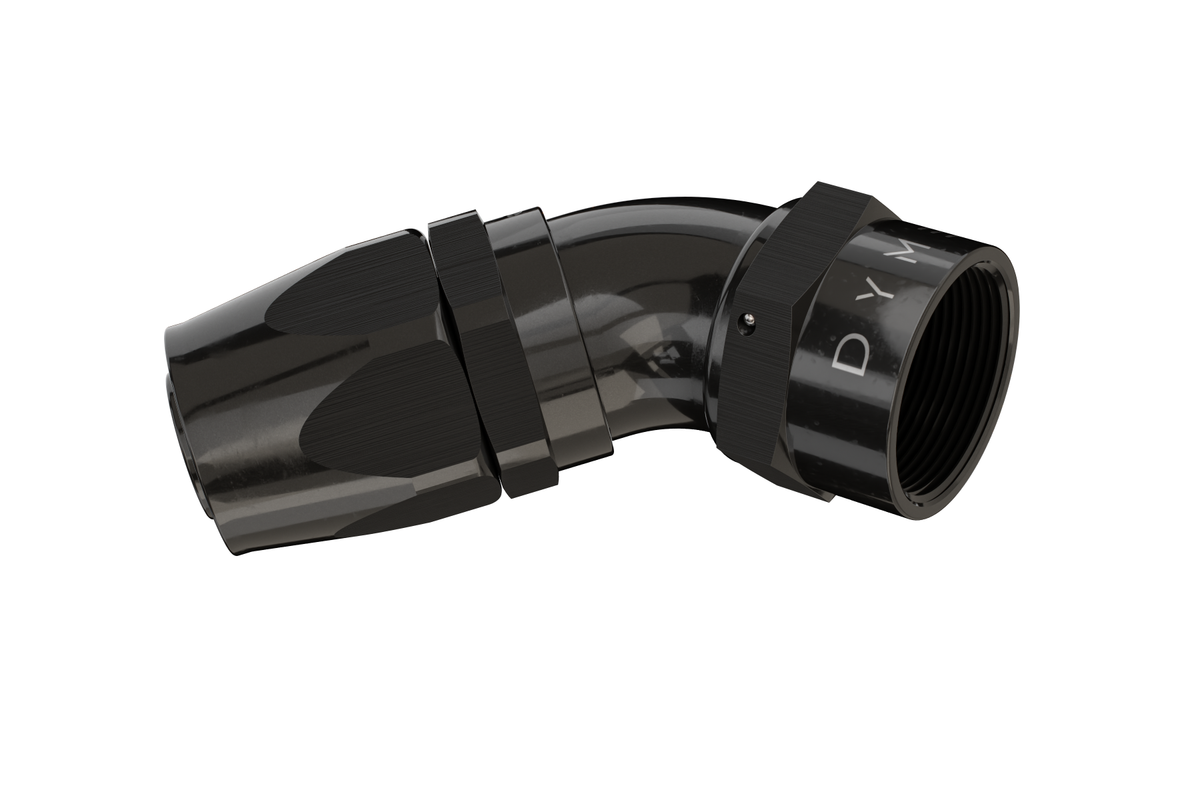

  • Dyme SUPERSTRASSE-C crimp type hose fitting for E85 hose

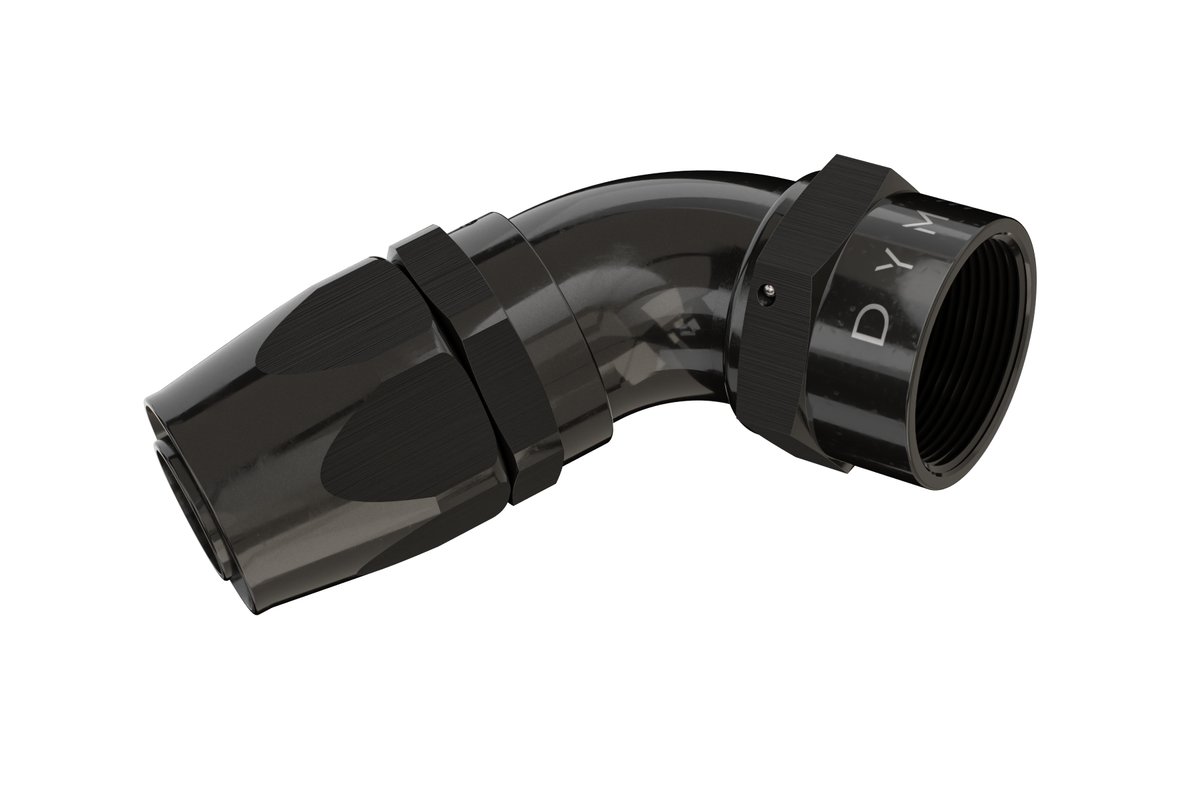

  • Dyme Superstrasse-C black curved crimp type hose fitting

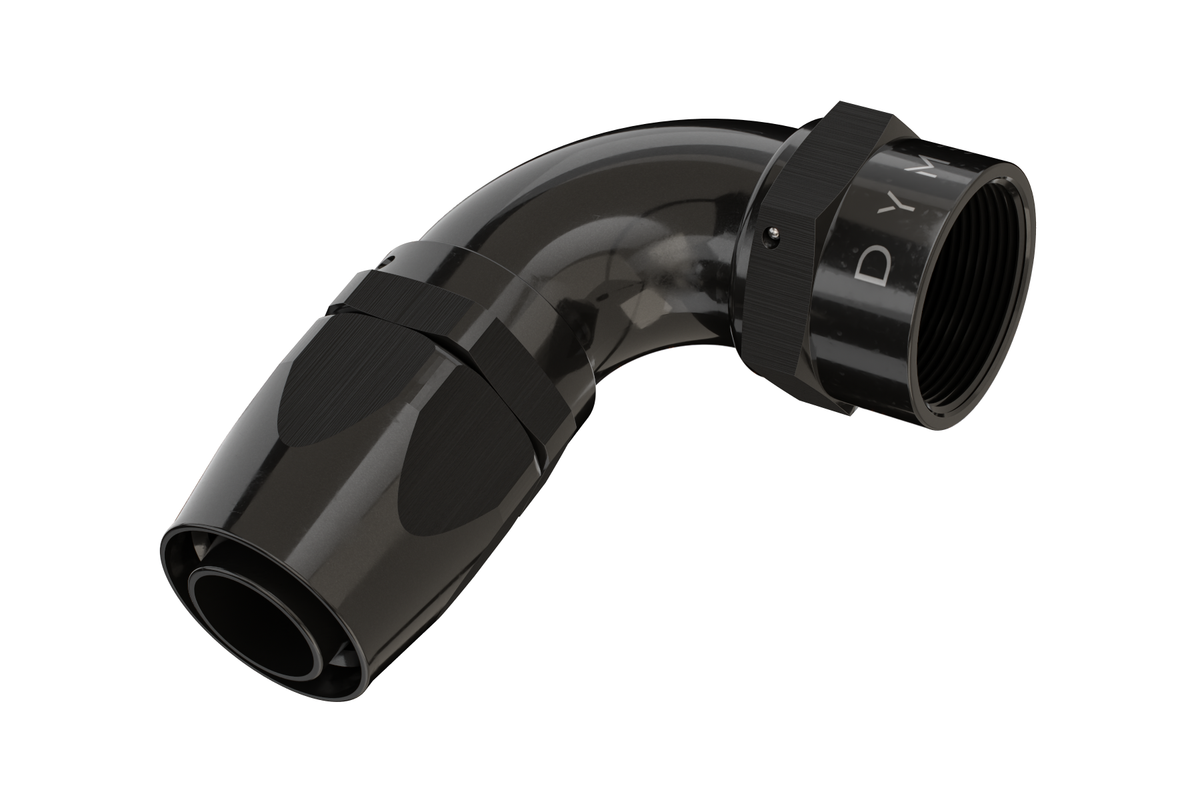

  • Dyme Superstrasse-C black curved crimp type hose fitting

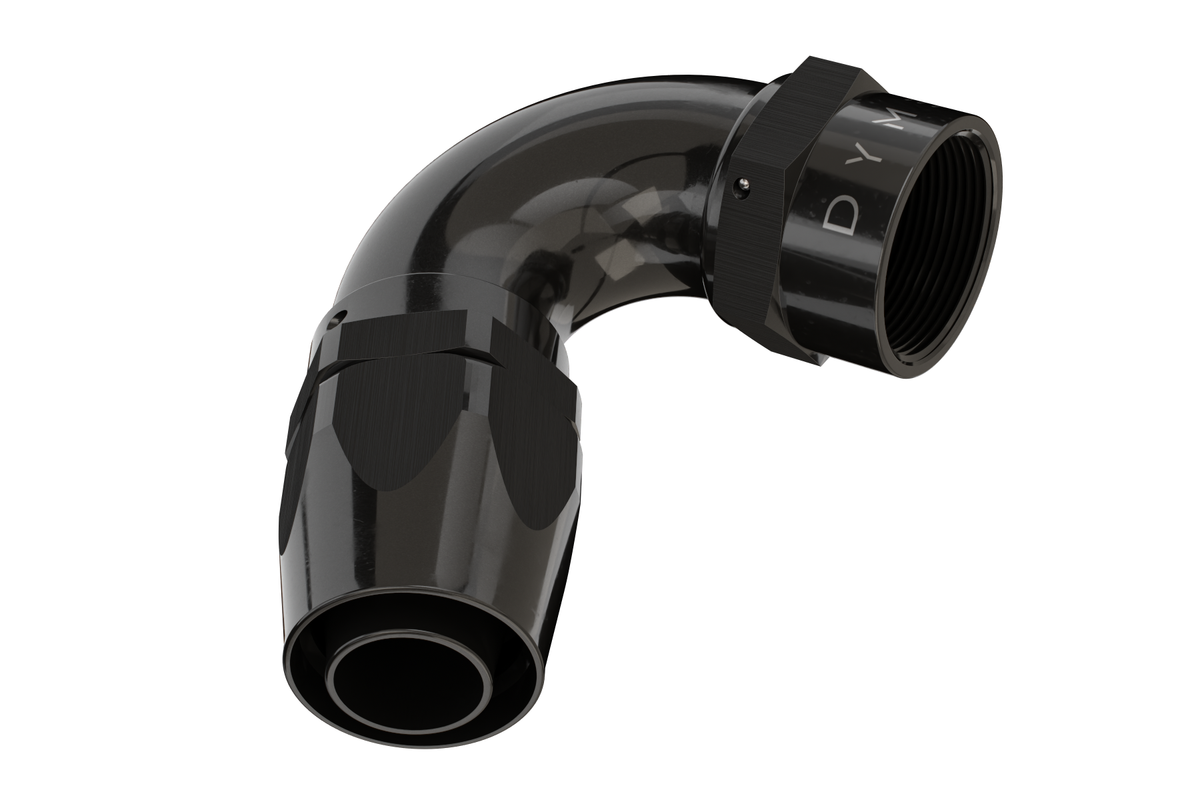

  • Black 90-degree Dyme SUPERSTRASSE-C crimp hose fitting.

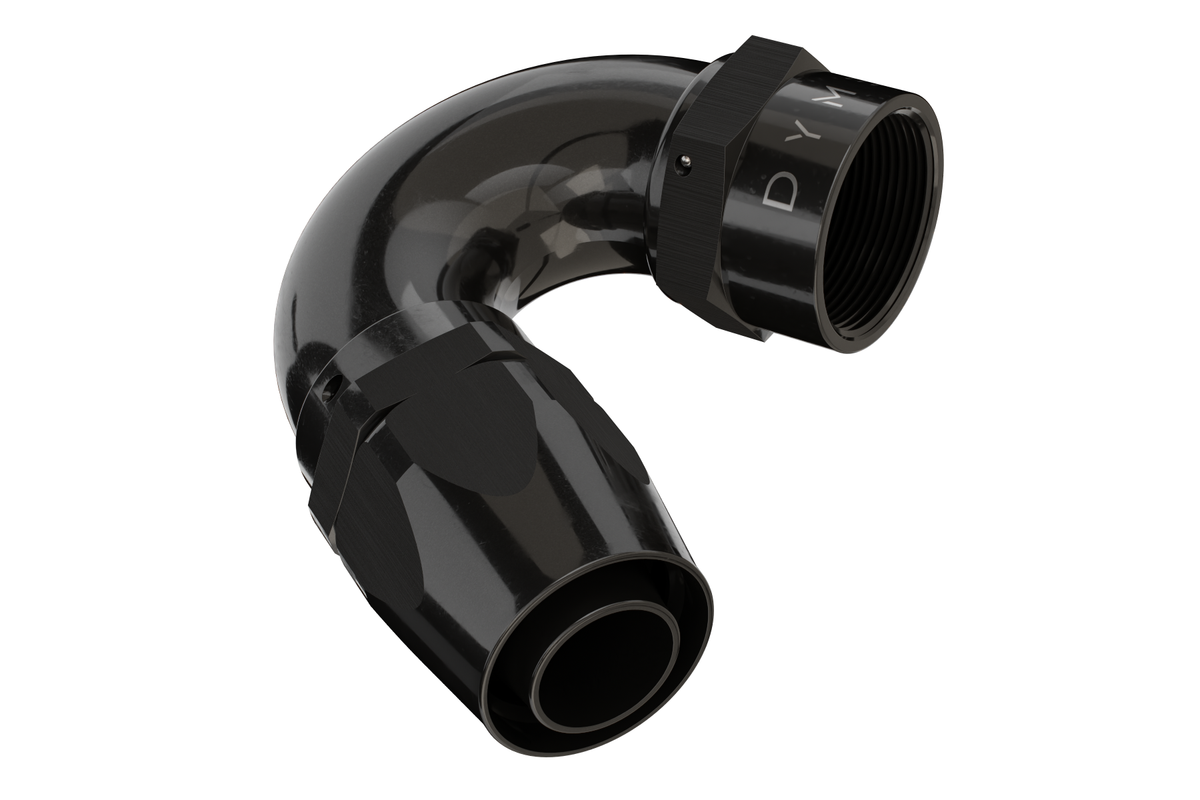

  • Black Dyme SUPERSTRASSE-C crimp fitting for E85 hose

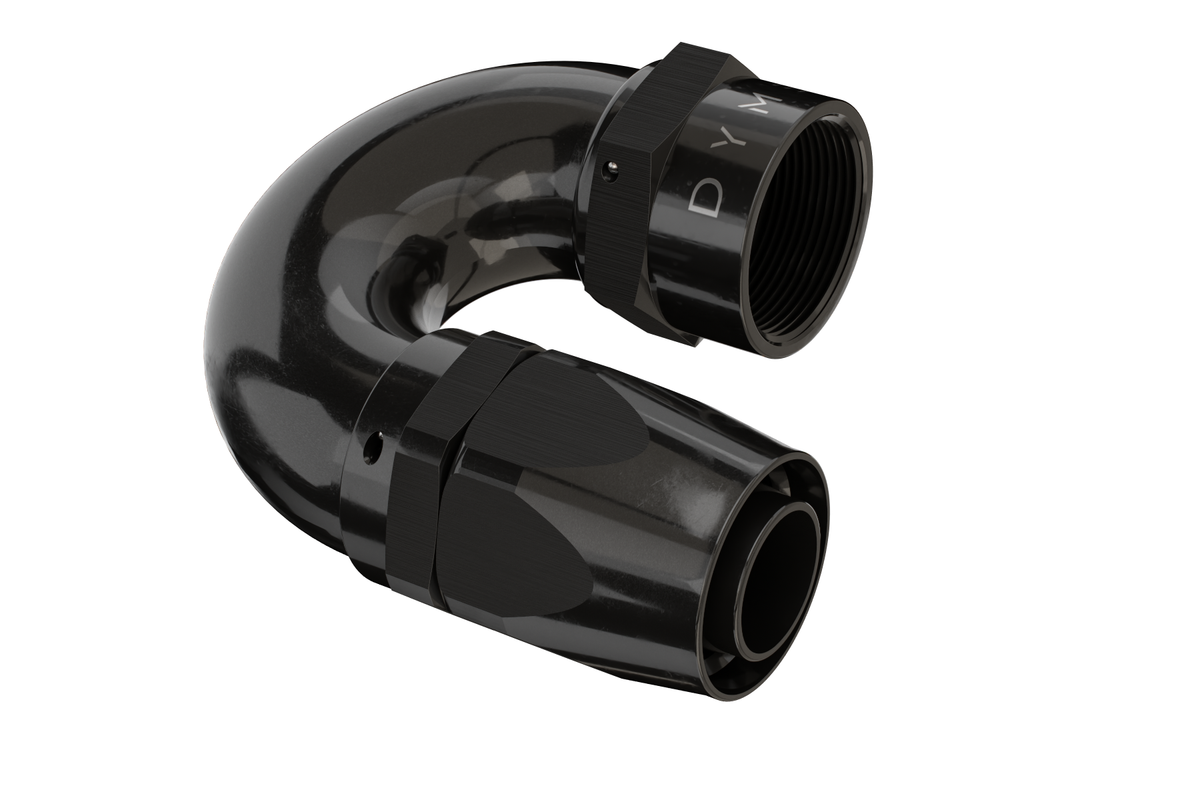

  • Dyme SUPERSTRASSE-C crimp type black hose fitting.

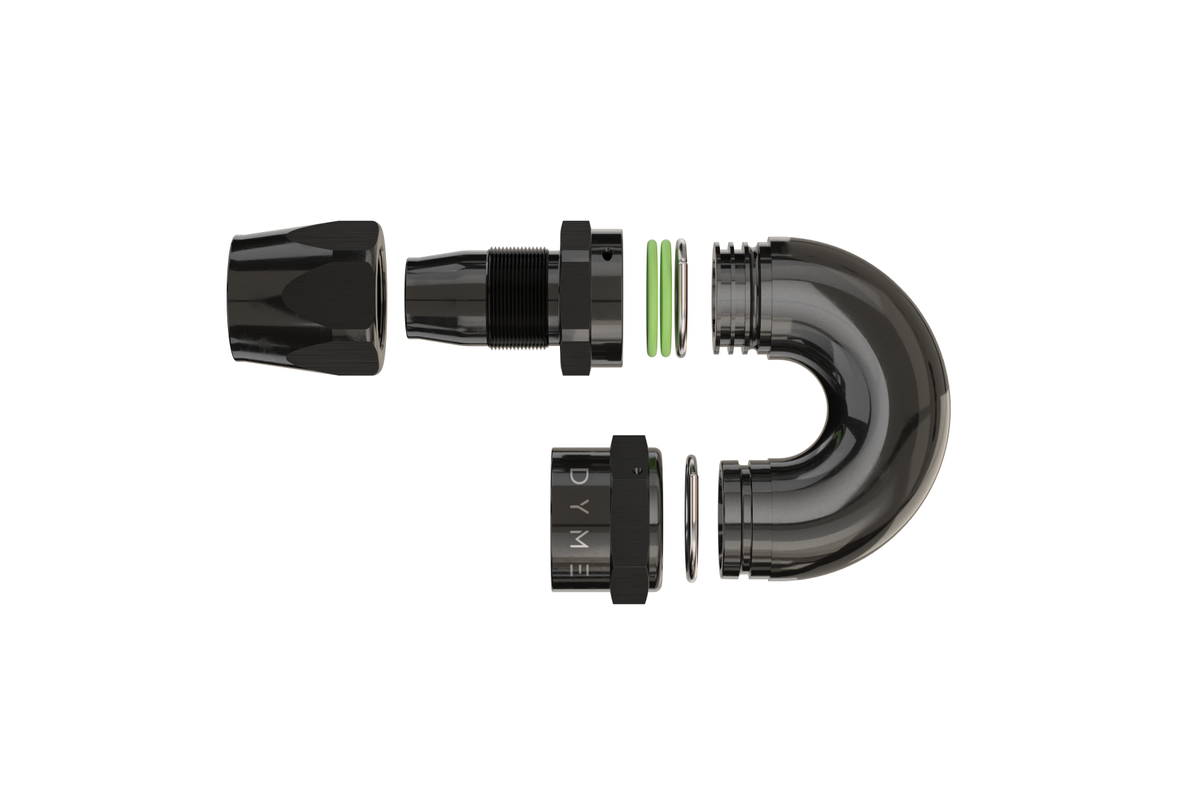

  • Exploded view of Dyme SUPERSTRASSE-C crimp hose fittings.

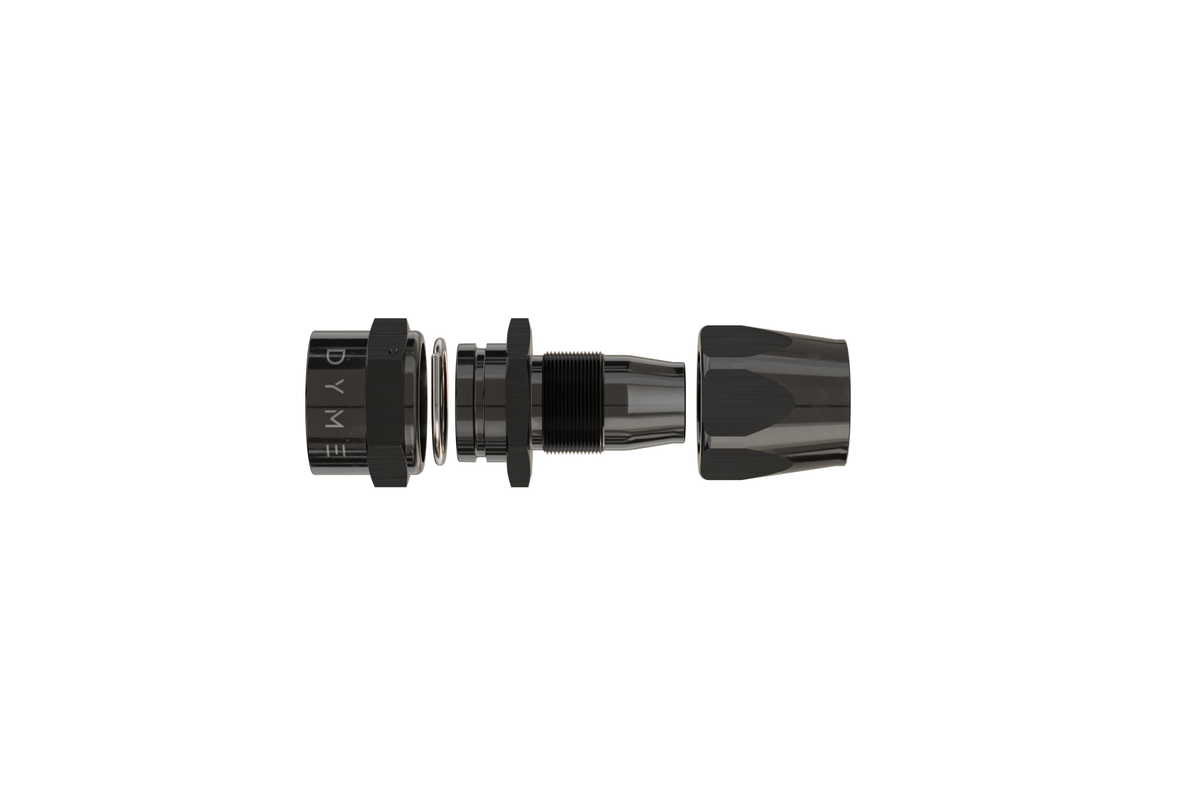

  • Dyme SUPERSTRASSE-C crimp type hose fitting components

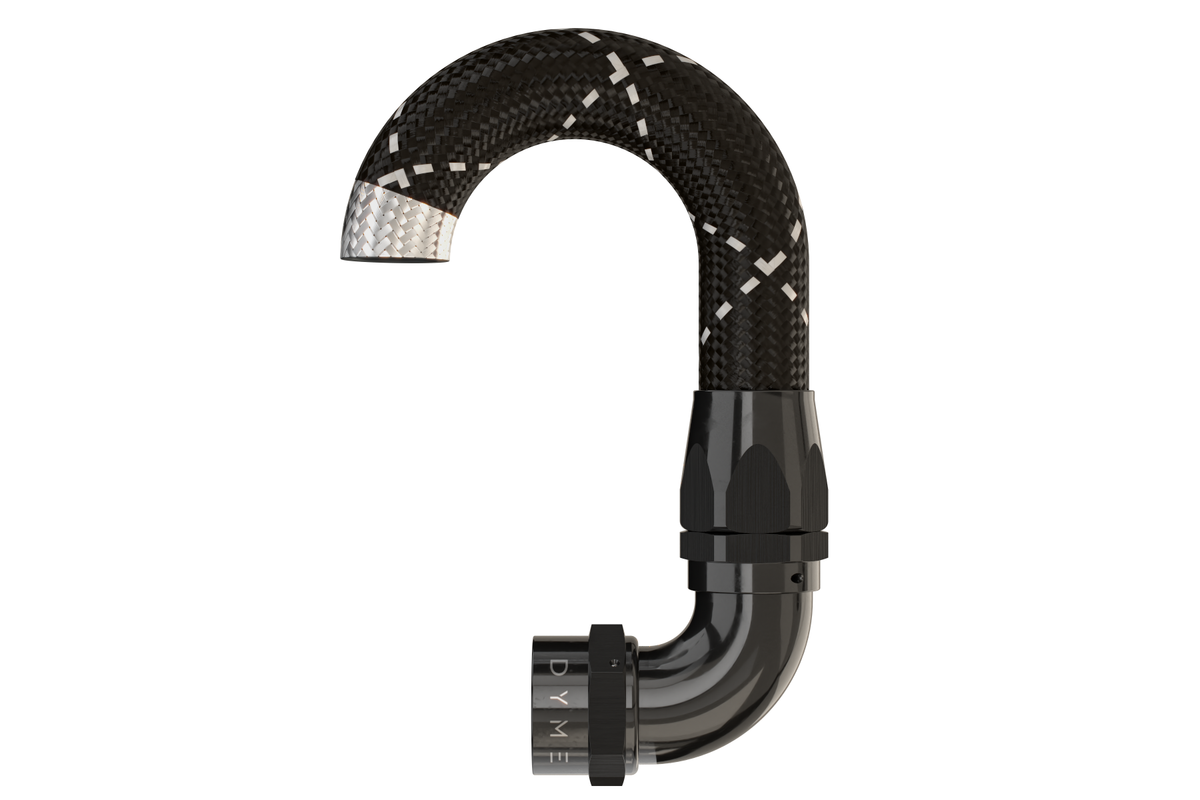

  • Dyme SUPERSTRASSE-C crimp type CPE rubber E85 hose

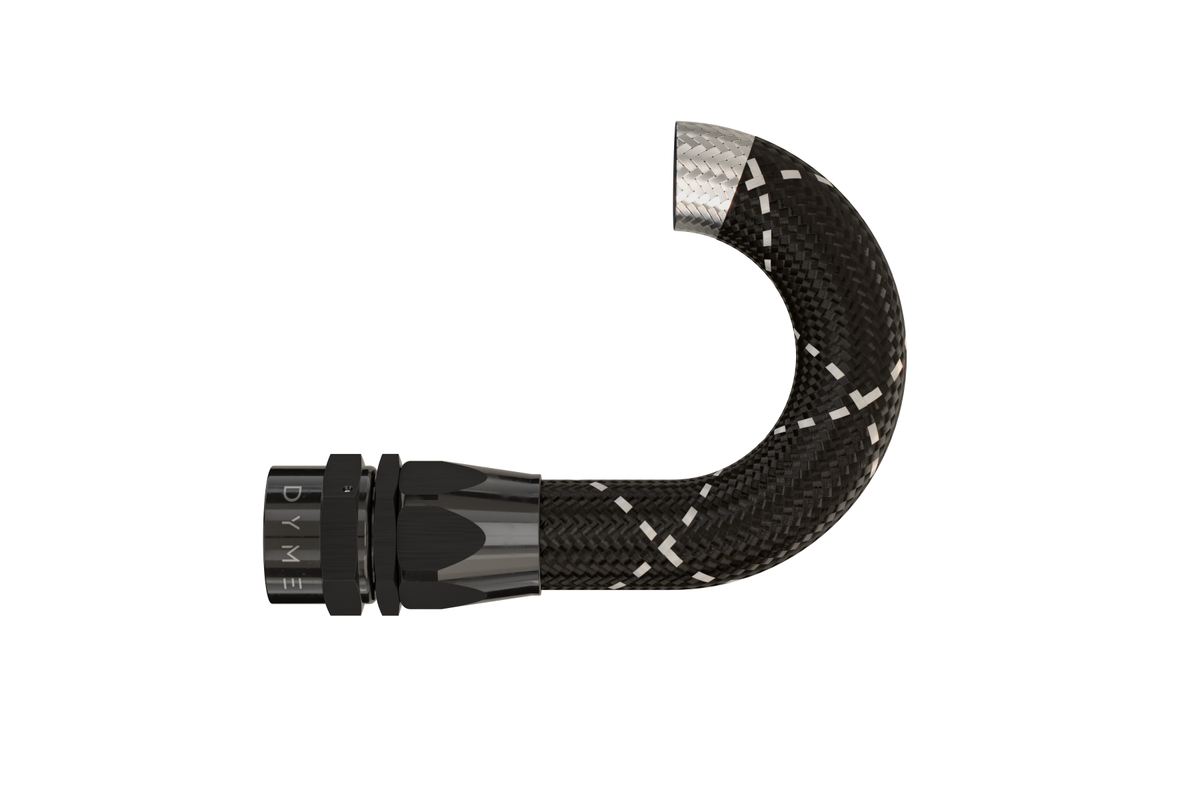

  • Dyme SUPERSTRASSE-C CPE Rubber E85 Hose with crimp fitting
Dyme FATBOY B-Type Reusable AN Swivel

Dyme FATBOY B-Type Reusable AN Swivel

$24.66
$24.66

Free shipping within the contiguous United States. Exclusions apply.

Dyme FATBOY B-Type AN/JIC Reusable Compression Swivel Fitting: Experience field-serviceable flexibility with a one-piece, thick-tube, no-weld reusable compression design, dual FLUOROK™-P FKM sealing, and 180° swivel angle adjustment. Built for use with Dyme SUPERSTRASSE CPE (reusable type) rubber hose, it is assembled with a left-hand threaded compression nut and requires no crimp equipment.



KEY FEATURES

  • 6061-T6 Billet Aluminum Body: Black anodized for corrosion resistance and durability. One-piece, thick-tube, no-weld construction for strength and reliability.

  • 180° Swivel Adjustment: Straight-through-to-180° swivel angle adjustment helps simplify hose routing and alignment in tight spaces.

  • Dual FLUOROK™-P FKM Seals: Dual-seal swivel design for reliable sealing and added redundancy.

  • Reusable Compression Design: Left-hand threaded compression nut for field assembly and service. No crimp equipment required.

  • Thick-Tube No-Weld Construction: One-piece body eliminates welded weak points where possible for reliable performance.

  • AN/JIC Compatibility: Designed for AN/JIC hose assemblies and high-performance fluid systems.



COMPATIBILITY

  • Compatible with Dyme SUPERSTRASSE CPE (reusable type) rubber hose. Dyme cannot endorse or guarantee the performance of non-Dyme hose combinations.

  • Fluid Compatibility: Confirm media compatibility for your hose and seal selection at https://www.dymepsi.com/technical.



⚠️ IMPORTANT ASSEMBLY NOTE
FATBOY C-Type & B-Type compression-style fittings feature a left-hand threaded compression nut. Screw this nut onto the rubber hose in a left-handed direction until it bottoms out on the hose. Then screw the lubricated male side of the fitting into the nut and hose combination until bottomed out. Mark the position of the hose in the nut to ensure the hose is not pushed out during assembly. Follow the assembly instructions at https://www.dymepsi.com/technical.



WHY CHOOSE FATBOY?

  • Reusable Field-Serviceable Convenience: Compression-style design allows assembly and service without crimp equipment.

  • Flexible Routing: 180° swivel adjustment for easier installation in confined areas.

  • Reliable Sealing: Dual FLUOROK™-P FKM seals.

  • Engineered Durability: Billet aluminum, thick-tube, no-weld construction.

  • Hose System Compatibility: Works with Dyme SUPERSTRASSE CPE (reusable type) rubber hose.
