AEM X-Series Wideband Air Fuel Sensor Controller Gauge A/F AF Ratio UEGO AFR New

-31%

$178.35

$257.96

Free Shippping Icon

Barcode: 30-0300

Product Information: This listing is for AEM’s X-Series Wideband UEGO Air/Fuel Ratio Sensor Controller Gauges are built upon unique, patent-pending X-Digital technology that makes them the fastest responding wideband air/fuel ratio controllers in independent testing against 17 other wideband UEGO air/fuel controllers. The X-Series Wideband UEGO AFR Gauge has a user configurable display via buttons on the gauge face that allow...

Product Information:

This listing is for AEM’s X-Series Wideband UEGO Air/Fuel Ratio Sensor Controller Gauges are built upon unique, patent-pending X-Digital technology that makes them the fastest responding wideband air/fuel ratio controllers in independent testing against 17 other wideband UEGO air/fuel controllers. The X-Series Wideband UEGO AFR Gauge has a user configurable display via buttons on the gauge face that allow you to change AFR values for different fuels, Lambda or O2%, change the center display to three or four digits, perform a free-air calibration if desired as the sensor ages, and change the CAN message ID when linking multiple X-Series Inline Controllers or X-Series Controller Gauges. A black bezel and black dual-faced face plate for air/fuel and Lambda are included, and an optional silver bezel with white dual-faced air/fuel and Lambda face plate is available (PN 30-0300-ACC, sold separately). An Auto Dimming feature is included. Locking connectors ensure a positive connection between the harnesses and gauge and a new single board design adds to the new gauge’s durability.

Features:

  • X-Series Wideband UEGO AFR Controller Gauge were fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitor wideband AFR controllers

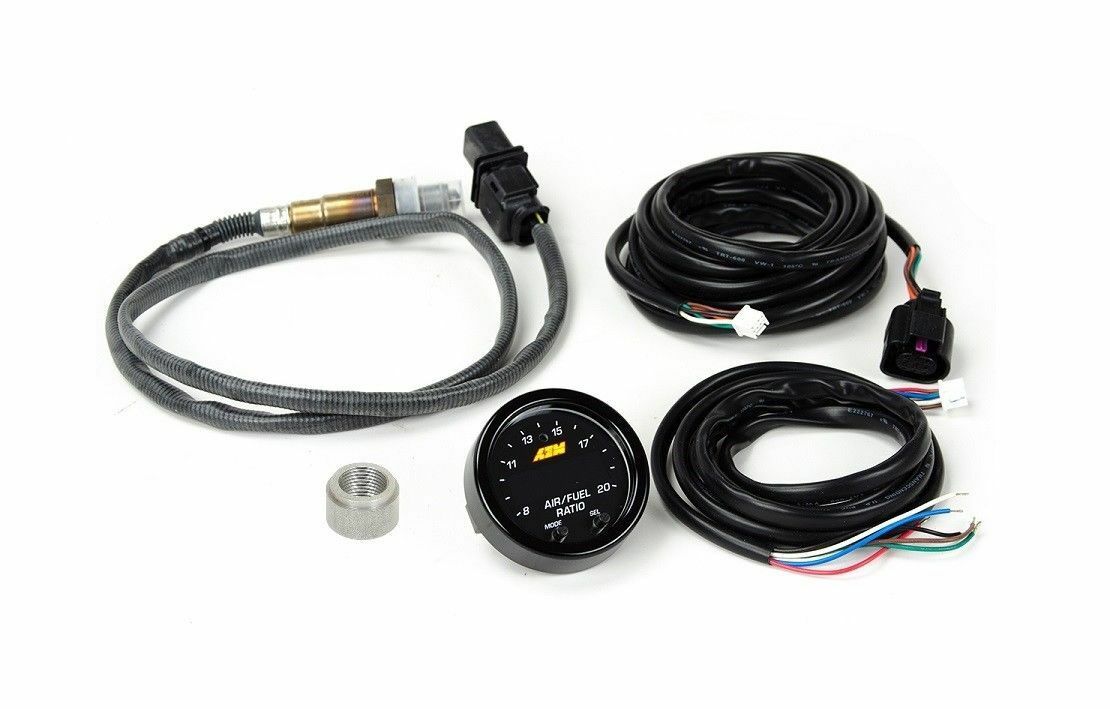

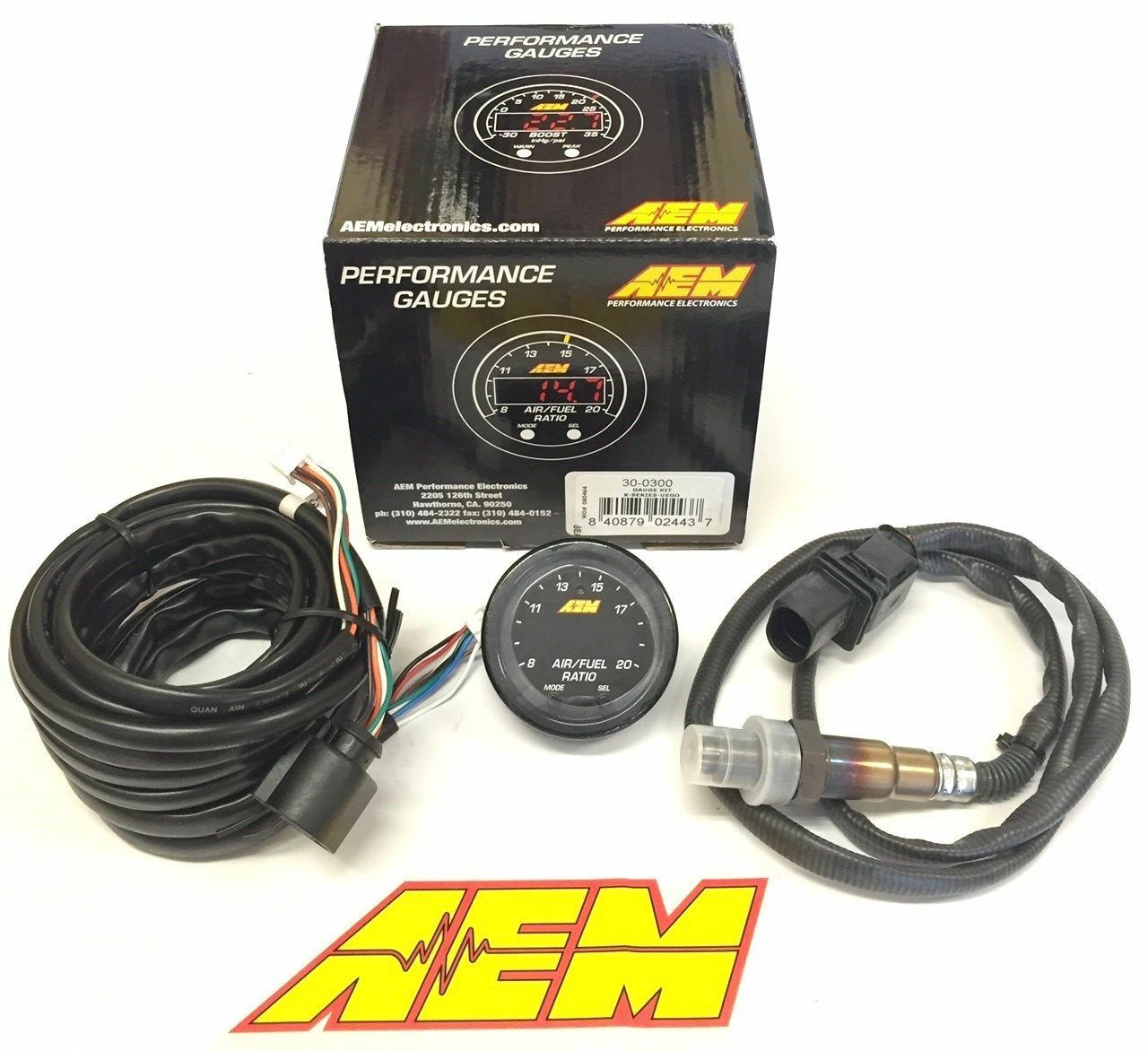

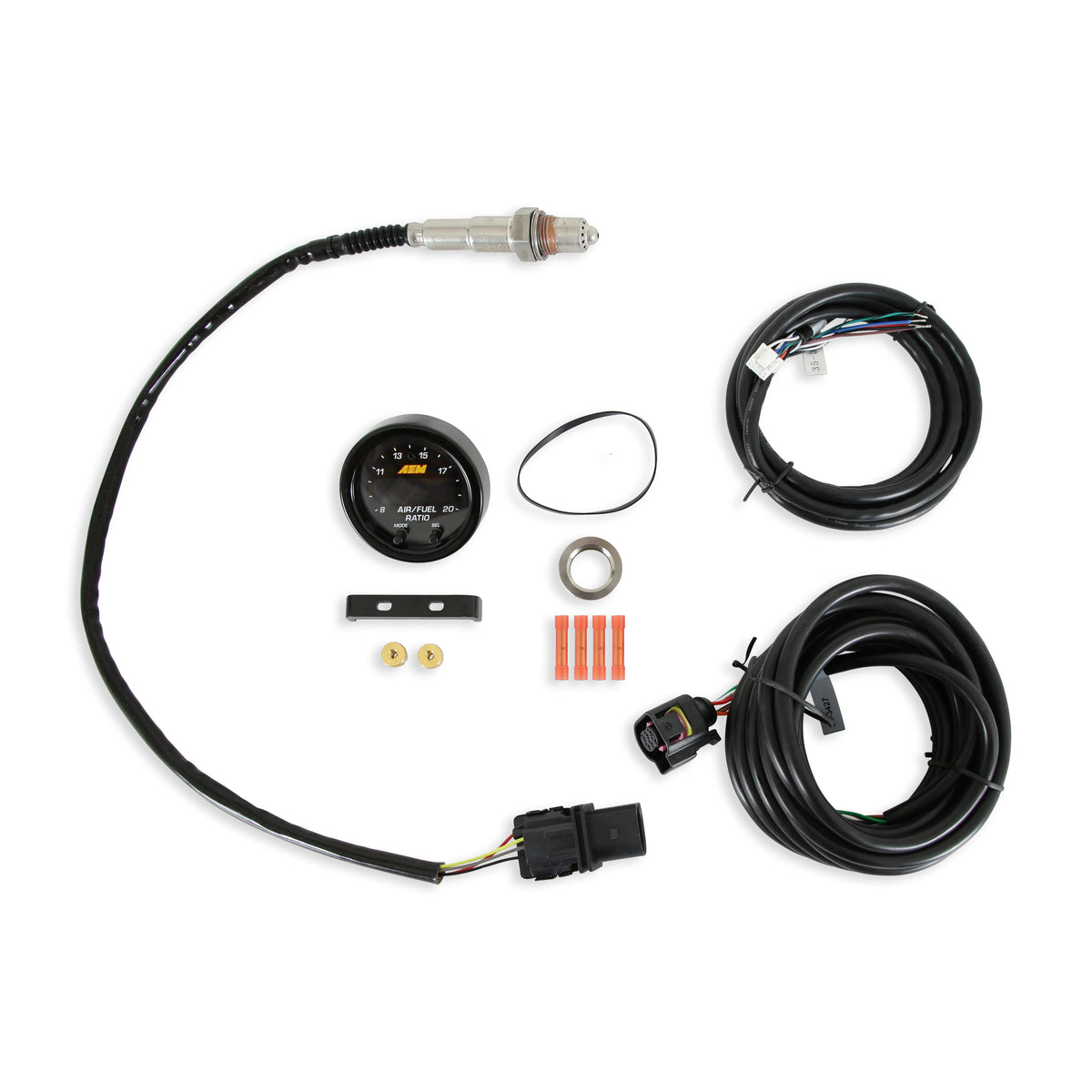

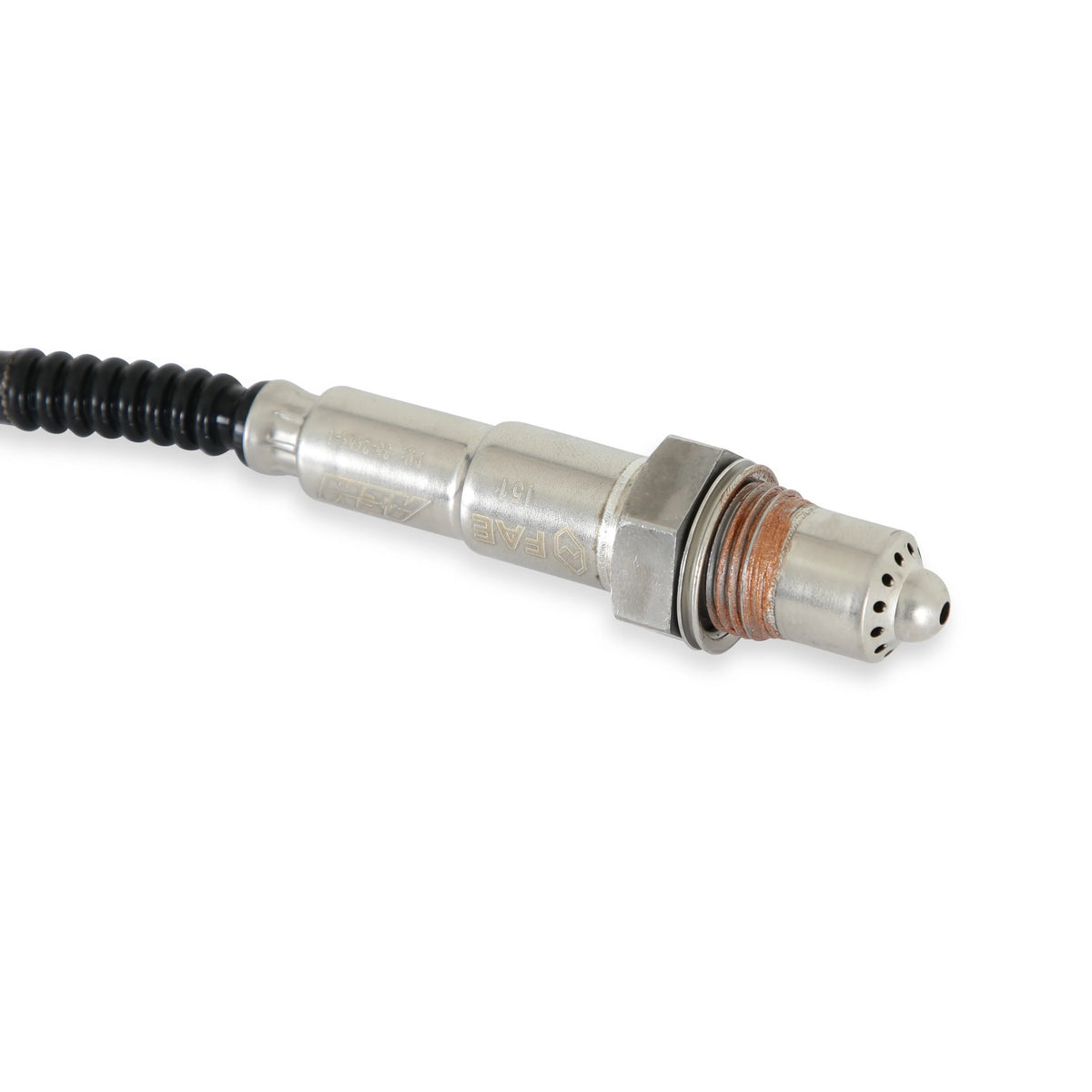

  • Includes Bosch 4.9LSU wideband UEGO sensor
  • Factory calibrated resistor does not require free-air calibration, but technology allows for free-air calibration as sensor ages if user desires
  • Compatible with vehicle/system voltages up to 16V
  • 0-5V & RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders
  • Can display AFR values in hundredths of %

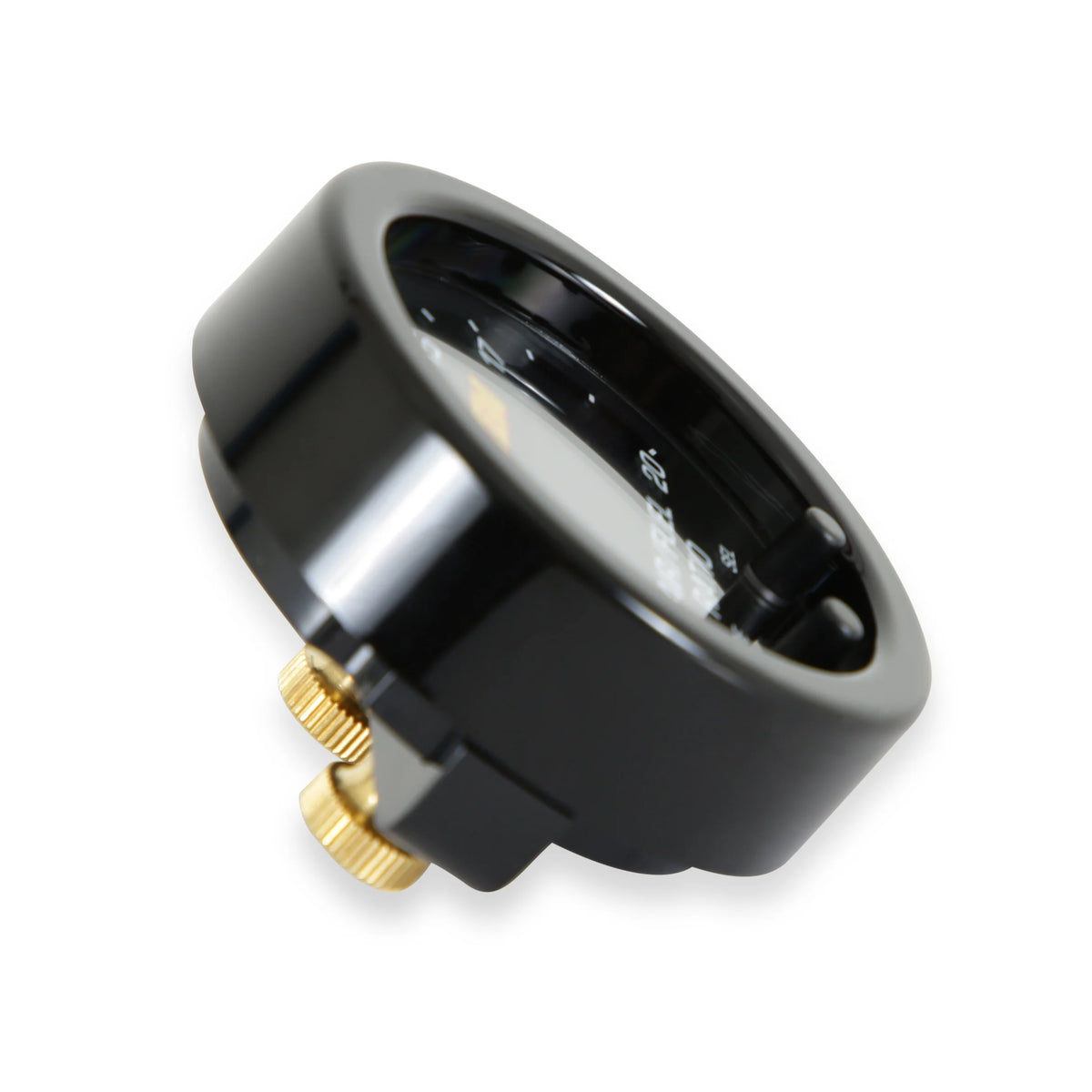

  • 52mm gauge diameter and slim 0.825” gauge depth
  • Gauge cup depth only .200” deep!
  • Auto dimming feature

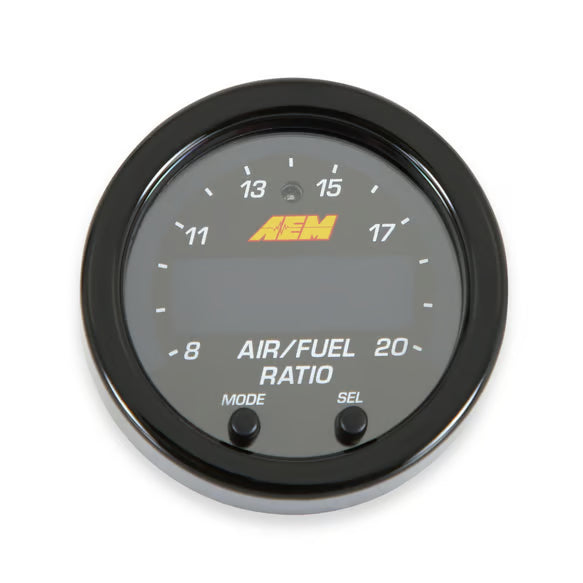

  • User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, and 3- or 4-digit display
  • Black bezel and black dual faced face plate included (gauge only, silver bezel/white gauge option sold separately, PN 30-0300-ACC)

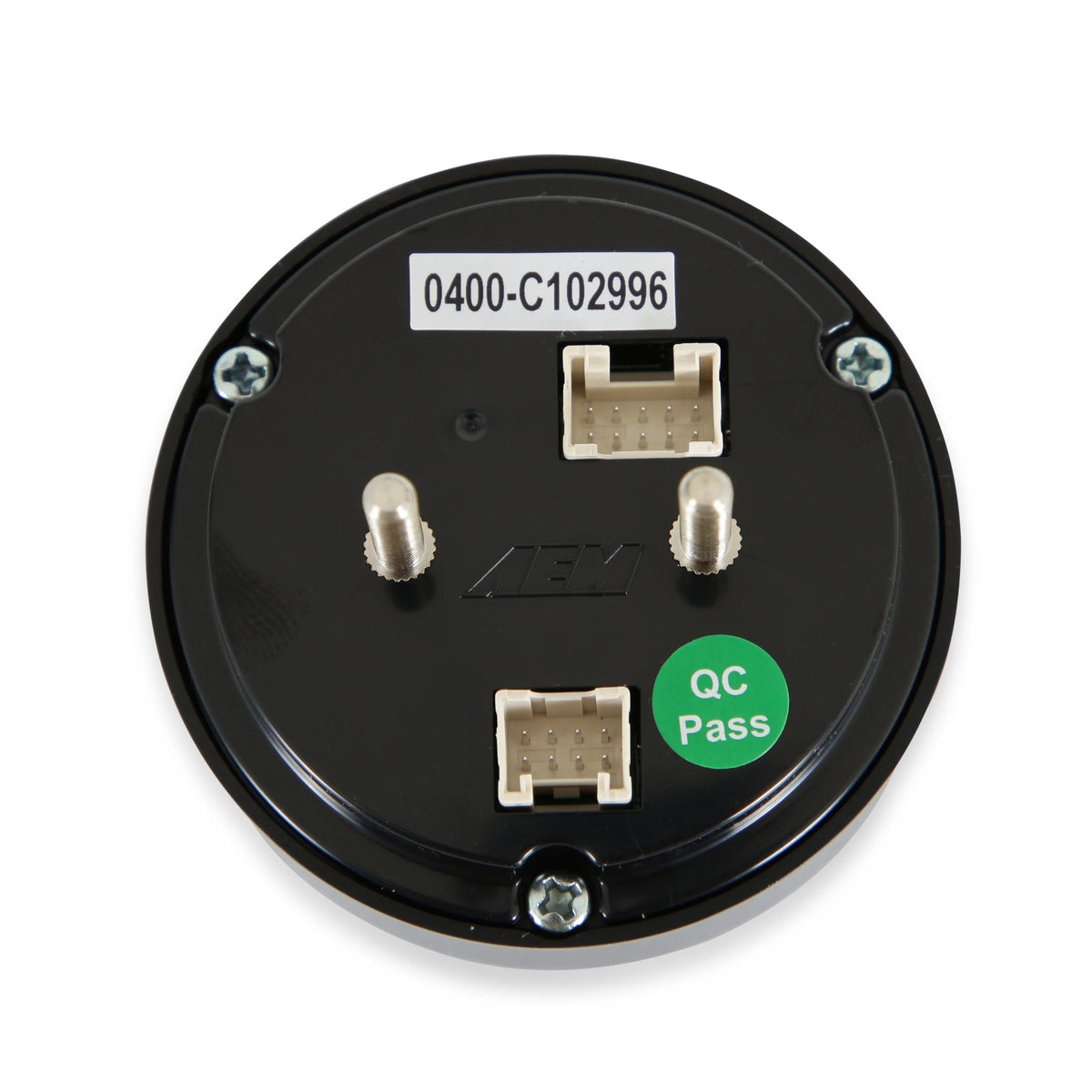

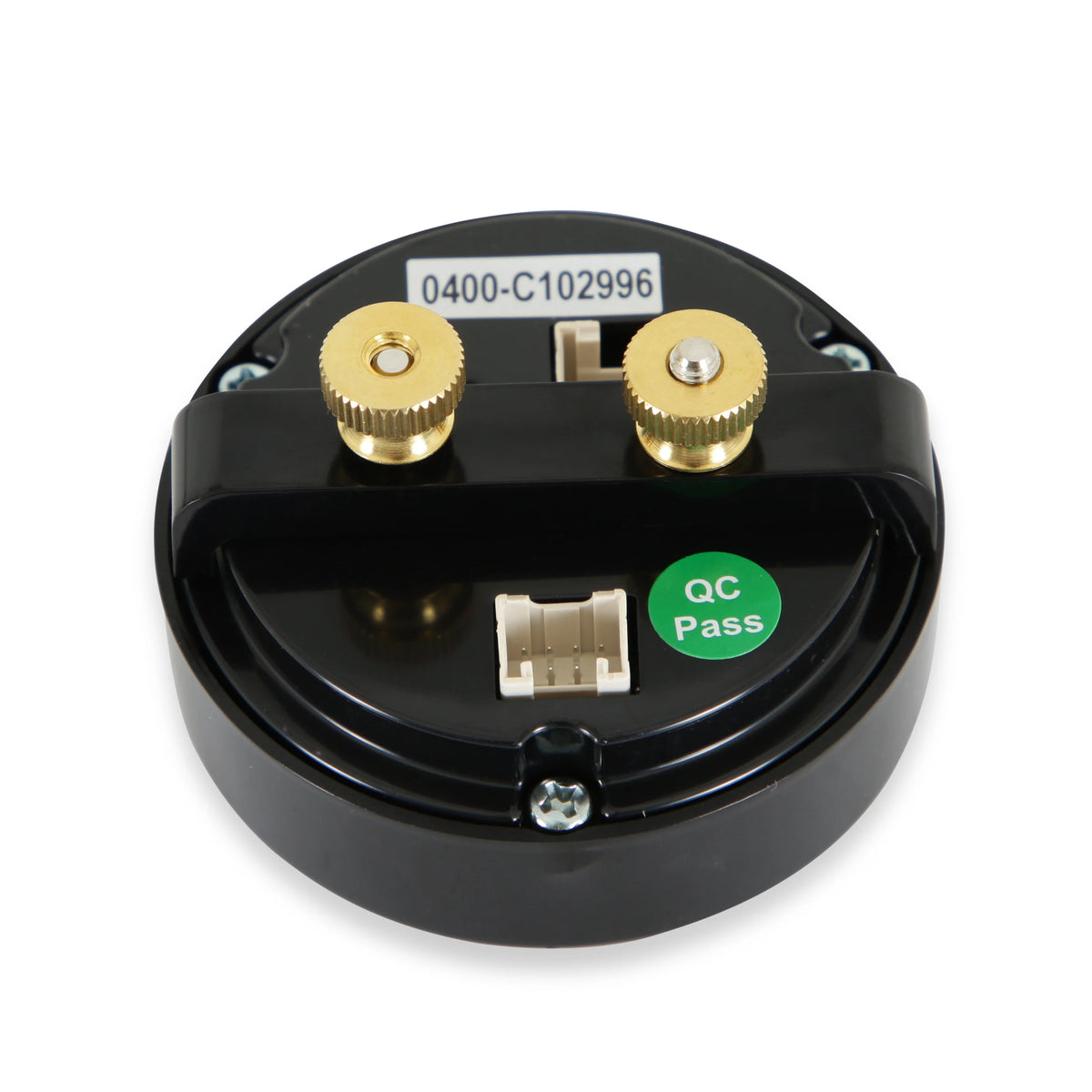

  • Locking connectors
Specs:

  • Display Gasoline values from 8.0:1 to 20.0:1 AFR
  • Display Lambda values from .55 to 2.00
  • 0-5V Output Gasoline values from 8.5:1 to 18.0:1 AFR
  • CANbus Output Gasoline values from 8.0:1 to 20.0:1 AFR
  • CANbus Output Lambda values from .55 to 2.00
  • 0-5V Output Lambda values from .58 to 1.23
  • 0-5V Output E85 values from 5.7:1 to 12.0:1 AFR
  • 0-5V Output Ethanol values from 5.2:1 to 11.0:1 AFR
  • 0-5V Output Methanol values from 3.75:1 to 8.0:1 AFR
