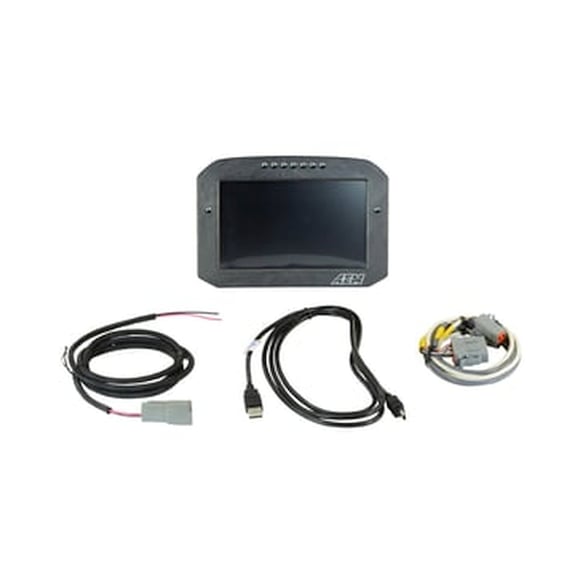

30-5700F — AEM CD-7F DIGITAL DASH
AEM Electronics part 30-5700F is designed for automotive performance and instrumentation applications.
Product Details
- AEM CD7 Carbon Digital Flat Panel Displays have a compact enclosure that makes them perfect for flush mount installation or in-dash installations with tight tolerances. They include all of the robust features found in the original CD-7 Carbon Dash, but do not have buttons or an LED shade hood built into the...
- Wiring interface/harnesses are identical between all CD Carbon Dashes
- Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
- Accepts channels from AEMnet CAN-enabled devices and non-AEM CAN bus devices side by side
- Use the included page layouts and input your channels and text, or create your own from scratch
- Two programmable LEDs
Specifications
| Ammeter Gauge Included | n/a |
|---|---|
| Brand | AEM |
| Built-in Buttons | No |
| CAN Ready | Yes |
| Category | Gauges and Gauge Accessories |
| Color | Black Carbon Composite |
| Datalogging | No |
| Depth | 3.1 |
| Emission Code | 5 |
| Enclosure Material | Carbon Fiber |
| External Buttons Required | Yes |
| Gauge Face Color | n/a |
| GPS | No |
| GPS Included | No |
| Grade Type | Performance |
| Harness Included | Yes |
| Illuminated | Yes |
| IP Rating | IP65 |
| Logging | No |
| Logging Speed | n/a |
| Material | Carbon Fiber Composite |
| Maximum Gauge Diameter | n/a |
| OEM Replacement | No |
| part type | Digital Display |
| Pointer Color | n/a |
| Product Type | Dash |
| Screen Size | 7 Inch Diagonal |
| Sub Category | Instrument Panel |
| Terminal Quantity | 12 |
| Touchscreen | No |
| Universal Or Specific Fit | Universal |
| Warranty | Manufacturer's 1 Year Warranty |
| Wire Gauge Measurement | 20 |
| Wire Quantity | 12 |
| Wiring Harness Included | Yes |
| Wiring Harness Length | 48 |
| UPC | 840879026448 |
| Part Number | 30-5700F |
Warranty & Emissions
Manufacturer warranty and emissions eligibility apply as stated by the manufacturer. Verify local requirements before installation.
