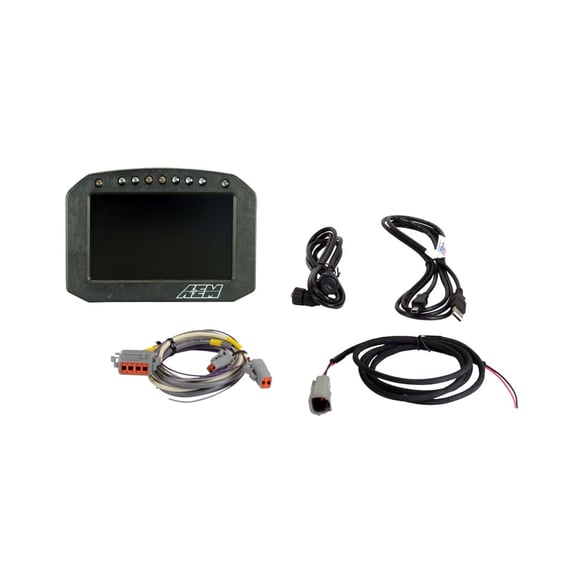

30-5601F — AEM CD-5FL CARBON FLAT PANEL LOGGING DISPLAY
AEM Electronics part 30-5601F is designed for automotive performance and instrumentation applications.
Product Details
- AEM CD5 Carbon Flat Panel Digital Displays are perfect for flush mount installation or in-dash enclosures with tight tolerances. They include all of the robust features found in the original CD-5 Carbon car dashboard monitors, but do not have buttons or an LED shade hood built into the enclosure. AEM CD5 Carbon...
- Accepts channels from AEMnet CAN-enabled devices and non-AEM CAN bus devices side by side
- Available with or without 200Mb internal logging (up to 1,000Hz/channel)
- User supplied graphics can be changed based on channel values (up to the full screen size)
- Available with or without onboard 20 Hz GPS receiver and antenna
- Wiring interface/harnesses are identical between all CD Carbon Dashes
Specifications
| Ammeter Gauge Included | n/a |
|---|---|
| Analog Or Digital | Digital |
| Brand | AEM |
| Built-in Buttons | No |
| CAN Ready | Yes |
| Category | Gauges and Gauge Accessories |
| Color | Black Carbon Composite |
| Connector Quantity | 2 |
| Datalogging | Yes |
| Depth | 3.1 |
| Emission Code | 5 |
| Enclosure Material | Carbon Fiber |
| External Buttons Required | Yes |
| Gauge Face Color | n/a |
| Gauge Quantity | 1 |
| GPS | No |
| GPS Included | No |
| Grade Type | Performance |
| Harness Included | Yes |
| Illuminated | Yes |
| IP Rating | IP65 |
| Logging | Yes |
| Logging Speed | 1,000Hz/channel |
| Material | Carbon Fiber Composite |
| Maximum Gauge Diameter | n/a |
| OEM Replacement | No |
| part type | Digital Display |
| Pointer Color | n/a |
| Product Type | Dash |
| Screen Size | 5 Inch Diagonal |
| Sub Category | Instrument Panel |
| Terminal Quantity | 12 |
| Touchscreen | No |
| Universal Or Specific Fit | Universal |
| Warranty | Manufacturer's 1 Year Warranty |
| Wire Gauge Measurement | 20 |
| Wire Quantity | 12 |
| Wiring Harness Included | Yes |
| Wiring Harness Length | 48 |
| UPC | 840879026417 |
| Part Number | 30-5601F |
