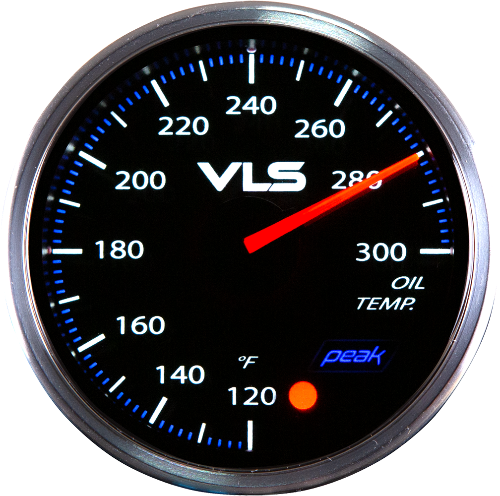

Tanabe Revel VLS II Analog Gauge - Oil Temperature

-11%

$140.00

$158.00

Free Shippping Icon

Barcode: 1TR1AB003

  • Brand: Revel
  • Availability: In Stock

The Revel VLS II Oil Temperature analog gauge monitors oil temperature starting from 120º F up to 300º F. The new brushless motor provides quiet and smooth operation for the utmost accurate reading. The included external remote controls functions such as peak/hold setting, choosing from two LED backlight colors, and their LED backlight brightness levels. This kit is included with...

The Revel VLS II Oil Temperature analog gauge monitors oil temperature starting from 120º F up to 300º F. The new brushless motor provides quiet and smooth operation for the utmost accurate reading. The included external remote controls functions such as peak/hold setting, choosing from two LED backlight colors, and their LED backlight brightness levels. This kit is included with the oil temperature sensor and all the necessary wiring harnesses for a simple installation process.

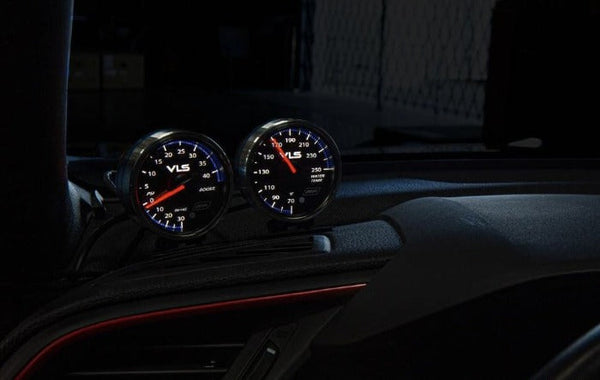

The Revel VLS II Oil Temperature analog gauge is daisy-chain compatible with the VLS II Boost analog gauge, VLS II Water Temperature analog gauge, and VLS II Oil Pressure analog gauge.

*VLS II gauges are daisy chain compatible only with VLS II analog gauges.

Features:

  • 52mm diameter analog gauge
  • 120º F to 300º F reading
  • Zero-friction brushless motor
  • Aluminum front bezel
  • Aluminum mounting ring
  • External remote included
  • White LED backlighting
  • Optional red LED backlighting
  • LED brightness adjustment
  • Peak/hold function w/ warning beep
  • Includes oil temperature sensor
  • Daisy chain connection

Kit Includes:

All Revel VLS II gauges are packaged with the associated sensor, mounting ring, remote and all necessary wiring.

  • (1) Oil Temperature (52mm)
  • (1) Power Harness
  • (1) Daisy Chain Harness
  • (1) Boost / Vacuum Sensor and Wiring Harness
  • (1) External Remote
  • (1) Mounting Ring
  • (1) Universal Mounting Base
  • (3) 3M Double Sided Tape
  • (2) Washers
  • (1) Nut
  • (1) Mounting Bolt
