Do you wish you had more wheel clearance at full lock?

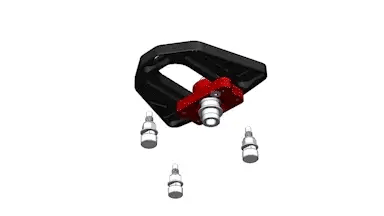

We can solve that now. Introducing Annex Suspension Caster and Camber Plates for the AE86!

Sold in pairs, these plates offer precise alignment adjustments and compatibility with Annex coilovers. These can also be used with other coilover struts such as BC, Feal Suspension, and Fortune Auto Coilovers. With up to 6 degrees of camber adjustment and 2 degrees of caster adjustment at the top of the strut, you can optimize your suspension geometry for better wheel clearance and handling.

Caster adjustable camber plates (CasCam) sometimes have issues with the hardware falling out when you go to install them.  Not with these!  We developed our very own super high strength chromoly studs that fit in captured channels with very precise tolerances.  The plates and bearing blocks are both made from aerospace-grade 7075 T6 aluminum with Type III HARD anodizing, these plates have a much higher ultimate strength than your typical 6061 camber plates.  The FK bearings are USA made tight tolerance, high strength steel balls with lowest slop available.  Ultra high-strength steel and nylon lock nuts, and the aforementioned studs ensure easy assembly and adjustment. Elevate your AE86’s performance with Annex Suspension CasCam plates.

Features:

- 6 degrees of camber adjustment
- Up to 2 degrees of caster adjustment
- Allows for better wheel clearance at full lock
- Optimize caster while maintaining wheel clearance
- FEA tested with a large safety factor
- Aerospace grade 7075 T6 Aluminum with HARD Anodizing
- In-house designed Chromoly Studs
- High Strength Steel Lock Nuts
- Captured studs for easy assembly and adjustment
